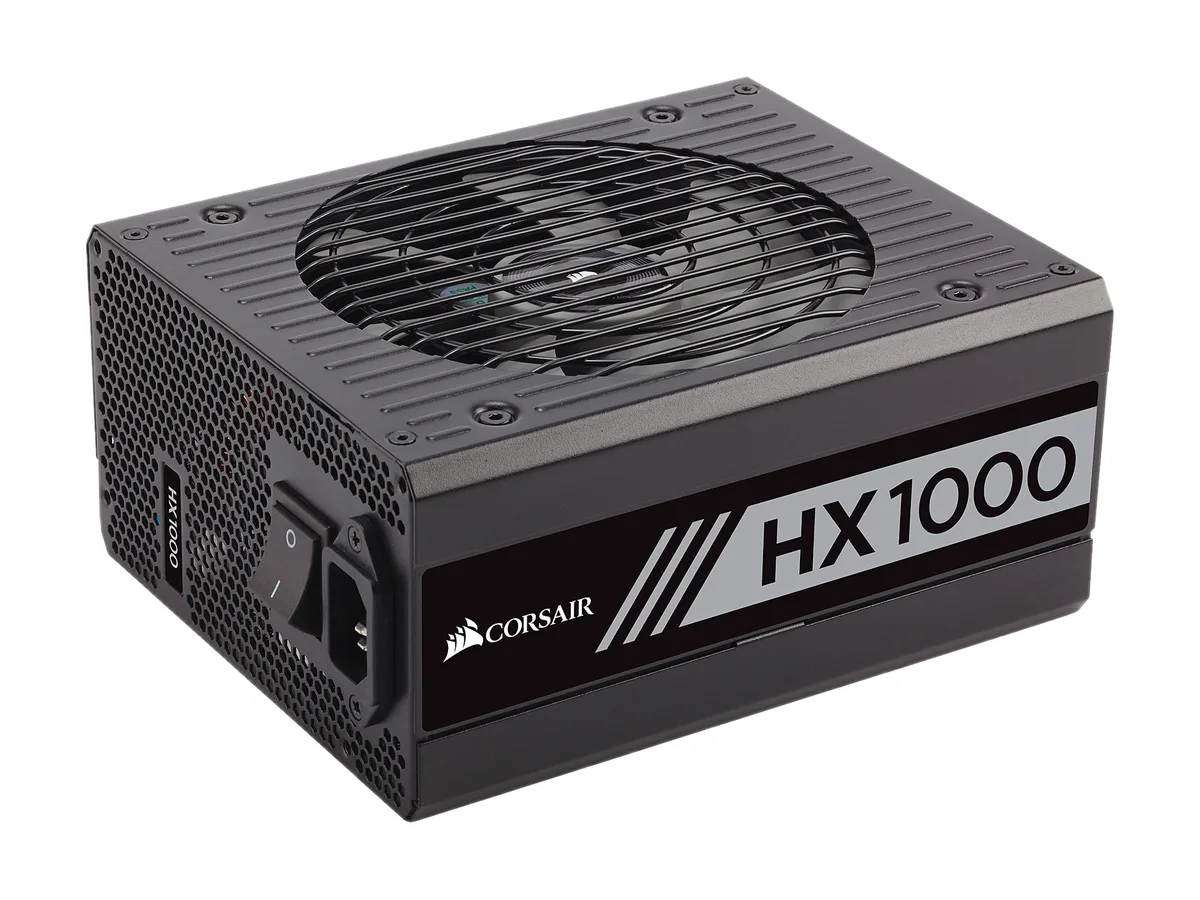

Black rectangular ATX power supply with modular cable sockets and 135mm fan grille

Corsair

Corsair HX1000 CP-9020139-NA 1000 W power supply

SKU CH-P6XF-3RVRY MPN CP-9020139-NA

A 1000 W fully modular ATX supply with 80 PLUS Platinum efficiency, 135 mm fluid dynamic bearing fan and selectable single or multi +12 V rail modes

  • TypeATX12V v2.4 / EPS12V 2.92
  • Maximum Power1000 W
  • Fans1 x 135mm fluid dynamic bearing fan
  • Main Connector24Pin
  • +12V RailsSingle +12V Rail or Multi +12V Rail Mode
  • PCI-Express Connector8 x 6+2-Pin

Options ATX 80+ Platinum (1000W) HX Series

  • 1000 W output powers demanding builds with ample headroom
  • 80 PLUS Platinum efficiency lowers heat and running costs
  • Full modular cabling keeps the interior tidy and airflow clear

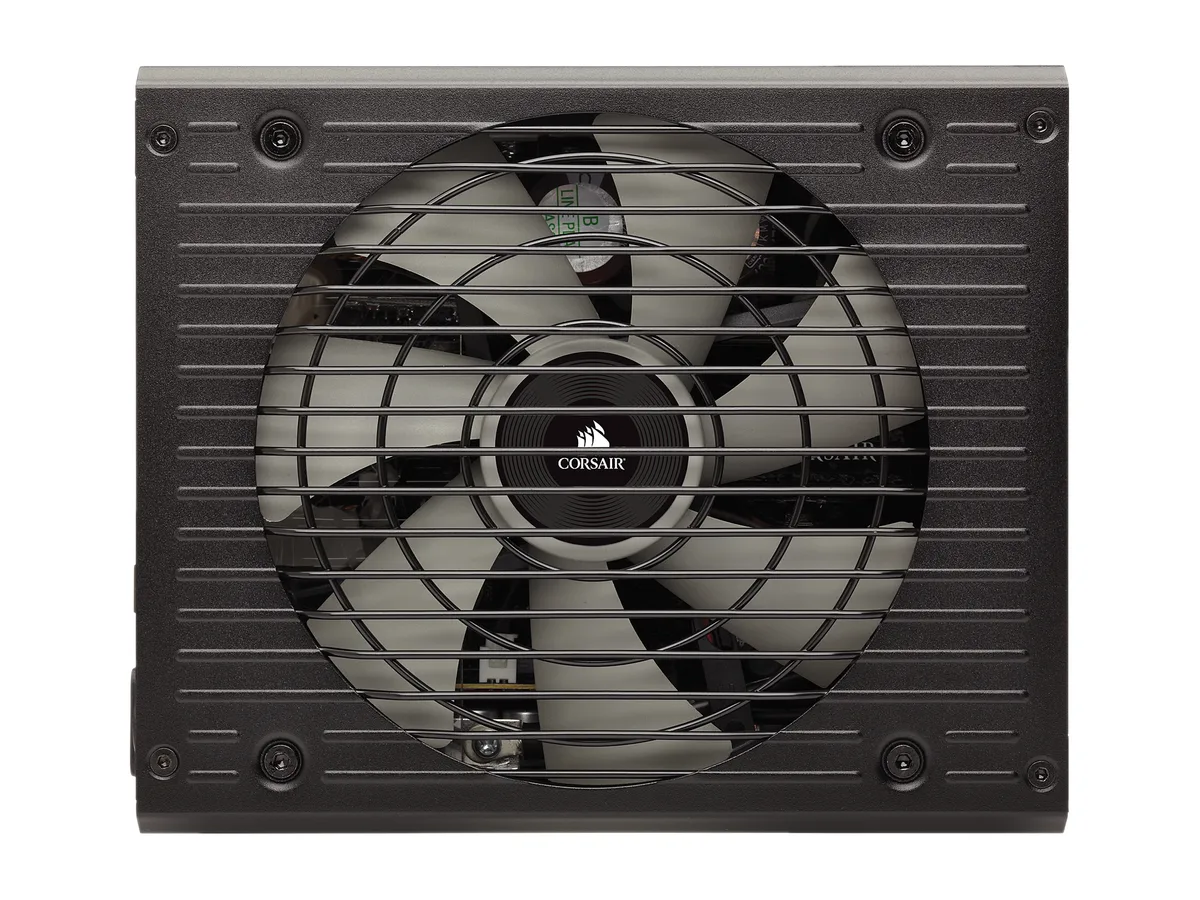

  • 135 mm fluid dynamic bearing fan runs quietly under load
  • 100 000 hour MTBF and Japanese capacitors ensure long-term reliability

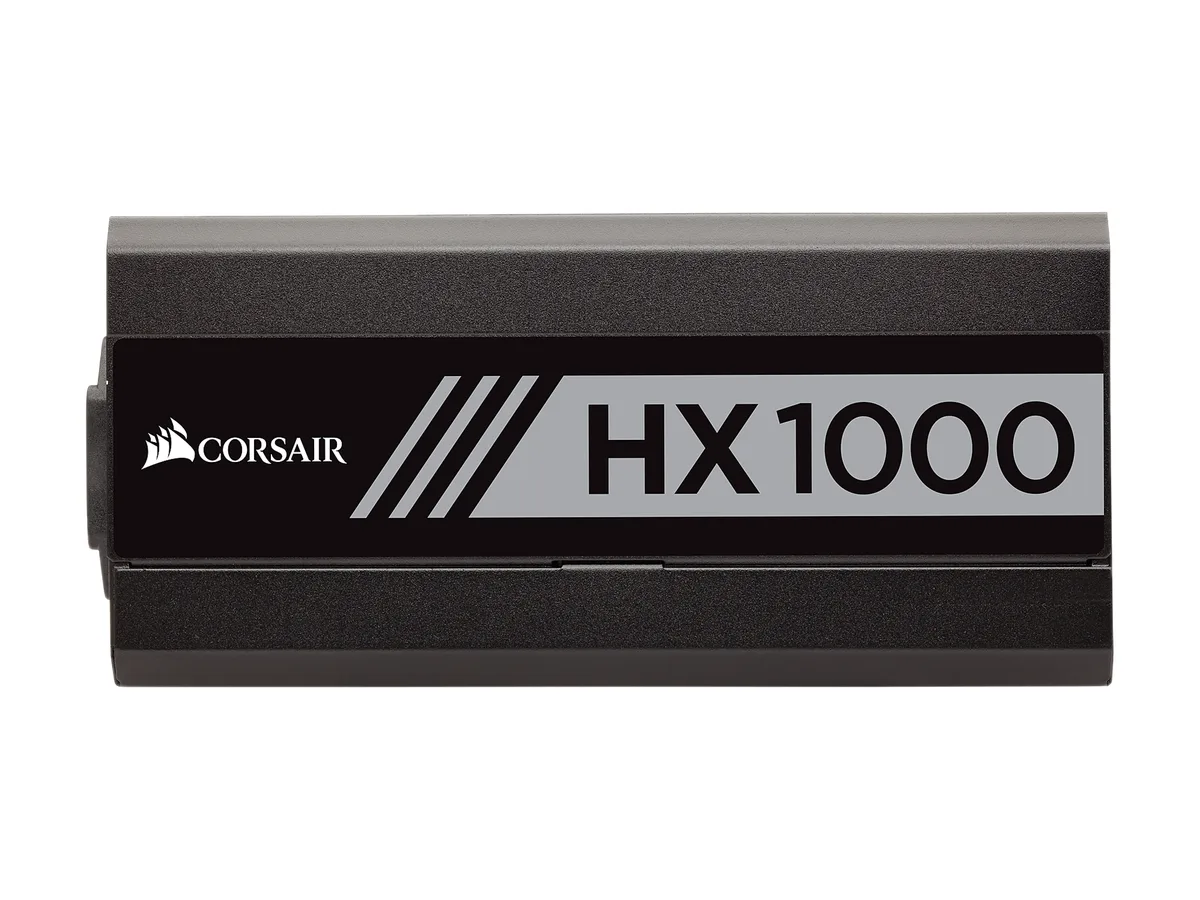

HX1000 1000 W Platinum ATX power supply

The Corsair HX Series HX1000 delivers 1000 W through an ATX12V v2.4 and EPS12V 2.92 design. It uses a single 135 mm fluid dynamic bearing fan with Zero RPM mode for silent operation at low loads. All Japanese capacitors ensure tight voltage regulation and long-term reliability. The fully modular cable set simplifies builds and cable management.

Upgrade from lower efficiency or semi-modular units

Replacing a Bronze or Gold rated supply with this Platinum unit cuts waste heat and lowers running cost. The switch from fixed cables to full modularity removes unused connectors and improves airflow. The jump is worth it when building a high-end system that demands stable 12 V delivery and quiet operation under sustained load.

Suited for high-performance PCs needing 1000 W

This unit fits builders who want Platinum efficiency, zero-fan silence at idle, and a 180 mm depth that suits most ATX cases. It provides eight 6+2-pin PCIe connectors and six SATA power plugs for multi-GPU or storage-heavy configs. Users with smaller cases or modest power needs should verify clearance and consider a lower wattage model.

Highlights

  • 1000 W output powers demanding builds with ample headroom
  • 80 PLUS Platinum efficiency lowers heat and running costs
  • Full modular cabling keeps the interior tidy and airflow clear
  • 135 mm fluid dynamic bearing fan runs quietly under load
  • 100 000 hour MTBF and Japanese capacitors ensure long-term reliability

Specifications

BrandCORSAIR
SeriesHX Series HX1000
ModelCP-9020139-NA
TypeATX12V v2.4 / EPS12V 2.92
Maximum Power1000 W
Fans1 x 135mm fluid dynamic bearing fan
Main Connector24Pin
+12V RailsSingle +12V Rail or Multi +12V Rail Mode
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector6
Haswell SupportYes
Max PSU Length180 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current13 - 6.5 A
OutputSingle +12V Rail Mode:
+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
Multiple +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A, [email protected] , +5VSB@3A
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC

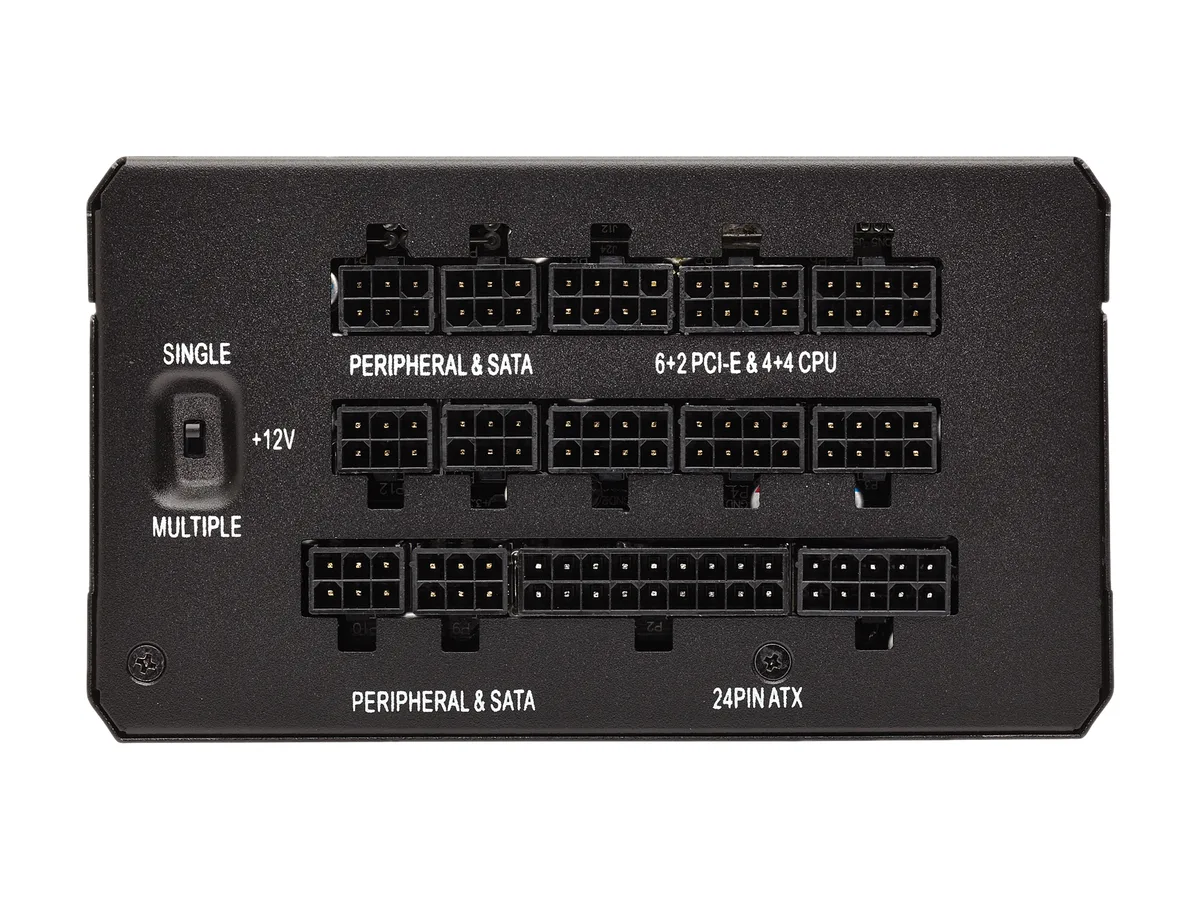

Connectors1 x 24-pin ATX
2 x EPS12V/ATX12V (4+4)
8 x PCIe (6+2)
16 x SATA
8 x Peripheral
1 x Floppy Adapter
PFCActive
SLINo
CrossFireNo

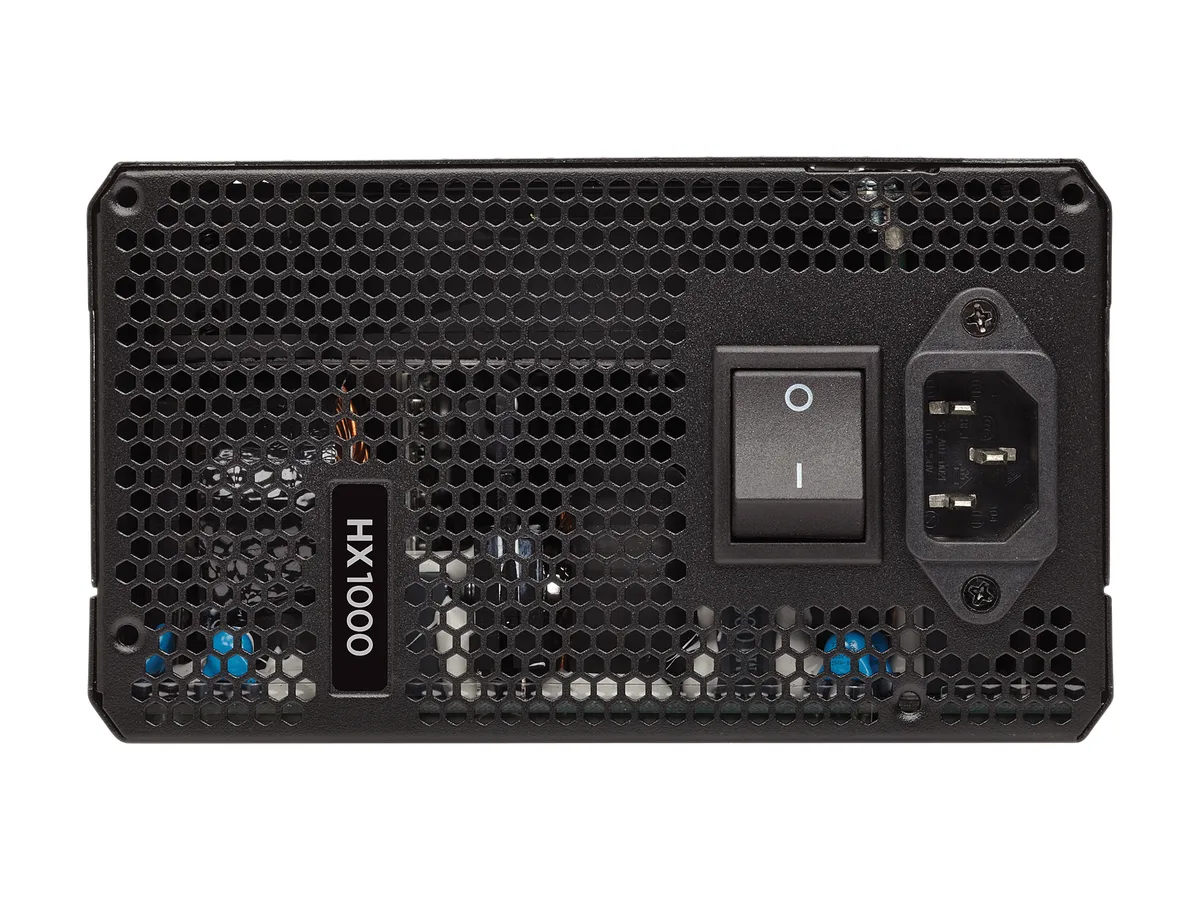

FeaturesActive PFC with full range AC input (100-240 VAC)
135mm fluid dynamic bearing fan with Zero RPM mode
Engineered to meet maximum power output at a 50 degree C temperature rating.
Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
Dimensions3.39" x 5.91" x 7.09"
Weight4.30 lbs.
Package ContentHX Series ATX Power Supply
Power cord
Mounting screws
Cable ties
Corsair case badge
User manual
Shipping weight4.22 kg
Package size396 × 226 × 152 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance does the 180 mm length require?

The power supply measures 180 mm long so the case must provide at least that much clear depth behind the motherboard tray for the unit to sit without pressing on cables or drive cages.

Which cables must be attached during installation and what is the common oversight?

Connect the 24Pin main connector, the required 6+2-Pin PCI-Express leads and any SATA power cables; the step often missed is setting the +12V rail switch to the desired Single or Multi Rail mode before powering on.

What component determines the unit's long-term reliability and when is it rated to last?

The 135 mm fluid dynamic bearing fan and all Japanese capacitors are rated for 100000 hours MTBF, so under normal loads the fan is the only moving part likely to need replacement after many years of service.
