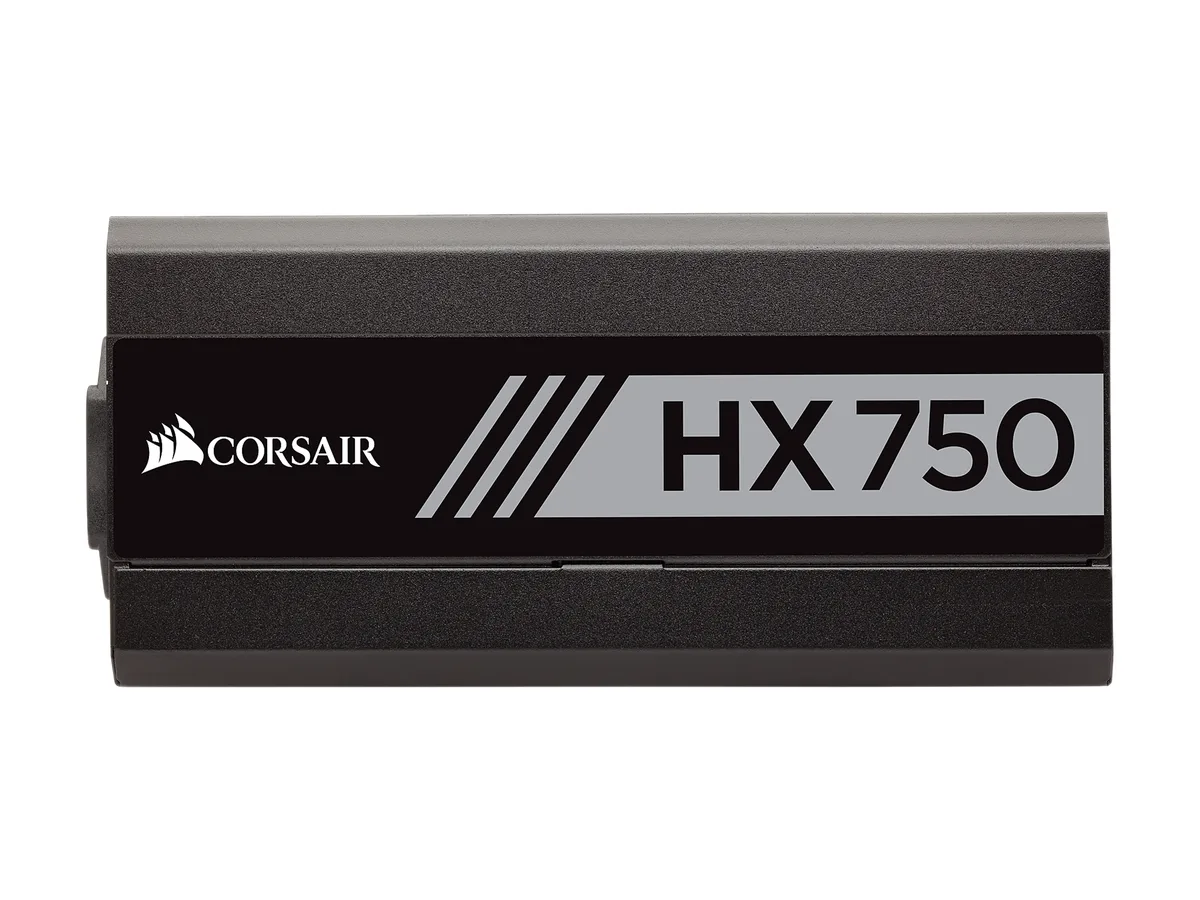

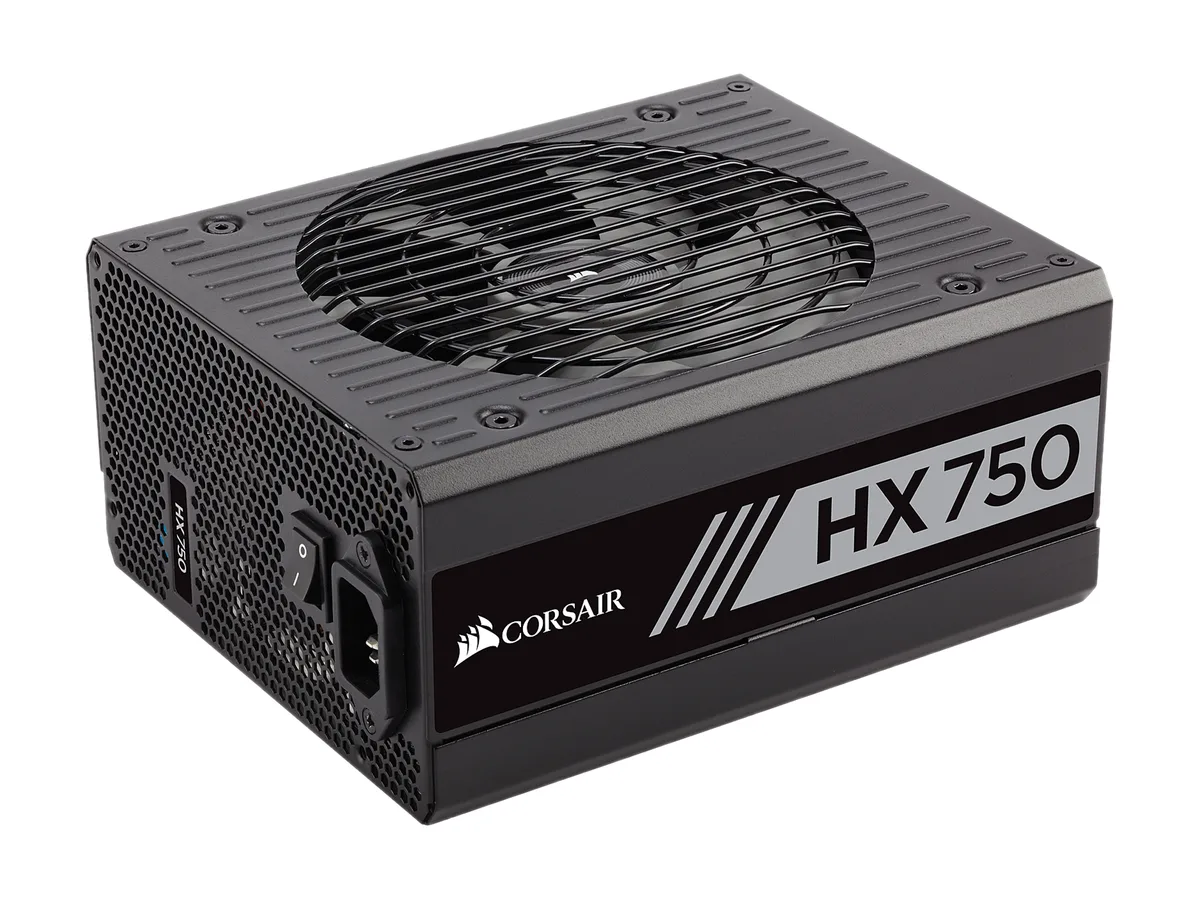

Fully modular ATX power supply in matte black with 135mm fan and sleeved cables

Corsair

Corsair HX750 CP-9020137-NA 750 W power supply

SKU CH-MMGC-HBP0C MPN CP-9020137-NA

Fully modular 750 W ATX power supply with Platinum efficiency, 135 mm fluid dynamic bearing fan and all Japanese 105°C capacitors

  • TypeATX12V v2.4 / EPS12V 2.92
  • Maximum Power750 W
  • Fans1 x 135mm fluid dynamic bearing fan
  • Main Connector24Pin
  • +12V RailsSingle +12V Rail or Multi +12V Rail Mode
  • PCI-Express Connector4 x 6+2-Pin

Options ATX 80+ Platinum (750W) HX Series

  • Platinum efficiency cuts energy waste with 80 PLUS PLATINUM certification
  • Fully modular cables simplify builds by using only the connectors you need
  • Single or multi +12 V rail modes match diverse component demands

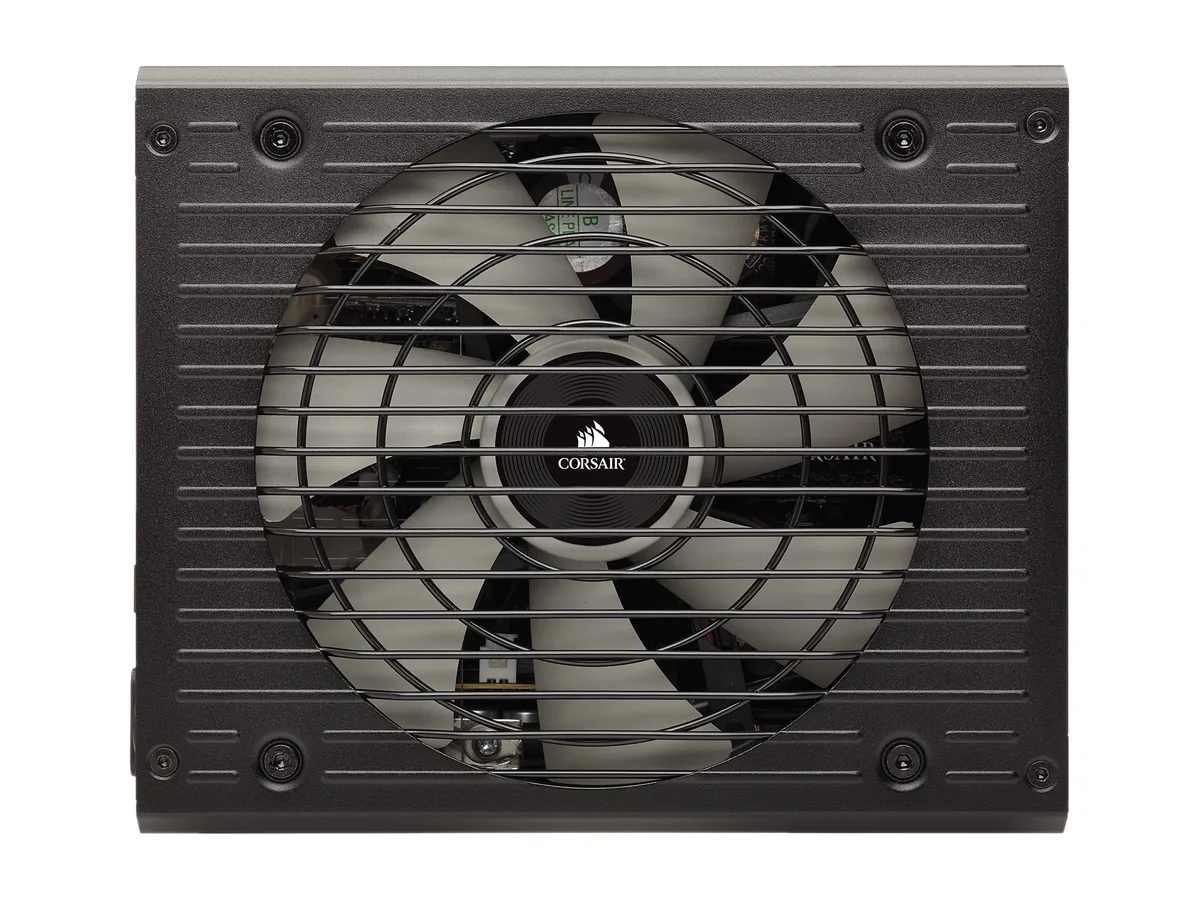

  • 135 mm fluid dynamic bearing fan keeps operation quiet under load
  • 100,000 hour MTBF and Japanese 105°C capacitors back long-term reliability

750 W Platinum ATX power supply

The Corsair HX750 CP-9020137-NA is a fully modular ATX12V v2.4 and EPS12V 2.92 unit rated at 750 W. It uses a 135 mm fluid dynamic bearing fan and Japanese 105°C capacitors for reliable, quiet operation. 80 PLUS Platinum certification confirms high efficiency across typical loads.

Suits high-performance PC builds needing clean power

This unit fits builders who want tight voltage regulation and a fully modular cable set for easier cable management. It supports both single and multi +12V rail modes for flexibility. Systems requiring more than 750 W or a different form factor should consider other options.

Platinum efficiency and full modularity decide fit

The 80 PLUS Platinum rating means less waste heat and lower running costs over time. Full modular cables let you connect only what the build needs. These two factors determine whether the HX750 matches the system requirements.

Highlights

  • Platinum efficiency cuts energy waste with 80 PLUS PLATINUM certification
  • Fully modular cables simplify builds by using only the connectors you need
  • Single or multi +12 V rail modes match diverse component demands
  • 135 mm fluid dynamic bearing fan keeps operation quiet under load
  • 100,000 hour MTBF and Japanese 105°C capacitors back long-term reliability

Specifications

BrandCORSAIR
SeriesHX Series HX750
ModelCP-9020137-NA
TypeATX12V v2.4 / EPS12V 2.92
Maximum Power750 W
Fans1 x 135mm fluid dynamic bearing fan
Main Connector24Pin
+12V RailsSingle +12V Rail or Multi +12V Rail Mode
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector16
Haswell SupportYes
Max PSU Length180 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10 - 5 A
OutputSingle +12V Rail Mode:
+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
Multiple +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, [email protected] , +5VSB@3A
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL, cUL, RCM, TUV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC

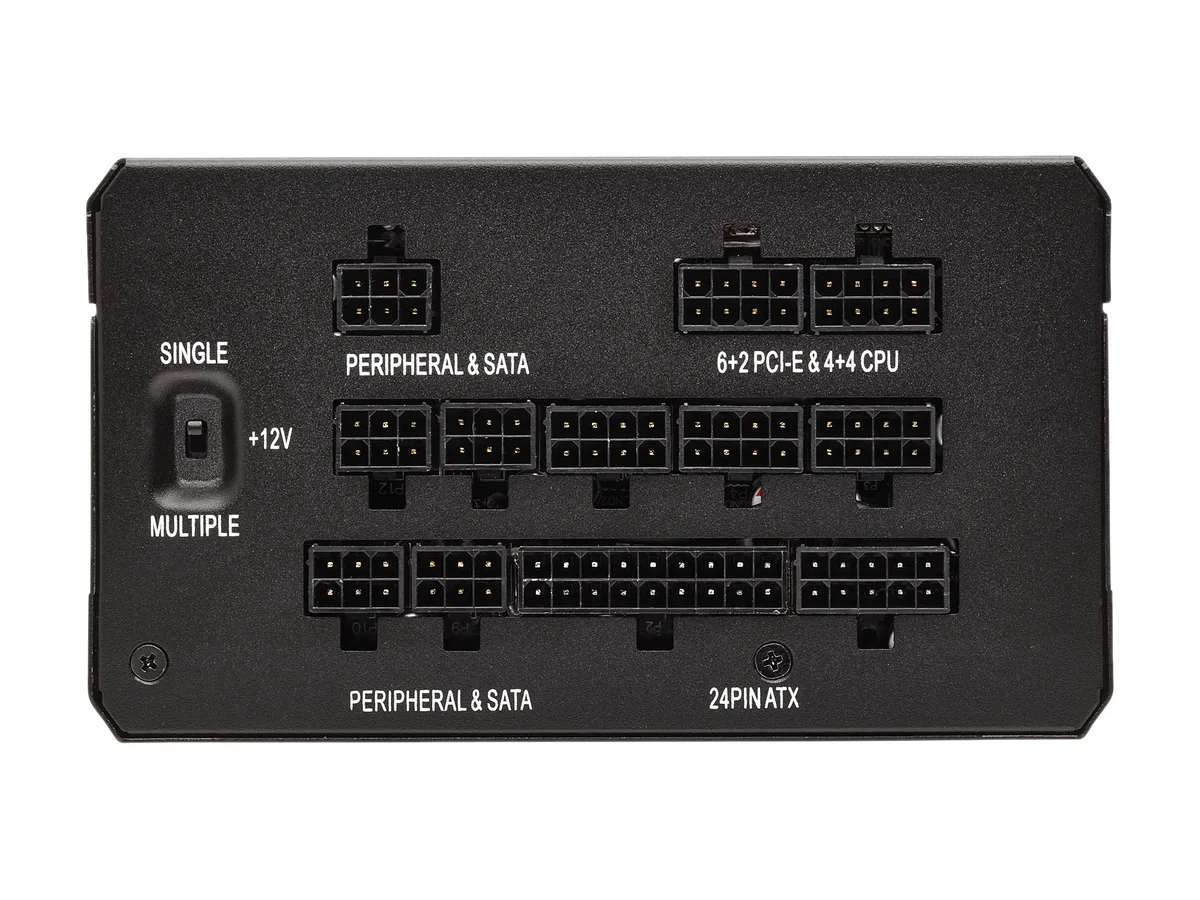

Connectors1 x ATX Connector
2 x EPS Connector
1 x Floppy Connector
4 x 4-Pin Peripheral Connector
4 x PCIe Connector
16 x SATA Connector
PFCNo
SLINo
CrossFireNo

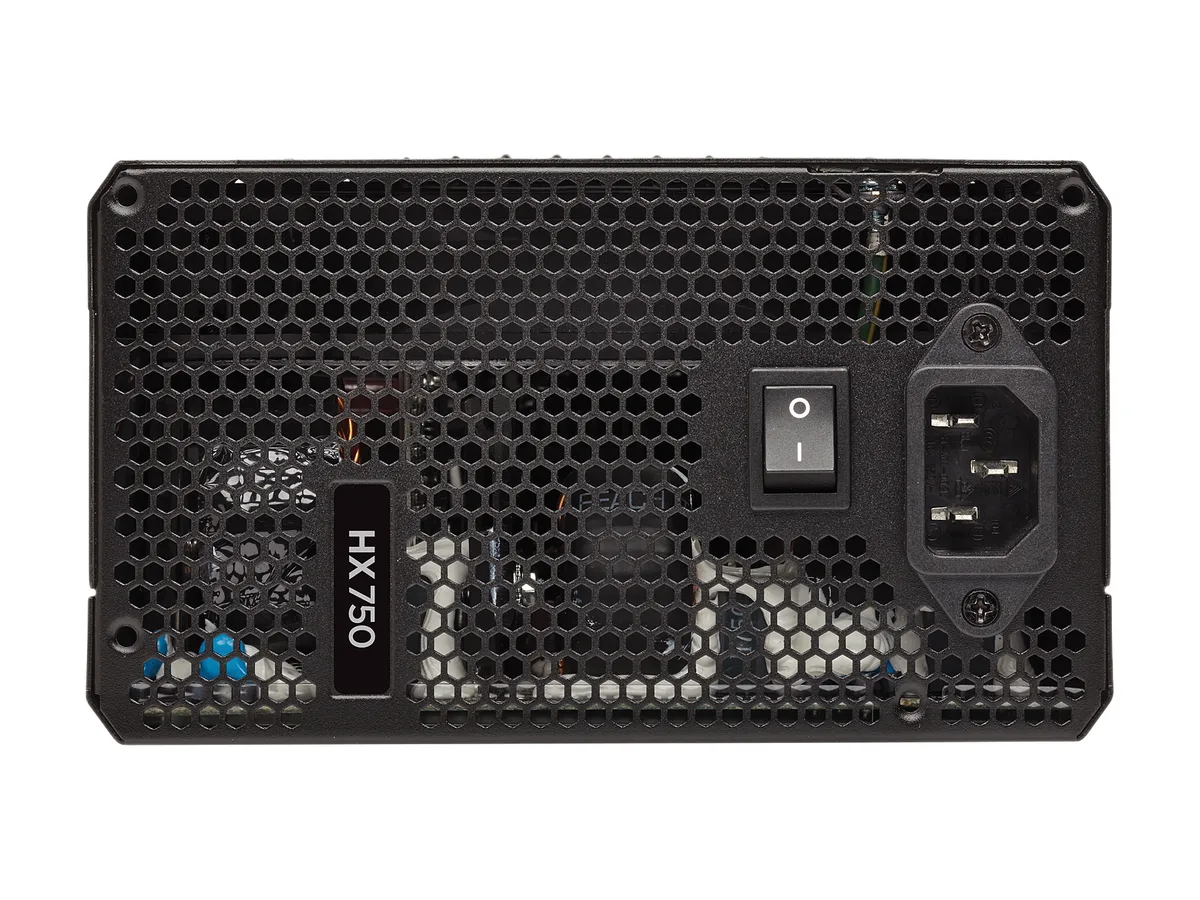

FeaturesActive PFC with full range AC input (100-240 VAC).
135mm fluid dynamic bearing fan with Zero RPM mode.
Engineered to meet maximum power output at a 50 degree C temperature rating.
Compatible with the latest ATX12V v2.4 and EPS 2.92 standards and is backward compatible with ATX12V 2.2, 2.31 and older systems.
Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components.
Dimensions3.39" x 5.91" x 7.09"
Weight4.23 lbs.
Package ContentHX Series ATX Power Supply
Power cord
Mounting screws
Cable ties
Corsair case badge
User manual
Shipping weight3.72 kg
Package size335 × 216 × 137 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 750 W rating mean once the unit is installed in a real system?

The 750 W rating is the maximum continuous power the supply can deliver across all rails combined, so a build drawing up to that level under full load stays within spec.

What does the ATX12V v2.4 and EPS12V 2.92 compliance cap in practice?

Those standards define the connector layout and voltage tolerances the unit must meet, ensuring compatibility with current motherboards and CPU power requirements.

Will the 180 mm length fit in a standard mid-tower case?

At 180 mm long the unit matches the typical ATX power-supply envelope, so it fits most mid-tower and larger cases that accept standard-depth PSUs.
