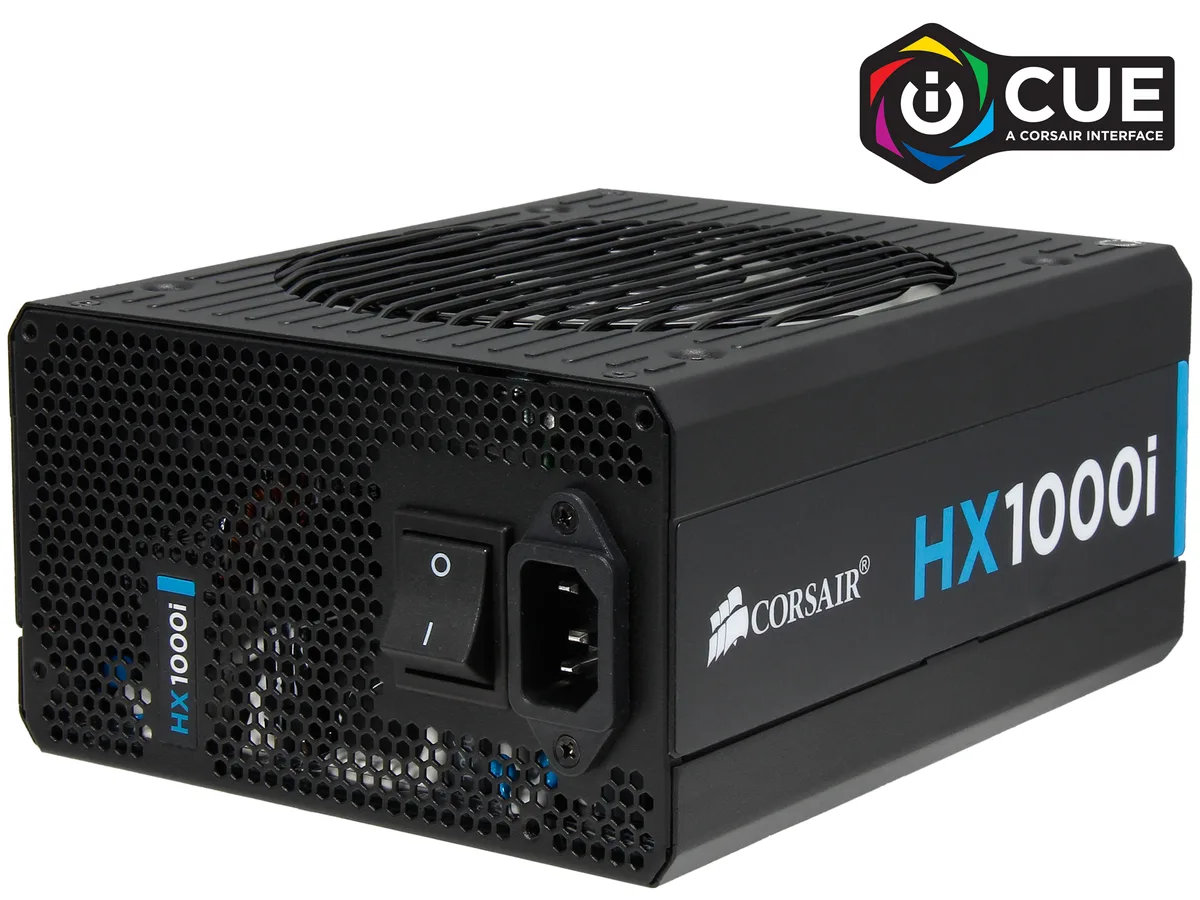

Rectangular black ATX power supply with modular cable ports and a 140mm fan grille

Corsair

Corsair CP-9020074-NA HX1000i 1000W power supply

SKU CH-NMTZ-R9EJZ MPN CP-9020074-NA

A fully modular ATX power supply delivering 1000 W with 80 PLUS Platinum efficiency and a 140 mm thermally controlled fan

  • TypeATX12V v2.4 / EPS12V 2.92
  • Maximum Power1000 W
  • Fans1 x 140mm Thermally Controlled Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle or Multi

Options ATX 80+ Platinum (1000W) HXi Series

  • 80 PLUS Platinum certification delivers 92% efficiency to cut heat and running cost
  • Fully modular cabling lets you use only the 12 SATA and 8 PCIe connectors you need
  • 140 mm fluid-dynamic-bearing fan with Zero RPM mode keeps noise near zero at low load
  • Corsair Link Digital software enables real-time monitoring and single-or-multi-rail switching from the desktop
  • Japanese 105°C capacitors and seven-year warranty back long-term reliability in high-performance builds

1000W Platinum ATX Power Supply

The Corsair HX1000i delivers 1000 W of continuous power through an ATX12V v2.4 and EPS12V 2.92 design. It carries 80 PLUS Platinum certification at 92% efficiency and operates on 100 to 240 V input at 47 to 63 Hz. A single 140 mm fluid dynamic bearing fan provides thermally controlled cooling.

C-Link Monitoring and Full Modular Cables

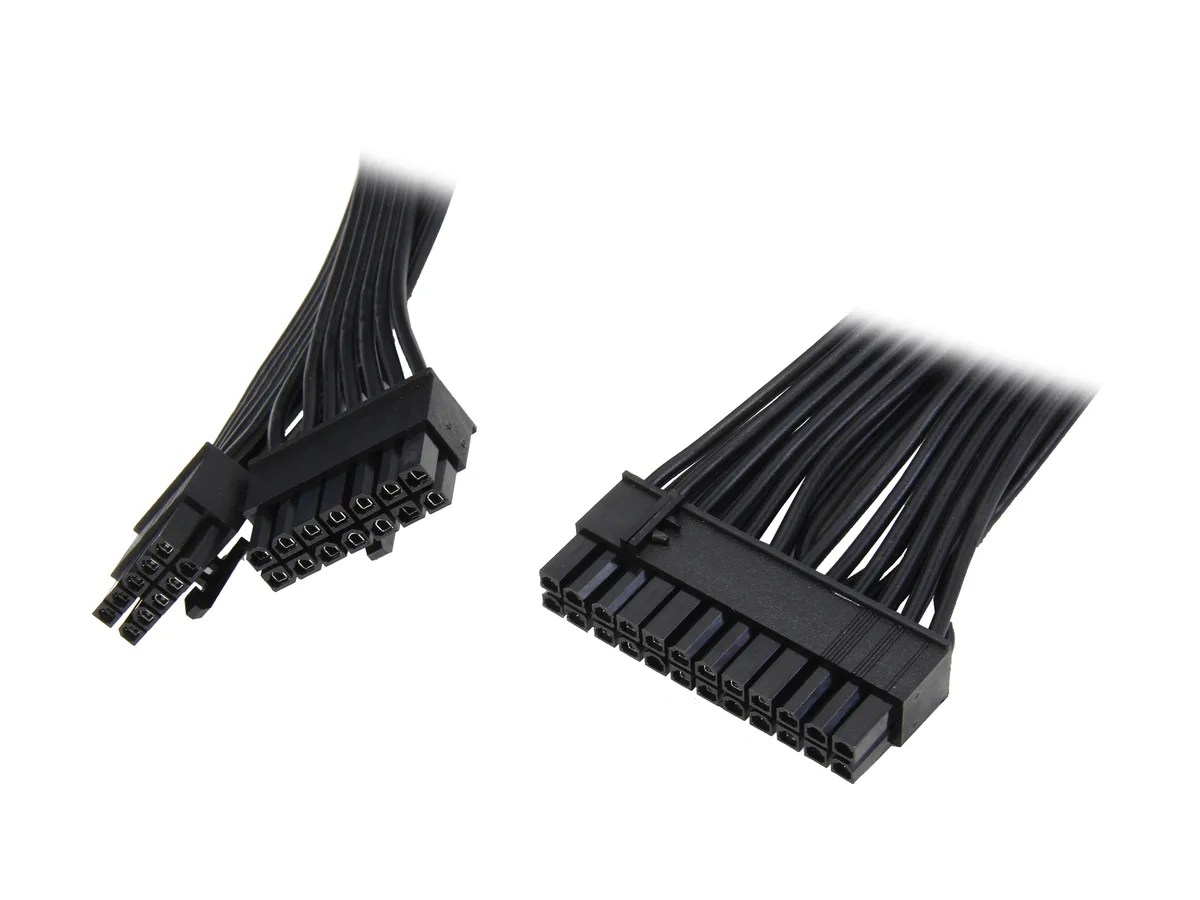

Corsair Link Digital support lets you monitor performance, switch between single and multi +12V rail modes, and adjust fan speed from the desktop. The fully modular, low-profile cable set includes eight 6+2-pin PCIe connectors and twelve SATA power connectors for clean routing. All Japanese 105°C capacitors are used throughout.

High-End Multi-GPU Builds and Silent Operation

This unit suits enthusiasts building SLI or CrossFire systems who want tight voltage regulation and near-silent Zero RPM fan mode at low loads. The 180 mm depth fits many mid-tower cases, but builders with compact chassis should verify clearance. Anyone needing only modest wattage can consider lower-capacity models.

Highlights

  • 80 PLUS Platinum certification delivers 92% efficiency to cut heat and running cost
  • Fully modular cabling lets you use only the 12 SATA and 8 PCIe connectors you need
  • 140 mm fluid-dynamic-bearing fan with Zero RPM mode keeps noise near zero at low load
  • Corsair Link Digital software enables real-time monitoring and single-or-multi-rail switching from the desktop
  • Japanese 105°C capacitors and seven-year warranty back long-term reliability in high-performance builds

Specifications

BrandCORSAIR
SeriesHXi Series HX1000i
ModelCP-9020074-NA
TypeATX12V v2.4 / EPS12V 2.92
Maximum Power1000 W
Fans1 x 140mm Thermally Controlled Fluid Dynamic Bearing Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle or Multi
PCI-Express Connector8 x 6+2-Pin
SATA Power Connector12
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length180 mm
ModularFull Modular
Efficiency92%
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current13 - 6.5A
OutputSingle +12V Rail Mode:
+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
Multiple +12V Rail Mode:
+3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, +12V5@40A, +12V6@40A, +12V7@40A, +12V8@40A, -12V0.8A, +5VSB@3A
MTBF100,000 hours
ApprovalsFCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH.
Connectors1 x ATX Connector
2 x EPS Connector
2 x Floppy Connector
12 x 4-Pin Peripheral Connector
8 x PCIe Connector
12 x SATA Connector
FeaturesCorsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail / single rail mode.
80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions.
ZeroRPM mode for fanless operation at low loads and outstanding noise reduction.

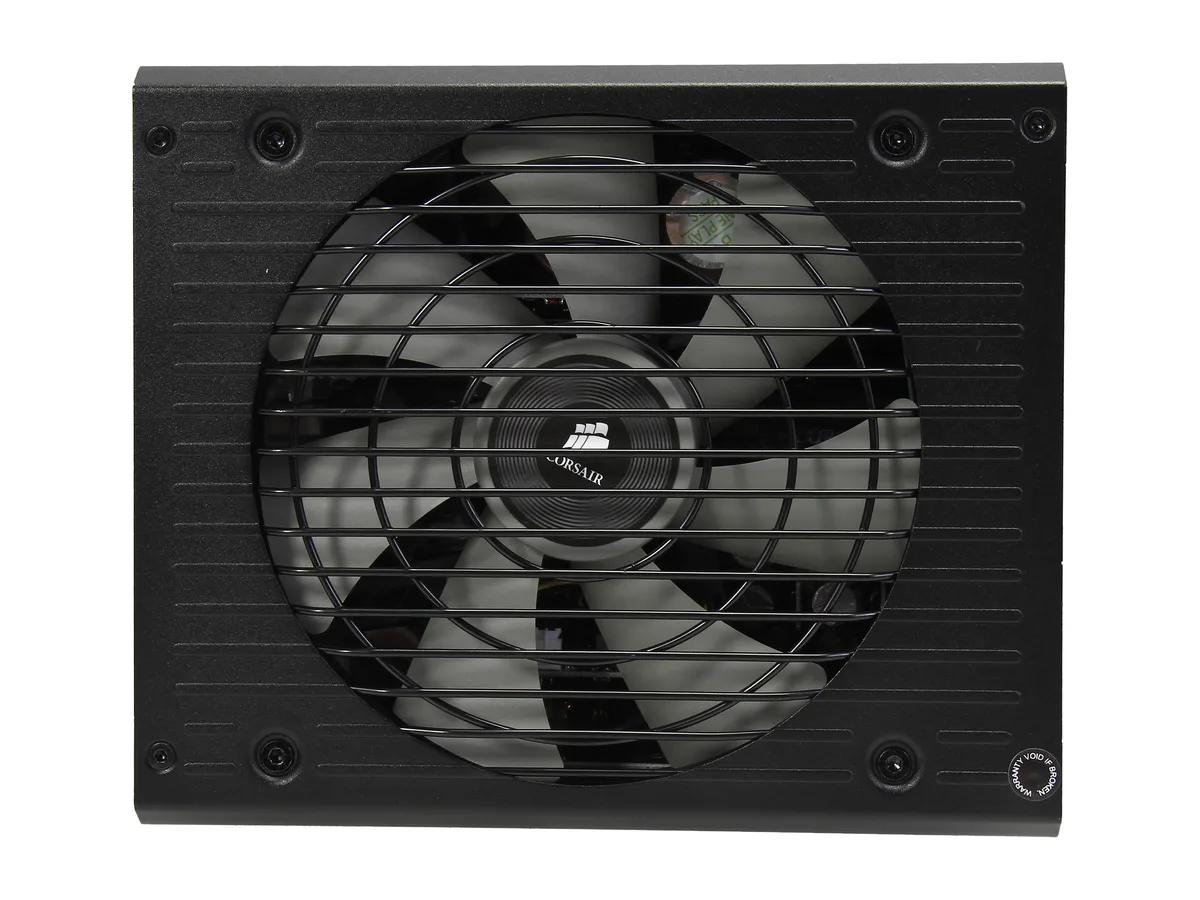

140mm thermally controlled fluid dynamic bearing fan spins up as needed.
Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis.
Engineered to meet maximum power output at a server-grade 50C temperature rating.
Fan self-test sw

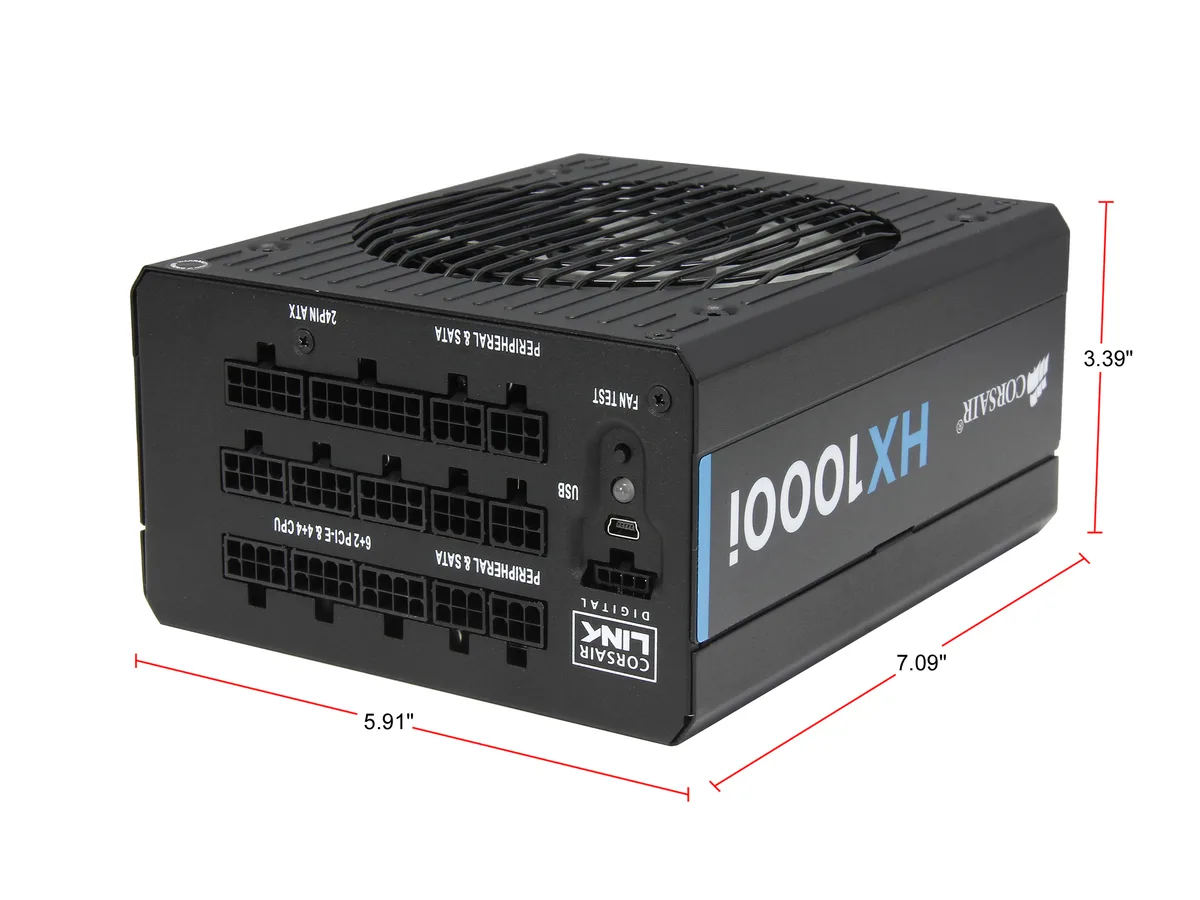

Dimensions3.39" x 5.91" x 7.09"
Weight7.92 lbs.
Package ContentHXi Series High-Performance ATX Power Supply
Shipping weight4.21 kg
Package size394 × 226 × 147 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 180 mm depth fit my mid-tower case?

The unit measures 180 mm deep, 5.9 inches wide and 5.5 inches high; compare those dimensions with your case’s PSU clearance before ordering.

Does it include enough PCIe cables for a four-GPU build?

The box supplies eight 6+2-pin PCIe connectors, which covers most multi-GPU configurations without extra cables.

Can I monitor fan speed and rail mode from Windows?

Yes, Corsair Link Digital lets you watch voltages, switch between single- and multi-rail operation, and adjust the 140 mm fan curve from the desktop.
