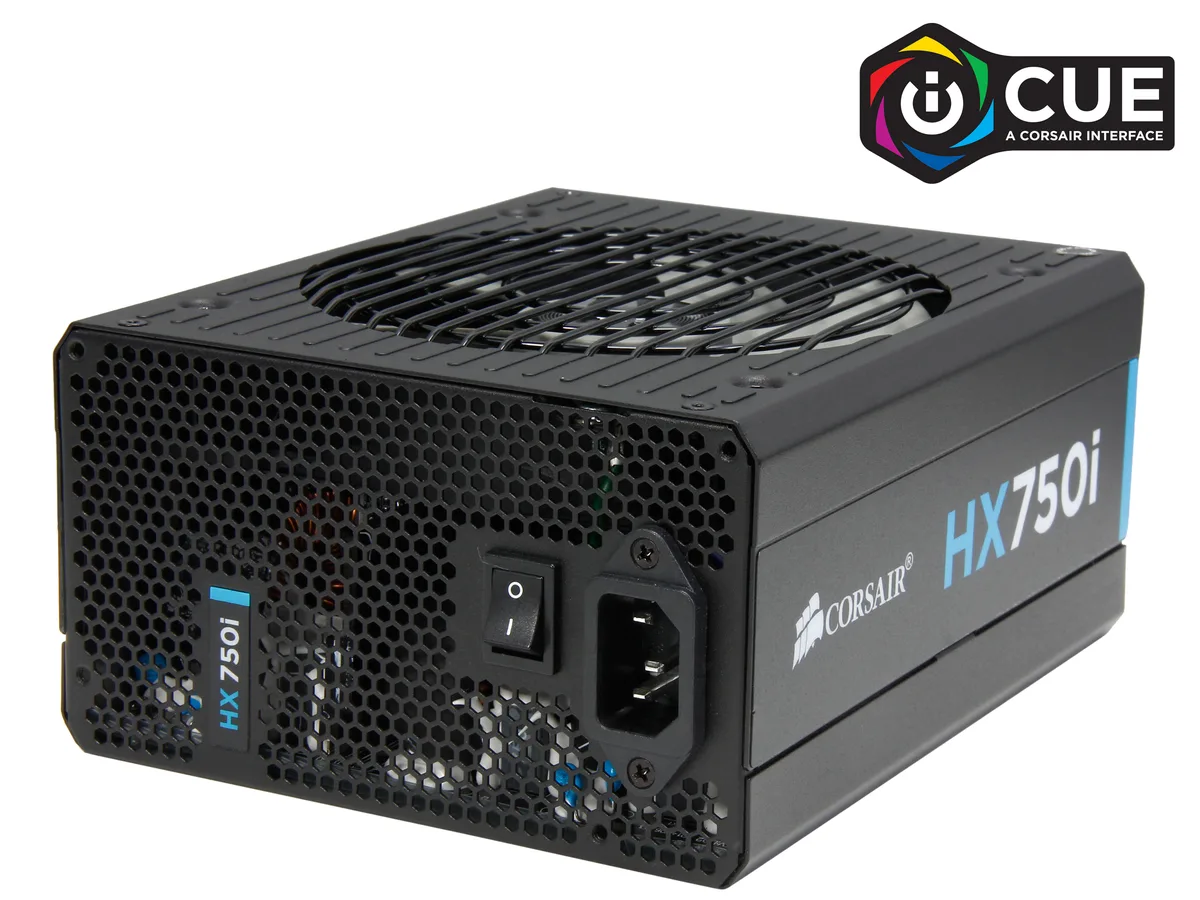

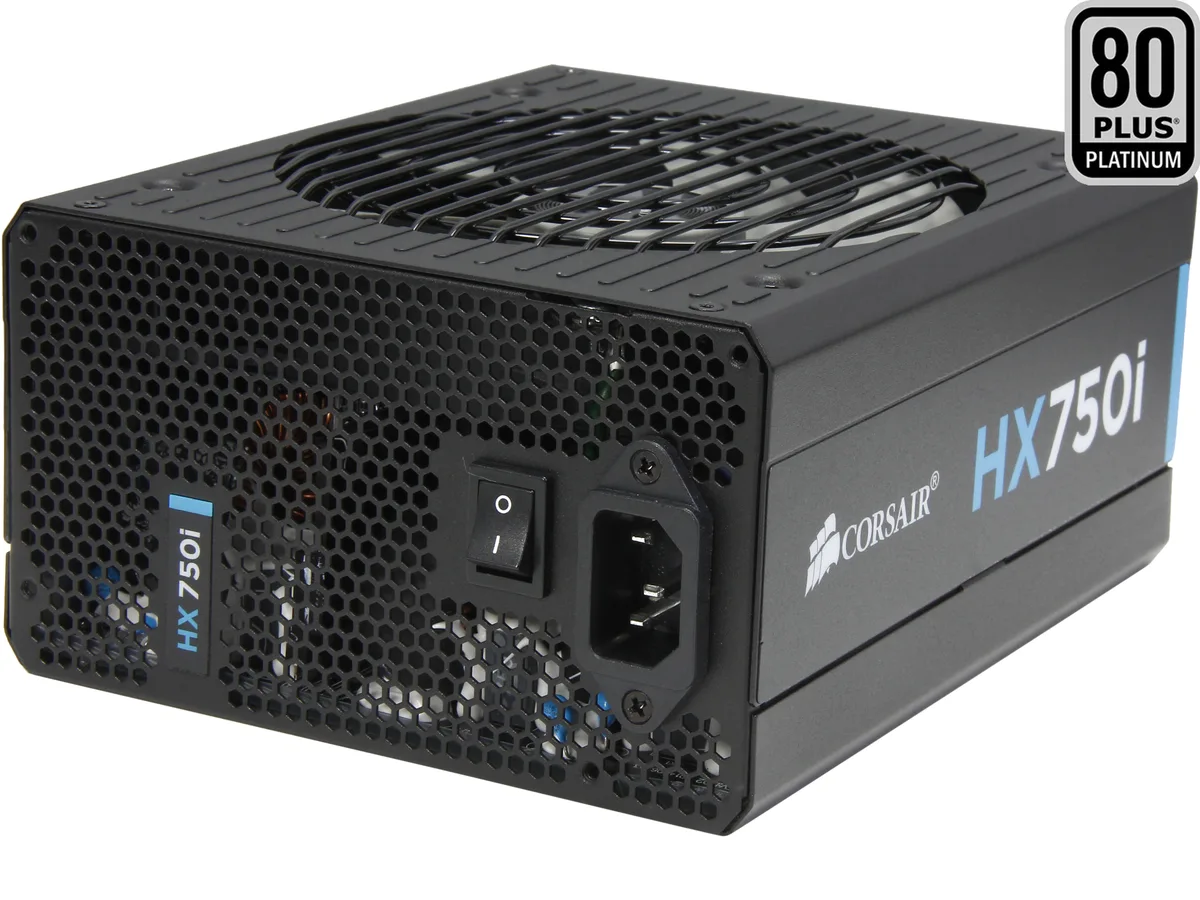

Rectangular ATX power supply with matte black finish and modular cable sockets

Corsair

Corsair CP-9020072-NA HX750i 750 W power supply

SKU CH-SK7E-EE3KC MPN CP-9020072-NA

A 750 W fully modular ATX power supply with 80 PLUS Platinum efficiency and a 140 mm fluid-dynamic-bearing fan

  • TypeATX12V v2.4 / EPS 2.92
  • Maximum Power750 W
  • Fans1 x 140mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle or Multi Rail Mode

Options ATX 80+ Platinum (750W) HXi Series

  • 80 PLUS PLATINUM efficiency keeps running costs low
  • Full modular cabling lets you install only the wires you need

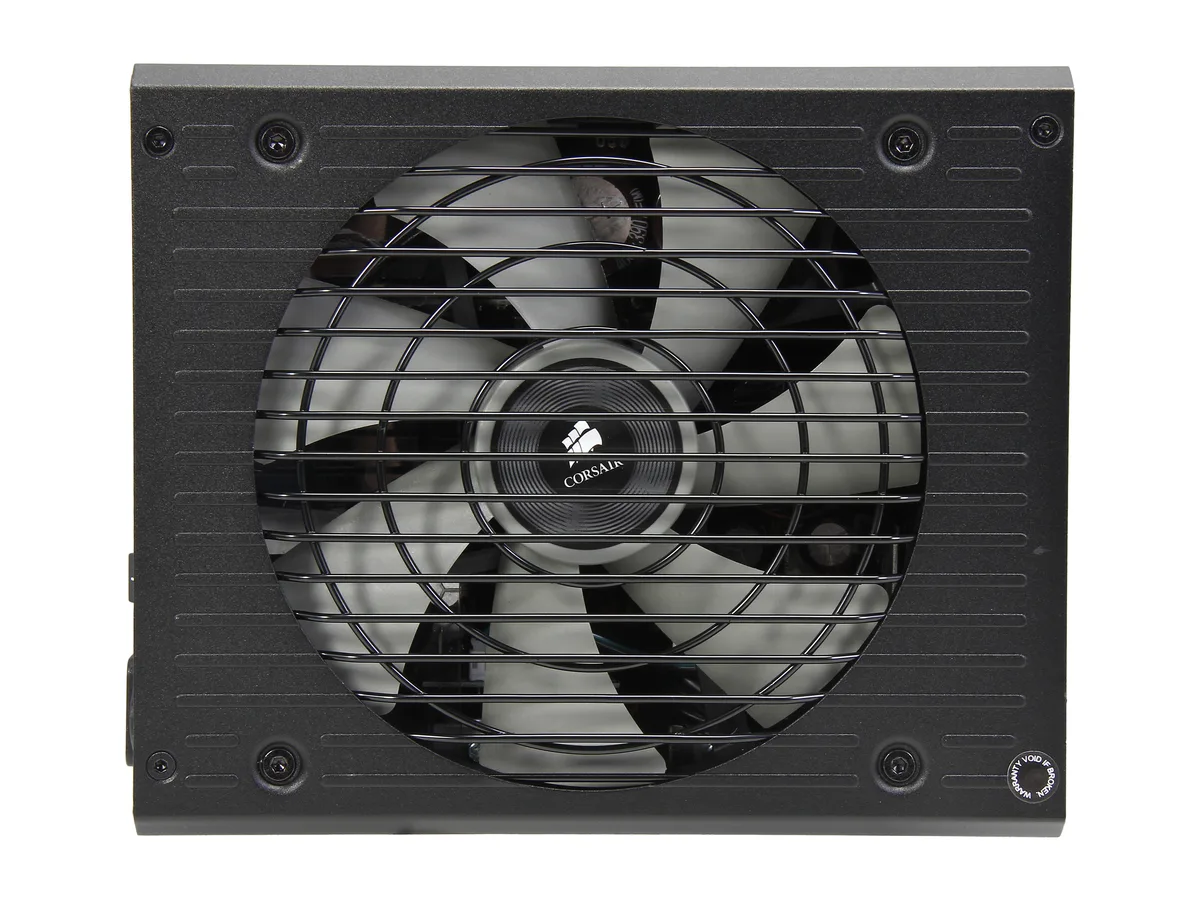

  • 140 mm fluid-dynamic-bearing fan runs quietly under load
  • C-Link monitoring gives real-time voltage, current and temperature data
  • Single or multi +12 V rail modes suit different build preferences

750 W Platinum ATX power supply

This Corsair HXi Series unit delivers 750 W of continuous power with 80 PLUS Platinum efficiency. The fully modular design uses a single 140 mm fluid-dynamic-bearing fan and meets ATX12V v2.4 and EPS 2.92 standards. C-Link monitoring allows software control of fan curves and rail configuration.

Suited to high-end single-GPU builds

Enthusiasts who want precise digital monitoring and the option to switch between single and multi +12 V rail modes will benefit from this platform. Systems that require more than 750 W or need a smaller form factor than 180 mm depth should consider other models.

750 W maximum power rating

The 750 W limit is the decisive figure; it defines the total output available for CPU, graphics and storage combined. If your planned load sits comfortably below this ceiling the HX750i provides headroom and Platinum efficiency, otherwise a higher-wattage unit is required.

Highlights

  • 80 PLUS PLATINUM efficiency keeps running costs low
  • Full modular cabling lets you install only the wires you need
  • 140 mm fluid-dynamic-bearing fan runs quietly under load
  • C-Link monitoring gives real-time voltage, current and temperature data
  • Single or multi +12 V rail modes suit different build preferences

Specifications

BrandCORSAIR
SeriesHXi Series
ModelHX750i (CP-9020072-NA)
TypeATX12V v2.4 / EPS 2.92
Maximum Power750 W
Fans1 x 140mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle or Multi Rail Mode
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector12
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length180 mm
ModularFull Modular
Efficiency92%
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current10A - 5A
OutputSingle +12V Rail Mode: +3.3V @ 25A, +5V @ 25A, +12V @ 62.5A, -12V @ 0.8A, +5VSB @ 3A
Multiple +12V Rail Mode: +3.3V @ 25A, +5V @ 25A, +12V1 @ 40A, +12V2 @ 40A, +12V3 @ 40A, +12V4 @ 40A, +12V5 @ 40A, -12V @ 0.8A, +5VSB @ 3A
ApprovalsFCC, ICES, CE, UL / CUL, CSA, C-Tick / RCM, TUV, CB, CU, KC Mark, RoHS, WEEE, RoHS (China), REACH

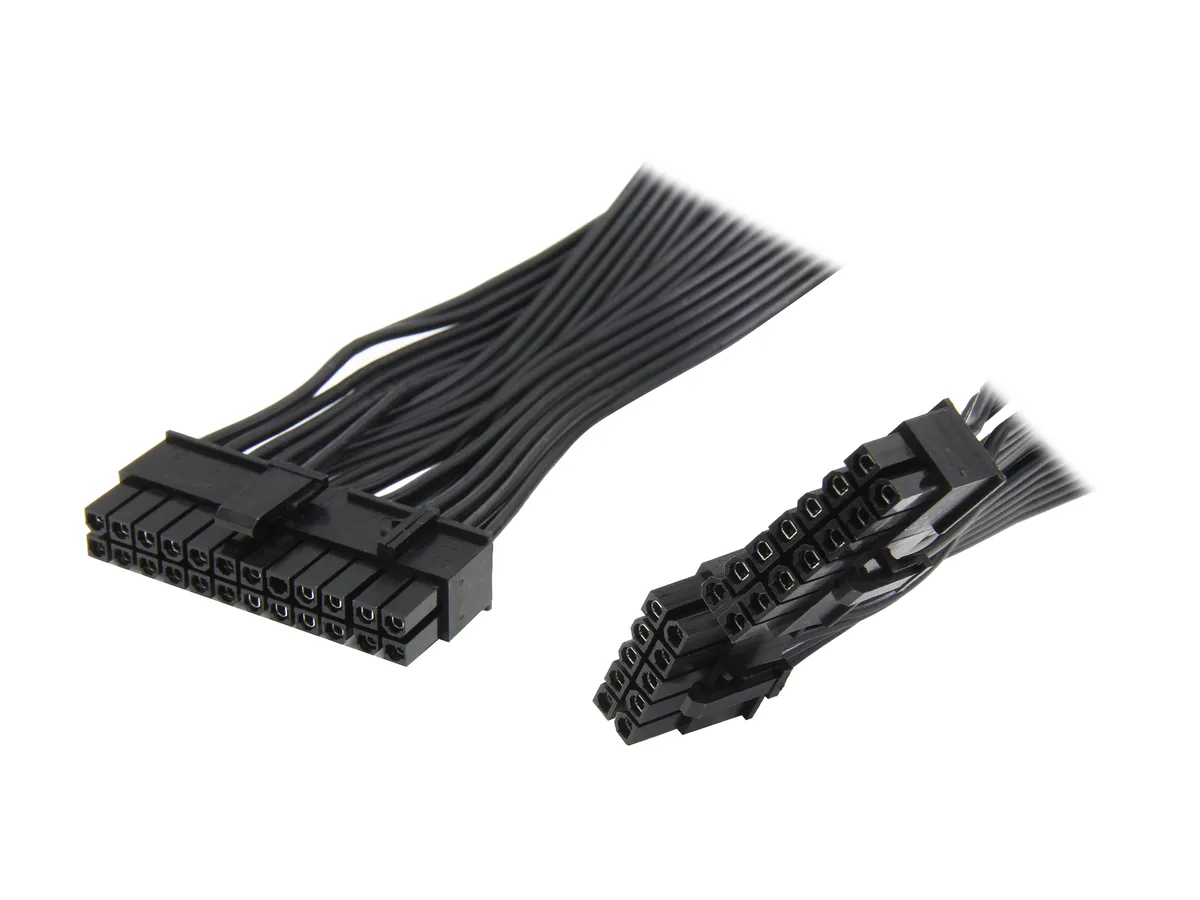

Connectors1 x ATX Connector
2 x EPS Connector
2 x Floppy Connector
8 x 4-Pin Peripheral Connector
6 x PCI-E Connector
12 x SATA Connector
FeaturesCorsair Link Integration for monitoring performance and adjustment of fan speed and multi-rail / single rail mode
80 PLUS Platinum efficiency, delivering 92% energy efficiency at real world load conditions
Zero RPM mode for fanless operation at low loads and outstanding noise reduction
140mm thermally controlled fluid dynamic bearing fan spins up as needed
Fully Modular low profile cables for easy installation, less clutter, and helps maximize airflow through your computer's chassis
Engineered to meet maximum power output at a server-grade 50C temperature rating
Fan self-test switch

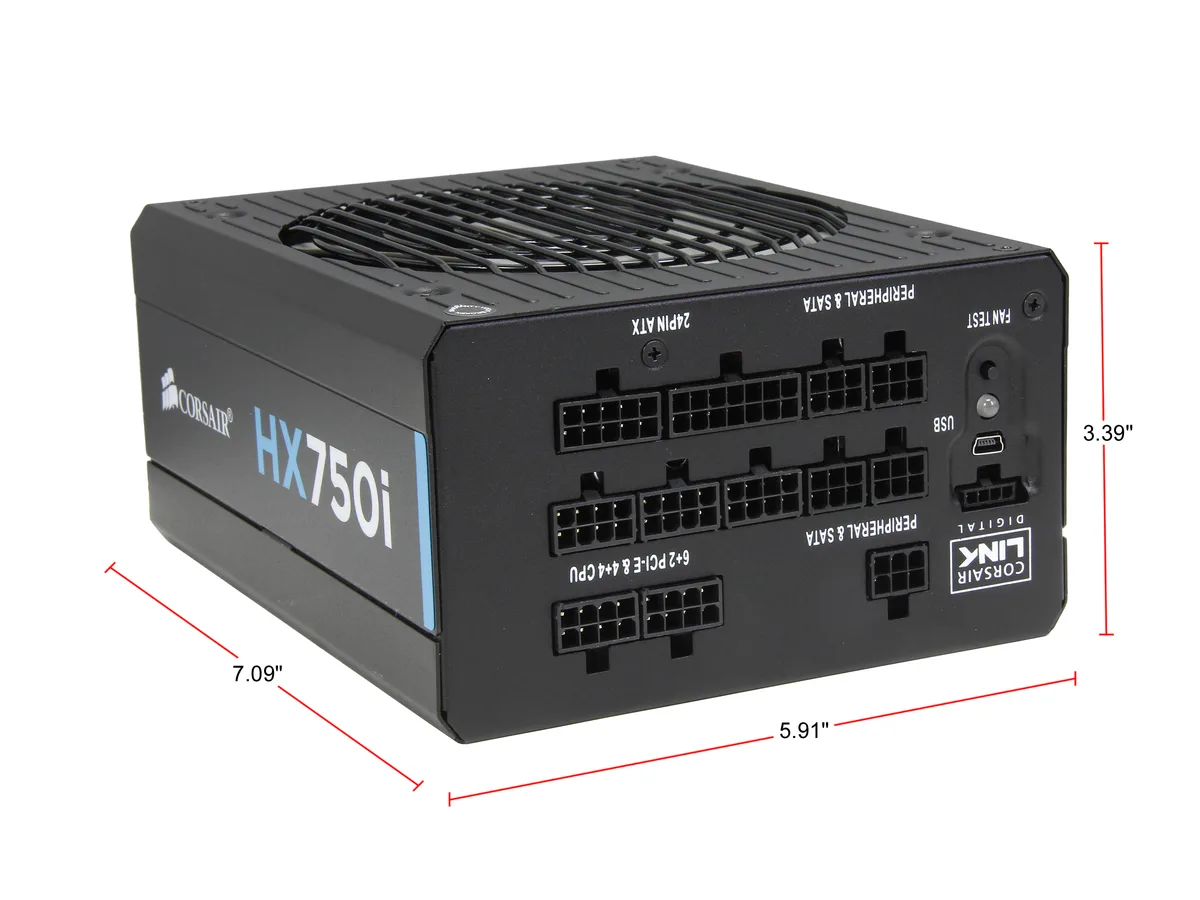

Dimensions3.39" x 5.91" x 7.09"
Weight7.11 lbs.
Shipping weight3.79 kg
Package size394 × 231 × 155 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 180 mm length fit in my case?

The unit is 180 mm long, so check your case specification for maximum PSU length before ordering.

Which cables must be connected during installation and what is the common mistake?

Connect the 24Pin main connector and only the modular cables your build needs; the frequent error is leaving a required PCIe or CPU cable unplugged.

When should the 140mm Fluid Dynamic Bearing Fan be cleaned or replaced?

Clean dust from the fan every 6 to 12 months; replace it if bearing noise appears or airflow drops noticeably.
