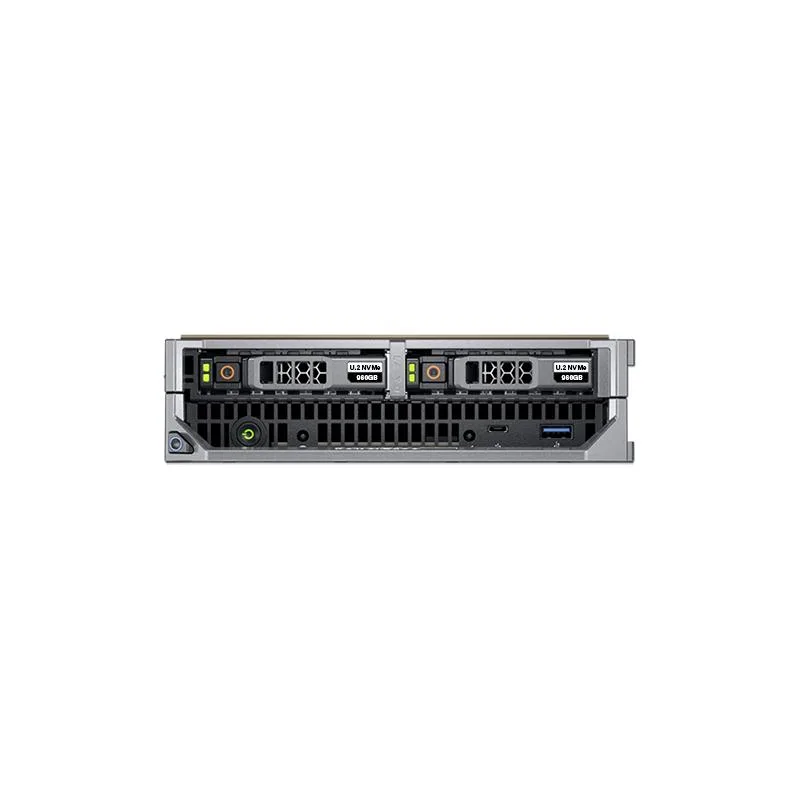

Half-height blade server, silver metal enclosure, two 2.5-inch drive bays visible

DELL

DELL PowerEdge M640 Blade 2x Xeon Gold 6150 18C 2.7GHz 128GB DDR4 S140 57810S-K iDRAC9 Enterprise

SKU CH-0G63-J71BP

Half-height blade server with dual 18-core Xeon Gold 6150 CPUs, 128 GB DDR4, S140 storage controller, dual 2.5" bays and 10 Gb dual-port networking plus iDRAC9 Enterprise

  • TypeBlade
  • Rack HeightBlade
  • CPU TypeIntel Xeon
  • CPU Speed2.70 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores18-Core Processor

Installed Memory Size 128GB

SSD (Installed) No

  • Dual 18-core Xeon Gold 6150 CPUs deliver 36 cores at up to 3.7 GHz Turbo
  • 128 GB DDR4 2666 MHz registered ECC memory with room to reach 2 TB
  • PERC S140 controller handles SATA and NVMe drives with RAID 0/1/5/10
  • Dual 10 Gb Broadcom 57810S-K ports provide high-speed blade networking
  • iDRAC9 Enterprise enables full remote lifecycle management

Blade density and core count

This half-height PowerEdge M640 blade installs two Intel Xeon Gold 6150 processors, each with 18 cores at 2.7 GHz and a 3.7 GHz turbo. The pair delivers up to 56 cores per server in a compact form factor that fits the MX or M1000e chassis.

Virtualisation hosts needing 10 Gb networking

The board includes a Broadcom 57810S-K dual-port 10 Gb daughter card and iDRAC9 Enterprise for remote management, suiting clusters that rely on high-speed fabric and out-of-band control. Buyers who need onboard NVMe RAID or more than two 2.5-inch drive bays should look at a different platform.

Memory ceiling and DDR4 generation

The system ships with 128 GB of DDR4 2666 MHz registered ECC across eight modules and supports a maximum of 2 TB across 16 slots. This capacity and generation determine whether the blade can host the intended workload without a memory upgrade.

Highlights

  • Dual 18-core Xeon Gold 6150 CPUs deliver 36 cores at up to 3.7 GHz Turbo
  • 128 GB DDR4 2666 MHz registered ECC memory with room to reach 2 TB
  • PERC S140 controller handles SATA and NVMe drives with RAID 0/1/5/10
  • Dual 10 Gb Broadcom 57810S-K ports provide high-speed blade networking
  • iDRAC9 Enterprise enables full remote lifecycle management

Specifications

BrandDELL
SeriesPowerEdge M640
TypeBlade
Rack HeightBlade
CPU TypeIntel Xeon
CPU Speed2.70 GHz
CPU SocketLGA 3647
Number of CPU Cores18-Core Processor
# of Processors Installed2
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity2TB
Number of Memory Slots16
Storage ControllerDell Perc S140 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Broadcom 57810S-K 10Gb Dual Port Blade Network Daughter Card
Management PortRJ 45
Operating SystemNo

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the Broadcom 57810S-K 10Gb dual-port daughter card deliver per port?

Each port on the Broadcom 57810S-K daughter card operates at 10 Gb/s, providing dual 10 GbE connectivity for the blade.

Which chassis types accept the half-height M640 blade form factor?

The M640 blade fits the PowerEdge MX and M1000e chassis, which provide the required mid-plane connections and cooling.

How is the PERC S140 controller configured for the two 2.5-inch drive bays?

The S140 is an integrated SATA/NVMe controller; create RAID 0, 1, 5 or 10 in the BIOS utility before installing the operating system.
