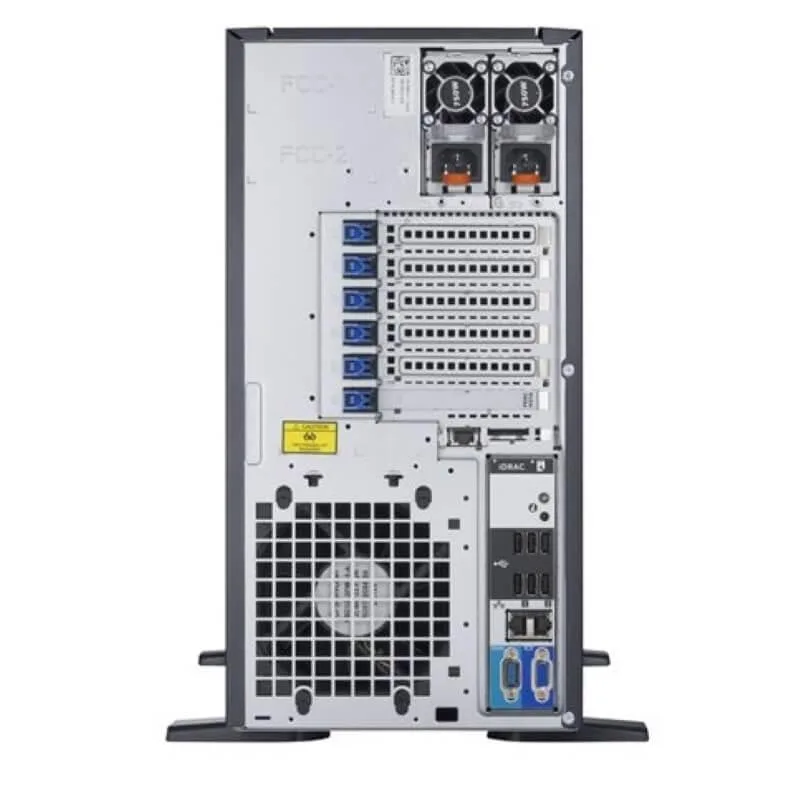

Tower server, matte black chassis, eight hot-plug drive bays front, dual power supplies rear

DELL

DELL PowerEdge T320 E5-2450 2.1GHz 24GB DDR3 H710 2x 495W rack server

SKU CH-RR5H-4EQFB MPN E5-2450

Tower server with an eight-core Xeon at 2.1 GHz, 24 GB DDR3, H710 RAID controller and dual 495 W power supplies

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size24GB

Installed Memory Size 24GB

CPU Model E5-2450

  • Eight-core Xeon E5-2450 at 2.1 GHz handles multi-threaded workloads
  • 24 GB DDR3 memory installed across six DIMM slots
  • PERC H710 RAID controller supports RAID 0/1/5/6/10/50/60
  • Eight 3.5-inch hot-plug bays for SATA or SAS drives
  • Two 495 W redundant power supplies keep the system running

Dell PowerEdge T320 single-socket tower

This Dell PowerEdge T320 tower server ships with a single Intel Xeon E5-2450 eight-core processor at 2.1 GHz and 24 GB of DDR3 memory across six DIMM slots. The PERC H710 controller with 512 MB cache supports RAID 0, 1, 5, 6, 10, 50 and 60 across up to eight 3.5-inch hot-plug drive bays. Dual 495 W redundant power supplies and a DVD-ROM drive complete the base configuration.

Suits small-business virtualisation

The eight cores and 16 threads handle light virtualisation or database tasks, while the H710 controller and eight-bay chassis give room for up to 64 TB of SATA or SAS storage. Five PCIe slots — one x16 3.0 and four x8 variants — provide expansion for networking or additional storage controllers. Buyers who need more than 24 GB of installed memory or a rackmount form factor should consider other platforms.

24 GB DDR3 memory limit

The system arrives with 24 GB of DDR3 already populated and the processor caps supported memory at 24 GB, so no further RAM can be added without a CPU change. Six DIMM slots are present but the maximum usable capacity is fixed by the E5-2450 specification. This hard ceiling makes the memory capacity the single specification that determines whether the server fits the workload.

Highlights

  • Eight-core Xeon E5-2450 at 2.1 GHz handles multi-threaded workloads
  • 24 GB DDR3 memory installed across six DIMM slots
  • PERC H710 RAID controller supports RAID 0/1/5/6/10/50/60
  • Eight 3.5-inch hot-plug bays for SATA or SAS drives
  • Two 495 W redundant power supplies keep the system running

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size24GB
Memory TypeDDR3
Max Memory Capacity24GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H710 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What hard drives do I need to add for the H710 controller to present storage to the Xeon E5-2450?

The server has eight 3.5-inch hot-plug bays that accept SATA or SAS drives; no drives or trays are included, so you must supply compatible 3.5-inch SATA or SAS disks and matching trays before the H710 can build any RAID volume.

Can I keep using my existing DDR3 modules when the system already has 24 GB installed across the six DIMM slots?

All six DIMM slots are populated to reach the 24 GB total, so any additional DDR3 memory requires removing existing modules; the platform supports up to 192 GB using 2 GB, 4 GB, 8 GB, 16 GB or 32 GB DDR3 DIMMs at speeds up to 1600 MT/s depending on the processor.

How do I verify the H710 RAID controller is operating at its 6 Gbps link speed after the drives are installed?

During POST the H710 BIOS utility reports each drive’s negotiated link rate; a healthy 6 Gbps SAS or SATA drive will show a 6 Gbps connection, while a 3 Gbps drive will report 3 Gbps, confirming the controller is functioning at its rated speed.
