Tower server chassis with eight 3.5-inch hot-plug drive bays and DVD drive

DELL

DELL PowerEdge T320 E5-2450 2.1GHz 64GB DDR3 H710 2x 495W rack server

SKU CH-DDVM-PWZBJ MPN E5-2450

A tower server with an eight-core Xeon E5-2450 at 2.1 GHz, 64 GB DDR3, a Perc H710 RAID controller and dual 495 W supplies, supporting up to eight 3.5-inch hot-plug drives

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size64GB

Installed Memory Size 64GB

CPU Model E5-2450

  • Eight-core Xeon 2.1 GHz handles multi-threaded workloads
  • 64 GB DDR3 memory supports virtualisation density
  • H710 RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 495 W redundant power supplies protect uptime
  • Eight 3.5-inch hot-plug bays allow high-capacity storage

PowerEdge T320 tower server

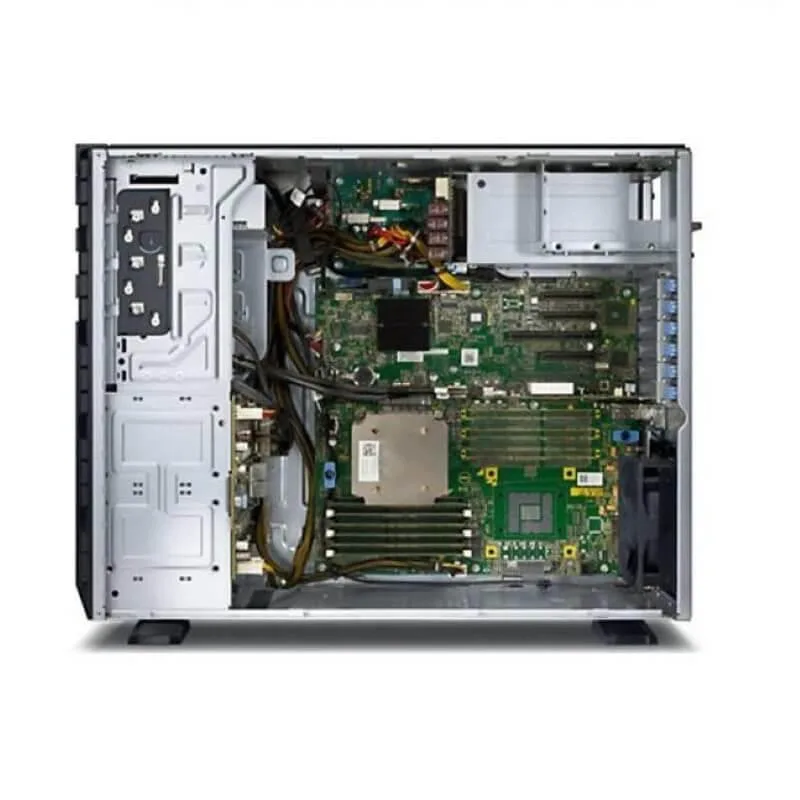

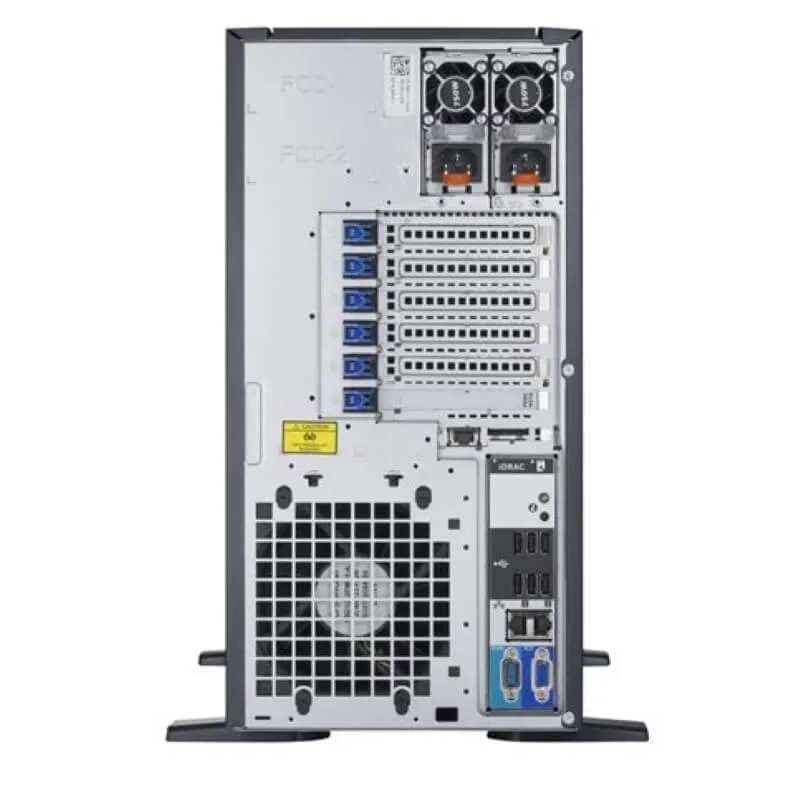

The Dell PowerEdge T320 is a single-socket tower server built around an Intel Xeon E5-2450 eight-core processor running at 2.1 GHz. It ships with 64 GB of DDR3 memory across six DIMM slots and a Dell PERC H710 RAID controller with 512 MB cache. Dual 495 W redundant power supplies and eight hot-plug 3.5-inch drive bays complete the platform.

Small-business workloads and home-lab use

This configuration suits buyers who need a quiet tower form factor with hardware RAID 0, 1, 5, 6, 10, 50 or 60 and room for up to 64 TB of SATA or SAS storage. Builders who require a second physical CPU, GPU compute acceleration, or more than 64 GB of RAM should look at other platforms.

64 GB DDR3 memory ceiling

The installed 64 GB matches the maximum capacity supported by this specific processor and chipset combination. The six slots accept 2 GB, 4 GB, 8 GB, 16 GB or 32 GB DDR3 modules up to 1600 MT/s, but no further expansion is possible without changing the CPU.

Highlights

  • Eight-core Xeon 2.1 GHz handles multi-threaded workloads
  • 64 GB DDR3 memory supports virtualisation density
  • H710 RAID controller enables RAID 0/1/5/6/10/50/60
  • Dual 495 W redundant power supplies protect uptime
  • Eight 3.5-inch hot-plug bays allow high-capacity storage

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size64GB
Memory TypeDDR3
Max Memory Capacity64GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H710 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What depth clearance does the 23.42-inch chassis need for the 8 x 3.5" hot-plug bays?

The tower measures 23.42 inches long, 11.99 inches wide and 18.55 inches high; allow extra space at the front for drive insertion and at the rear for cable routing.

Which slot should the H710 controller occupy and what cable mistake delays the RAID build?

Install the H710 in the x16 PCIe 3.0 full-length slot; connect its two mini-SAS cables to the backplane before powering on, otherwise the array will not initialise.

When the 64GB DDR3 limit is reached, which modules must be replaced to grow toward 192GB?

All six slots are filled with the shipped 64GB; to reach 192GB you must remove the existing DIMMs and populate the six slots with 32GB DDR3 modules.
