Tower server in black metal chassis with front drive bays and DVD slot

DELL

DELL PowerEdge T320 tower server E5-2420 1.9 GHz 64 GB DDR3 H710 2×495 W

SKU CH-HZHC-8RH8C MPN E5-2420

Tower server with a six-core 1.9 GHz Xeon, 64 GB DDR3, H710 RAID controller and eight hot-plug 3.5" bays

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size64GB

Installed Memory Size 64GB

CPU Model E5-2420

  • Six-core Xeon at 1.9 GHz handles parallel workloads
  • 64 GB DDR3 memory fills every slot for large datasets
  • H710 controller with 512 MB cache accelerates RAID 0/1/5/6/10/50/60
  • Two 495 W supplies keep the system running if one fails
  • Eight 3.5-inch hot-plug bays let you swap drives without downtime

PowerEdge T320 tower server

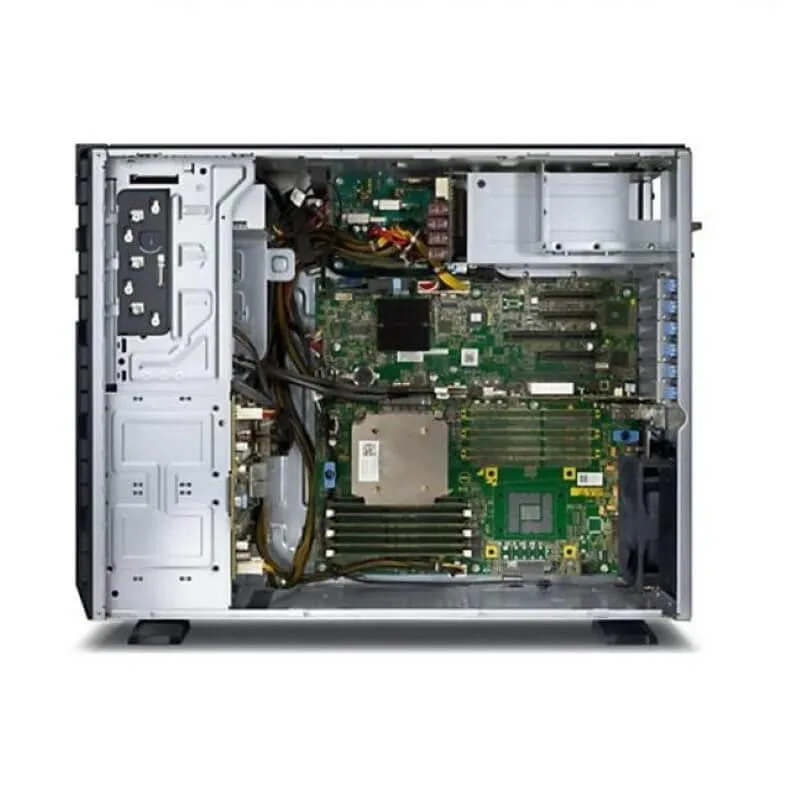

The Dell PowerEdge T320 is a single-socket tower server built around an Intel Xeon E5-2420 six-core processor running at 1.9 GHz. It ships with 64 GB of DDR3 memory across six DIMM slots and a PERC H710 RAID controller with 512 MB cache. Dual 495 W power supplies provide redundancy. The chassis holds up to eight 3.5-inch hot-plug drive bays and includes a DVD ROM drive.

Check memory ceiling and drive tray stock

The system arrives with 64 GB installed, which matches the 64 GB maximum listed in the specifications table, so no further RAM expansion is possible without replacing modules. Eight 3.5-inch hot-plug bays are present, but no hard drives or trays are included. Verify that you have compatible SATA or SAS drives and the correct caddies before deployment. The single-processor configuration leaves the second CPU socket empty.

H710 controller enables RAID flexibility

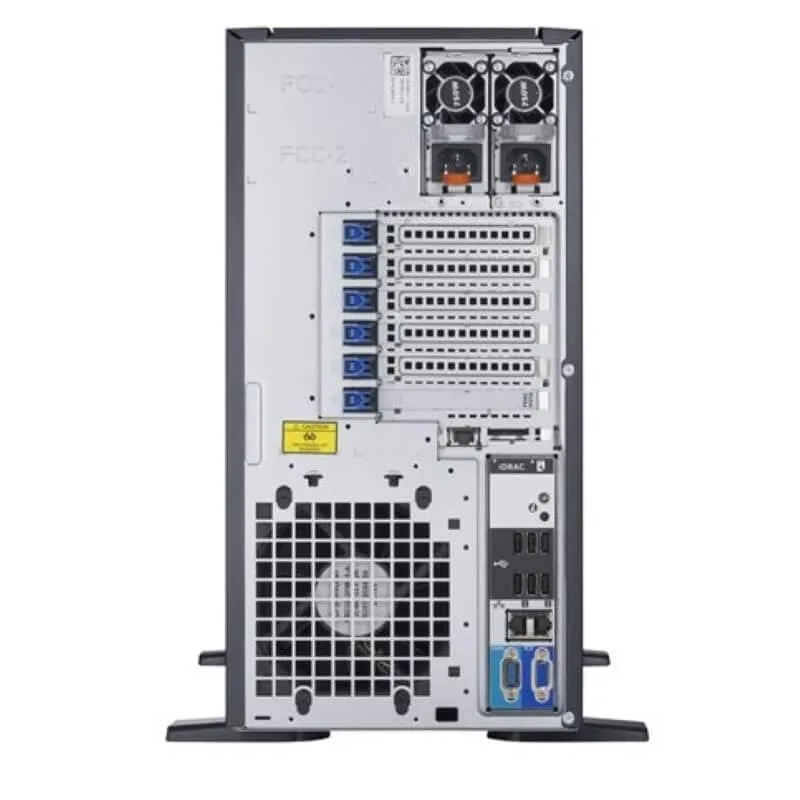

The bundled PERC H710 controller supports RAID 0, 1, 5, 6, 10, 50 and 60, allowing a range of redundancy and performance layouts across the eight drive bays. Dual redundant 495 W power supplies keep the server running if one unit fails. Five PCIe slots — one x16 at 3.0, three x8 and one x8 at x1 — provide room for additional network or storage adapters. The Matrox G200 with 8 MB video memory handles basic console output.

Highlights

  • Six-core Xeon at 1.9 GHz handles parallel workloads
  • 64 GB DDR3 memory fills every slot for large datasets
  • H710 controller with 512 MB cache accelerates RAID 0/1/5/6/10/50/60
  • Two 495 W supplies keep the system running if one fails
  • Eight 3.5-inch hot-plug bays let you swap drives without downtime

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size64GB
Memory TypeDDR3
Max Memory Capacity64GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H710 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Dell PowerEdge T320 include hard drives or drive trays?

The server ships without any hard drives or trays installed. You must supply up to eight 3.5-inch SATA or SAS drives to populate the hot-plug bays.

Which Xeon processor is fitted and how many cores does it provide?

A single Intel Xeon E5-2420 six-core CPU running at 1.9 GHz is installed, delivering twelve threads with hyper-threading enabled.

How much memory can the T320 actually use with this processor?

The board has six DDR3 DIMM slots populated to 64 GB. The installed E5-2420 limits total capacity to 64 GB even though the chipset supports up to 192 GB.
