Tower server chassis with eight front drive bays and dual power supplies

DELL

DELL PowerEdge T320 tower server E5-2420 1.9GHz 8GB DDR3 H710 2x 495W

SKU CH-PR9A-8M82Y MPN E5-2420

Tower server with Xeon E5-2420 six-core CPU, 8 GB DDR3, H710 RAID controller and eight 3.5-inch hot-plug bays

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • ChipsetIntel C600
  • Installed Memory Size8GB

Installed Memory Size 8GB

CPU Model E5-2420

  • Six-core Xeon E5-2420 at 1.9 GHz for multi-threaded workloads
  • 8 GB DDR3 memory installed across six DIMM slots
  • PERC H710 RAID controller with 512 MB cache supporting RAID 0/1/5/6/10/50/60
  • Dual 495 W redundant power supplies for continuous uptime
  • Eight 3.5-inch hot-plug drive bays for flexible SATA or SAS storage

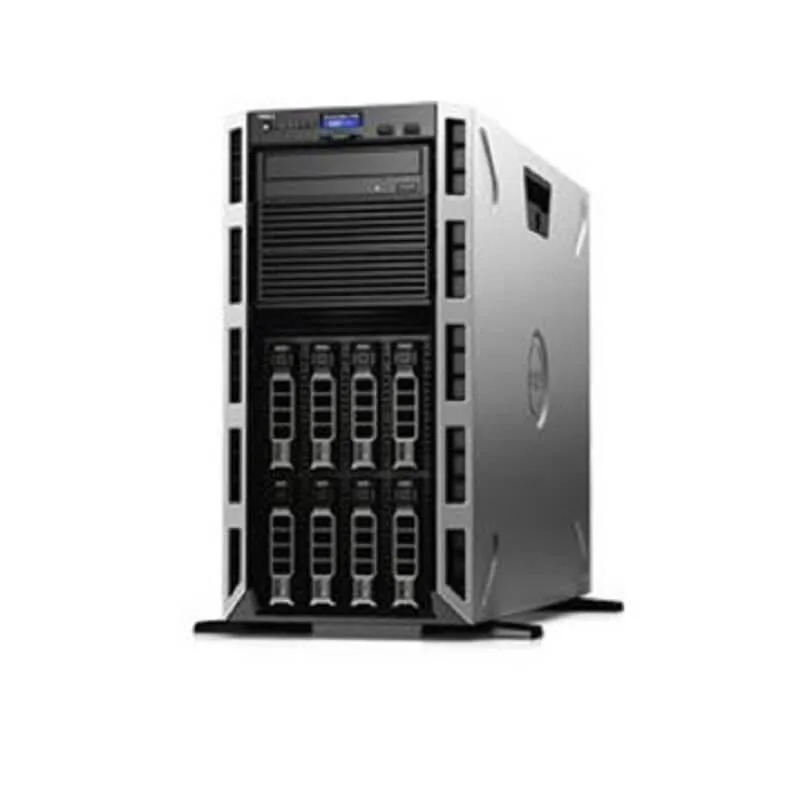

Dell PowerEdge T320 tower server

The Dell PowerEdge T320 is a single-socket tower server built around an Intel Xeon E5-2420 six-core processor running at 1.9 GHz. It ships with 8 GB of DDR3 memory installed across six DIMM slots and a Dell PERC H710 RAID controller with 512 MB cache. Dual 495 W redundant power supplies are included for continuous operation.

Hot-plug drive bays and RAID flexibility

Eight 3.5-inch hot-plug bays accept SATA or SAS drives, letting administrators swap storage without downtime. The H710 controller supports RAID levels 0, 1, 5, 6, 10, 50 and 60, enabling a range of redundancy and performance profiles from a single chassis.

Single-processor ceiling

Only one Xeon E5-2420 can be fitted, so the platform tops out at twelve virtual threads and a maximum of 192 GB DDR3. Buyers who need dual-socket scaling or higher core counts must look beyond this tower.

Highlights

  • Six-core Xeon E5-2420 at 1.9 GHz for multi-threaded workloads
  • 8 GB DDR3 memory installed across six DIMM slots
  • PERC H710 RAID controller with 512 MB cache supporting RAID 0/1/5/6/10/50/60
  • Dual 495 W redundant power supplies for continuous uptime
  • Eight 3.5-inch hot-plug drive bays for flexible SATA or SAS storage

Specifications

BrandDELL
SeriesPowerEdge
ModelPowerEdge T320
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
ChipsetIntel C600
Installed Memory Size8GB
Memory TypeDDR3
Max Memory Capacity8GB
Memory Features6 DIMM slots. (2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s, actual memory speed dependent on the processor capability)
Number of Memory Slots6
Storage ControllerDell Perc H710 Controller
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD Capacity64TB
Media DrivesDVD ROM
GPU TypeMatrox G200
Video Memory8MB
Remote ManagementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade option) or iDRAC7 Enterprise
(upgrade option), 8GB or 16GB vFlash media (upgrade options)
LAN Ports2 x Ports
Expansion Slots5 PCIe slots: 1 x16 with x16 bandwidth, 3.0, full-length, fullheight; 1 x8 with x4 bandwidth, 3.0, half-length, fullheight1 x8 with x4 bandwidth, 2.0, half-length, full-height; 1 x8 with x4 bandwidth, 3.0, full-length, full-height; 1 x8 with x1 bandwidth, 2.0, full-length, full-height
Operating SystemNo
Compatible/Certified OSMicrosoft Windows Small Business Server 2011/2008, Microsoft Windows Server 2008 R2 SP1/SP2, Microsoft Windows HPC Server 2008 R2, Novell SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Oracle Solaris
Weight70.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much DDR3 memory can I add to the six DIMM slots later?

The six DIMM slots support up to 192 GB total using 2 GB, 4 GB, 8 GB, 16 GB or 32 GB DDR3 modules at up to 1600 MT/s.

Which component hits its limit first during sustained heavy workloads?

The single Xeon E5-2420 six-core 1.9 GHz processor reaches full utilisation before the H710 controller or memory bandwidth saturate.

How loud and hot does the tower get with both 495 W power supplies running continuously?

Dual 495 W redundant supplies share the load, keeping fan speeds moderate; typical office ambient temperatures are handled without excessive noise.
