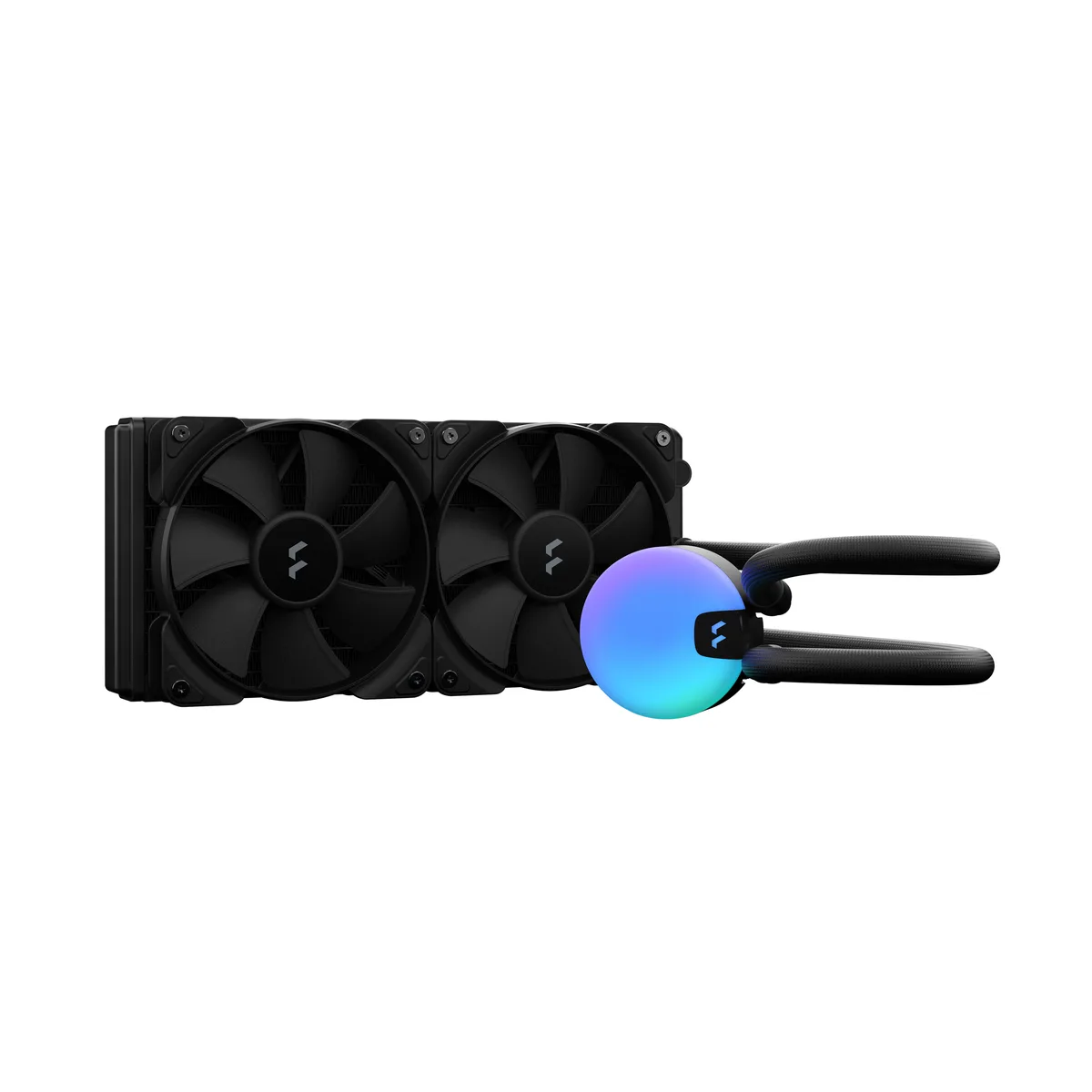

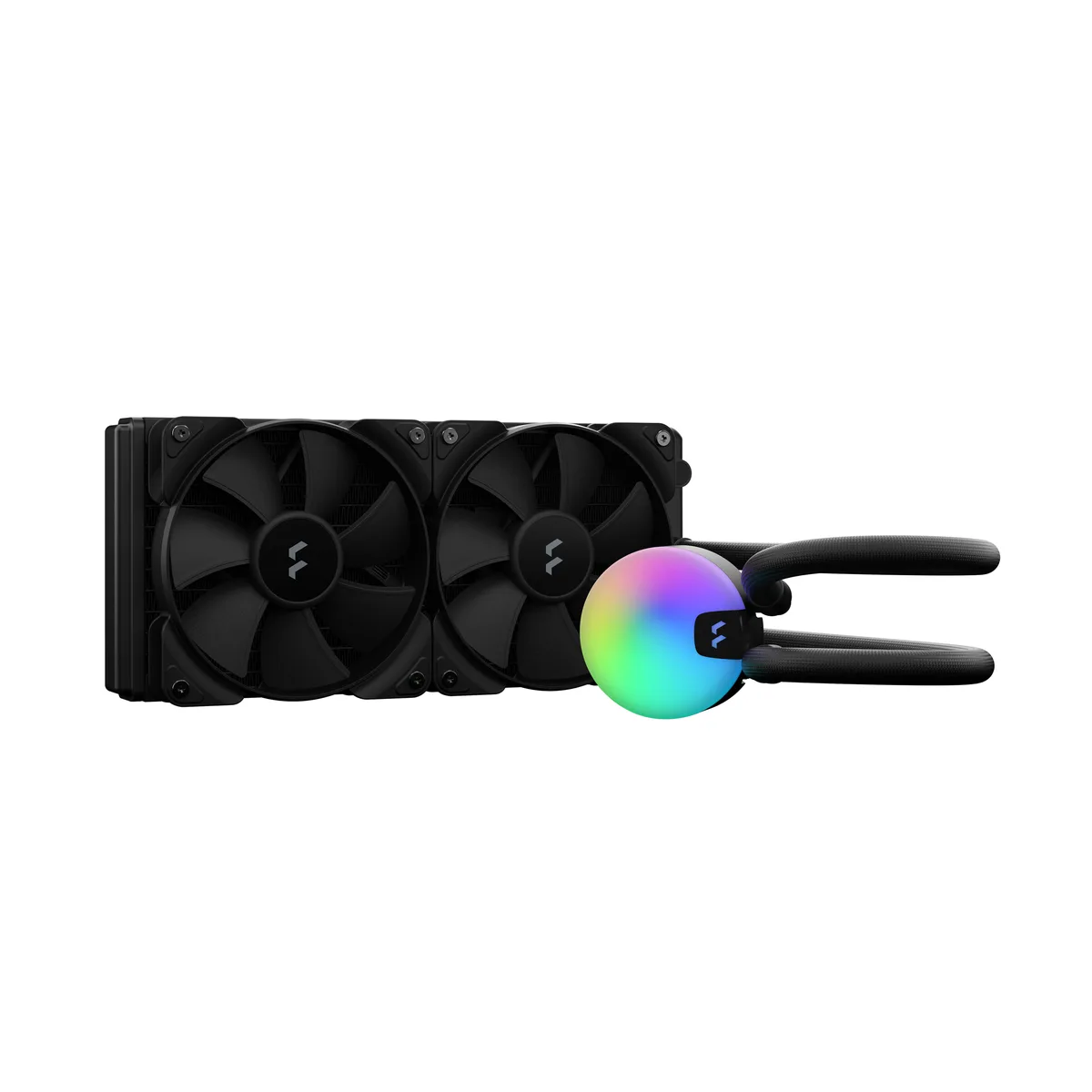

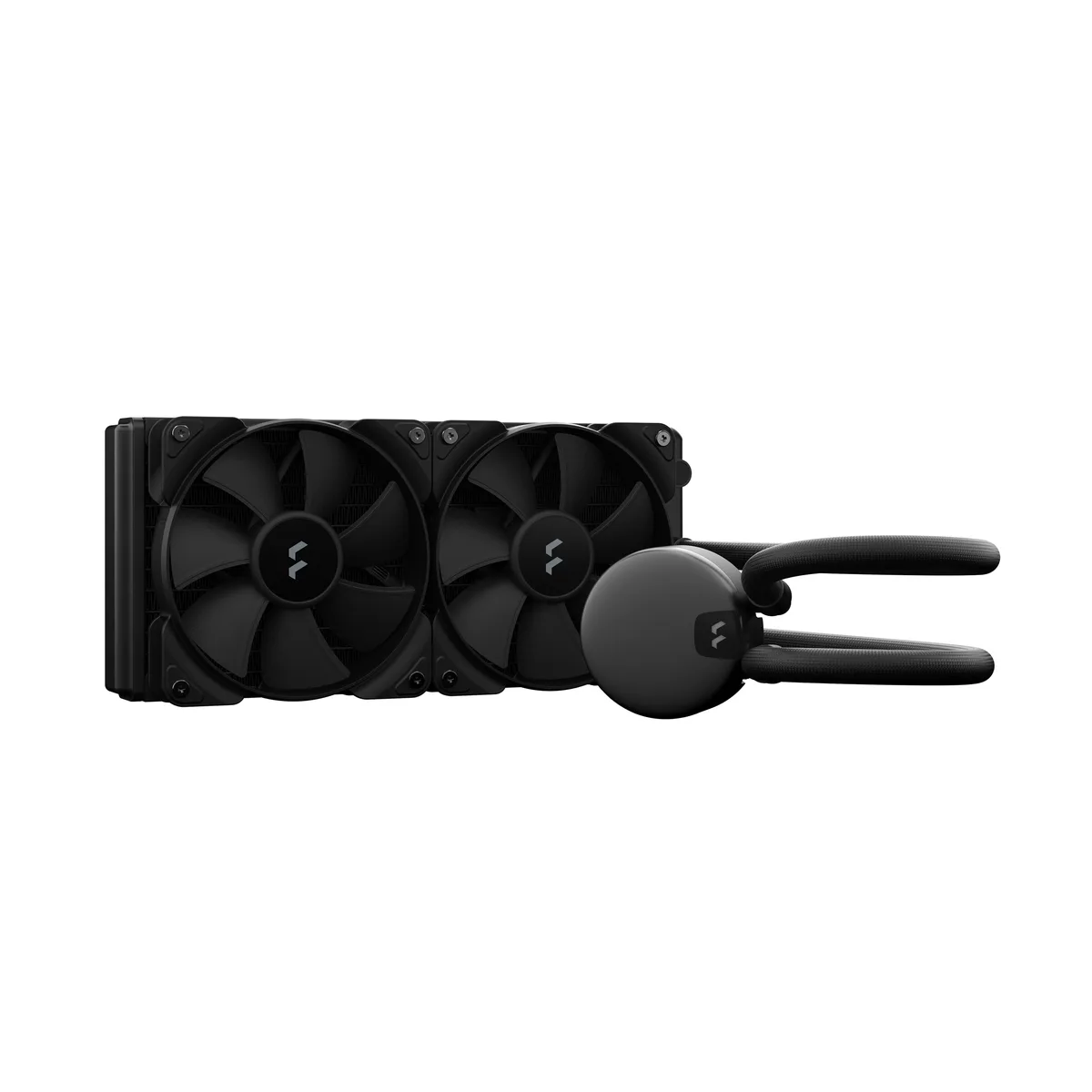

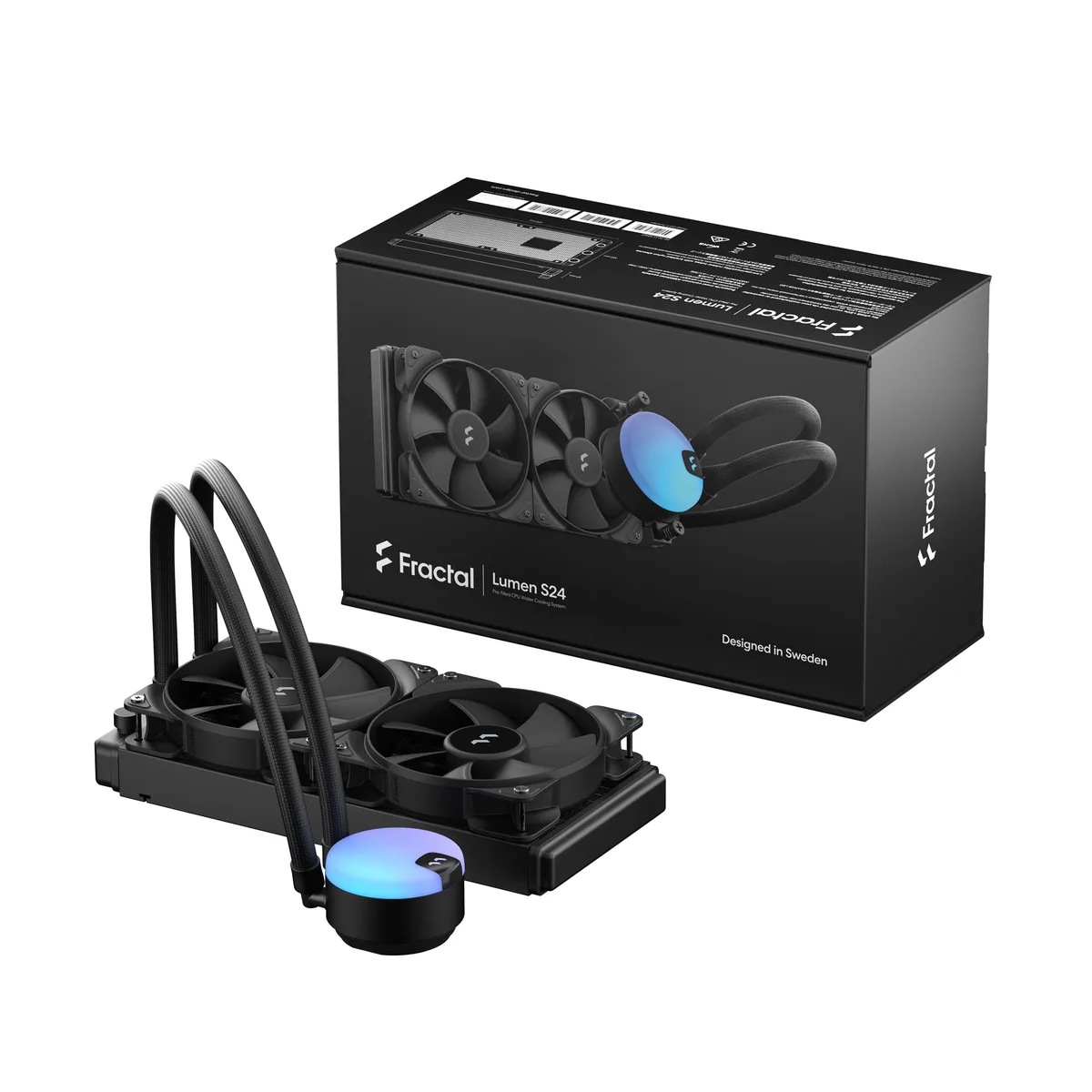

Black aluminium radiator 272 mm long with two 120 mm fans and illuminated copper pump block with rotatable top

Fractal Design

Fractal Design FD-W-L1-S2411 Lumen S24 v2 liquid cooler

SKU CH-B37H-TSXGP MPN FD-W-L1-S2411

A liquid cooler with two 120 mm Aspect fans, a copper cold plate and addressable RGB lighting controlled via motherboard software

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
  • Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Dim.79 x 67 mm (with fittings)
  • Block MaterialCopper

Fan Size 2 Fan Slots (120mm)

Model Non-RGB

  • Copper cold plate transfers heat efficiently
  • 22 dBA pump runs quietly at idle
  • Two 120 mm fans push 13 to 56 CFM
  • Articulating elbow fittings simplify tube routing
  • Removable top rotates 90° for logo alignment

272 mm radiator liquid cooler

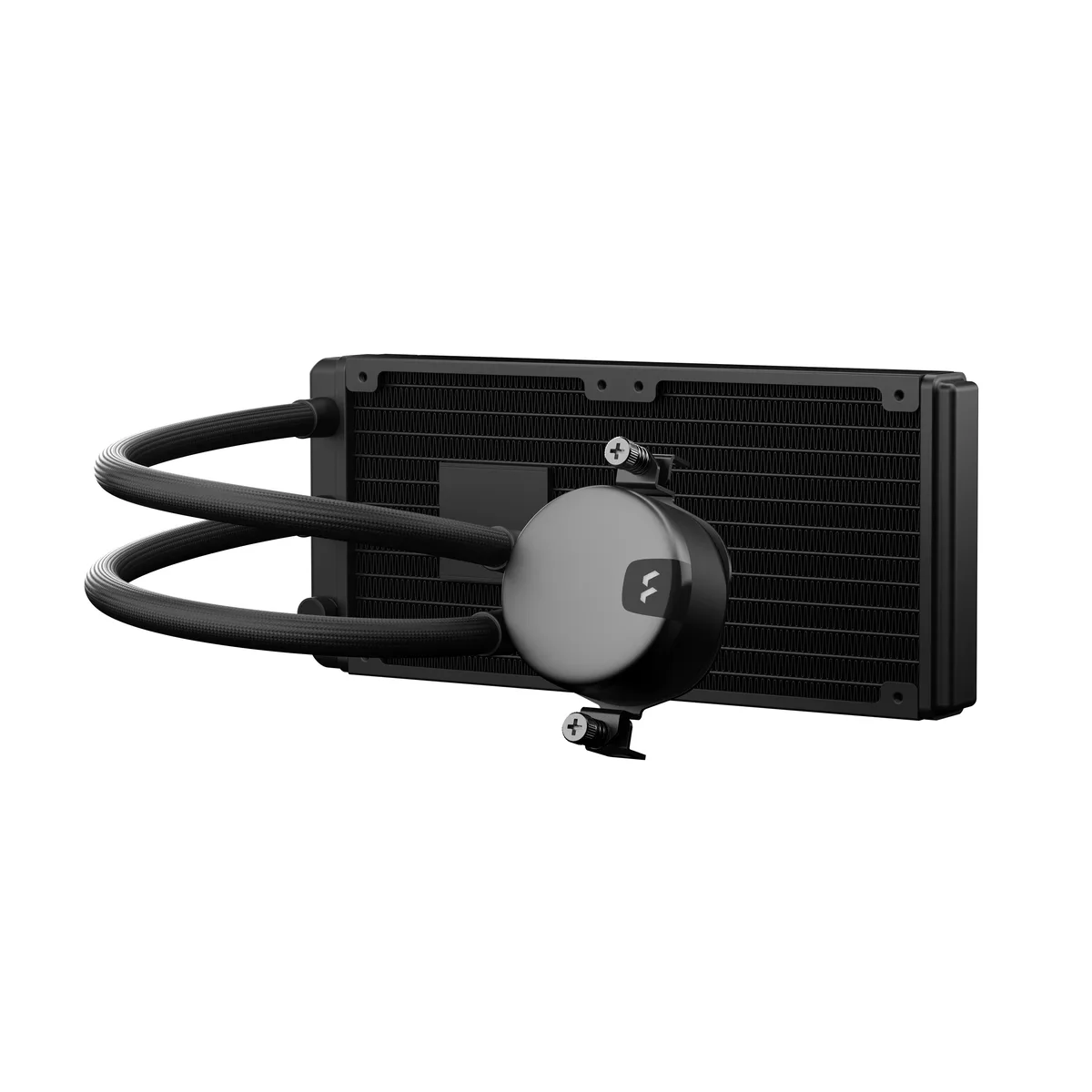

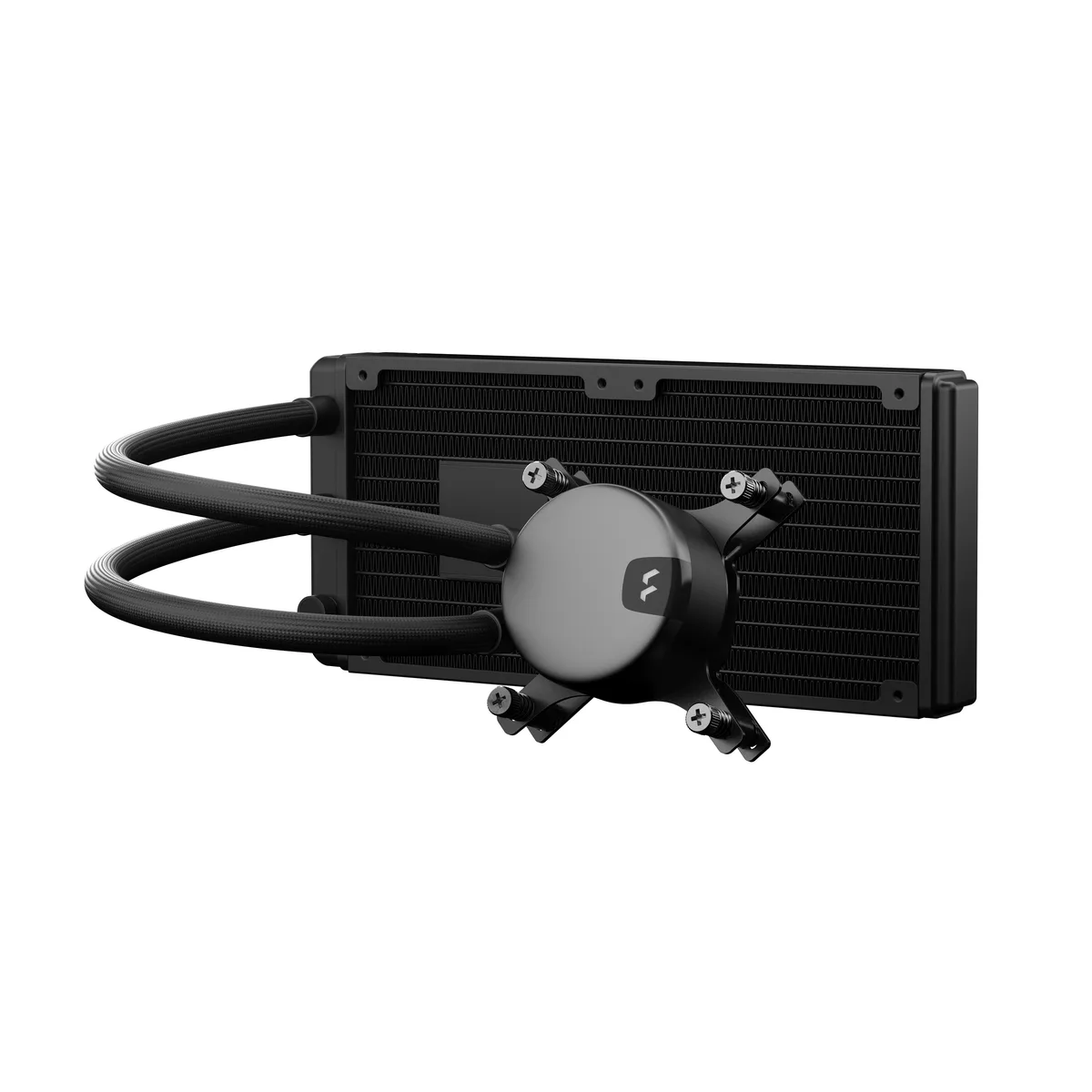

The Fractal Design Lumen S24 v2 is an all-in-one liquid cooler with a 272 mm aluminium radiator and two 120 mm Aspect fans. A copper cold plate with pre-applied thermal paste mounts to a wide range of Intel and AMD sockets. Articulating elbow fittings and a rotatable 90 degree top cap simplify tube routing and logo alignment.

Broad socket support with routing flexibility

Builders who need a cooler that fits both current and legacy platforms will appreciate the extensive socket list covering Intel LGA 1150 through 2066 and AMD AM2 through AM5. The low-permeability rubber tubes with braided nylon sleeves and adjustable fittings help in cases where tubing clearance is tight. Buyers who need a smaller radiator for compact chassis or a larger surface area for extreme overclocking should look at other sizes.

272 x 120 x 27 mm radiator dimensions

The radiator measures 272 mm long, 120 mm wide and 27 mm thick, which determines whether it fits your case mounting points and clears motherboard components. Verify your case specifications against these exact dimensions before purchase.

Highlights

  • Copper cold plate transfers heat efficiently
  • 22 dBA pump runs quietly at idle
  • Two 120 mm fans push 13 to 56 CFM
  • Articulating elbow fittings simplify tube routing
  • Removable top rotates 90° for logo alignment

Specifications

BrandFractal Design
SeriesLumen
ModelLumen S24 v2
Part NumberFD-W-L1-S2411
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
AMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
Block Dim.79 x 67 mm (with fittings)
Block MaterialCopper
Pump BearingCeramic
Pump Noise22 dBA
Radiator Size272 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeRifle
Fan RPM500 - 2000 RPM
Fan Air Flow13 - 56 CFM
Fan Noise<10 - 33.2 dBA
Fan Connector4 Pin
ColorBlack
Tube MaterialLow-permeability rubber with braided nylon sleeve
Shipping weight1.76 kg
Package size332 × 205 × 137 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the pump is running correctly after installing the Lumen S24 v2?

Listen for the ceramic-bearing pump at its rated 22 dBA and confirm the Aspect 12 PWM fans spin between 500 and 2000 RPM via motherboard software or BIOS.

What comes in the box with the FD-W-L1-S2411 and what must I purchase separately?

The box includes the 272 mm radiator, copper cold plate with pre-applied paste, two 120 mm Aspect fans and articulating elbow fittings; no extra mounting hardware is needed for listed Intel or AMD sockets.

Which Lumen S24 v2 version should I choose for an AM5 build versus an LGA 1700 build?

The single FD-W-L1-S2411 model supports both AMD AM5 and Intel LGA 1700 out of the box, so no version choice is required.
