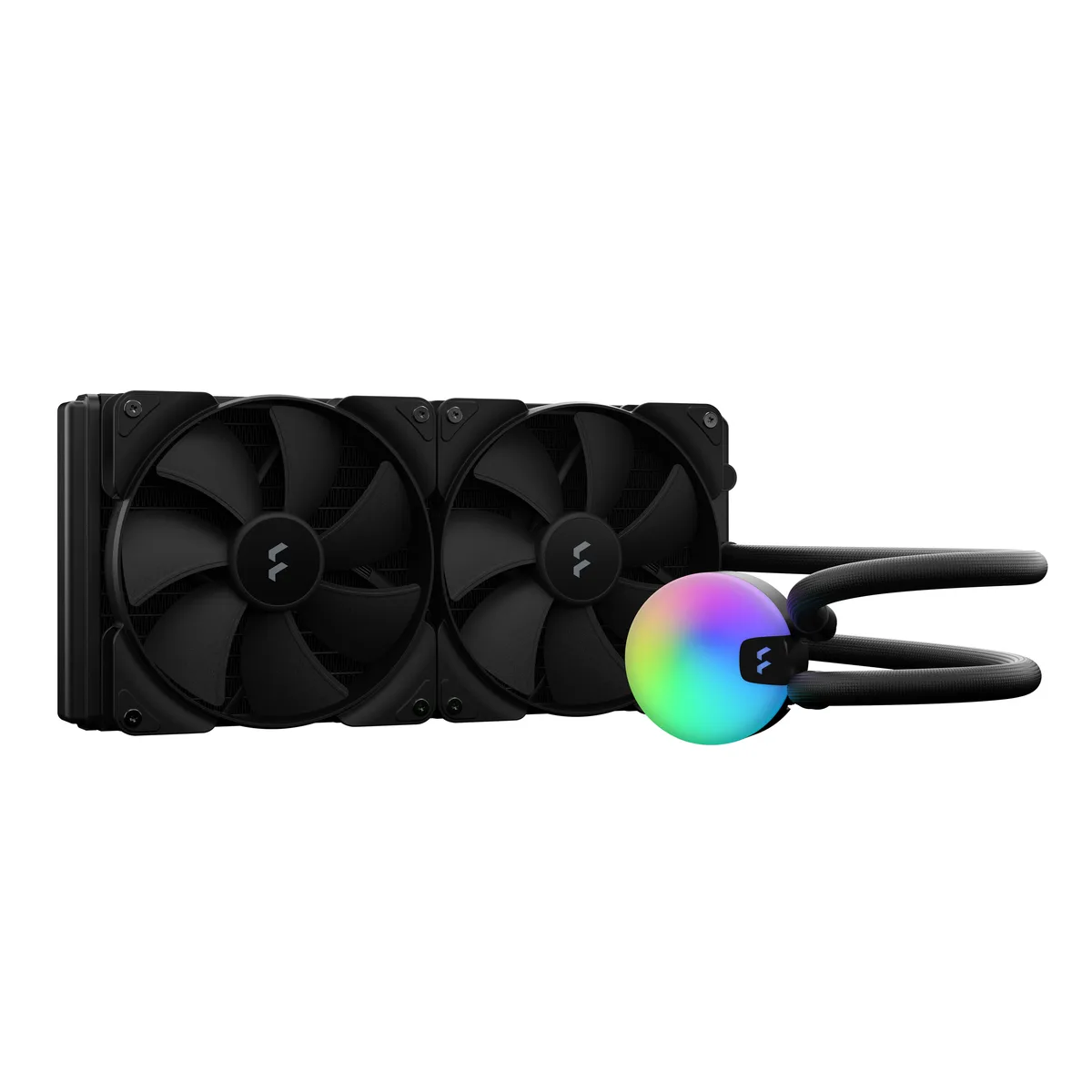

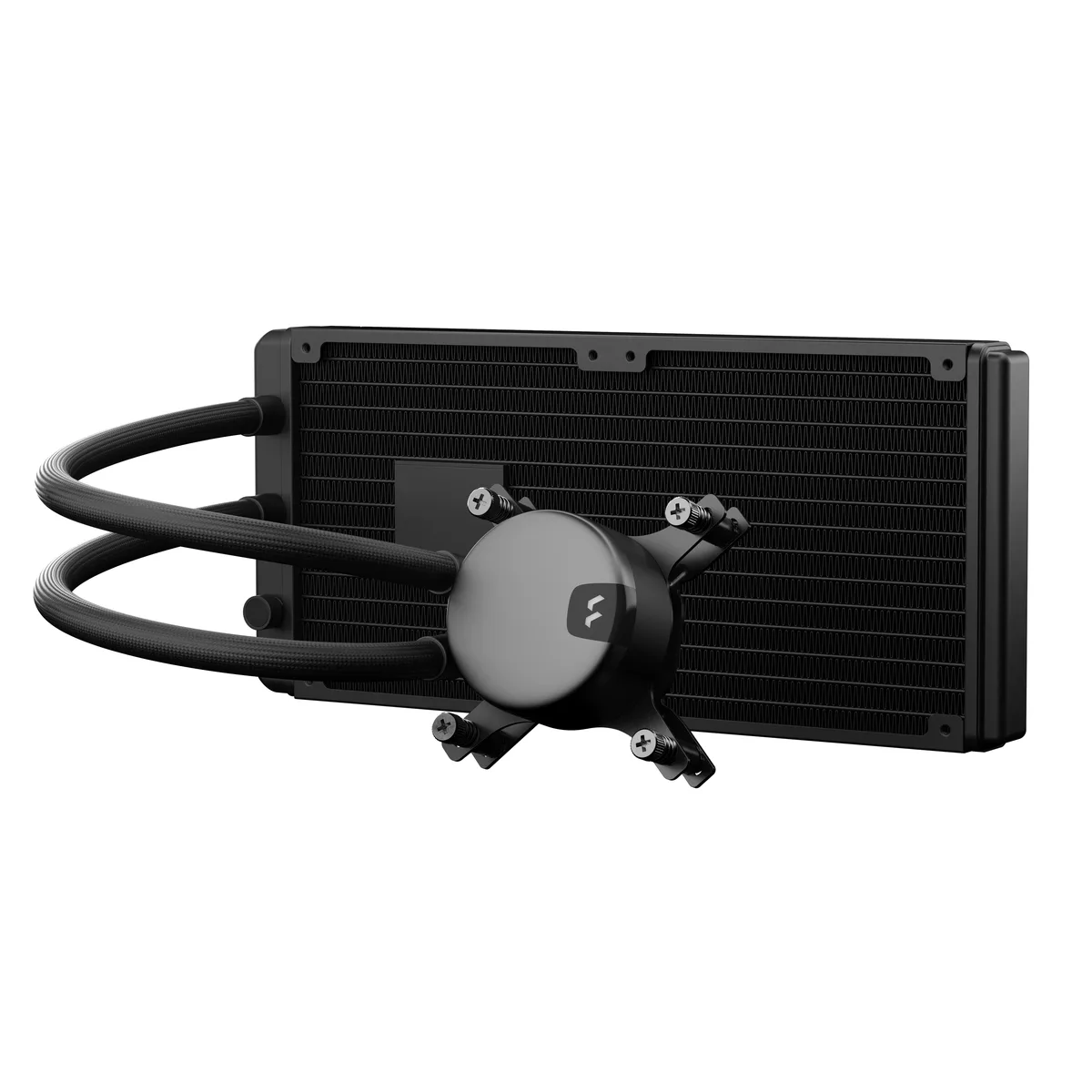

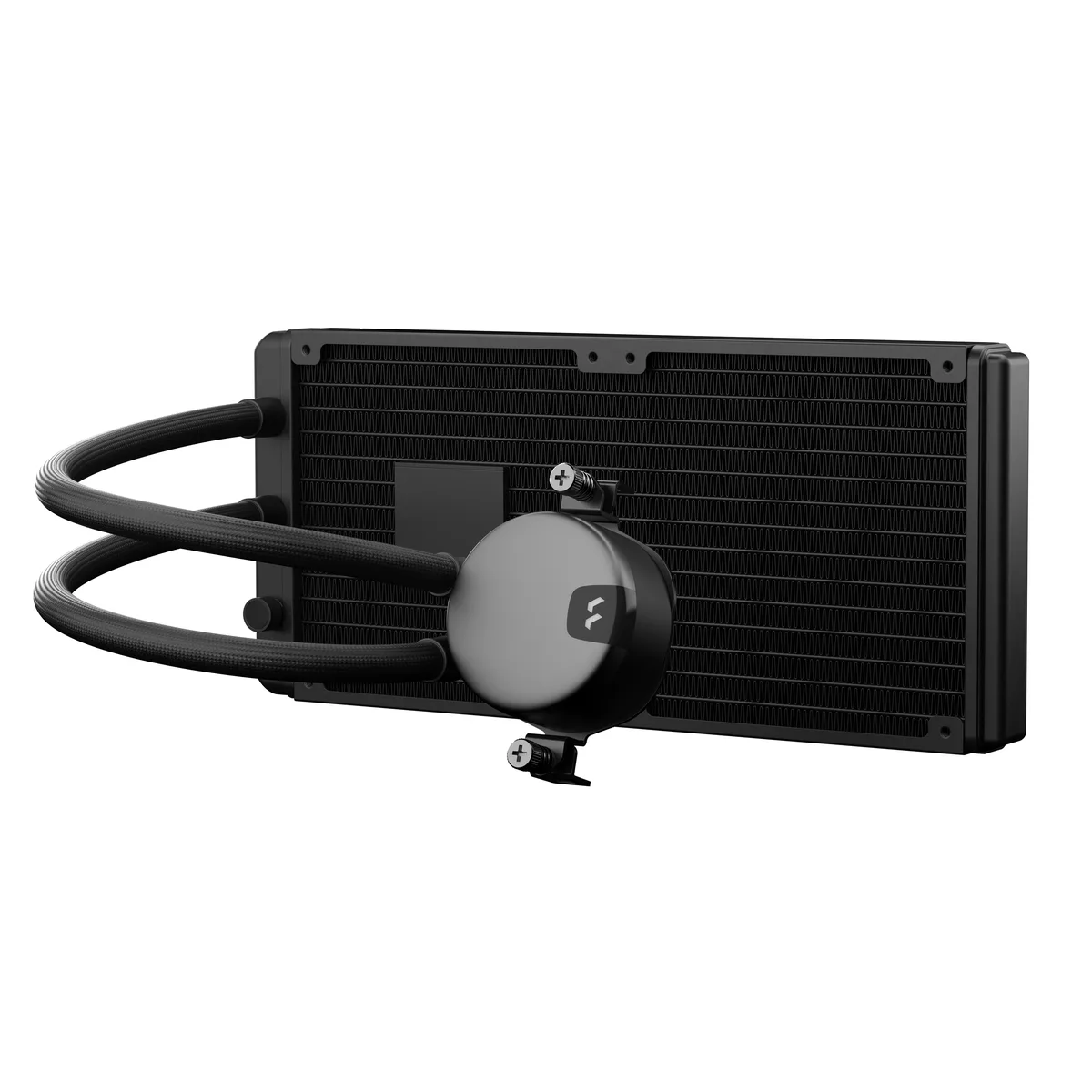

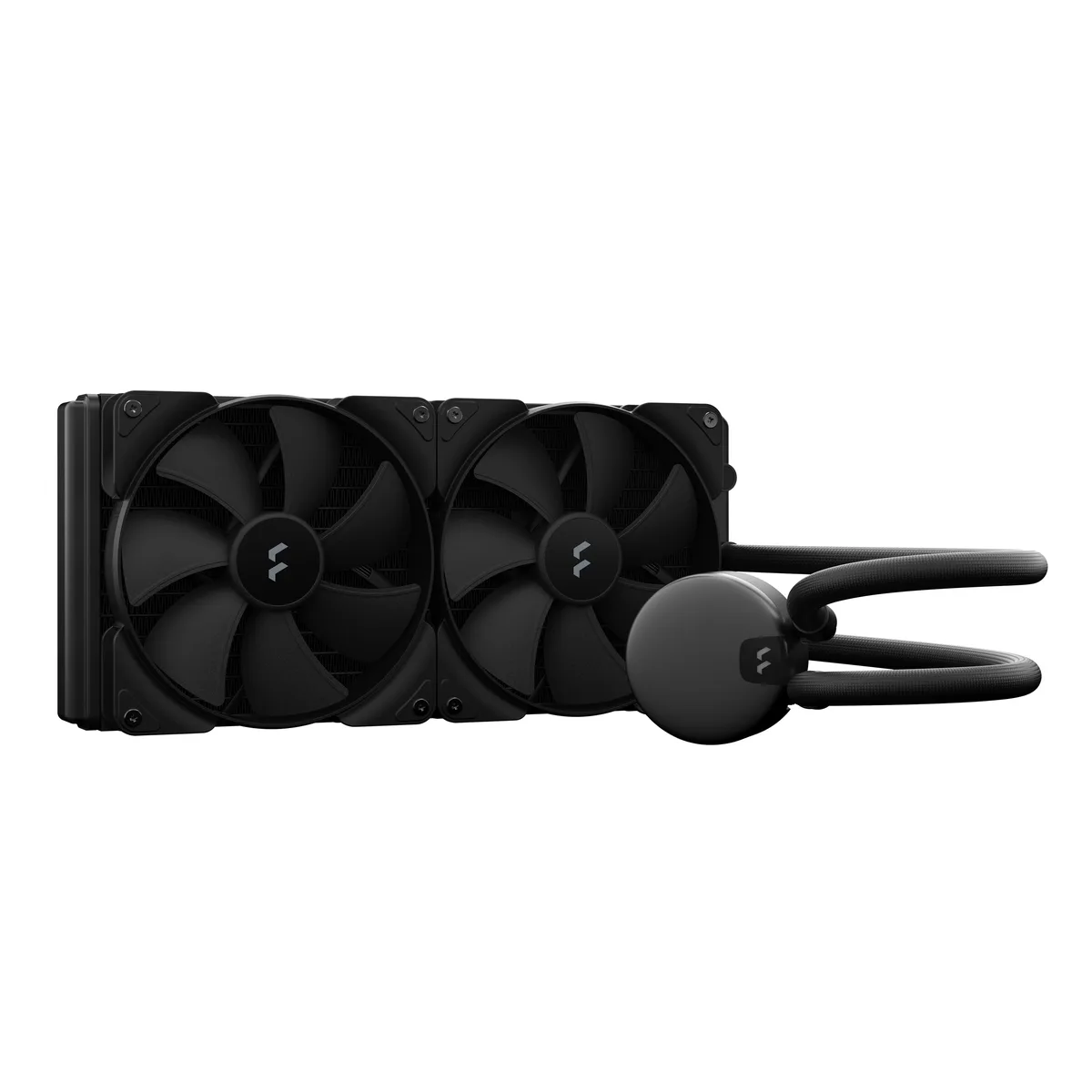

Black liquid cooler with 313 mm radiator, two 140 mm fans and braided tubes

Fractal Design

Fractal Design FD-W-L1-S2811 Lumen S28 v2 liquid cooler

SKU CH-2XPK-C0CKZ MPN FD-W-L1-S2811

A liquid CPU cooler with two 140 mm PWM fans, a copper cold plate and addressable RGB lighting controlled from the motherboard

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
  • Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Dim.79 x 67 mm (with fittings)
  • Block MaterialCopper

Fan Size 2 Fan Slots (140mm)

Model Non-RGB

  • Quiet pump operation at 22 dBA keeps noise low
  • Dual 140 mm fans deliver 20 to 78 CFM airflow
  • Copper cold plate with pre-applied paste simplifies installation
  • Articulating elbow fittings ease tube routing in tight cases
  • Broad socket support covers Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066 and AMD AM2, AM2+, AM3, AM3+, AM4, AM5.

Lumen S28 v2 AIO liquid cooler

The Fractal Design Lumen S28 v2 is an all-in-one liquid cooler built around a 313 x 140 x 27 mm aluminum radiator and two 140 mm Aspect fans. It targets builders who want a closed-loop solution with addressable lighting that syncs through motherboard software. The copper cold plate covers modern Intel LGA and AMD AM sockets, and thermal paste is pre-applied for quicker installation.

Upgrade from stock air coolers

This unit replaces basic box coolers or single-tower air coolers when CPU thermals limit boost clocks or generate noise under load. The jump is worth it when sustained workloads push package power past what a heatsink can dissipate quietly. Articulating elbow fittings and a rotatable top cap simplify tube routing in tighter chassis, while the removable cover lets the logo sit horizontal in any orientation.

Sustained-load behaviour

The ceramic-bearing pump runs at a constant 22 dBA, and the Rifle-bearing fans span 500 to 1700 RPM for 20 to 78 CFM airflow. Under continuous load the fans ramp toward the upper range, reaching 35.5 dBA while moving more air through the radiator fins. Low-permeability rubber tubes with braided nylon sleeves resist evaporation, so cooling capacity stays stable over long sessions without the performance drop seen in shorter burst tests.

Highlights

  • Quiet pump operation at 22 dBA keeps noise low
  • Dual 140 mm fans deliver 20 to 78 CFM airflow
  • Copper cold plate with pre-applied paste simplifies installation
  • Articulating elbow fittings ease tube routing in tight cases
  • Broad socket support covers Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066 and AMD AM2, AM2+, AM3, AM3+, AM4, AM5.

Specifications

BrandFractal Design
SeriesLumen
ModelLumen S28 v2
Part NumberFD-W-L1-S2811
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
AMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
Block Dim.79 x 67 mm (with fittings)
Block MaterialCopper
Pump BearingCeramic
Pump Noise22 dBA
Radiator Size313 x 140 x 27 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan Dim.140 x 140 x 25 mm
Bearing TypeRifle
Fan RPM500 - 1700 RPM
Fan Air Flow20 - 78 CFM
Fan Noise<10 - 35.5 dBA
Fan Connector4 Pin
ColorBlack
Tube MaterialLow-permeability rubber with braided nylon sleeve
Shipping weight2.00 kg
Package size369 × 183 × 171 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance is required for the 313 x 140 x 27 mm radiator and two 140 x 140 x 25 mm fans?

The radiator measures 313 x 140 x 27 mm and each fan is 140 x 140 x 25 mm, so the mounting area needs at least 27 mm for the radiator plus 25 mm per fan; check your chassis specs for top or front clearance before buying.

How are the two Aspect 14 PWM fans connected to the motherboard, and what step do builders often miss?

Each fan uses a 4-pin PWM connector; plug both into CPU_FAN or CPU_OPT headers, then enable PWM control in BIOS so the 500-1700 RPM range responds to temperature instead of running at fixed speed.

When should the pre-applied thermal paste on the copper cold plate be replaced?

Replace the paste whenever the block is removed for cleaning, socket change, or after several years of use; clean the old compound with isopropyl alcohol and apply a fresh pea-sized dot before reinstalling.
