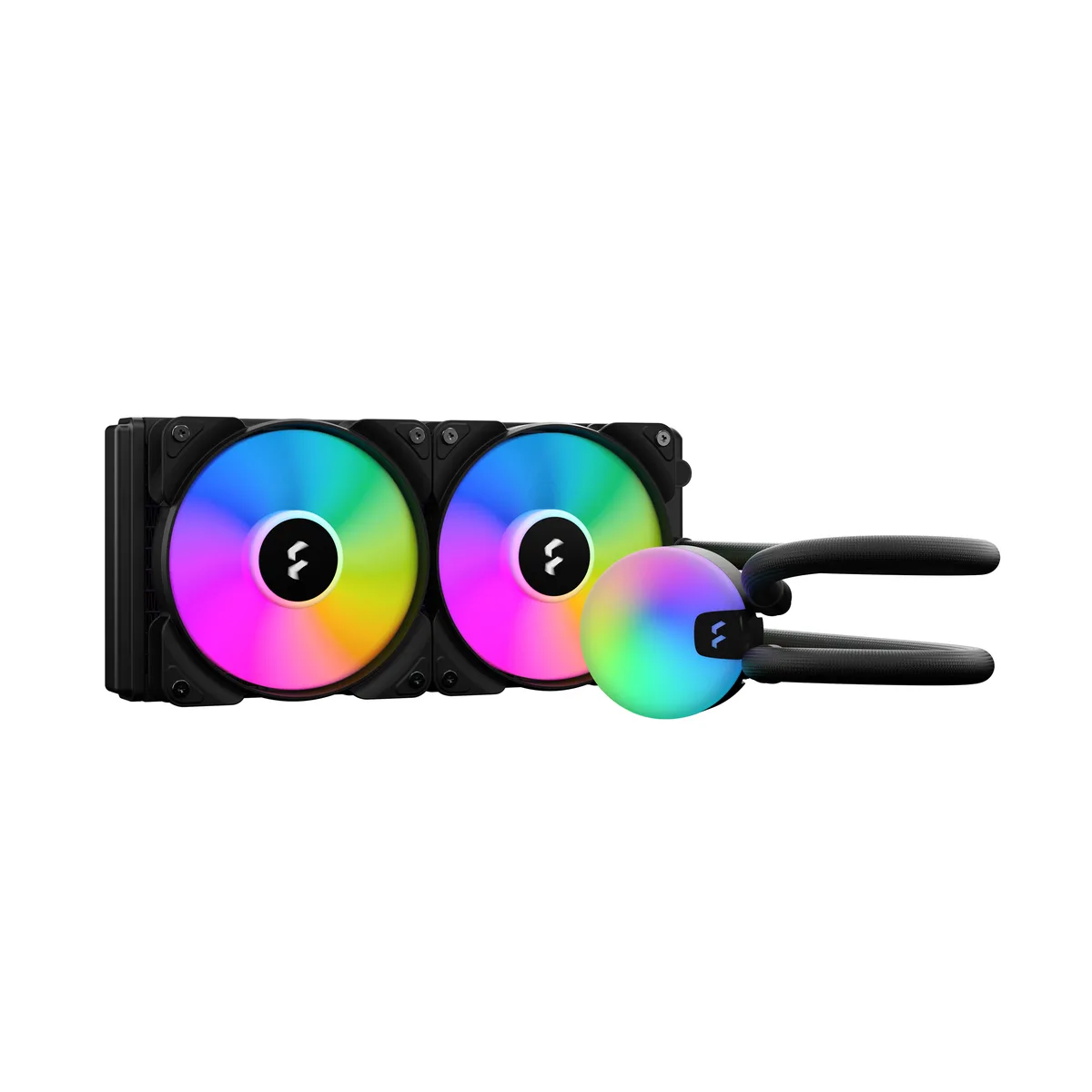

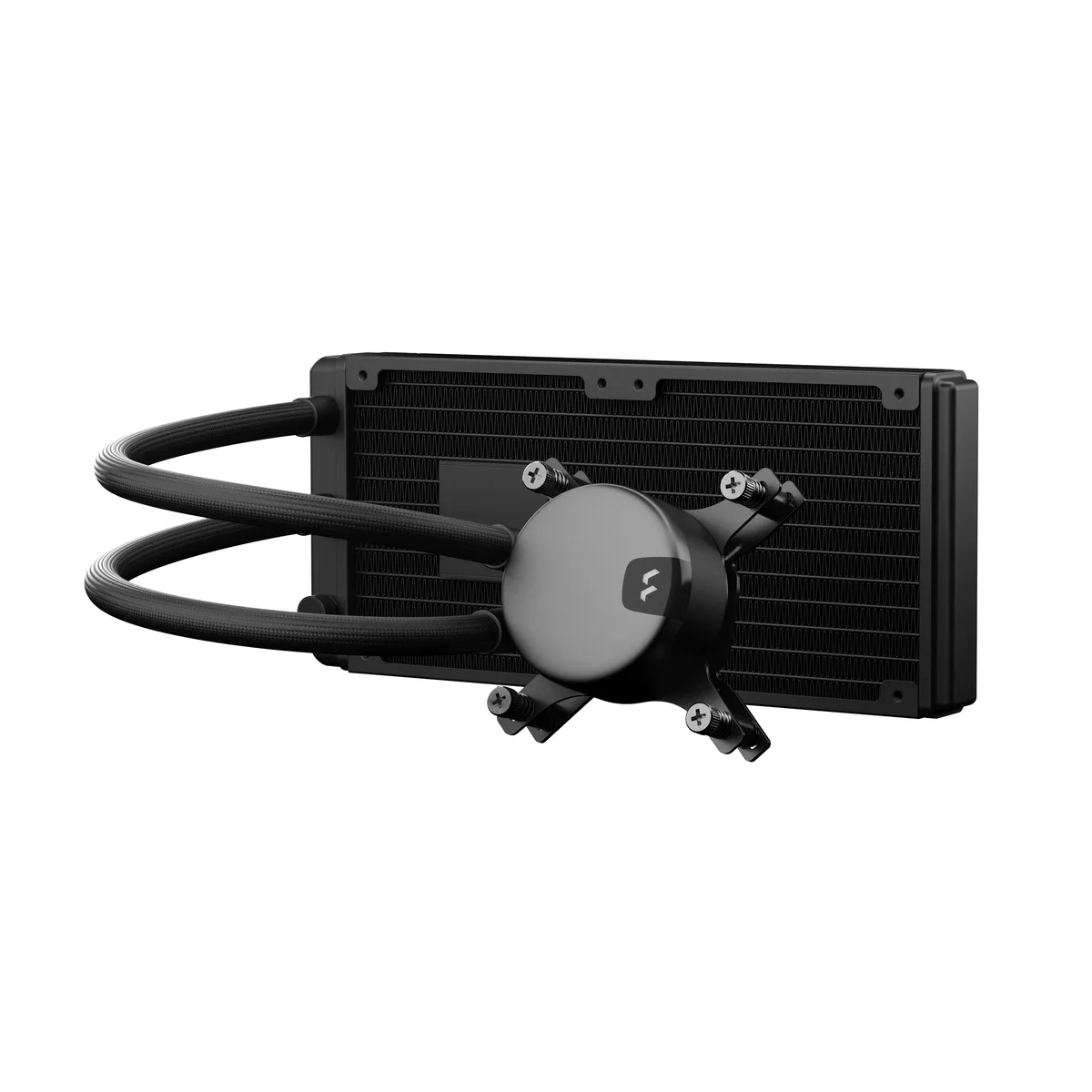

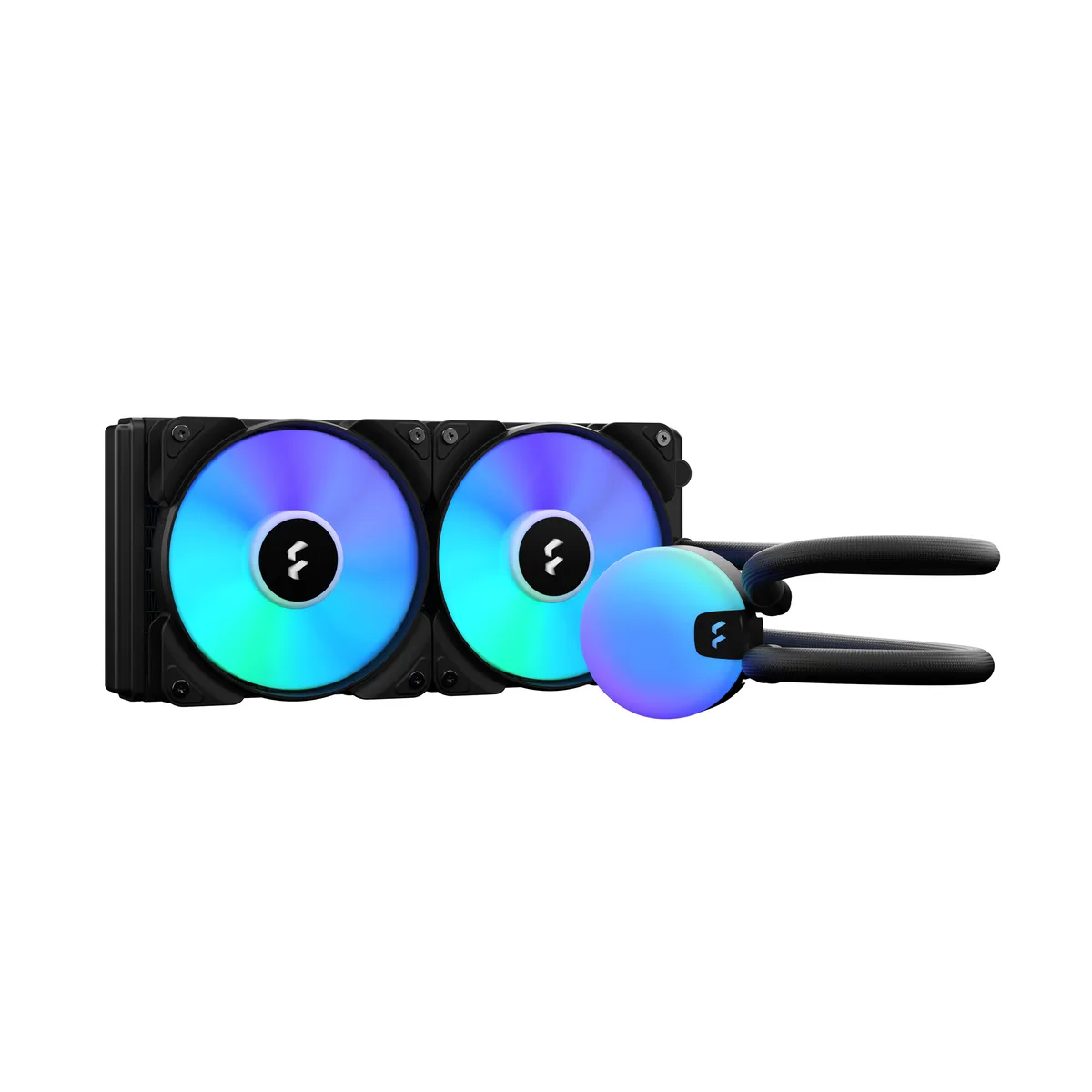

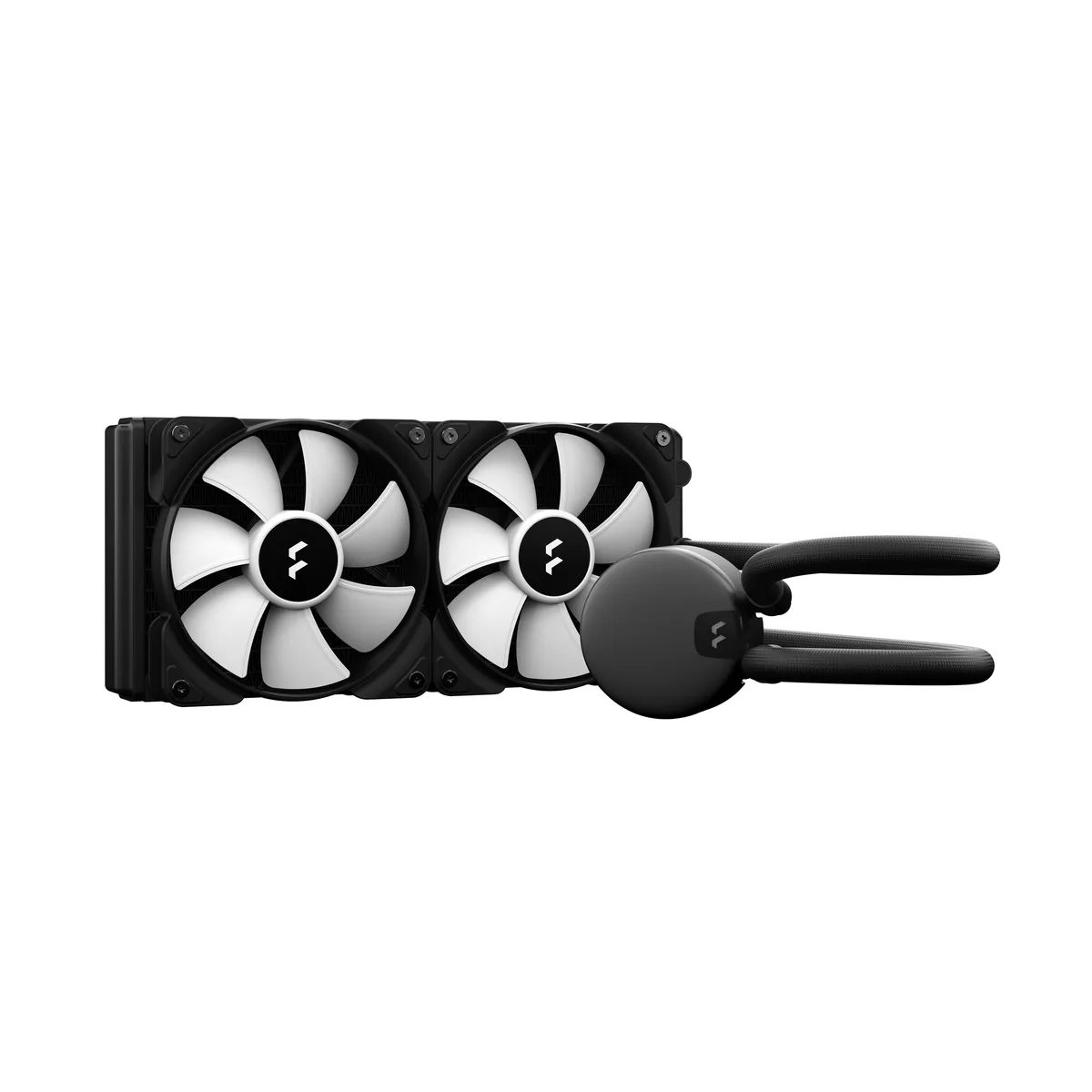

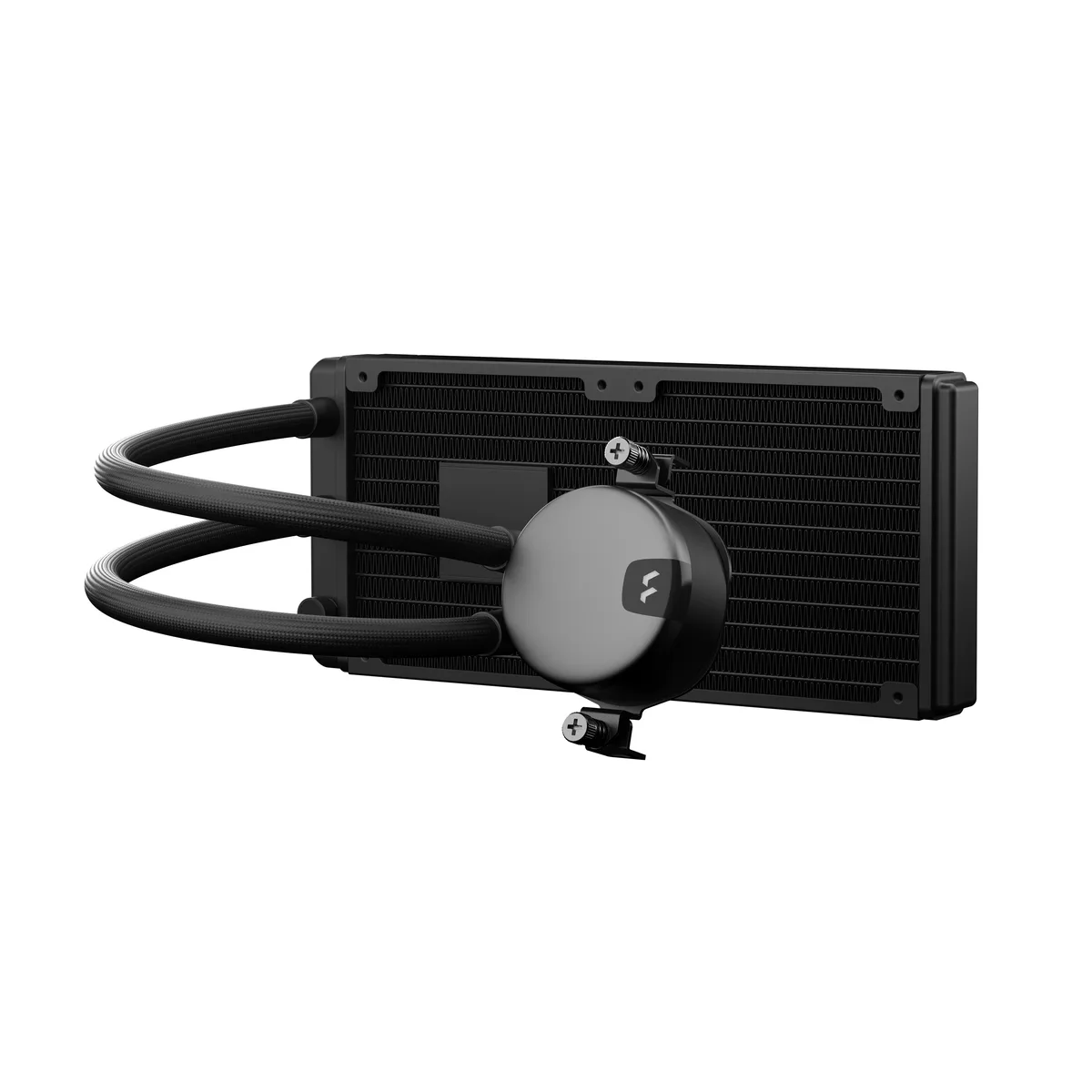

Black rectangular 272 mm radiator with two 120 mm fans and a square CPU block with removable top

Fractal Design

Fractal Design FD-W-L1-S2412 Lumen S24 v2 RGB liquid cooler

SKU CH-RW5F-MCVCQ MPN FD-W-L1-S2412

A liquid CPU cooler with two 120 mm Aspect fans, addressable RGB lighting and pre-applied thermal paste for Intel and AMD sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 1366, 20
  • Block Dim.79 x 67 mm (with fittings)
  • Block MaterialCopper
  • Pump BearingCeramic
  • Pump Noise22 dBA

Fan Size 2 Fan Slots (120mm)

Model RGB

  • Six addressable LEDs sync with motherboard RGB control
  • Removable top rotates in 90 degree steps for horizontal logo
  • Pre-applied thermal paste simplifies installation
  • Supports Intel LGA 1700, 1851 and AMD AM5 sockets
  • Aspect 120 mm fans run 500 to 2000 RPM with 13 to 56 CFM airflow

Fractal Design Lumen S24 v2 RGB liquid cooler

The Fractal Design Lumen S24 v2 RGB is an all-in-one liquid cooler built around a 272 mm aluminium radiator. Two 120 mm Aspect fans operate between 500 and 2000 RPM to deliver 13 to 56 CFM of airflow. The copper cold plate measures 79 by 67 mm and uses a ceramic-bearing pump rated at 22 dBA. Addressable RGB lighting is controlled through motherboard software.

Builders who want simple installation

Pre-applied thermal paste and articulating elbow fittings reduce assembly time and tube routing stress. The removable top rotates in 90 degree steps so the logo stays horizontal in any orientation. RGB sync works with Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome. Systems needing a thicker radiator or larger fan diameter should consider other designs.

272 mm radiator length

Radiator length is the primary dimension that determines case fit. The unit occupies two 120 mm fan slots with 25 mm thick fans. Verify that your chassis provides at least 272 mm of clearance for the radiator plus fan thickness before purchase.

Highlights

  • Six addressable LEDs sync with motherboard RGB control
  • Removable top rotates in 90 degree steps for horizontal logo
  • Pre-applied thermal paste simplifies installation
  • Supports Intel LGA 1700, 1851 and AMD AM5 sockets
  • Aspect 120 mm fans run 500 to 2000 RPM with 13 to 56 CFM airflow

Specifications

BrandFractal Design
SeriesLumen
ModelLumen S24 v2 RGB
Part NumberFD-W-L1-S2412
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 1366, 2011, 2011-3, 2066
AMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Dim.79 x 67 mm (with fittings)
Block MaterialCopper
Pump BearingCeramic
Pump Noise22 dBA
Radiator Size272 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeRifle
Fan RPM500 - 2000 RPM
Fan Air Flow13 - 56 CFM
Fan Noise<10 - 33.2 dBA
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Tube Dim.Low-permeability rubber with braided nylon sleeve
Shipping weight1.81 kg
Package size325 × 211 × 137 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the pump and the Aspect fans when the Lumen S24 v2 runs continuously?

The ceramic-bearing pump runs at 22 dBA while the two 120 mm Aspect fans range from below 10 dBA at 500 RPM up to 33.2 dBA at 2000 RPM.

Which motherboard RGB headers or controllers are needed to drive the Lumen S24 v2 lighting?

The six addressable LEDs work with standard 5 V ARGB headers and are certified for Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma and ASRock Polychrome Sync.

Will the 272 mm radiator and pre-applied paste fit my existing LGA 1700 or AM5 build without extra brackets?

Yes — the cold plate includes mounting hardware for Intel LGA 1700 and AMD AM5 among many other sockets, and thermal paste is already applied.
