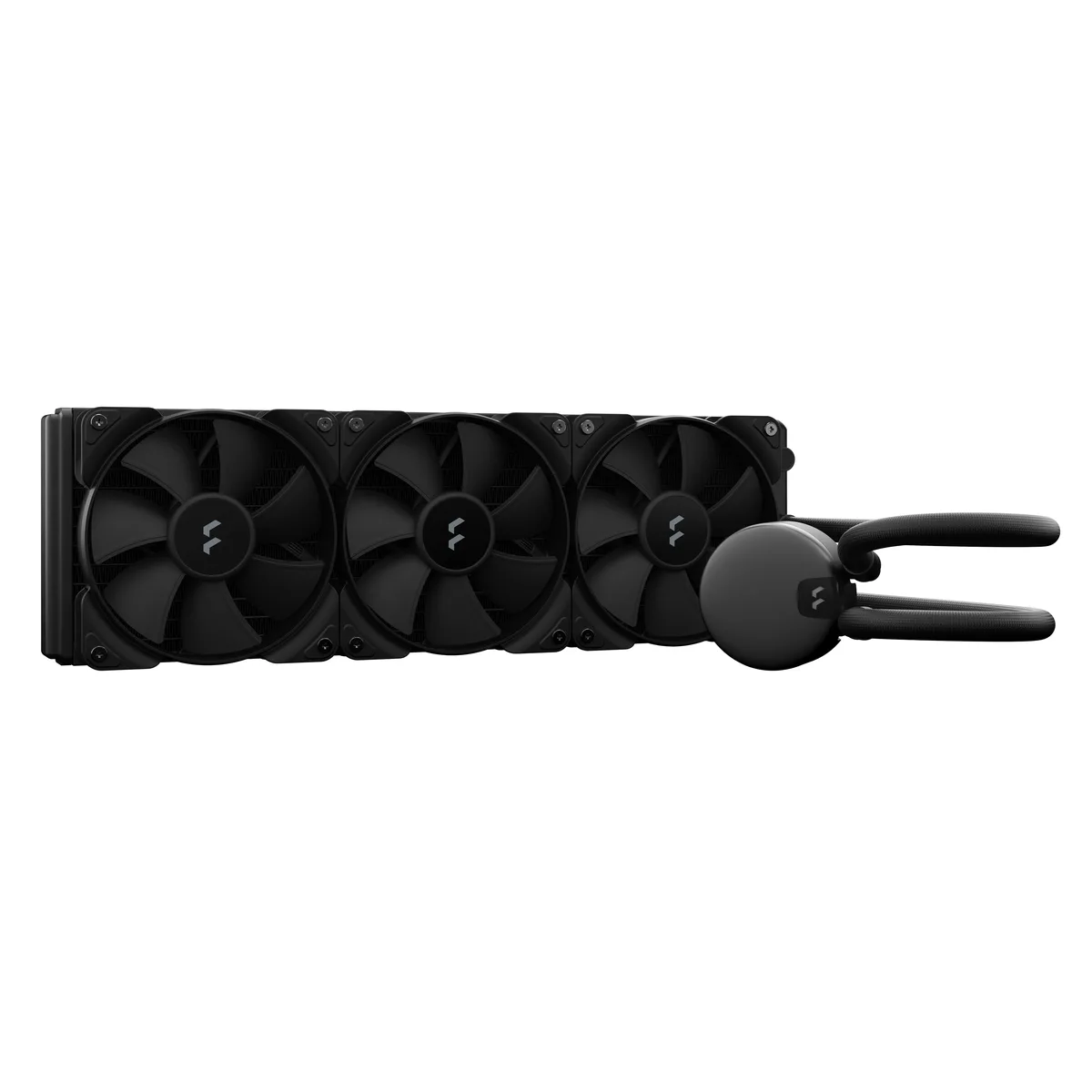

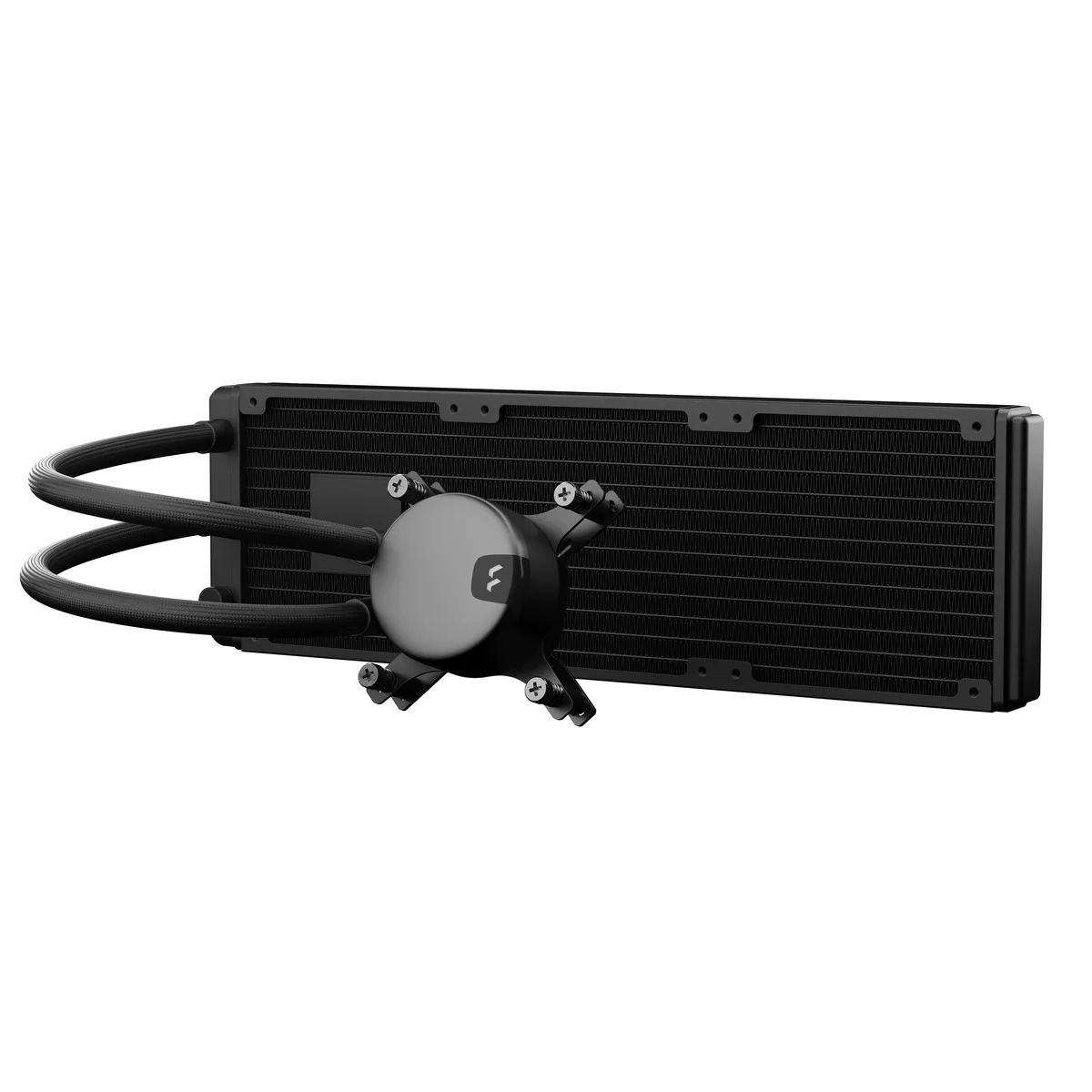

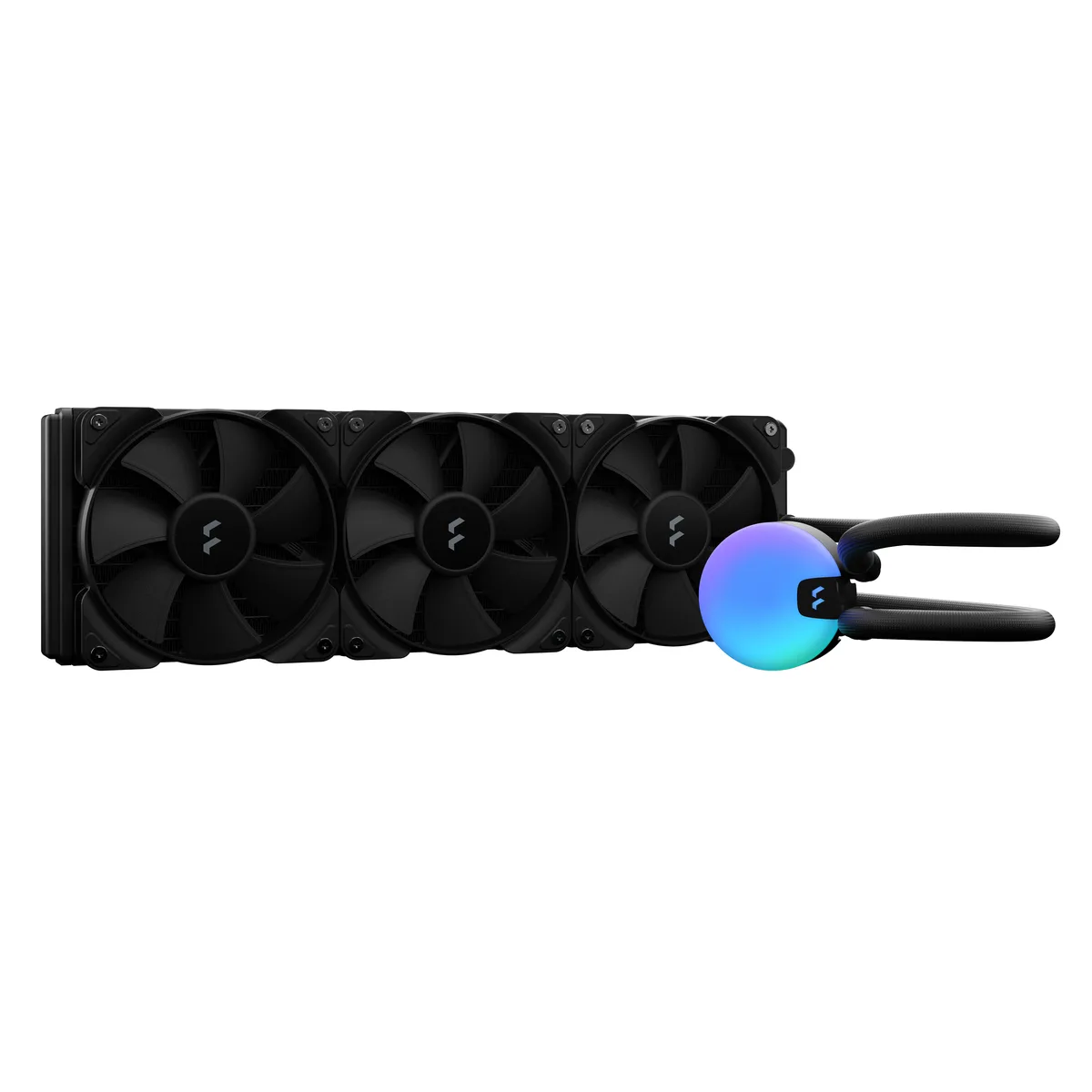

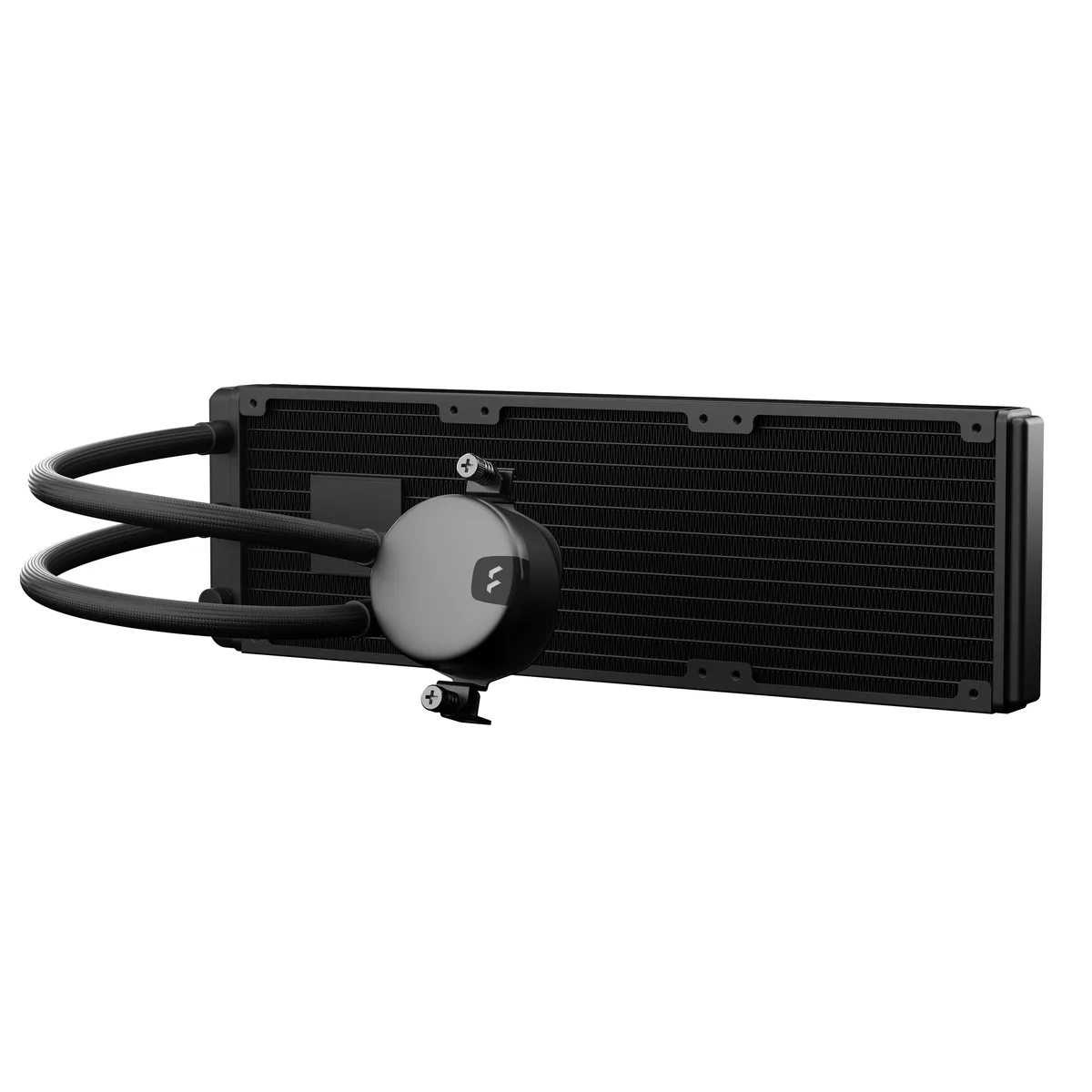

Black AIO liquid cooler with 392 mm radiator and three 120 mm fans, illuminated pump block with rotatable top

Fractal Design

Fractal Design FD-W-L1-S3611 Lumen S36 v2 liquid cooler

SKU CH-YPWJ-41KA3 MPN FD-W-L1-S3611

All-in-one liquid cooler with a 392 mm radiator, three 120 mm Aspect fans, copper cold plate and addressable RGB lighting

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
  • Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 20
  • Block Dim.79 x 67 mm (with fittings)
  • Block MaterialCopper

Fan Size 3 Fan Slots (120mm)

Model Non-RGB

  • Quiet pump at 22 dBA for low system noise
  • Three 120 mm Aspect fans deliver up to 56 CFM airflow
  • Articulating elbow fittings simplify tube routing and reduce cold-plate tension
  • Removable top rotates 90° so the logo stays horizontal in any orientation
  • Pre-applied thermal paste speeds up installation on Intel and AMD sockets

Lumen S36 v2 liquid cooler

The Fractal Design Lumen S36 v2 is an all-in-one liquid cooler with a 392 x 120 x 27 mm aluminum radiator and three 120 mm Aspect fans. A copper cold plate with pre-applied thermal paste mounts on current Intel LGA and AMD AM4 or AM5 sockets. Addressable lighting is controlled through the motherboard.

Who this suits and who it does not

Builders who need broad socket support and quiet operation down to 10 dBA will find the pump noise of 22 dBA and fan range of 500 to 2000 RPM suitable. Systems that cannot fit a 392 mm long radiator or that require a different tube length should look elsewhere.

Radiator length decides fit

The radiator measures 392 mm in length, so the case must provide at least that much clearance for a three-fan stack. If the available space is shorter, this cooler cannot be installed.

Highlights

  • Quiet pump at 22 dBA for low system noise
  • Three 120 mm Aspect fans deliver up to 56 CFM airflow
  • Articulating elbow fittings simplify tube routing and reduce cold-plate tension
  • Removable top rotates 90° so the logo stays horizontal in any orientation
  • Pre-applied thermal paste speeds up installation on Intel and AMD sockets

Specifications

BrandFractal Design
SeriesLumen
ModelLumen S36 v2
Part NumberFD-W-L1-S3612
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
AMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - AMDAMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Compatibility - IntelIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1366, 2011, 2011-3, 2066
Block Dim.79 x 67 mm (with fittings)
Block MaterialCopper
Pump BearingCeramic
Pump Noise22 dBA
Radiator Size392 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeRifle
Fan RPM500 - 2000 RPM
Fan Air Flow13 - 56 CFM
Fan Noise<10 - 33.2 dBA
Fan Connector4 Pin
ColorBlack
Tube MaterialLow-permeability rubber with braided nylon sleeve
Shipping weight2.20 kg
Package size448 × 205 × 137 mm
