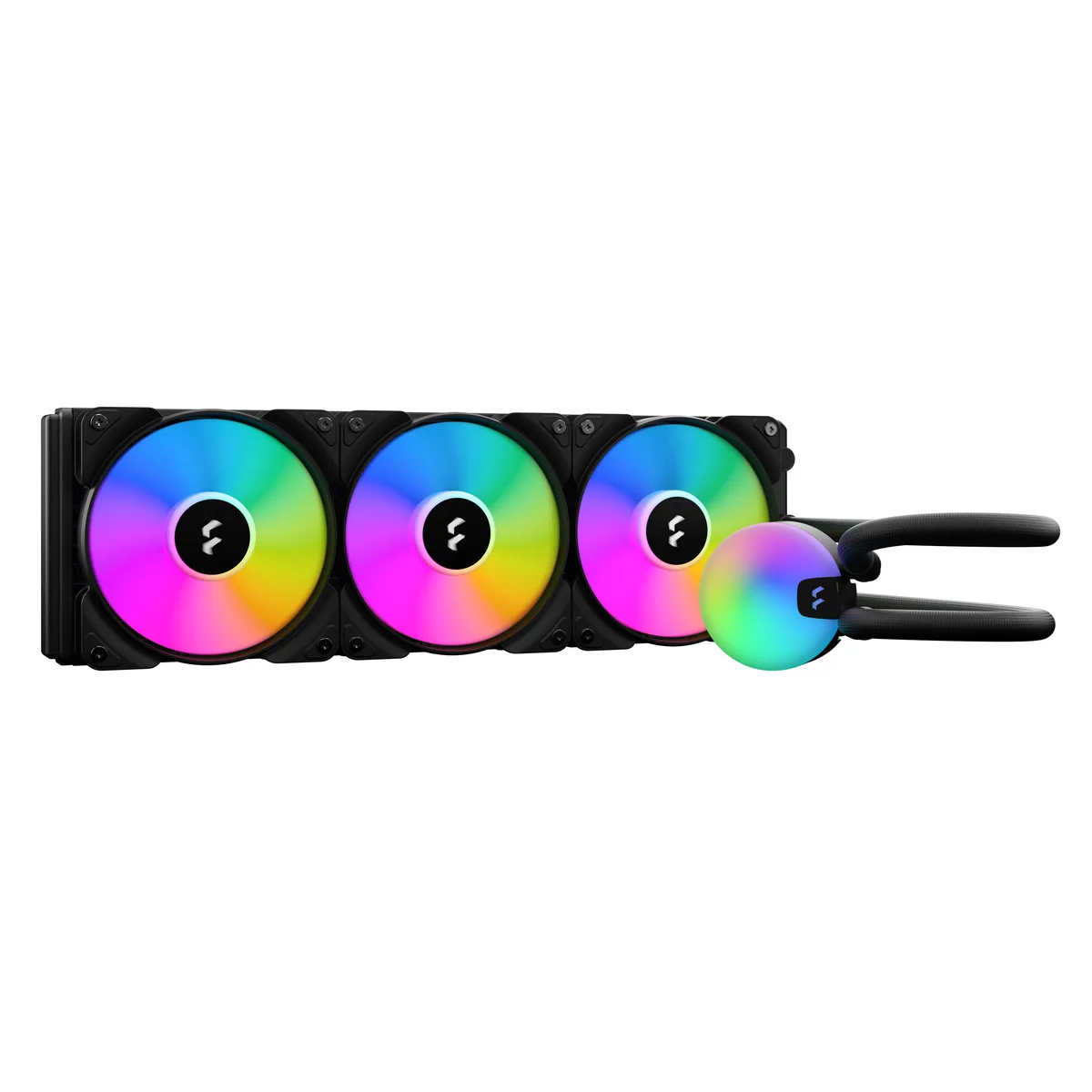

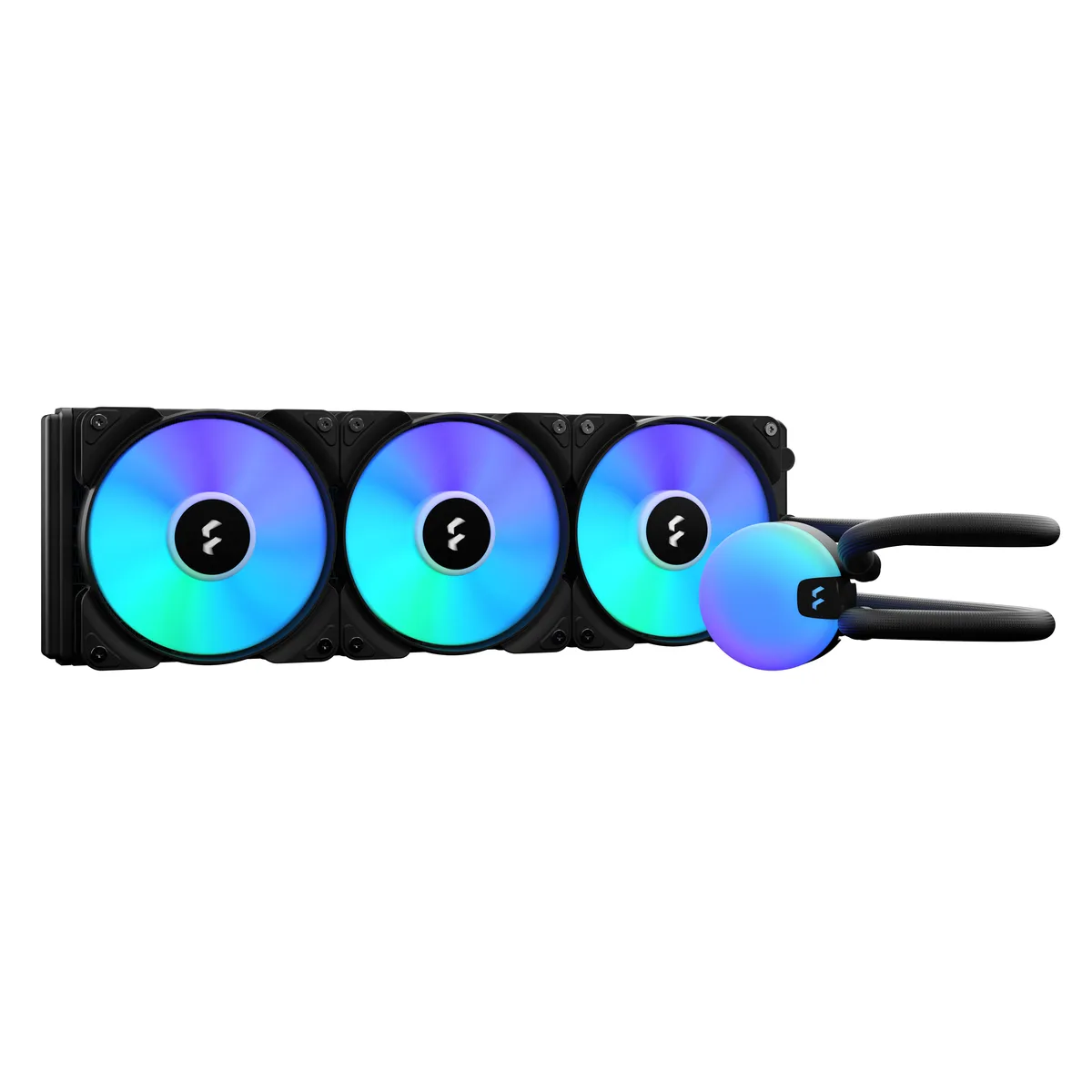

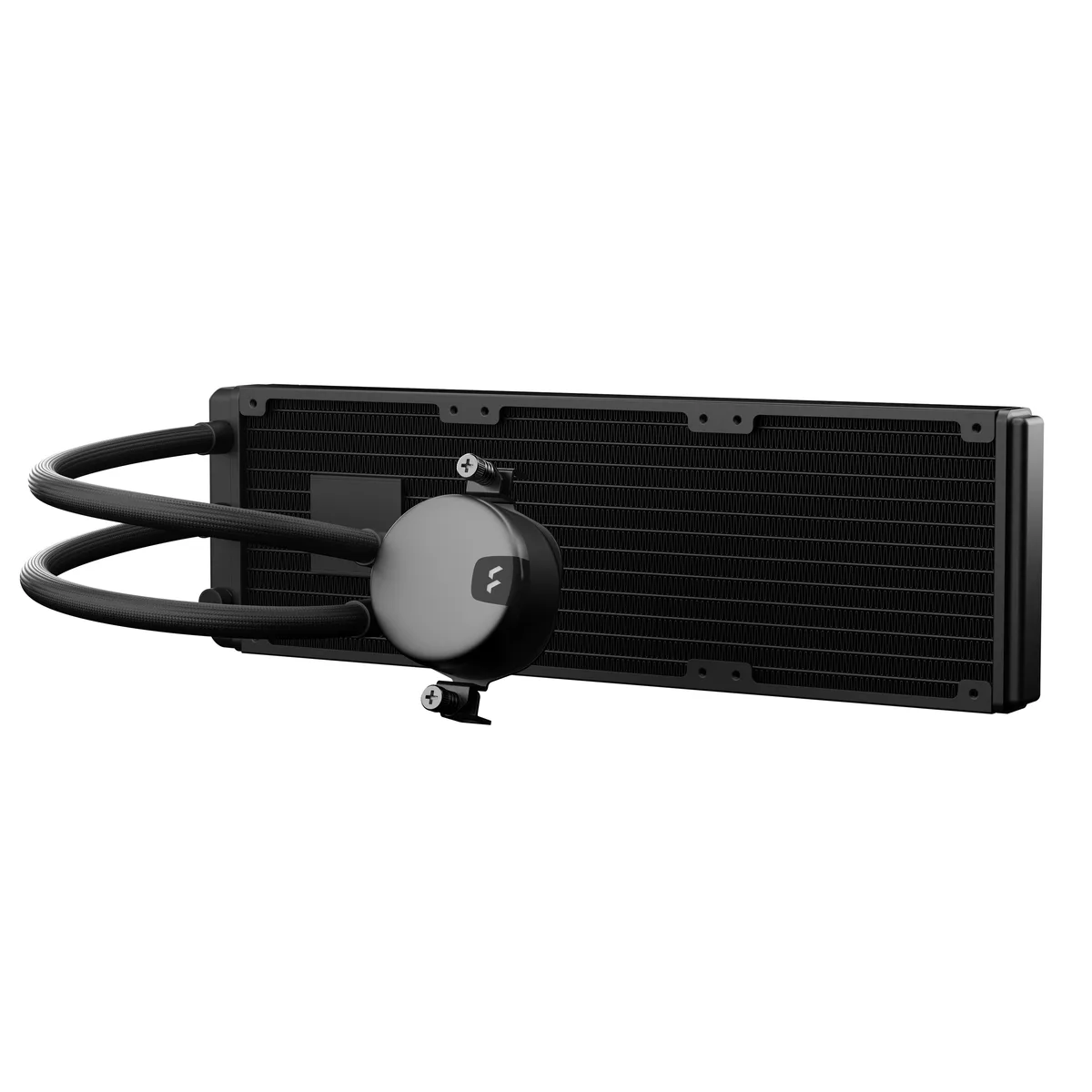

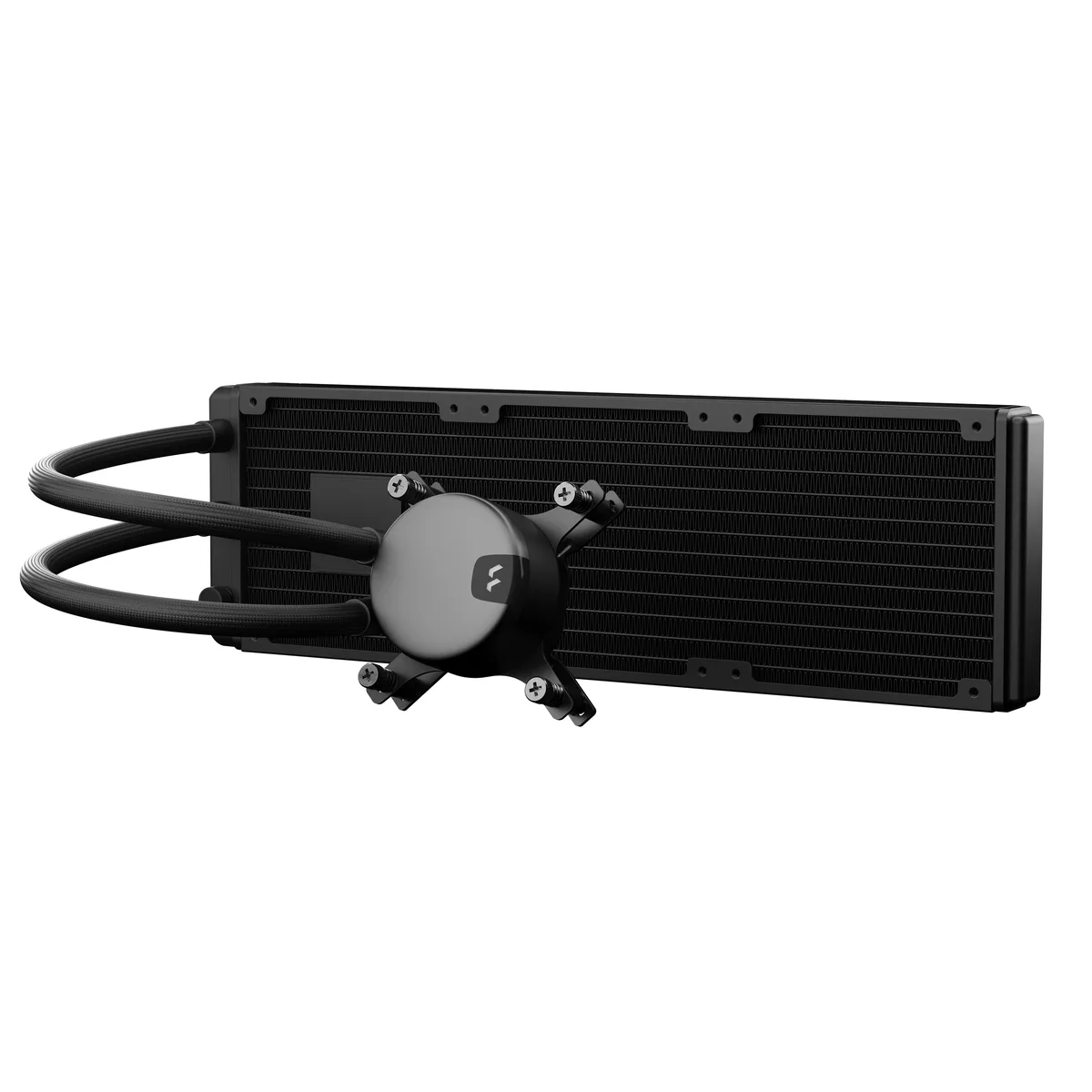

Black AIO liquid cooler with 392 mm radiator, three 120 mm RGB fans, rotatable pump head logo

Fractal Design

Fractal Design Lumen S36 v2 RGB FD-W-L1-S3612 liquid cooler

SKU CH-R5QA-T37V3 MPN FD-W-L1-S3612

All-in-one liquid CPU cooler with three 120 mm fans, addressable RGB lighting, pre-applied thermal paste and articulating elbow fittings

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 1366, 20
  • Block Dim.79 x 67 mm (with fittings)
  • Block MaterialCopper
  • Pump BearingCeramic
  • Pump Noise22 dBA

Fan Size 3 Fan Slots (120mm)

Model RGB

  • Motherboard-controlled RGB shifts from subtle to stunning
  • Removable top rotates 90° for a horizontal logo in any orientation
  • Pre-applied thermal paste enables a quick, hassle-free installation
  • Supports Intel LGA 1700, 1851 and AMD AM5 among many sockets
  • Aspect fans deliver 13‑56 CFM airflow at

Lumen S36 v2 RGB Liquid Cooler

The Fractal Design Lumen S36 v2 RGB is an all-in-one liquid cooler built for PC builders who want reliable CPU temperatures with addressable lighting. It uses a 392 mm aluminium radiator paired with three 120 mm Aspect fans to dissipate heat from modern Intel and AMD processors.

Suits Standard ATX Builds, Not Compact Cases

This cooler suits builders with standard ATX cases that can mount a 392 mm radiator and three 120 mm fans. It is not for compact chassis that lack the required radiator clearance or for systems that cannot accommodate the 79 x 67 mm cold-plate footprint.

392 mm Radiator Length Decides Fit

The single specification that decides compatibility is the 392 mm radiator length. Verify your case supports this dimension before purchase; if the case only accepts shorter radiators, this cooler will not install.

Highlights

  • Motherboard-controlled RGB shifts from subtle to stunning
  • Removable top rotates 90° for a horizontal logo in any orientation
  • Pre-applied thermal paste enables a quick, hassle-free installation
  • Supports Intel LGA 1700, 1851 and AMD AM5 among many sockets
  • Aspect fans deliver 13‑56 CFM airflow at

Specifications

BrandFractal Design
SeriesLumen
ModelLumen S36 v2 RGB
Part NumberFD-W-L1-S3612
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851, 1366, 2011, 2011-3, 2066
AMD Socket AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
Block Dim.79 x 67 mm (with fittings)
Block MaterialCopper
Pump BearingCeramic
Pump Noise22 dBA
Radiator Size392 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Bearing TypeRifle
Fan RPM500 - 2000 RPM
Fan Air Flow13 - 56 CFM
Fan Noise<10 - 33.2 dBA
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Tube MaterialLow-permeability rubber with braided nylon sleeve
Shipping weight2.22 kg
Package size452 × 206 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often should the ceramic-bearing pump be serviced or replaced?

The sealed ceramic-bearing pump is maintenance-free for its service life and does not require scheduled replacement.

What limits sustained cooling on the 392 x 120 x 27 mm radiator?

The 27 mm radiator thickness and three 120 mm fans set the thermal ceiling under continuous load.

How loud is the cooler at full 2000 RPM with three Aspect fans?

Combined fan noise reaches 33.2 dBA and pump noise 22 dBA at maximum speed.
