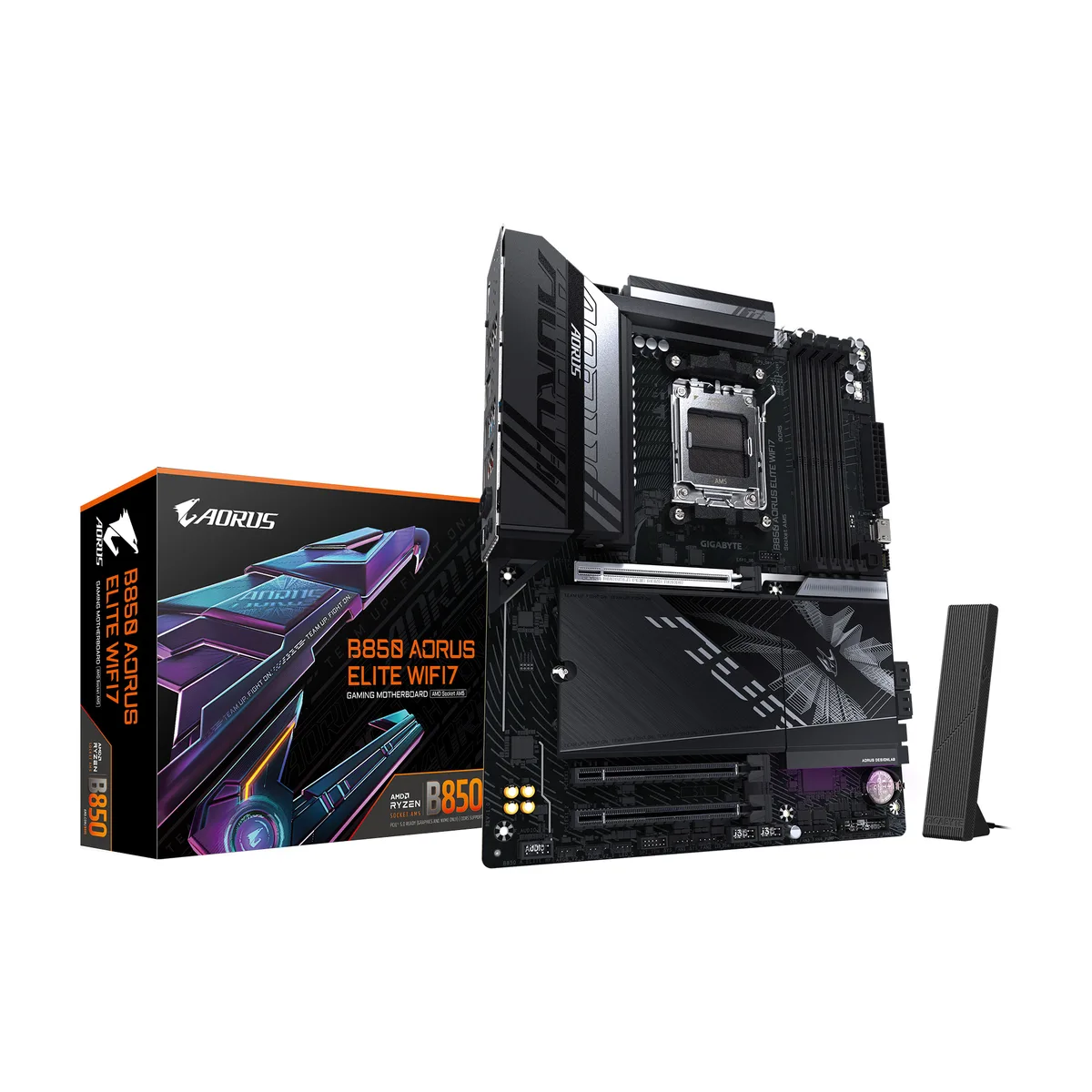

Black ATX motherboard with silver heatsinks, four DDR5 slots, three M.2 covers and rear I/O shield

GIGABYTE

GIGABYTE B850 AORUS ELITE WF7 AMD motherboard

SKU CH-AWWK-175XA MPN B850 AORUS ELITE WF7

ATX AM5 board with DDR5 up to 8000 MT/s, PCIe 5.0 graphics slot, three M.2 sockets, 2.5 GbE LAN and WIFI7

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 /
  • Maximum Memory Supported256GB

Option B850 A ELITE WF7

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB across speeds from 4400 to 8000 MT/s
  • PCIe 5.0 x16 slot plus three M.2 connectors for high-speed storage expansion
  • Wi-Fi 7 and 2.5 GbE LAN deliver fast wired and wireless networking
  • EZ-Latch mechanisms simplify M.2 and PCIe card installation without tools

AM5 Socket For Ryzen 7000 8000 9000

This ATX motherboard uses the AMD B850 chipset and AM5 socket to support Ryzen 7000 8000 and 9000 series processors. Four DDR5 slots accept up to 256GB of memory with speeds ranging from 4400 to 8000 MT/s. A 14+2+2 phase power design feeds the CPU while VRM and M.2 thermal guards manage heat during sustained loads.

Suits Builders Who Want PCIe 5.0 And WIFI7

The board targets enthusiasts building a modern AM5 system who need a PCIe 5.0 x16 slot for graphics and three M.2 sockets for fast storage. Integrated WIFI7 and 2.5GbE LAN cover high-speed networking. Builders requiring more than three M.2 slots or a smaller micro-ATX form factor should consider other models.

EZ-Latch Hardware Simplifies Installation

M.2 EZ-Latch lets you secure SSDs without screws while PCIe EZ-Latch releases the graphics card with one hand. A Wi-Fi EZ-Plug connector makes antenna attachment quicker. These features reduce build time and eliminate the need for tools when swapping storage or GPU components.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB across speeds from 4400 to 8000 MT/s
  • PCIe 5.0 x16 slot plus three M.2 connectors for high-speed storage expansion
  • Wi-Fi 7 and 2.5 GbE LAN deliver fast wired and wireless networking
  • EZ-Latch mechanisms simplify M.2 and PCIe card installation without tools

Specifications

BrandGIGABYTE
ModelB850 AORUS ELITE WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Seri
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes

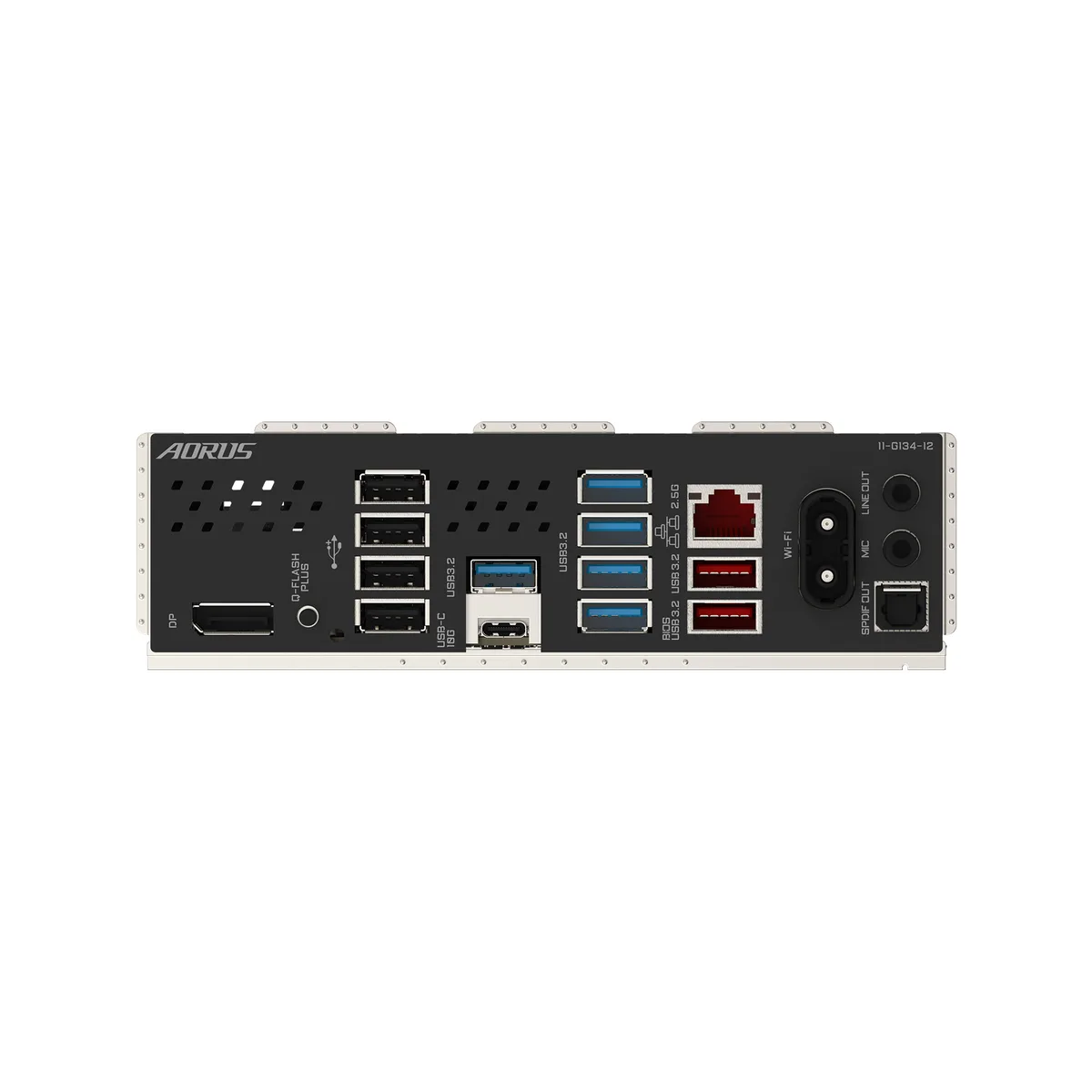

Back I/O Ports1 x DisplayPort / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x USB 3.2 Gen 1
Form FactorATX
Shipping weight2.00 kg
Package size340 × 267 × 81 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which DDR5 speeds are officially supported on the four 288-pin slots?

The board lists support from DDR5 4400 up to DDR5 8000 across the four 288-pin slots, with a maximum capacity of 256 GB.

Will a Ryzen 7000 series CPU run the PCIe 5.0 x16 slot and the CPU-linked M.2 at full speed?

Yes, Ryzen 7000 series processors enable PCIe 5.0 x4 or x2 operation on the primary M.2 slot and the single PCIe 5.0 x16 slot.

How can I confirm the 2.5 Gbps LAN and Wi-Fi 7 are active after assembly?

Check Device Manager for a 2.5 GbE adapter and an 802.11 be wireless controller, then run a speed test to verify multi-gigabit throughput.
