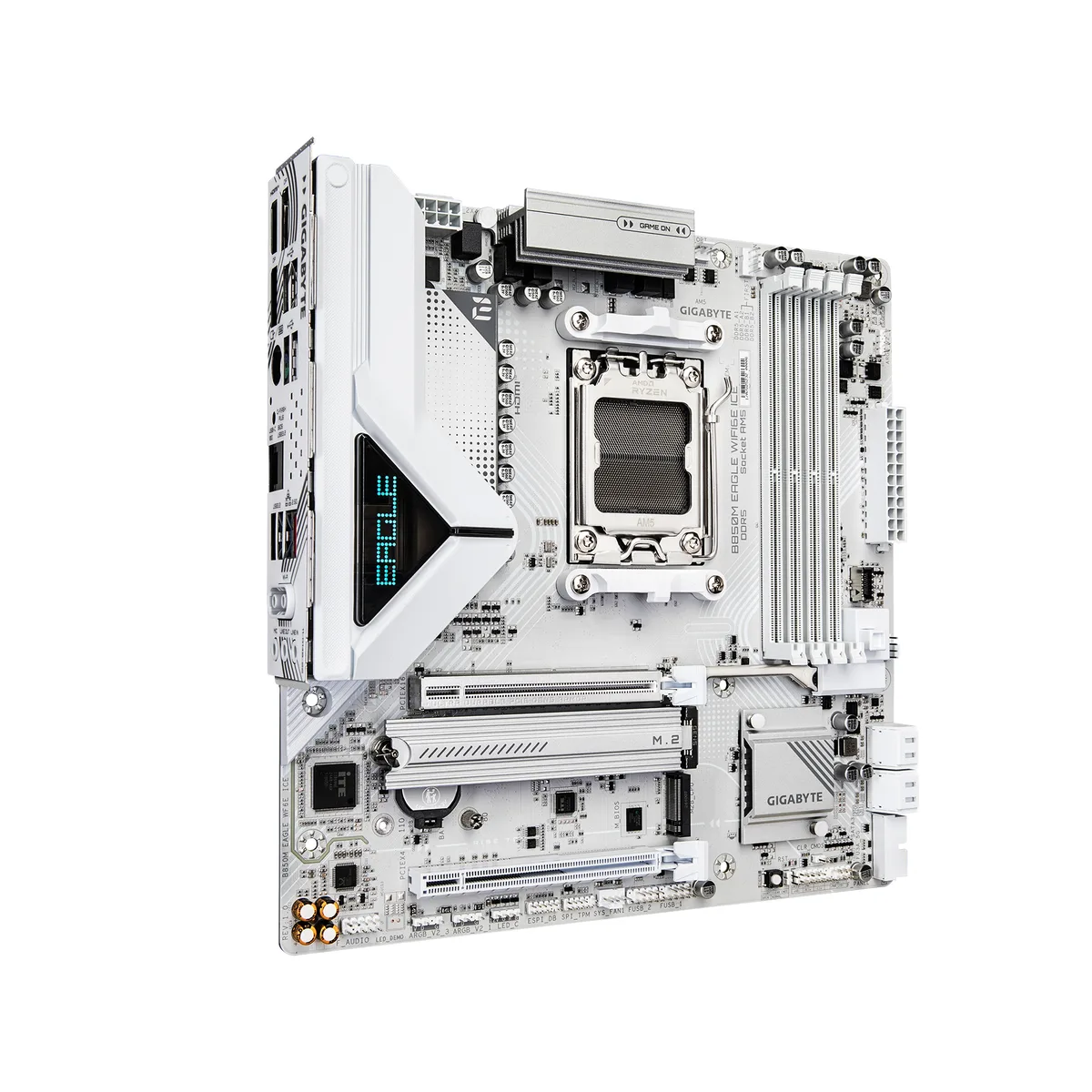

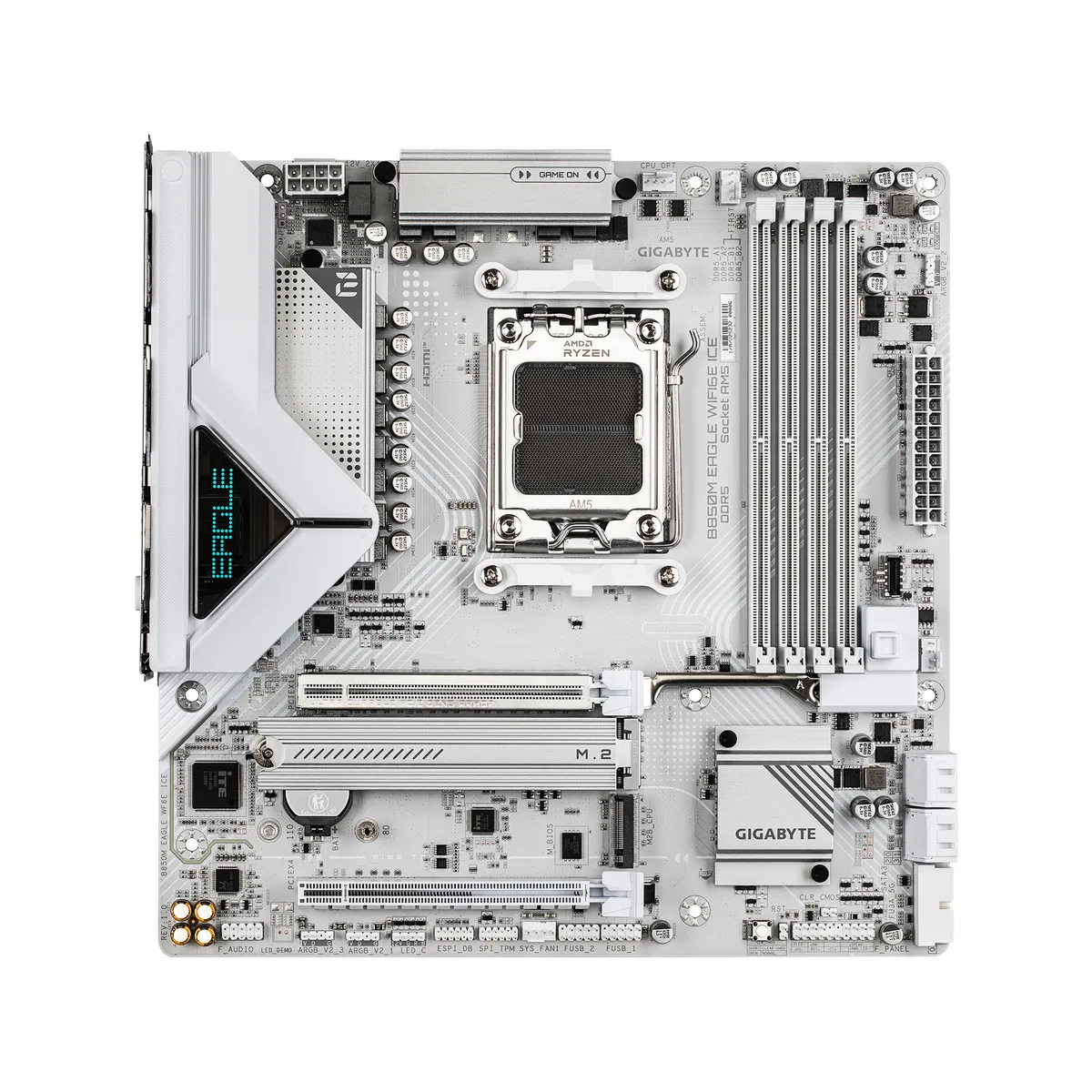

White mATX motherboard with silver heatsinks, AM5 socket, four DDR5 slots, PCIe x16 slot, two M.2 covers, rear I/O shield

GIGABYTE

GIGABYTE B850M EAGLE WF6E ICE AMD motherboard

SKU CH-H7AM-HXYD2 MPN B850M EAGLE WF6E ICE

Micro-ATX AM5 board supports Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 256 GB, one PCIe 5.0 M.2, one PCIe 4.0 M.2, 2.5 GbE LAN, WIFI6E and 7.1 audio

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 /
  • Maximum Memory Supported256GB

Option B850M EAGLE WF6E ICE

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • DDR5 memory up to 8000 MT/s with 256 GB capacity across four slots
  • PCIe 5.0 x16 graphics slot plus two M.2 slots at 5.0 and 4.0 speeds
  • 5 GbE LAN with WIFI6E wireless connectivity
  • EZ-Latch M.2, PCIe and Wi-Fi EZ-Plug simplify installation

AM5 platform with DDR5 support

The GIGABYTE B850M EAGLE WF6E ICE is a micro-ATX motherboard built around the AMD B850 chipset for Socket AM5. It accepts Ryzen 7000, 8000 and 9000 series processors and provides four 288-pin DDR5 slots with dual-channel architecture. Maximum memory capacity reaches 256 GB and speeds from 4400 up to 8000 MT/s are listed with XMP 3.0 and AMD EXPO profiles.

Builders needing PCIe 5.0 graphics and fast storage

The board suits users who want a single PCIe 5.0 x16 slot for current graphics cards and two M.2 sockets, one wired for PCIe 5.0 x4 and the other for PCIe 4.0 x4. Four SATA 6 Gb/s ports and RAID 0, 1, 5 and 10 for NVMe plus RAID 0, 1 and 10 for SATA cover varied storage needs. Networking includes WIFI6E and 2.5 Gbps LAN. Builders requiring multiple full-length PCIe slots or legacy AM4 CPUs should choose a different platform.

PCIe 5.0 x16 slot and PCIe 5.0 M.2 decide fit

The decisive specification is the PCIe 5.0 x16 slot driven directly by the CPU together with a PCIe 5.0 x4 M.2 connector. Ryzen 9000 and 7000 series processors enable the full x16 link while Ryzen 8000 series parts operate at x8. If the build centres on a PCIe 5.0 graphics card or the fastest available M.2 drive this board matches the requirement; otherwise a simpler B850 model without the 5.0 M.2 may suffice.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • DDR5 memory up to 8000 MT/s with 256 GB capacity across four slots
  • PCIe 5.0 x16 graphics slot plus two M.2 slots at 5.0 and 4.0 speeds
  • 5 GbE LAN with WIFI6E wireless connectivity
  • EZ-Latch M.2, PCIe and Wi-Fi EZ-Plug simplify installation

Specifications

BrandGIGABYTE
ModelB850M EAGLE WIFI6E ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x41 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 (Support PCIe 4.0 x4) / 1 x M.2 (Support PCIe 5.0 x4)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

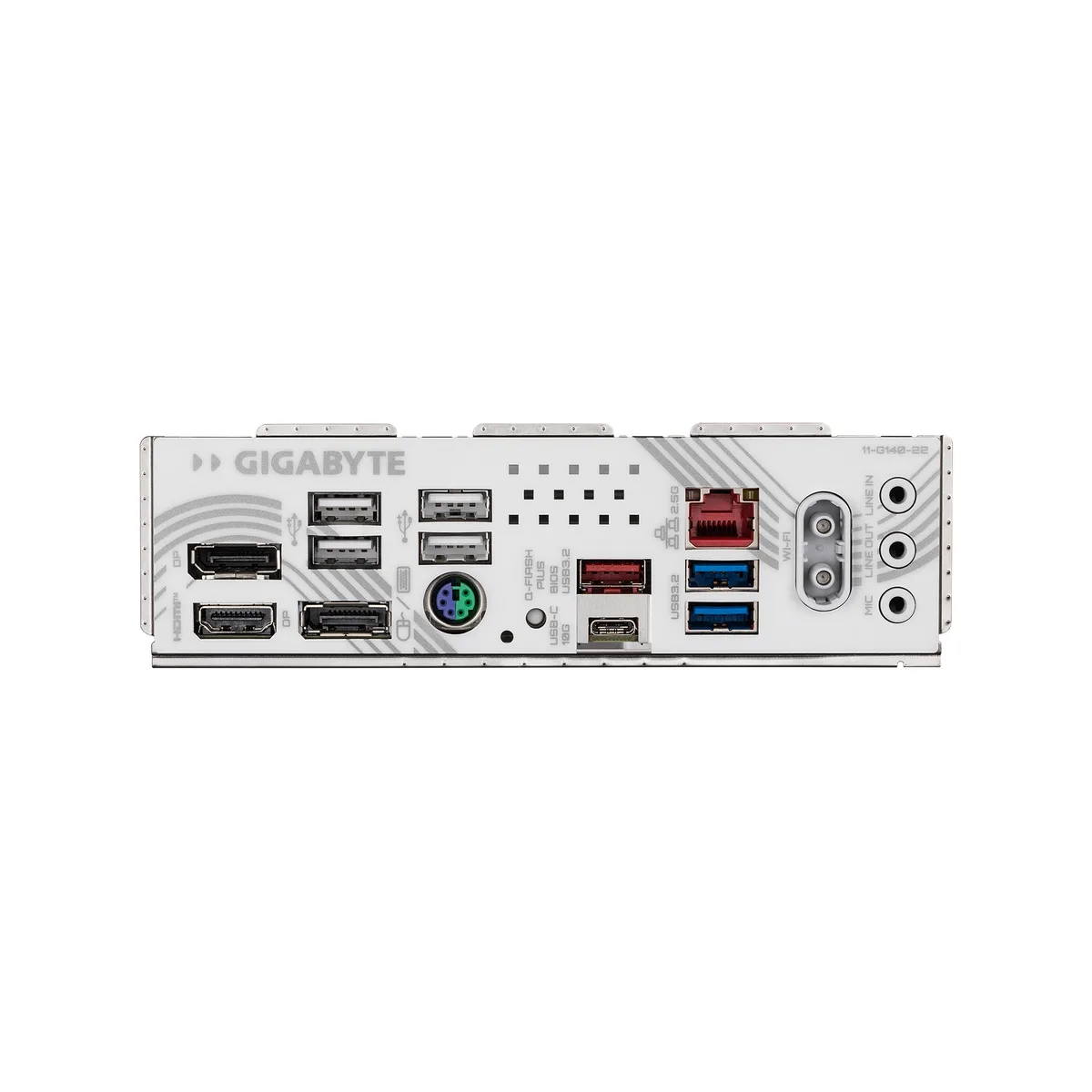

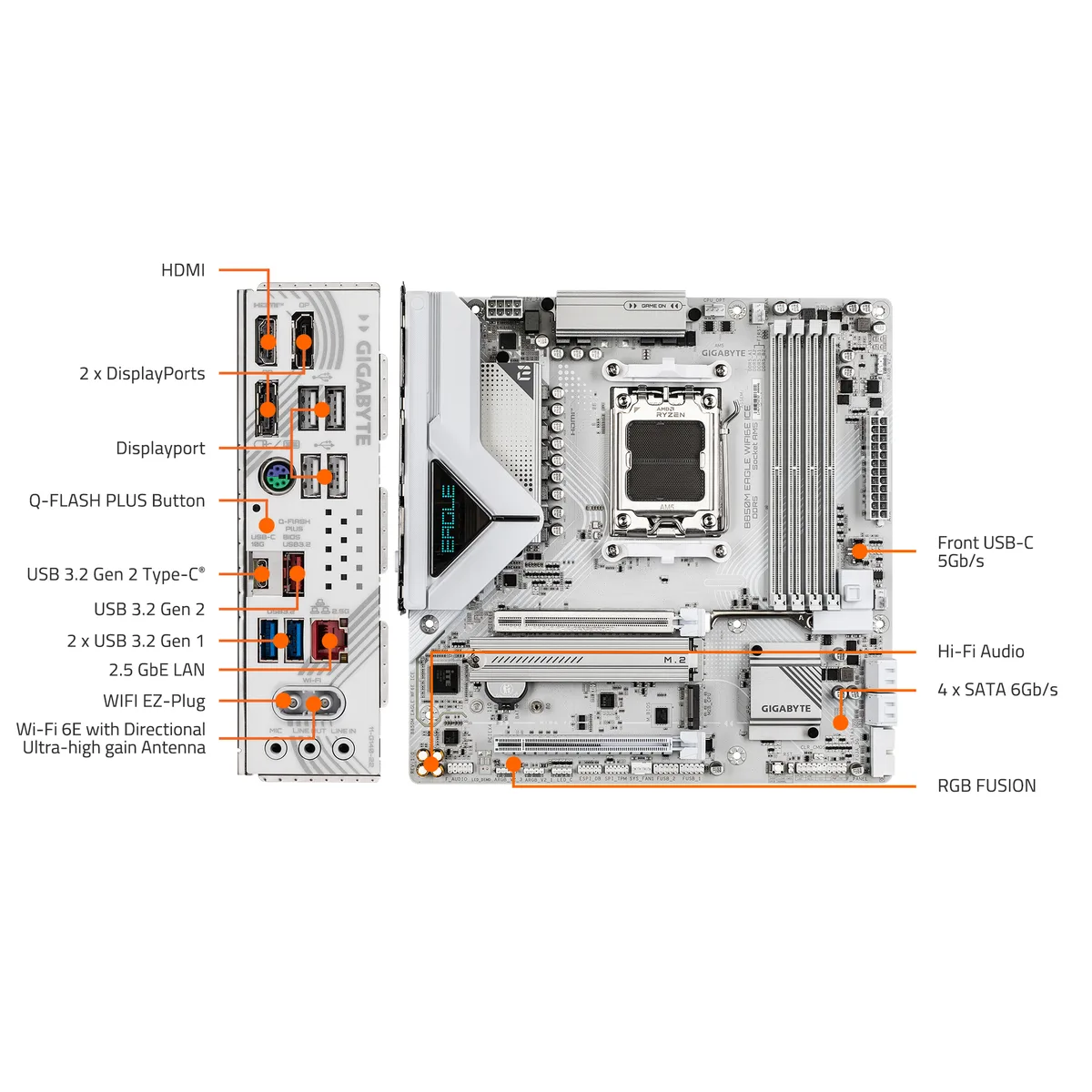

Back I/O Ports1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x Q-Flash Plus button
1 x PS/2 keyboard/mouse port
1 x USB 3.2 Gen 2 Type-A port (red)
1 x USB Type-C port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight0.54 kg
Package size274 × 272 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 8+2+2 phase power design hit a thermal limit first under sustained load?

The 8+2+2 phase power design with extended heatsinks handles sustained loads, and multiple fan headers let you tune airflow for stable operation

How loud or hot does the board run when the 2.5GbE LAN and WIFI6E are active all day?

Network controllers run cool; the board stays quiet with default fan curves and only ramps fans if VRM or M.2 temperatures rise

Which DDR5 memory kit must I already own to reach the listed 8000 MT/s speeds?

Any DDR5 EXPO or XMP 3.0 kit rated up to 8000 MT/s works across the four 288-pin slots, up to the 256 GB limit
