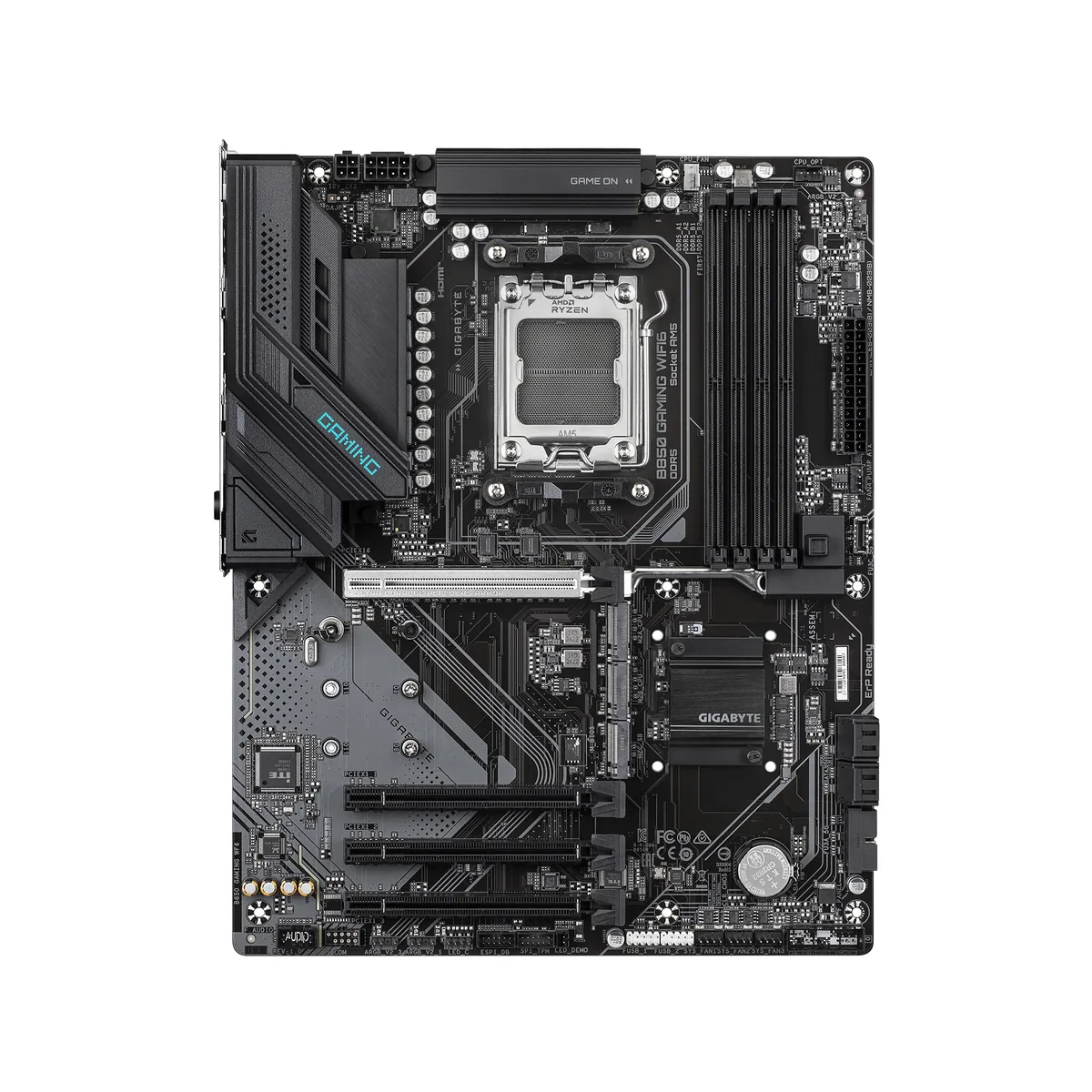

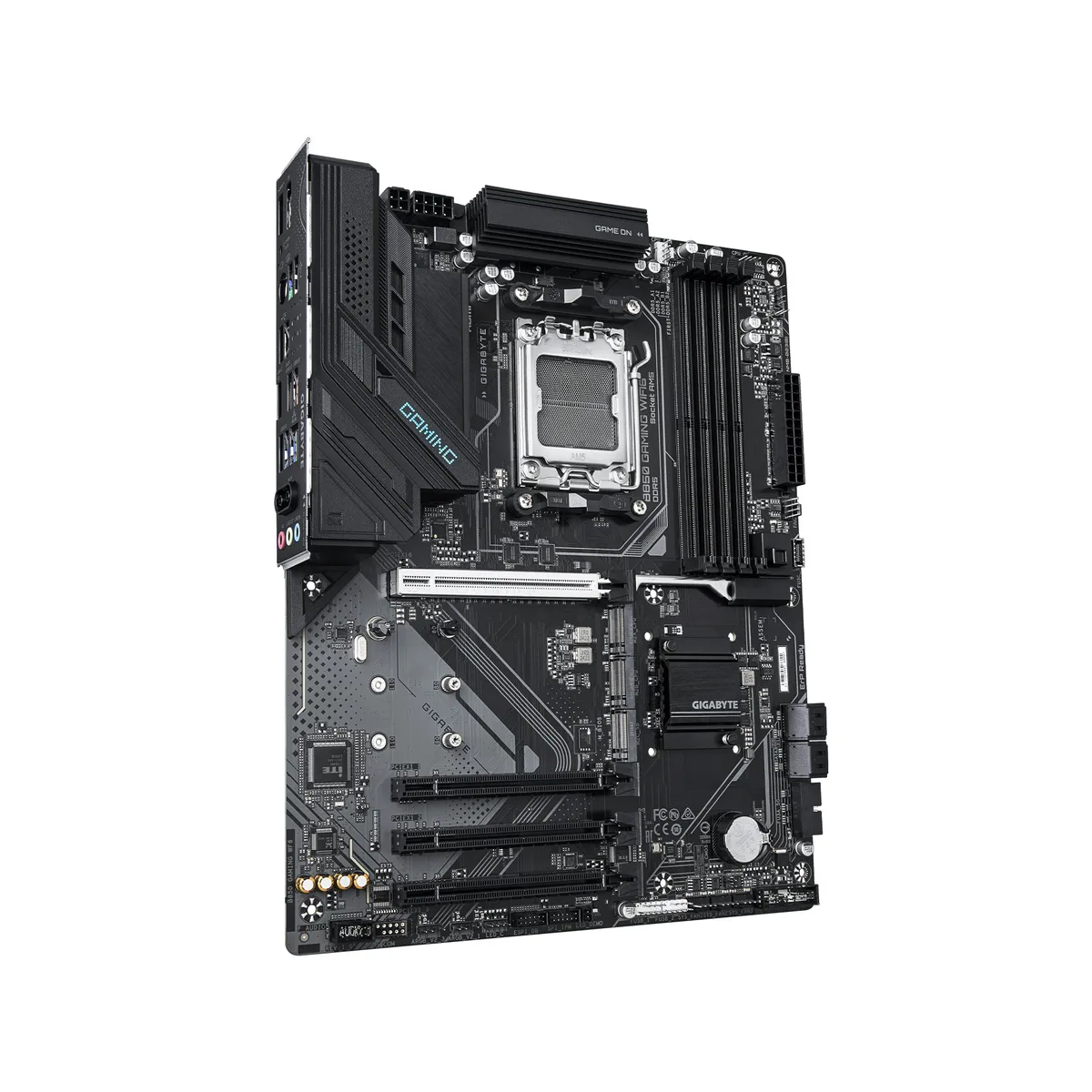

ATX motherboard with black heatsinks and silver accents

GIGABYTE

GIGABYTE B850 GAMING WF6 AMD motherboard

SKU CH-88GW-B87KD MPN B850 GAMING WF6

ATX AM5 board with DDR5 up to 8200 MT/s, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6E, 1 GbE LAN and EZ-Latch DIY features

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)
  • Maximum Memory Supported256GB

Option B850 GAMING WF6

Struck-through versions exist but are not stocked here.

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots reach 8200 MT/s with up to 256 GB capacity
  • PCIe 5.0 x16 plus three M.2 slots for high-speed storage and graphics
  • Wi-Fi 6E and 1 GbE LAN with Bluetooth for fast wireless and wired networking
  • EZ-Latch M.2, PCIe and Wi-Fi plug simplify installation and upgrades

AM5 Platform for Ryzen 7000 8000 9000

This ATX motherboard uses the AMD B850 chipset and the AM5 socket to support Ryzen 7000 Series, Ryzen 8000 Series and Ryzen 9000 Series processors. Four DDR5 DIMM slots accept up to 256 GB of memory with overclocked speeds reaching 8200 MT/s. A single PCIe 5.0 x16 slot and three M.2 connectors provide high-speed expansion for graphics and storage.

Check CPU Cooler Clearance and Power Phases

Verify that your chosen CPU cooler fits the AM5 mounting pattern and does not interfere with the fully covered MOSFET heatsinks that surround the 6+2+2 power design. Ensure your power supply delivers the required 8-pin and 24-pin connectors for the board. Confirm that your case accommodates the ATX form factor and offers enough rear-panel cut-outs for the supplied I/O shield.

EZ-Latch and Wi-Fi EZ-Plug Simplify Build

M.2 EZ-Latch and PCIe EZ-Latch mechanisms secure drives and graphics cards without screws, reducing assembly time. The Wi-Fi EZ-Plug antenna connector attaches the external antenna in one motion. Onboard WIFI6E and Bluetooth provide wireless connectivity while the 1GbE LAN port handles wired traffic. The rear I/O includes DisplayPort, HDMI, USB 3.2 Gen 2 Type-C and multiple Type-A ports for peripherals.

Highlights

  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots reach 8200 MT/s with up to 256 GB capacity
  • PCIe 5.0 x16 plus three M.2 slots for high-speed storage and graphics
  • Wi-Fi 6E and 1 GbE LAN with Bluetooth for fast wireless and wired networking
  • EZ-Latch M.2, PCIe and Wi-Fi plug simplify installation and upgrades

Specifications

BrandGIGABYTE
ModelB850 GAMING WIFI6
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
M.23 x M.2
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes

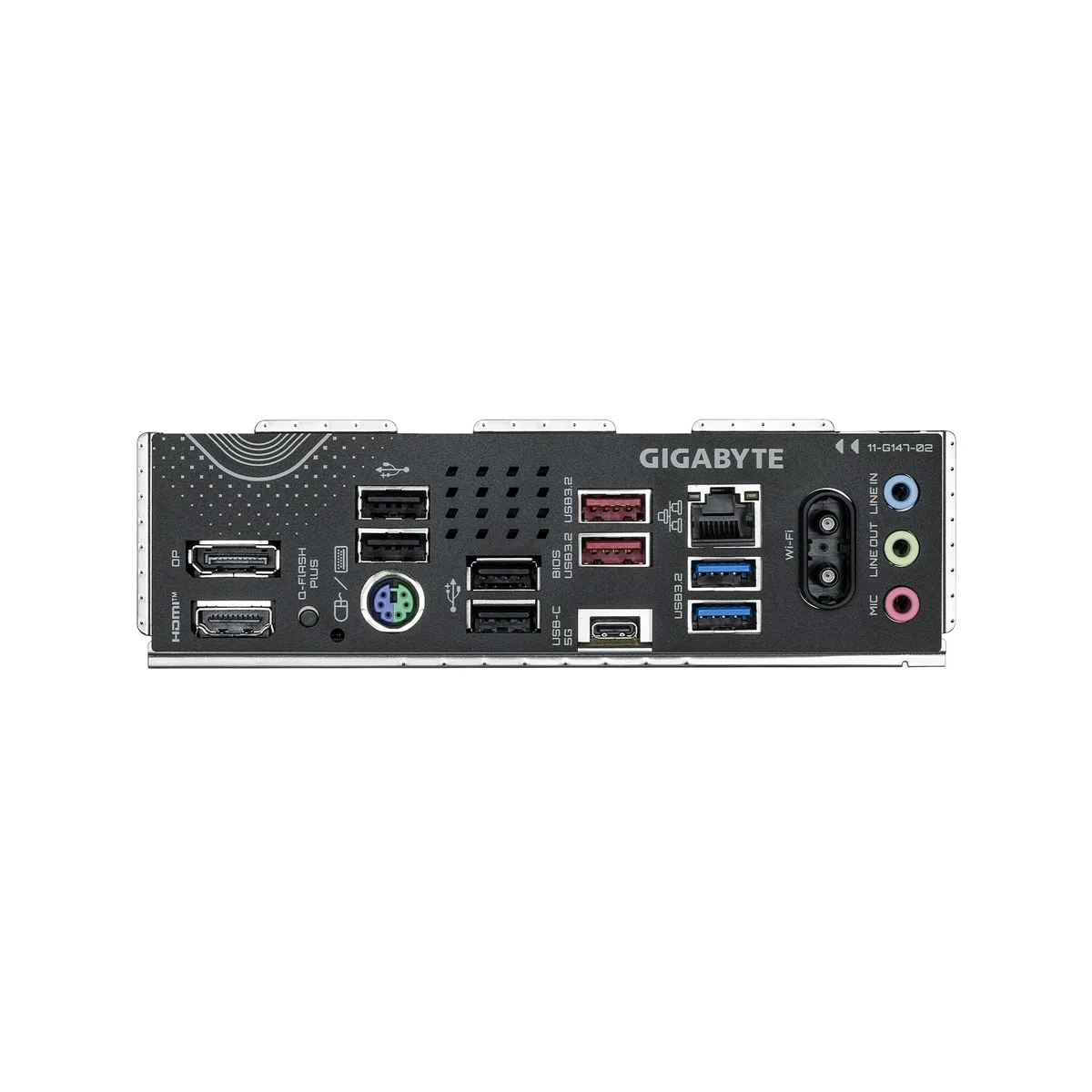

Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1
Form FactorATX
Shipping weight2.04 kg
Package size330 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the board ship with M.2 screws or Wi-Fi antennas, or must I buy them separately?

The motherboard includes the M.2 EZ-Latch clips and a Wi-Fi EZ-Plug antenna kit in the box; no extra mounting hardware or antennas are required for the three M.2 slots or the WIFI6E module.

Should I pick the DDR5 8200 MT/s kit or a slower one for this B850 Gaming WF6?

The board supports DDR5 up to 8200 MT/s when overclocked; choose a kit on the QVL at that speed for maximum headroom, or a lower-rated kit if you prefer plug-and-play stability.

What does the 8200 MT/s DDR5 figure actually deliver once the system is built?

It represents the maximum overclocked memory frequency the board can reach with a compatible kit, giving higher bandwidth for gaming and workloads that scale with memory speed.
