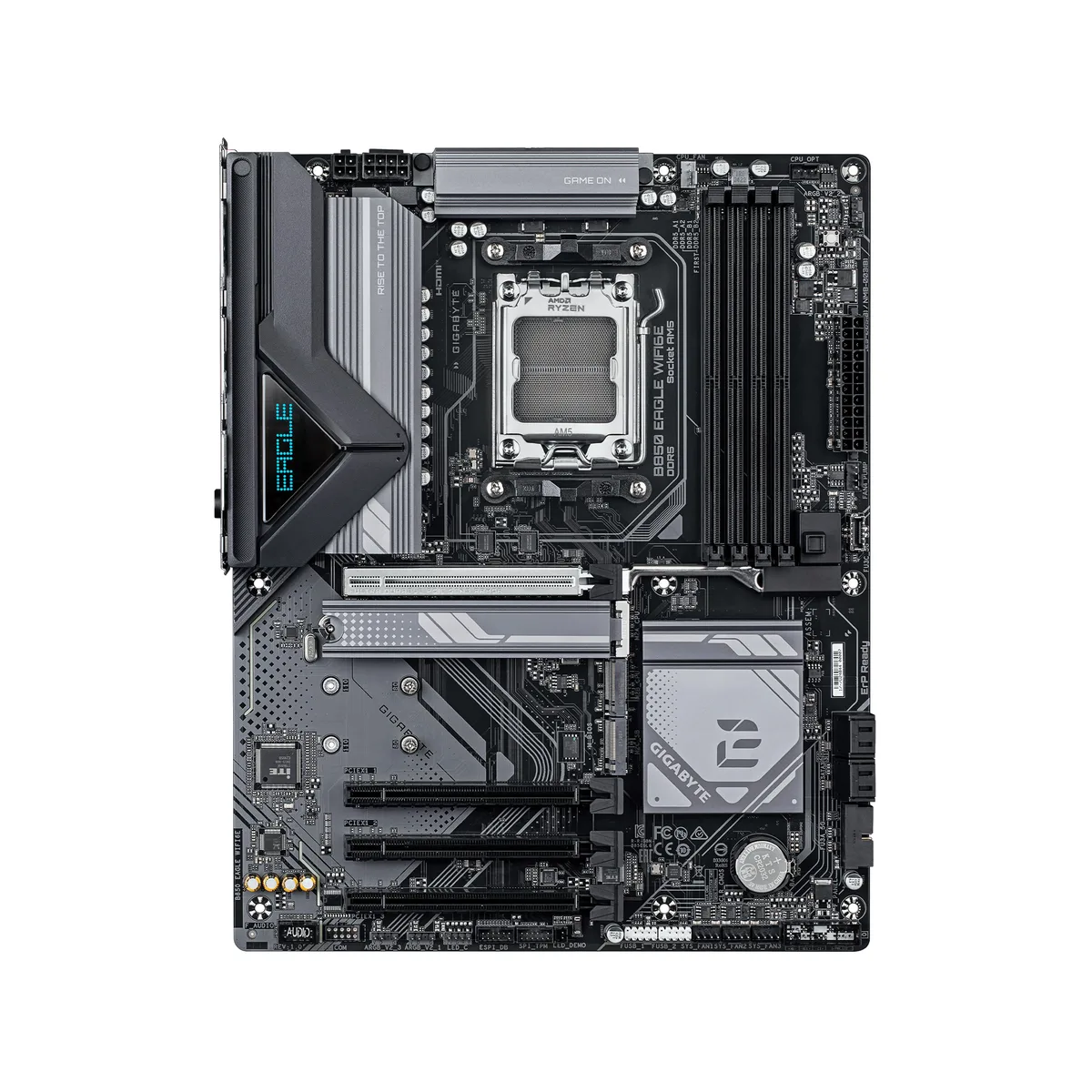

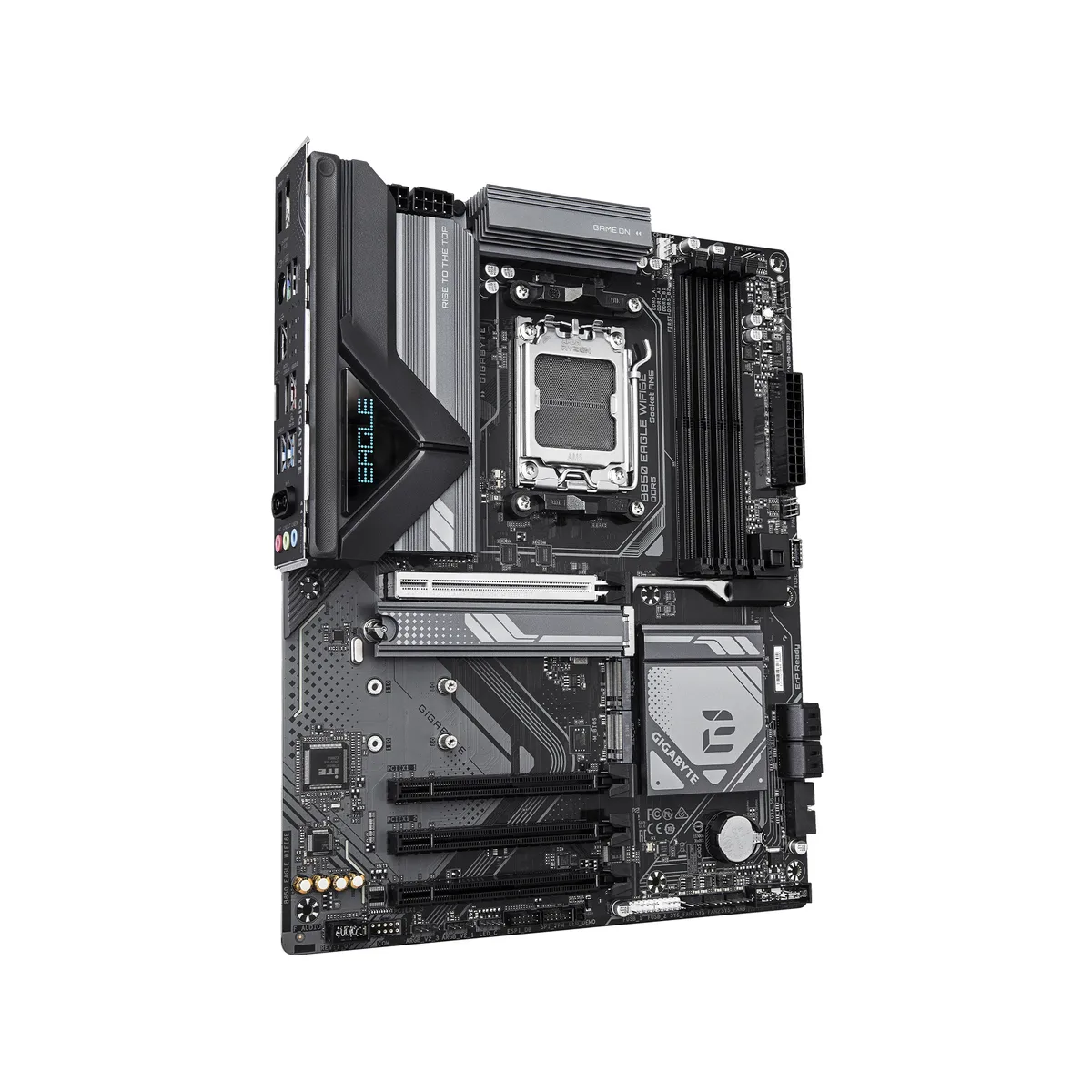

ATX motherboard in silver and black with large heatsinks and rear I/O shield

GIGABYTE

GIGABYTE B850 EAGLE WIFI6E AMD motherboard

SKU CH-NYF8-CH7FQ MPN B850 EAGLE WIFI6E

An ATX AM5 board supporting Ryzen 7000, 8000 and 9000 series with four DDR5 slots up to 8200 MT/s, three M.2 sockets, PCIe 5.0 graphics, Wi-Fi 6E, 1 GbE LAN and USB 3.2 Gen 2 Type-C

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)
  • Maximum Memory Supported256GB

Option B850 EAGLE WIFI6E

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • PCIe 5.0 x16 slot plus three M.2 connectors for fast storage
  • Wi-Fi 6E and 1 GbE LAN with Bluetooth for wireless and wired networking
  • EZ-Latch M.2 and PCIe slots plus Wi-Fi EZ-Plug simplify installation

AM5 socket for Ryzen 7000 8000 9000

This ATX motherboard accepts AMD Ryzen 7000 8000 and 9000 series processors in the AM5 socket. Four DDR5 slots support up to 256 GB of memory running at 8200 MT/s when overclocked. The board targets builders who want a full-size platform with modern connectivity and room for expansion.

PCIe 5.0 graphics slot three M.2 slots

A single PCI Express 5.0 x16 slot handles current graphics cards at full bandwidth. Three M.2 sockets take 2280 or 22110 drives; the CPU-linked slot runs at PCIe 5.0 with Ryzen 9000 or 7000 chips and at PCIe 4.0 with Ryzen 8000 series. Rear I/O supplies DisplayPort HDMI one USB 3.2 Gen 2 Type-C two USB 3.2 Gen 1 Type-A two USB 3.2 Gen 2 Type-A and four USB 2.0 ports plus 1 GbE LAN.

EZ-Latch M.2 PCIe Wi-Fi EZ-Plug

Tool-free EZ-Latch mechanisms secure M.2 drives and the graphics card without screws. The Wi-Fi EZ-Plug antenna connector snaps on quickly. Onboard Wi-Fi 6E and Bluetooth provide wireless networking. The 8+2+2 power phase design uses fully covered MOSFET heatsinks for thermal management. X3D Turbo Mode in the BIOS can raise gaming frame rates by up to 18 percent with compatible Ryzen X3D processors.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series CPUs on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • PCIe 5.0 x16 slot plus three M.2 connectors for fast storage
  • Wi-Fi 6E and 1 GbE LAN with Bluetooth for wireless and wired networking
  • EZ-Latch M.2 and PCIe slots plus Wi-Fi EZ-Plug simplify installation

Specifications

BrandGIGABYTE
ModelB850 EAGLE WIFI6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes

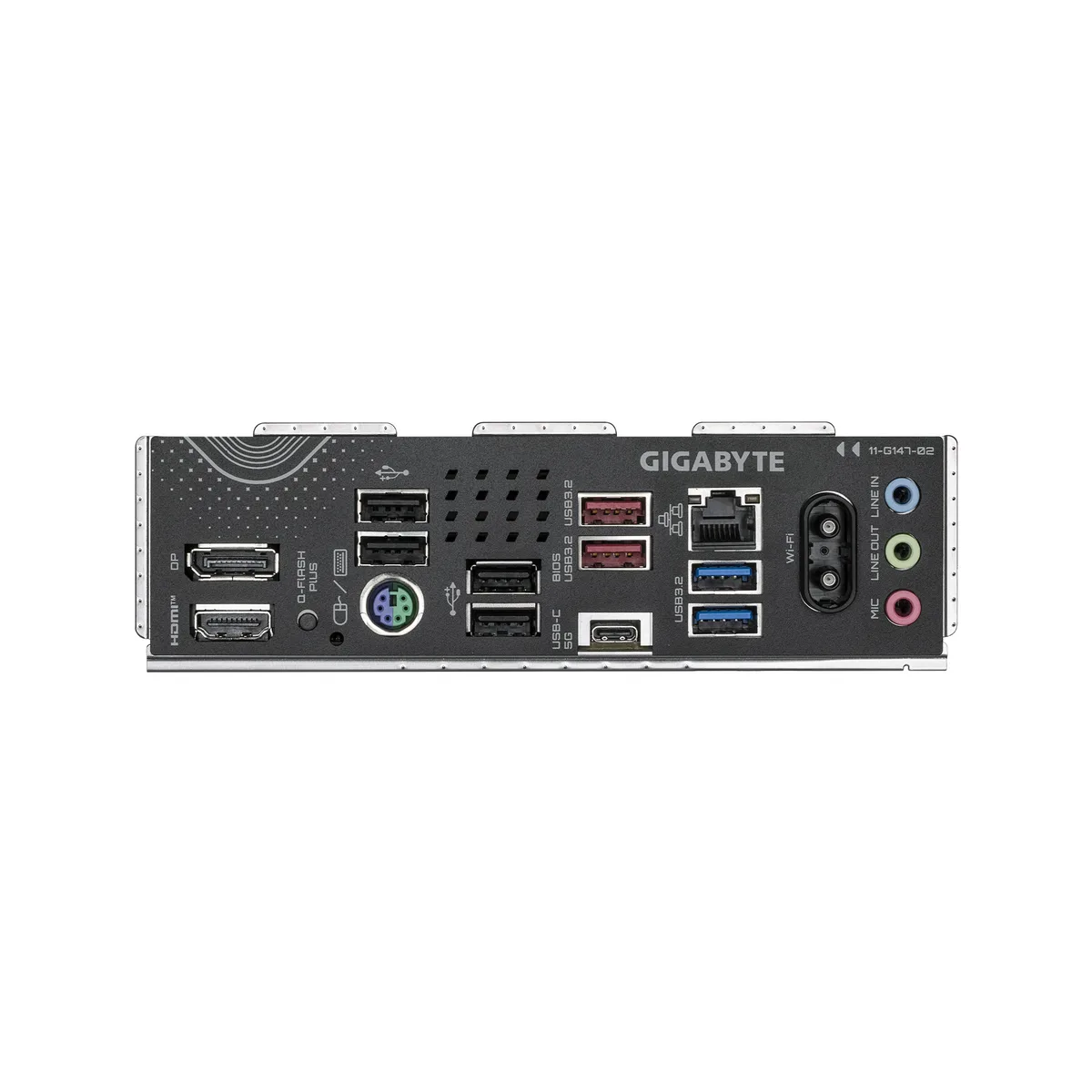

Back I/O Ports1 x DisplayPort / 1 x HDMI / 1 x USB 3.2 Gen 2 Type-C / 2 x USB 3.2 Gen 1 Type-A / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1
Form FactorATX
Shipping weight1.59 kg
Package size330 × 279 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 8+2+2 power design handle sustained loads without throttling?

The 8+2+2 phase layout with fully covered MOSFET heatsinks is built to deliver stable power during extended gaming or rendering sessions.

How loud or hot does the board get when the VRM heatsinks are under all-day load?

Large heatsinks across the 8+2+2 phases dissipate heat passively, keeping VRM temperatures low without adding fan noise.

Which DDR5 memory kit do I need to have on hand before this motherboard will post?

Any DDR5 DIMM up to 8200 MT/s (O.C.) works; the board has four 288-pin slots supporting up to 256 GB total.
