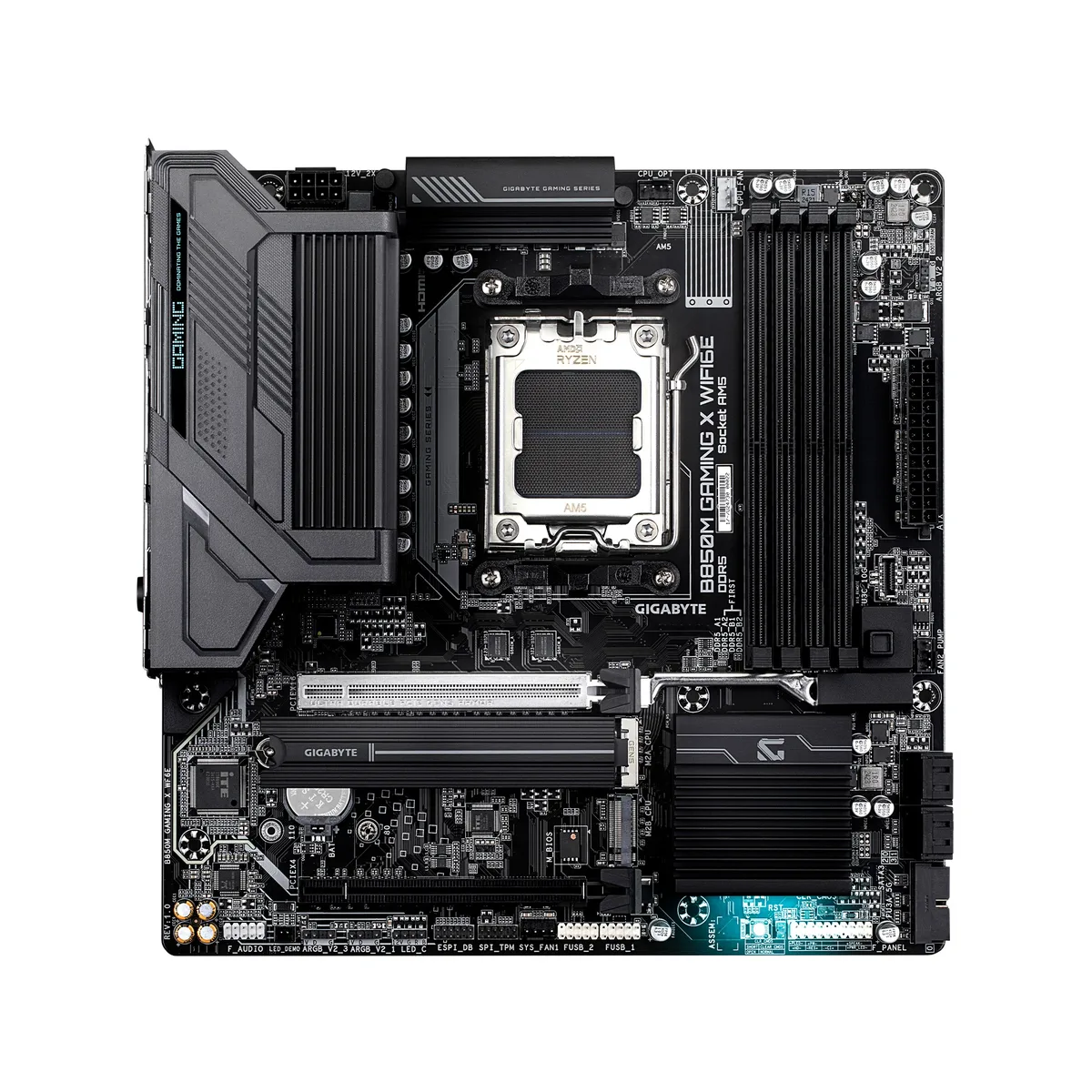

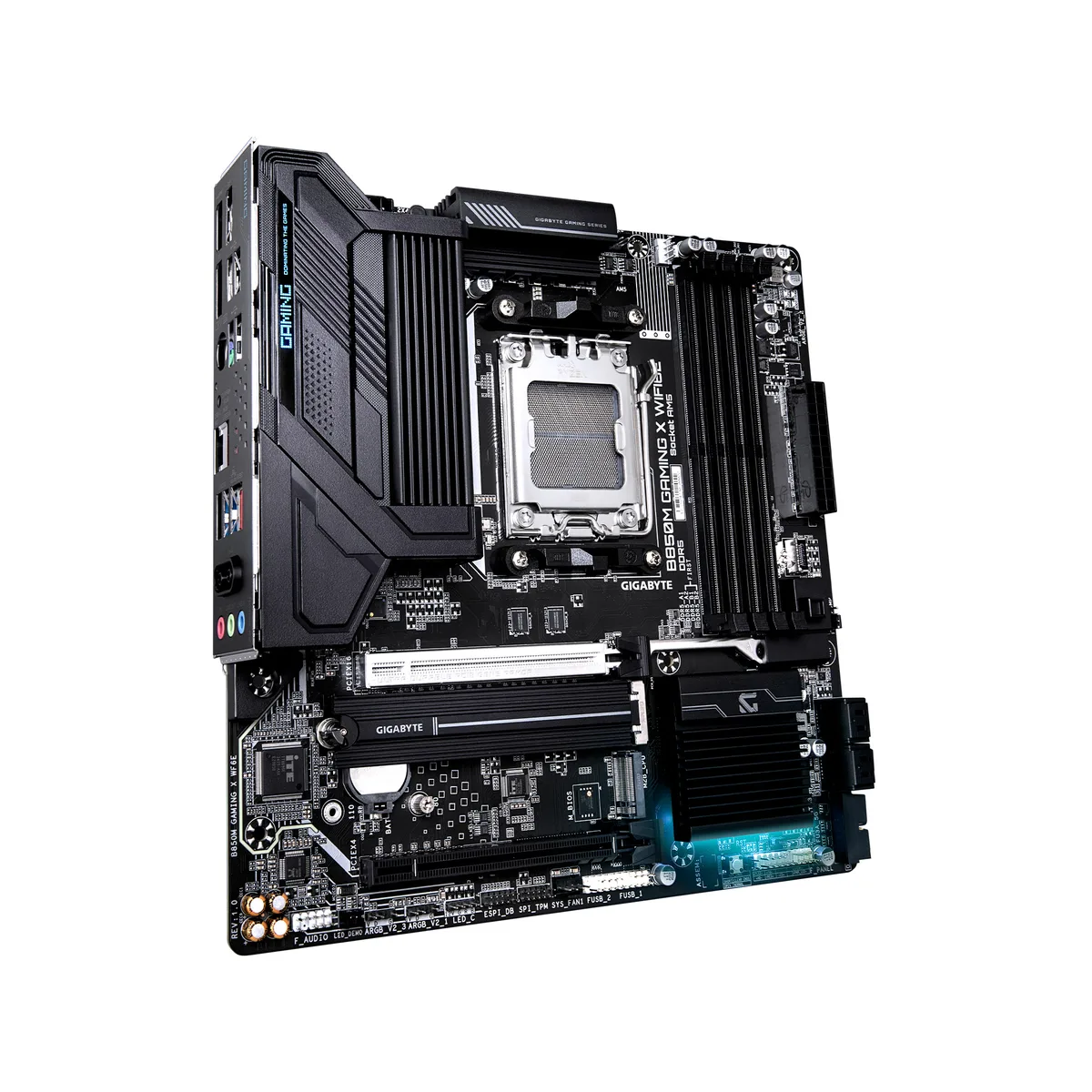

Micro ATX motherboard, matte black PCB, silver heatsinks, AM5 socket, four DDR5 slots, PCIe 5.0 x16, two M.2 covers, rear I/O shield

GIGABYTE

GIGABYTE B850M GAMING X WF6E AMD motherboard

SKU CH-E0Y7-RM0SM MPN B850M GAMING X WF6E

Micro-ATX AM5 board with DDR5 up to 8200 MT/s, PCIe 5.0 x16, two M.2 slots, WIFI6E, 2.5GbE LAN and EZ-Latch DIY features

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)
  • Maximum Memory Supported256GB

Option B850M GAMING X WF6E

Struck-through versions exist but are not stocked here.

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory overclocking up to 8200 MT/s across four DIMM slots for 256 GB maximum capacity
  • PCIe 5.0 x16 slot plus two M.2 slots for high-speed graphics and storage expansion
  • Wi-Fi 6E and 2.5 Gbps LAN with Bluetooth for fast wireless and wired networking
  • EZ-Latch mechanisms on M.2, PCIe and Wi-Fi simplify component installation and upgrades

AM5 mATX board for Ryzen 7000 8000 9000

This micro ATX motherboard uses the AMD B850 chipset and AM5 socket. It supports Ryzen 7000 Series, Ryzen 8000 Series and Ryzen 9000 Series processors. The board provides four DDR5 slots with a maximum capacity of 256GB and speeds up to DDR5 8200 O.C. A 10+2+2 power design and fully covered MOSFET heatsinks handle the CPU power delivery.

Suits compact gaming builds needing PCIe 5.0

Builders who want a smaller chassis with one PCI Express 5.0 x16 slot, two M.2 sockets and integrated WIFI6E plus 2.5GbE LAN will fit here. The rear I/O includes HDMI, DisplayPort, USB 3.2 Gen 2 Type-C and Type-A plus four USB 2.0 ports. DIY features such as M.2 EZ-Latch and PCIe EZ-Latch simplify installation. Users requiring more than two M.2 slots or a full ATX layout should consider other form factors.

One PCIe 5.0 x16 slot

The single PCI Express 5.0 x16 slot runs at full speed for a modern graphics card. Two M.2 connectors provide fast storage options. Four DDR5 DIMM slots allow up to 256GB of memory. The 2.5GbE LAN and WIFI6E handle wired and wireless networking. Choose this board when those exact expansion limits match the planned build.

Highlights

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory overclocking up to 8200 MT/s across four DIMM slots for 256 GB maximum capacity
  • PCIe 5.0 x16 slot plus two M.2 slots for high-speed graphics and storage expansion
  • Wi-Fi 6E and 2.5 Gbps LAN with Bluetooth for fast wireless and wired networking
  • EZ-Latch mechanisms on M.2, PCIe and Wi-Fi simplify component installation and upgrades

Specifications

BrandGIGABYTE
ModelB850M GAMING X WIFI6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
M.22 x M.2
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothYes

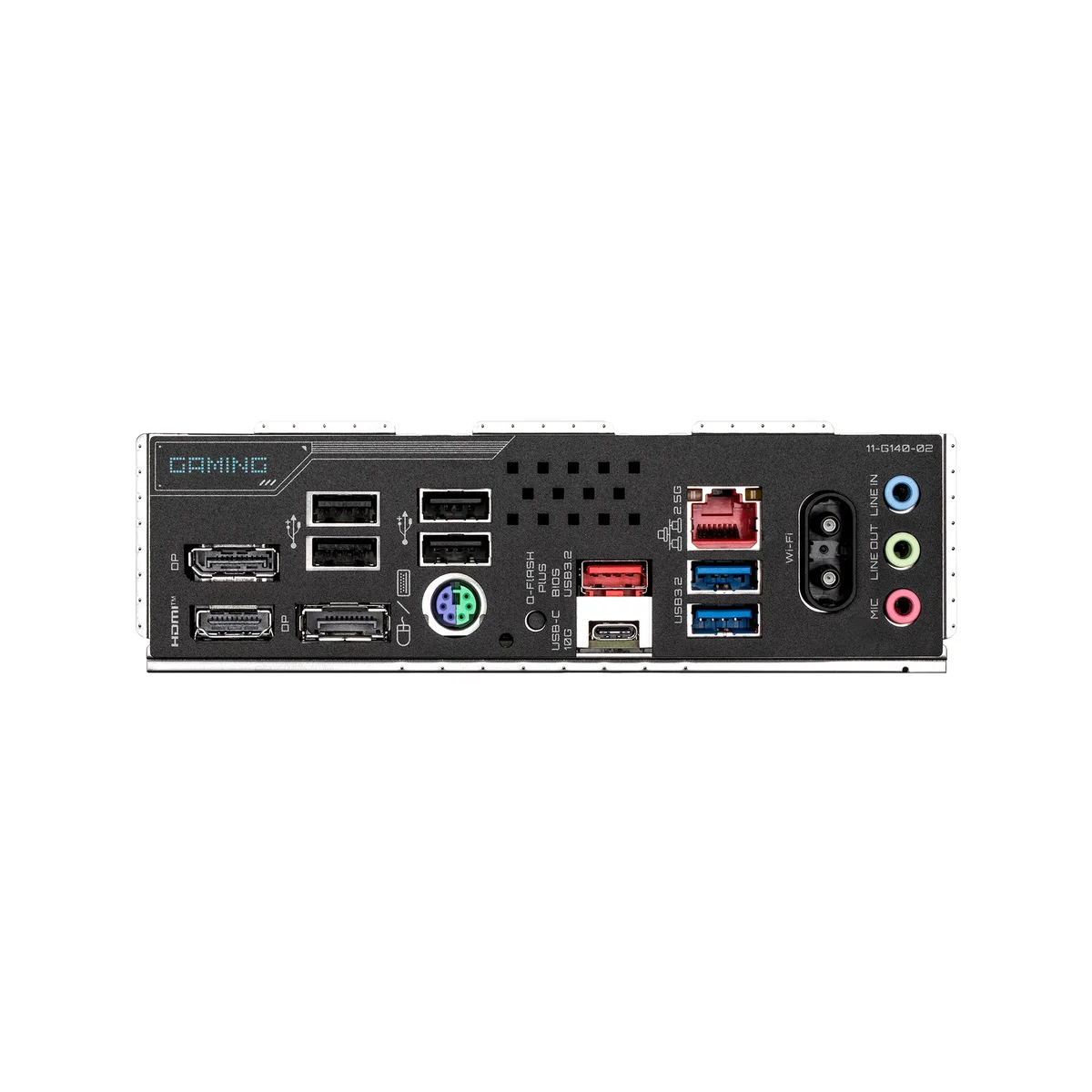

Back I/O Ports1 x HDMI / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x DisplayPort / 2 x USB 3.2 Gen 1 Type-A / 4 x USB 2.0/1.1
Form FactorMicro ATX
Shipping weight1.59 kg
Package size267 × 254 × 76 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance and power connectors does the Micro ATX board with 10+2+2 power design require?

It fits a Micro ATX case and needs a 24-pin ATX plus an 8-pin EPS connector for the 10+2+2 phase VRM.

Which EZ-Latch steps are often missed when installing a graphics card and an M.2 drive?

Press the PCIe EZ-Latch lever to unlock the x16 slot before inserting the card, and flip the M.2 EZ-Latch clip up before sliding the drive in.

When should the CMOS battery be replaced on this AM5 motherboard?

Replace the coin cell when the system loses date and time settings after being unplugged.
