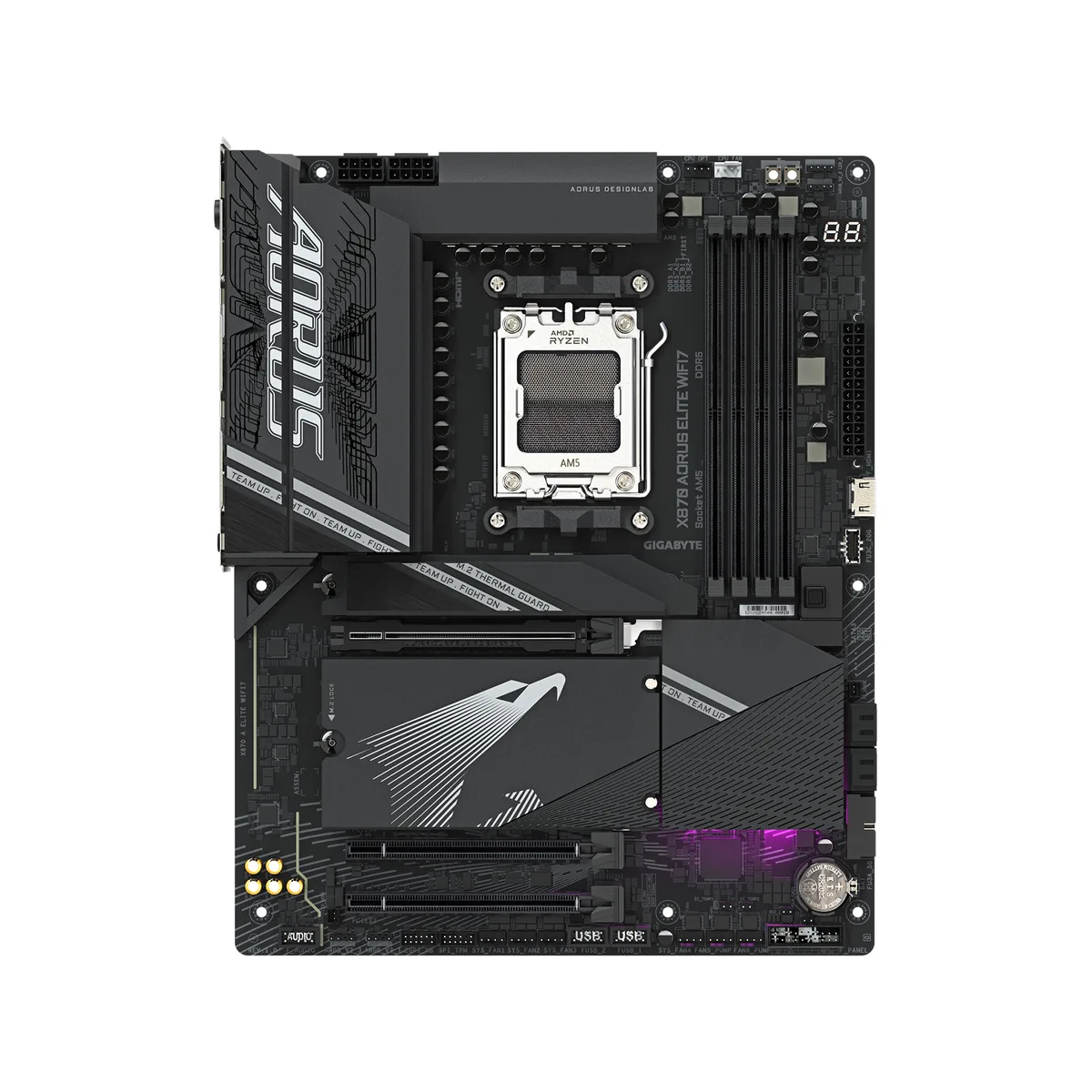

ATX motherboard with black VRM heatsinks and silver M.2 covers

GIGABYTE

GIGABYTE X870 AORUS ELITE WIFI7 AMD motherboard

SKU CH-7BZC-SEFHE MPN X870 AORUS ELITE WIFI7

AM5 board with 16+2+2 power phases, four DDR5 slots up to 256 GB, four M.2 sockets including three PCIe 5.0 x4, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870 AORUS ELITE WIFI7

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 phase VRM delivers stable power for high-end processors
  • Four DDR5 slots up to 256 GB with EXPO and XMP 3.0 profiles
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7, 2.5 GbE LAN and dual USB4 Type-C for modern connectivity

Socket AM5 Platform for Ryzen 7000 8000 9000

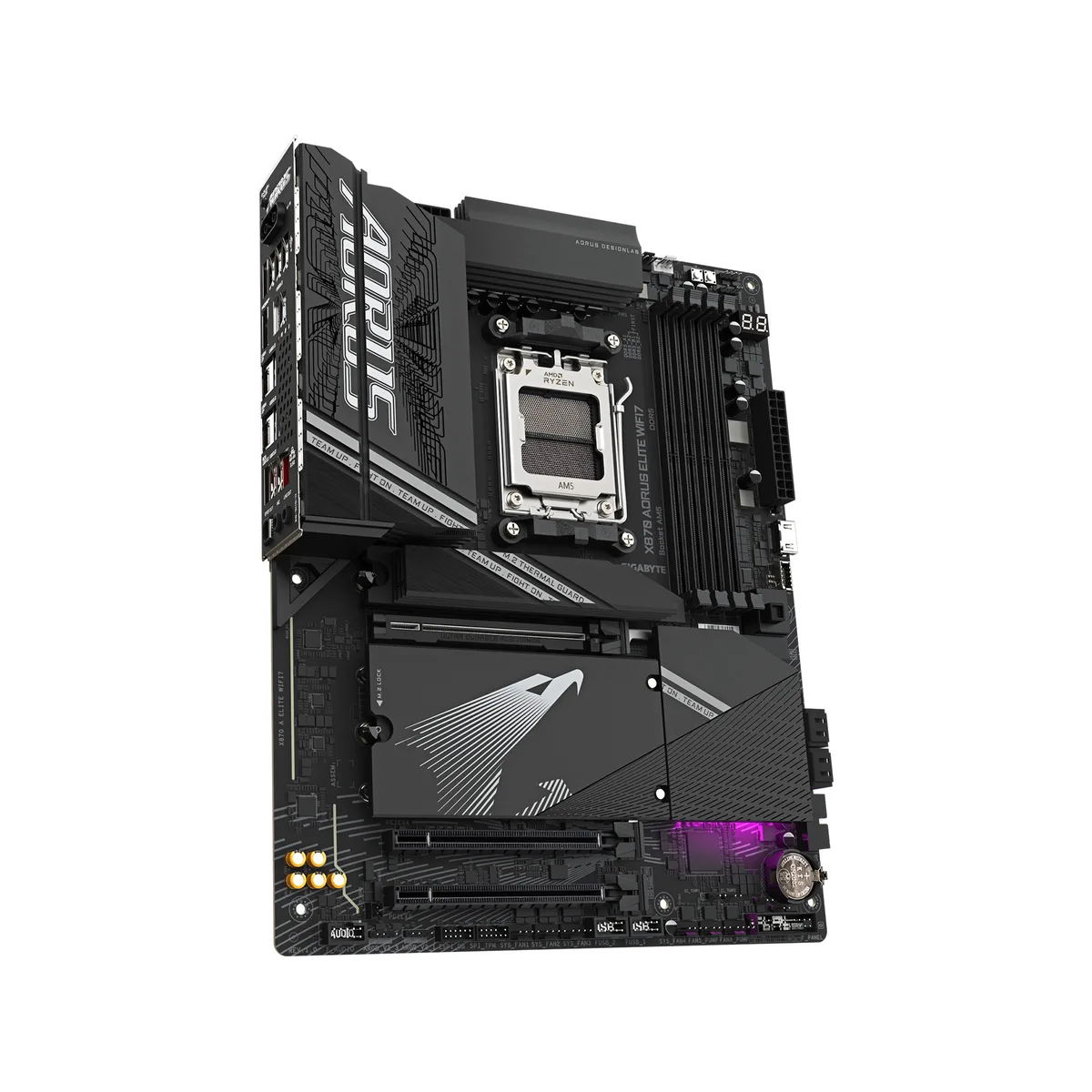

The GIGABYTE X870 AORUS ELITE WIFI7 is an ATX motherboard built for AMD Socket AM5 processors across the Ryzen 7000 8000 and 9000 series. It provides four 288 pin DDR5 slots supporting dual channel memory up to 256 GB with AMD EXPO and Intel XMP 3.0 profiles. The board targets enthusiasts who want PCIe 5.0 graphics and storage bandwidth alongside Wi-Fi 7 and 2.5 GbE networking.

VRM and M.2 Thermal Guard for Daily Operation

A 16 plus 2 plus 2 phase digital VRM is covered by the VRM Thermal Armor Advanced heatsink while M.2 Thermal Guard L shields the primary storage slots. The Realtek ALC1220 codec drives 7.1 channel audio through audiophile grade capacitors. Under typical desktop loads the cooling array keeps component temperatures in check without demanding high fan speeds so system noise remains low and power draw stays proportional to the workload.

Sustained Load Behaviour with EZ-Latch Convenience

During extended heavy compute or gaming sessions the VRM heatsink mass and M.2 shields absorb and dissipate heat steadily preventing throttle points. Three PCIe 5.0 M.2 slots and one PCIe 4.0 slot share CPU and chipset lanes so sustained throughput depends on the populated configuration. PCIe EZ-Latch and M.2 EZ-Latch Click allow tool free component swaps while Sensor Panel Link simplifies in chassis display wiring for long term monitoring.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series CPUs on AM5 socket
  • 16+2+2 phase VRM delivers stable power for high-end processors
  • Four DDR5 slots up to 256 GB with EXPO and XMP 3.0 profiles
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7, 2.5 GbE LAN and dual USB4 Type-C for modern connectivity

Specifications

BrandGIGABYTE
ModelX870 AORUS ELITE WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen
SATA RAID0/1/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

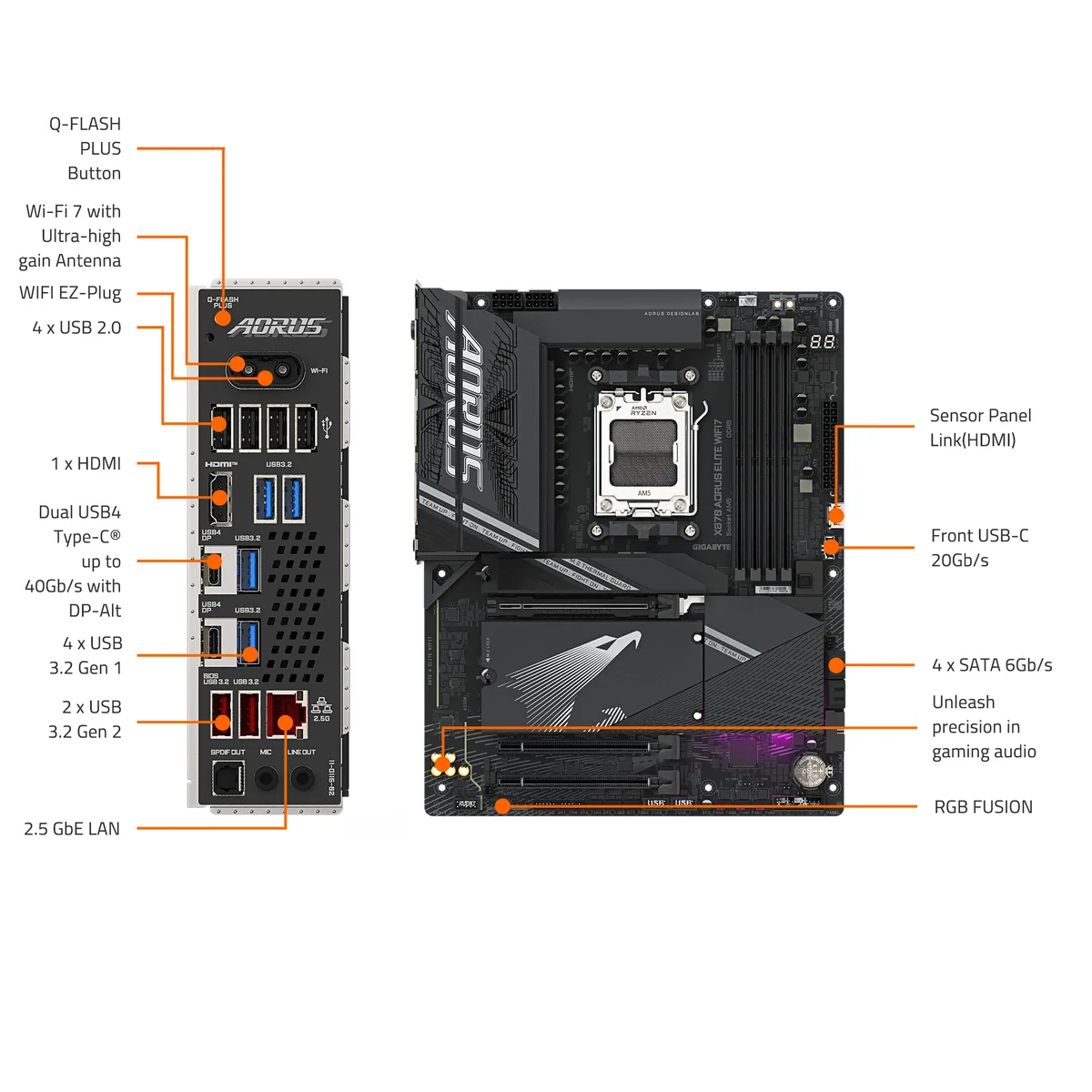

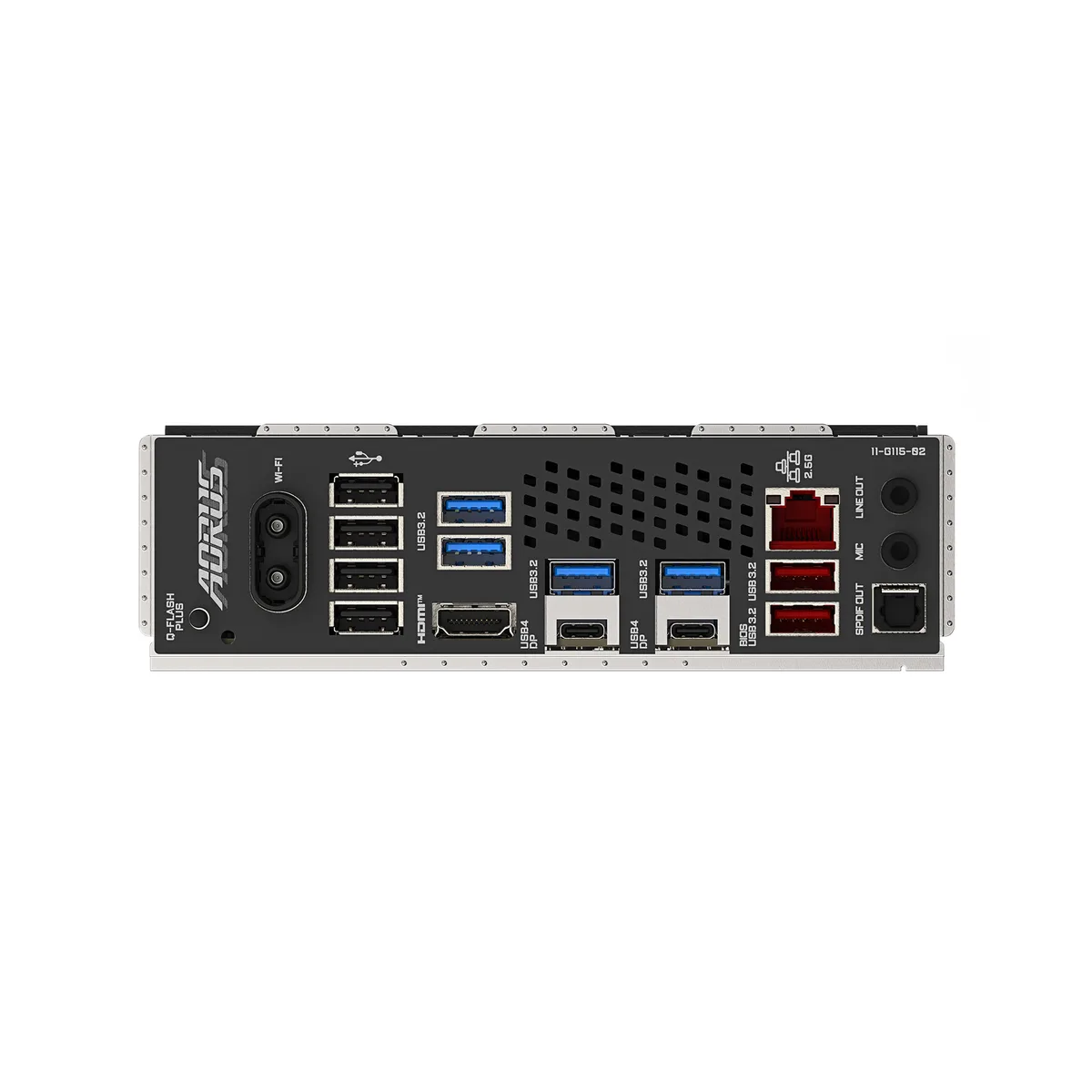

Back I/O Ports1 x Q-Flash Plus button
1 x HDMI port
2 x antenna connectors (2T2R)
2 x USB4 USB Type-C ports (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Shipping weight2.25 kg
Package size335 × 273 × 83 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I fit the Wi-Fi 7 antenna and what step is often missed?

Snap the two antenna leads onto the gold posts marked WIFI EZ-Plug on the rear I/O panel; the step people miss is pushing each lead straight down until it clicks, otherwise the connection stays loose.

Which parts will need attention or replacement after extended use?

The VRM heatsink fins and the three M.2 Thermal Guard L shields collect dust; clean them with compressed air every few months and replace the CMOS battery when the system loses time settings.

What limit appears first when the board runs under heavy load for a long period?

The 16+2+2 phase VRM and its Thermal Armor Advanced hit thermal saturation before any power-phase limit, so sustained all-core workloads will throttle once the heatsink can no longer shed heat fast enough.
