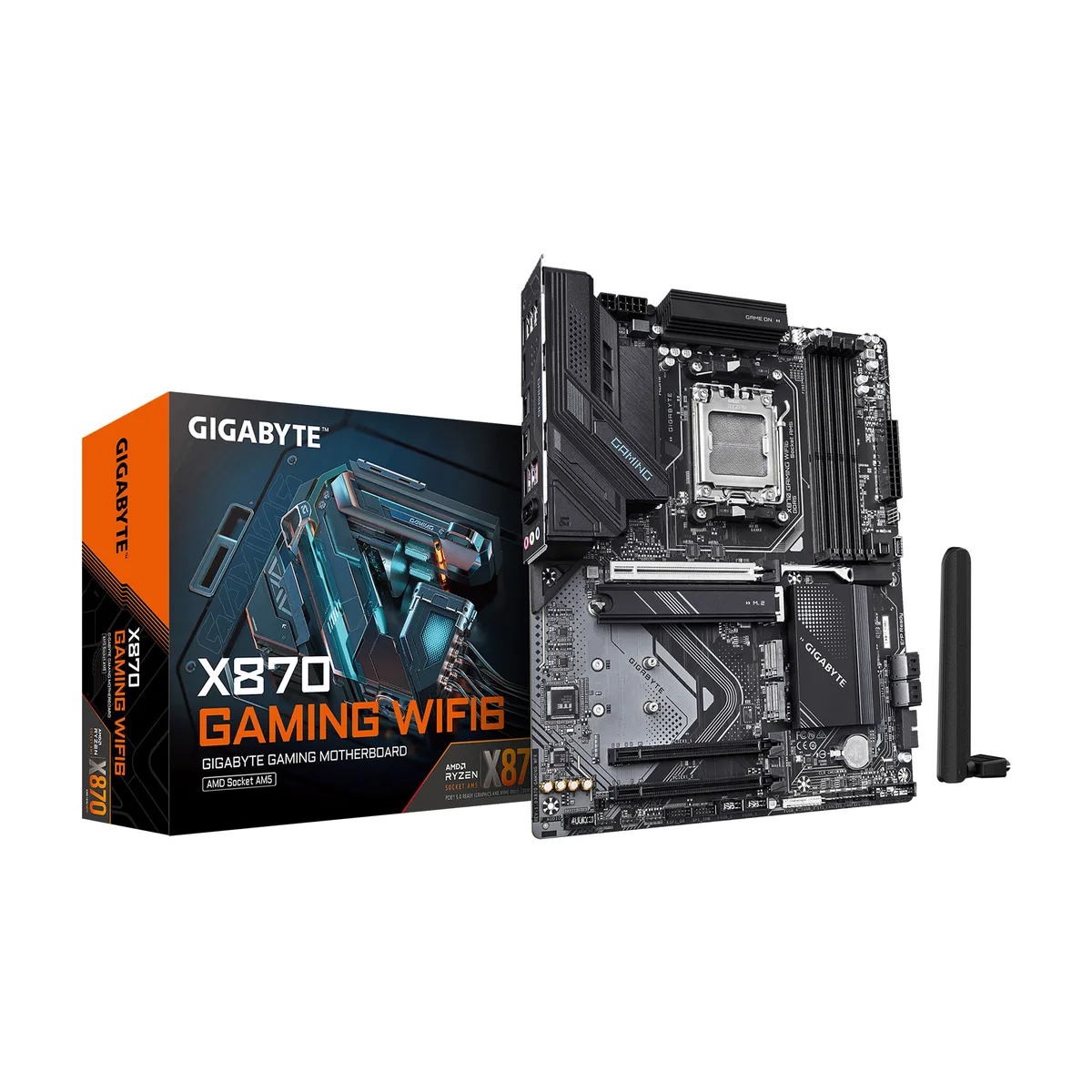

Rectangular ATX motherboard with black PCB and silver heatsinks

GIGABYTE

GIGABYTE X870 GAMING WIFI6 AMD motherboard

SKU CH-SFYK-J59DA MPN X870 GAMING WIFI6

ATX board for AM5 Ryzen CPUs with DDR5 up to 256GB, PCIe 5.0 x16, three M.2 slots, dual USB4, Wi-Fi 6 and 2.5GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC
  • Maximum Memory Supported256GB

Option X870 GAMING WIFI6

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory up to 8000 MT/s with EXPO and XMP 3.0 profiles
  • PCIe 5.0 x16 slot plus three M.2 slots including one PCIe 5.0 x4
  • Dual USB4 Type-C ports and 2.5 GbE LAN with Wi-Fi 6 connectivity
  • EZ-Latch M.2 and PCIe plus Q-Flash Plus for tool-free upgrades

AM5 DDR5 motherboard for Ryzen 7000 8000 9000

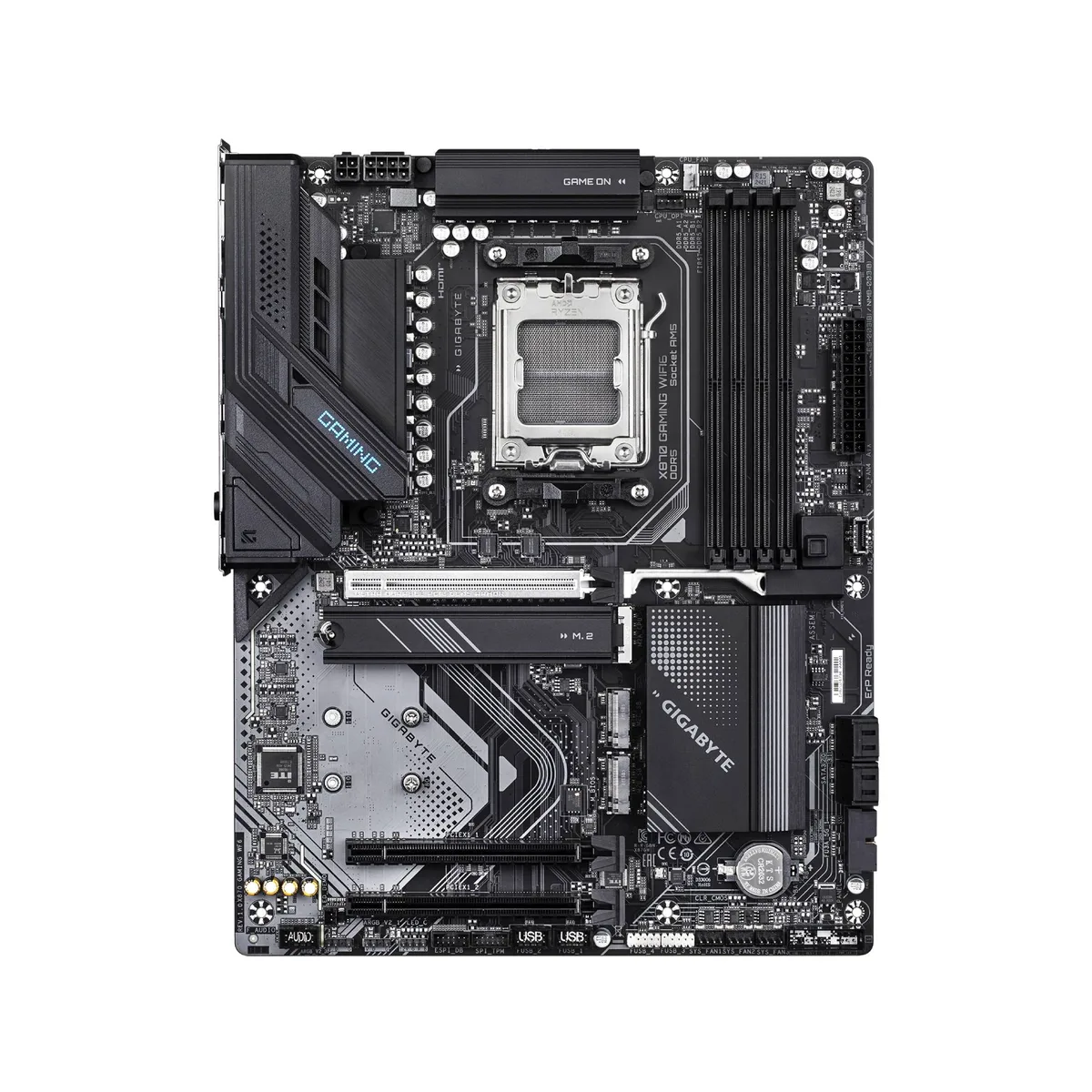

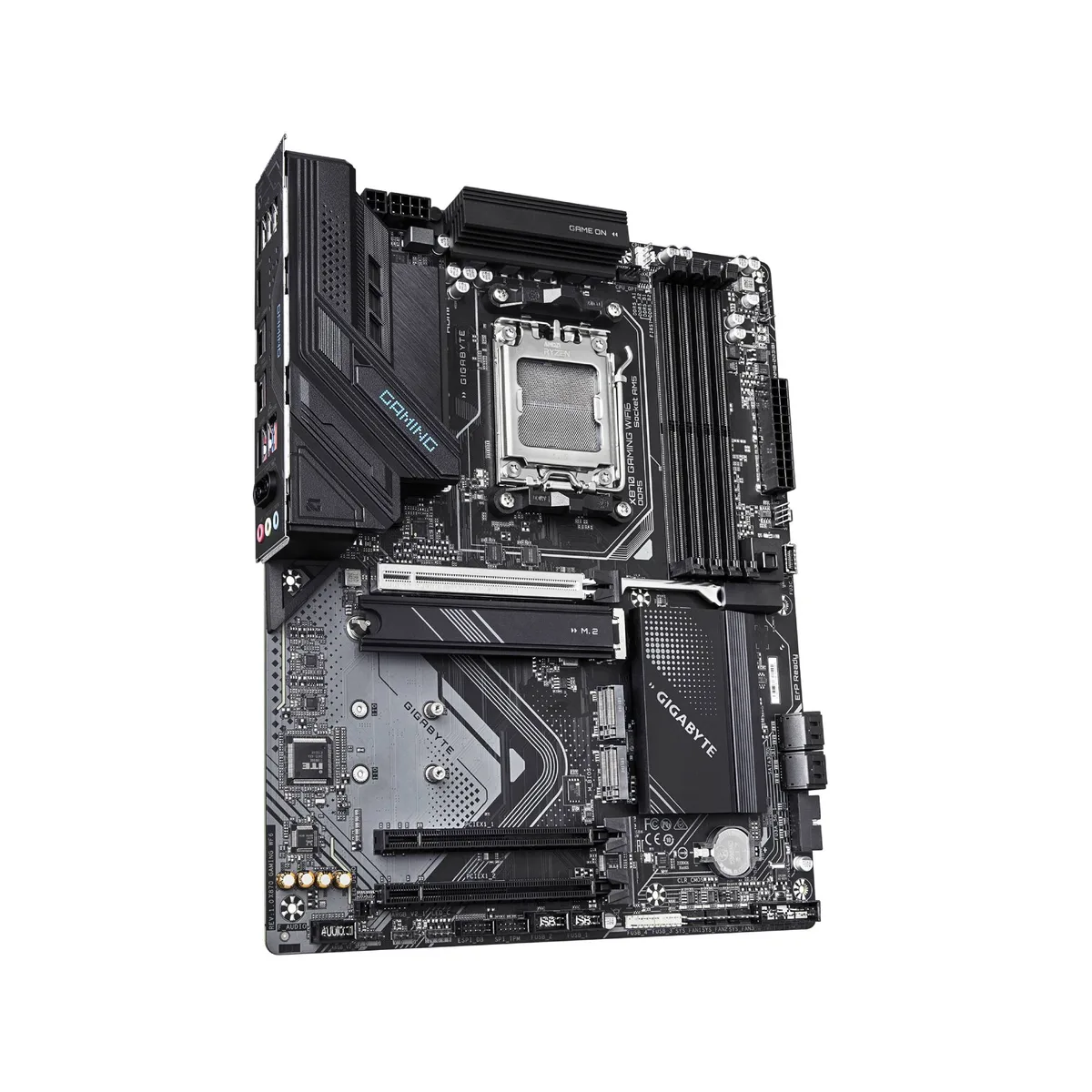

This ATX board fits socket AM5 and accepts Ryzen 7000, 8000 and 9000 series CPUs. Four DDR5 slots support up to 256GB with EXPO and XMP 3.0 profiles. It targets builders who need current-generation AMD compatibility in a standard form factor.

One PCIe 5.0 x16 plus three M.2 slots

The primary graphics slot runs at PCIe 5.0 x16. Storage includes one M.2 with PCIe 5.0 x4, one with PCIe 4.0 x4 and one with PCIe 4.0 x2. Four SATA 6Gb/s ports remain available for additional drives.

VRM and M.2 thermal guards handle sustained

Heatsinks cover the 8+2+2 power phases and each M.2 slot to limit throttling during long workloads. Rear I/O supplies dual USB4 Type-C, 2.5GbE LAN and Realtek Wi-Fi 6 RTL8851BE. Q-Flash Plus updates firmware without a CPU installed.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • DDR5 memory up to 8000 MT/s with EXPO and XMP 3.0 profiles
  • PCIe 5.0 x16 slot plus three M.2 slots including one PCIe 5.0 x4
  • Dual USB4 Type-C ports and 2.5 GbE LAN with Wi-Fi 6 connectivity
  • EZ-Latch M.2 and PCIe plus Q-Flash Plus for tool-free upgrades

Specifications

BrandGIGABYTE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
Maximum Memory Supported256GB
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x162 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
PCI Slots3 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 (Support PCIe 4.0 x2) / 1 x M.2 (Support PCIe 4.0 x4) / 1 x M.2 (Support PCIe 5.0 x4)
Audio ChannelsRealtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Max LAN Speed2.5Gbps
Wireless LANRealtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands

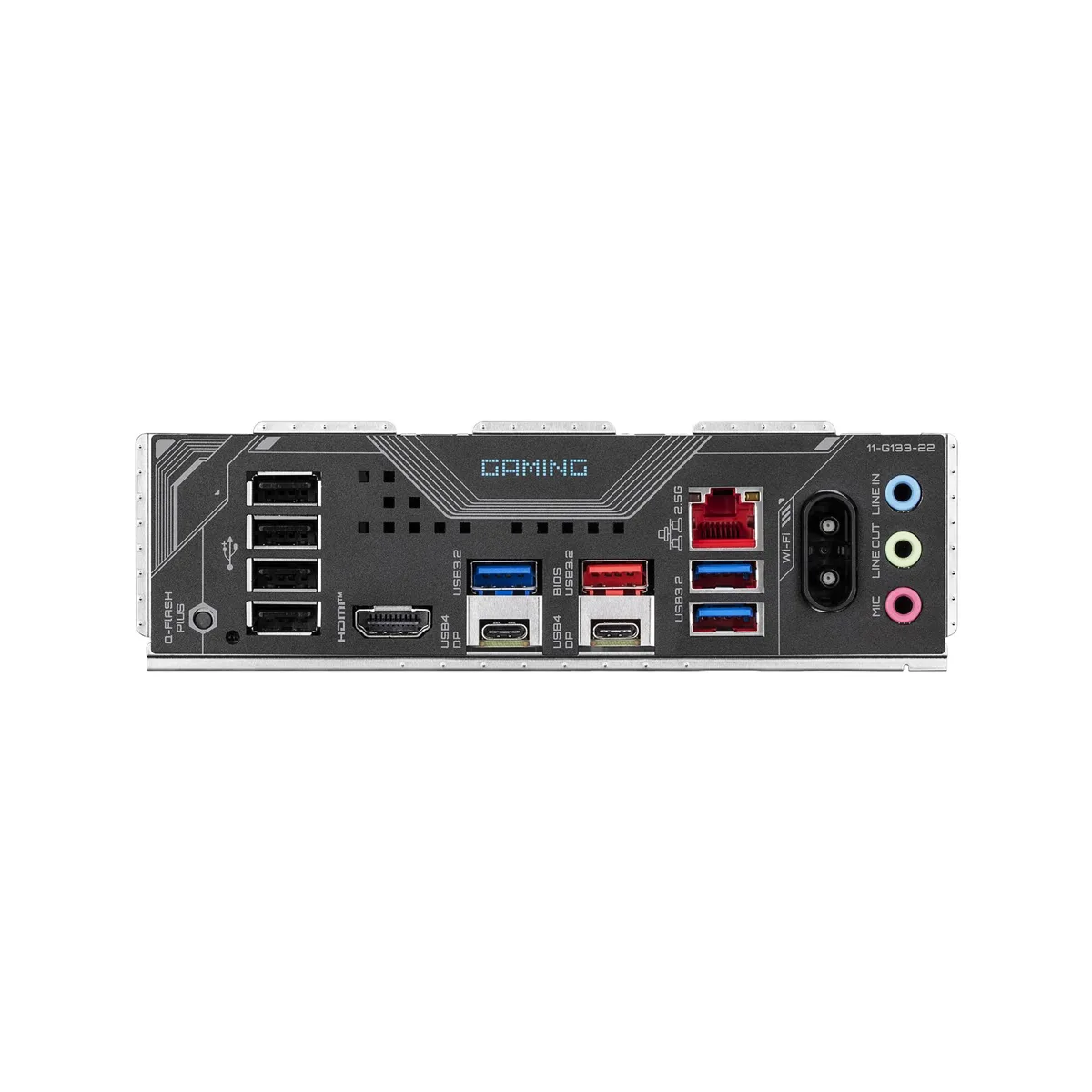

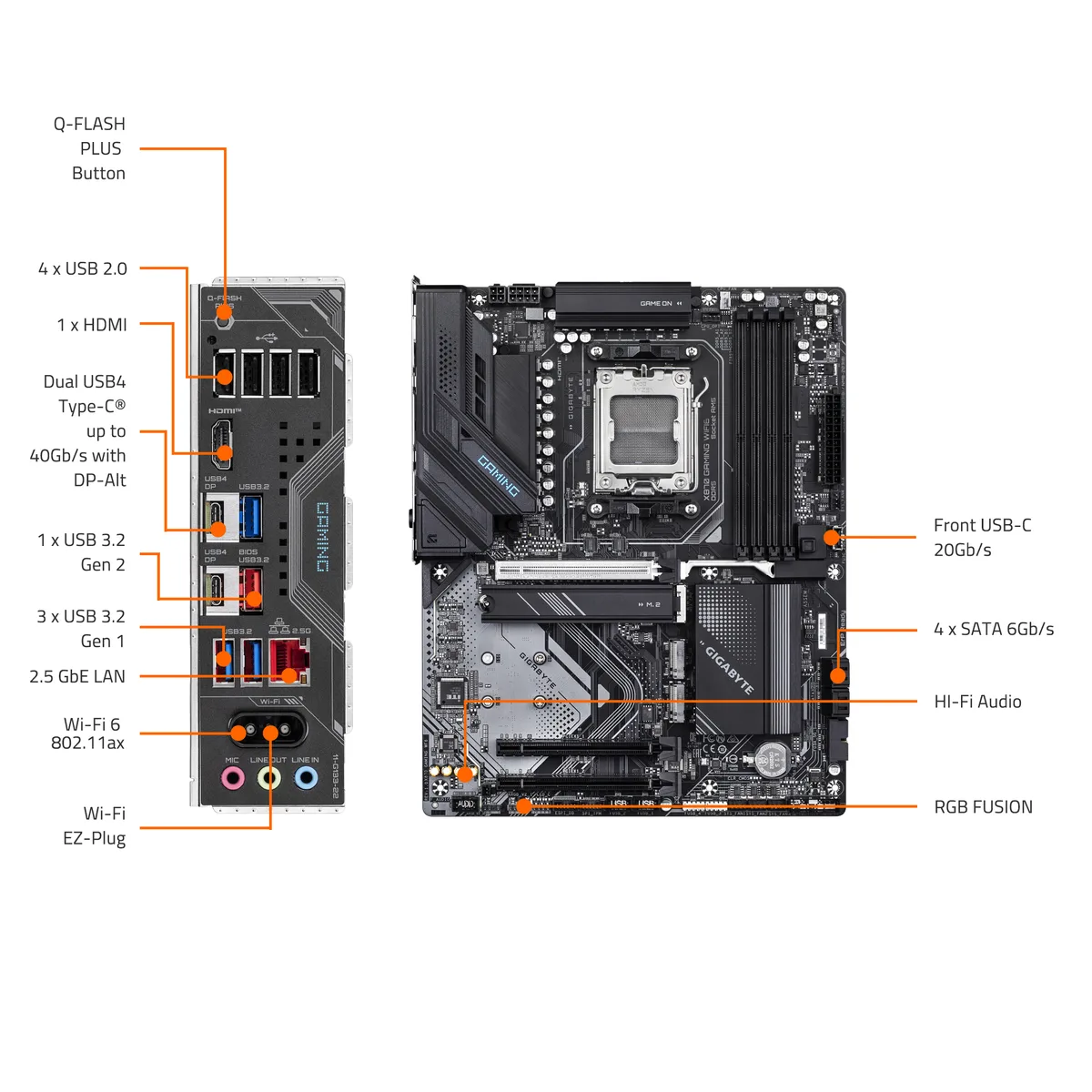

Back I/O Ports1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
2 x USB4® USB Type-C® ports
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Windows 11Supported
Shipping weight1.70 kg
Package size337 × 271 × 81 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the single PCIe 5.0 x16 slot mean for a graphics card installed in this board?

The slot provides a full x16 electrical link at PCIe 5.0 speeds, so a modern GPU can run at its maximum interface bandwidth without sharing lanes with the other two x16-size slots that operate at PCIe 3.0 x1.

How fast can the two rear USB4 Type-C ports actually transfer data?

Each USB4 port supports up to 40 Gbps throughput and can carry DisplayPort video, but the final speed depends on the cable, the connected device and whether the CPU provides the required PCIe 5.0 lanes.

What physical clearance does the ATX board need inside a case?

The board measures 12.0 by 9.6 inches and uses the standard ATX mounting pattern, so any case that accepts ATX motherboards will fit it.
