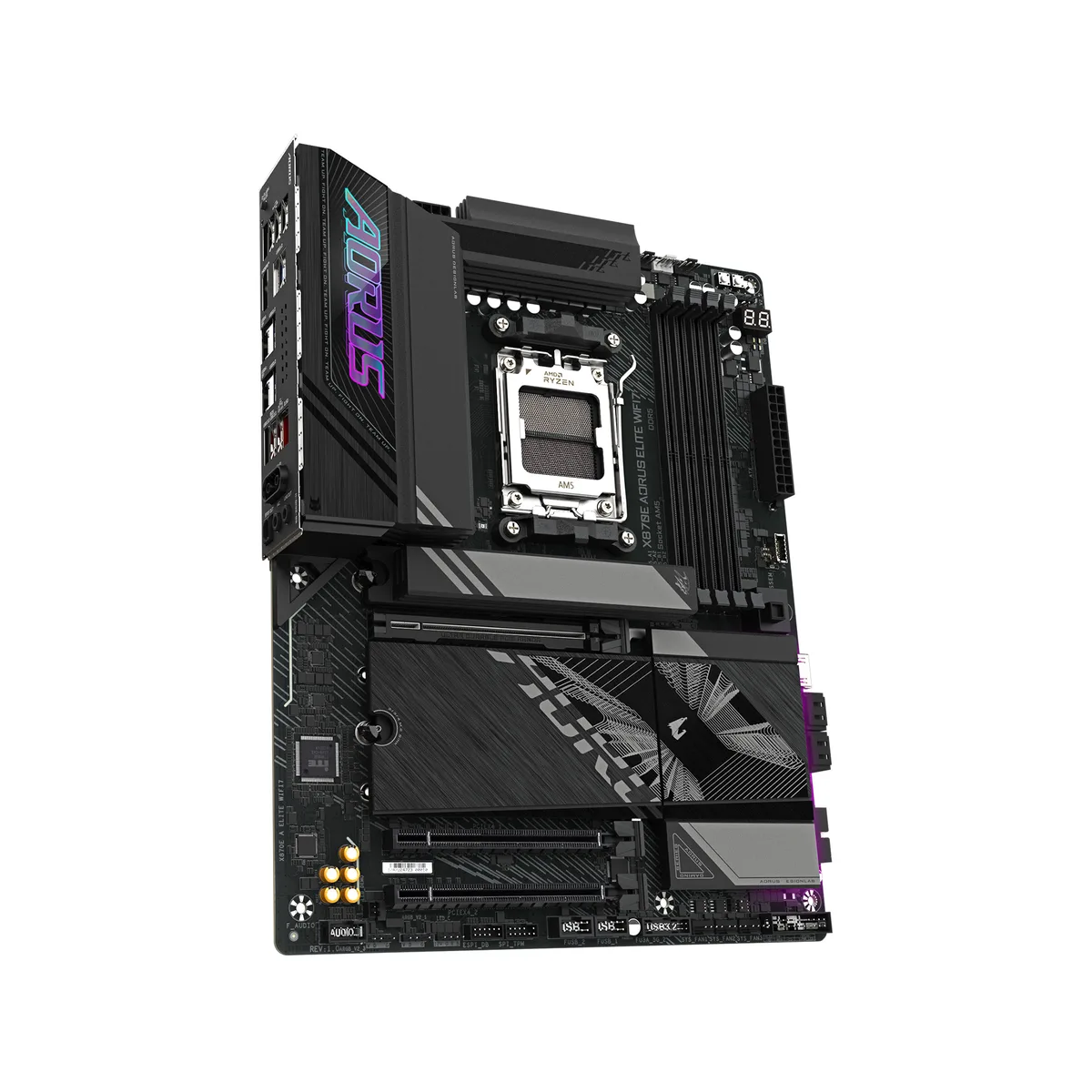

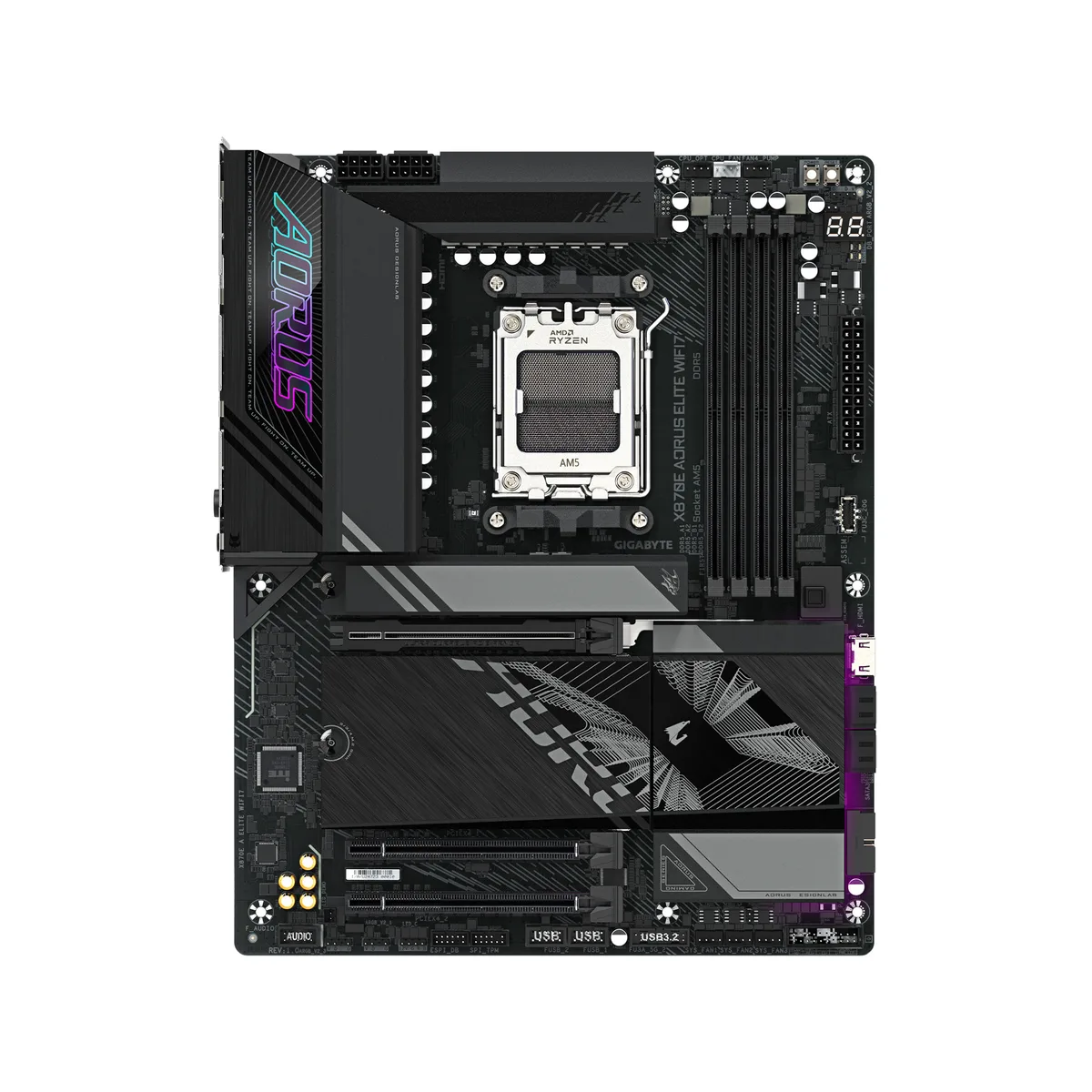

ATX motherboard with black VRM heatsinks and silver M.2 shields

GIGABYTE

GIGABYTE X870E AORUS ELITE WIFI7 AMD motherboard

SKU CH-BBV5-7D723 MPN X870E AORUS ELITE WIFI7

ATX motherboard for AM5 Ryzen 7000, 8000 and 9000 CPUs with DDR5 up to 8000 MT/s, four M.2 slots, PCIe 5.0 graphics slot, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870E AORUS ELITE WIFI7

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • 16+2+2 phase digital VRM delivers stable power for high-end CPUs
  • Four DDR5 slots up to 256 GB with EXPO and XMP 3.0 profiles
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN plus dual USB4 Type-C for modern connectivity

AM5 platform for Ryzen 9000 8000 7000

The GIGABYTE X870E AORUS ELITE WIFI7 is an ATX motherboard built around the AMD X870E chipset and the AM5 socket. It accepts Ryzen 9000, Ryzen 8000 and Ryzen 7000 series processors. Four 288-pin DDR5 slots support up to 256 GB of memory in dual-channel mode with AMD EXPO and Intel XMP 3.0 profiles. The board targets enthusiasts who need high-speed storage and networking in a standard ATX layout.

PCIe 5.0 graphics slot plus four M.2 and dual USB4

A single PCIe 5.0 x16 slot connects directly to the CPU and is reinforced for heavy graphics cards; it shares bandwidth with two of the CPU-linked M.2 connectors. The chipset adds a PCIe 4.0 x4 slot and a fourth M.2 socket. Four SATA 6 Gb/s ports remain available. Dual USB4 Type-C ports with DisplayPort Alt Mode and an HDMI output handle external displays and high-speed peripherals. Wi-Fi 7 and 2.5 GbE LAN provide wireless and wired networking. EZ-Latch mechanisms on the PCIe and M.2 slots simplify installation.

16+2+2 phase VRM with thermal armour for sustained

The digital twin 16+2+2 phase power delivery feeds the CPU through a VRM thermal armour array and dedicated M.2 heatsinks. This cooling mass keeps voltage regulation stable during extended multi-core workloads rather than only brief boosts. Realtek ALC1220 7.1-channel audio with audiophile-grade capacitors maintains signal quality while the system runs hot. A Sensor Panel Link header allows an internal display to report temperatures and frequencies without extra cabling.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • 16+2+2 phase digital VRM delivers stable power for high-end CPUs
  • Four DDR5 slots up to 256 GB with EXPO and XMP 3.0 profiles
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN plus dual USB4 Type-C for modern connectivity

Specifications

BrandGIGABYTE
ModelX870E AORUS ELITE WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen
SATA RAID0/1/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

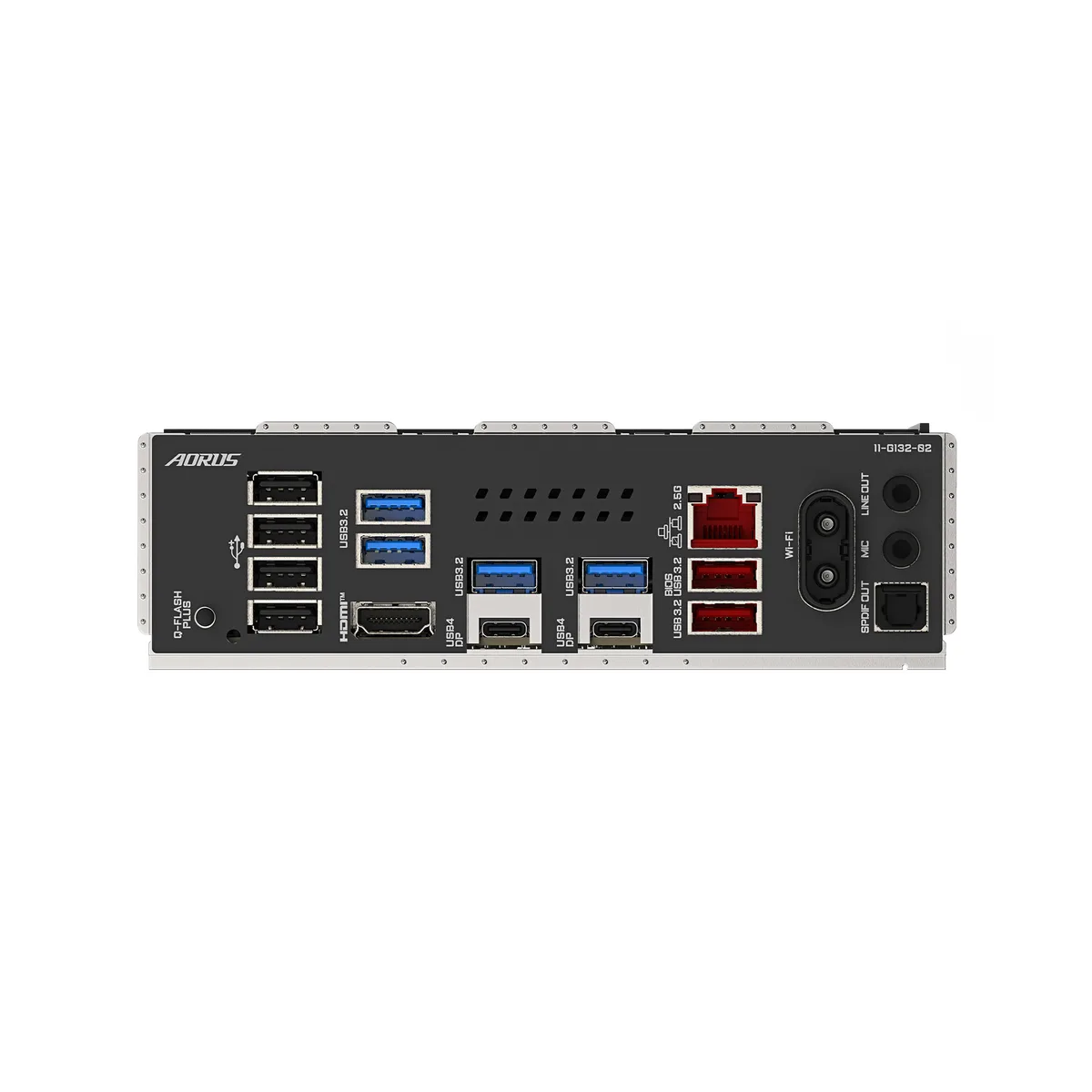

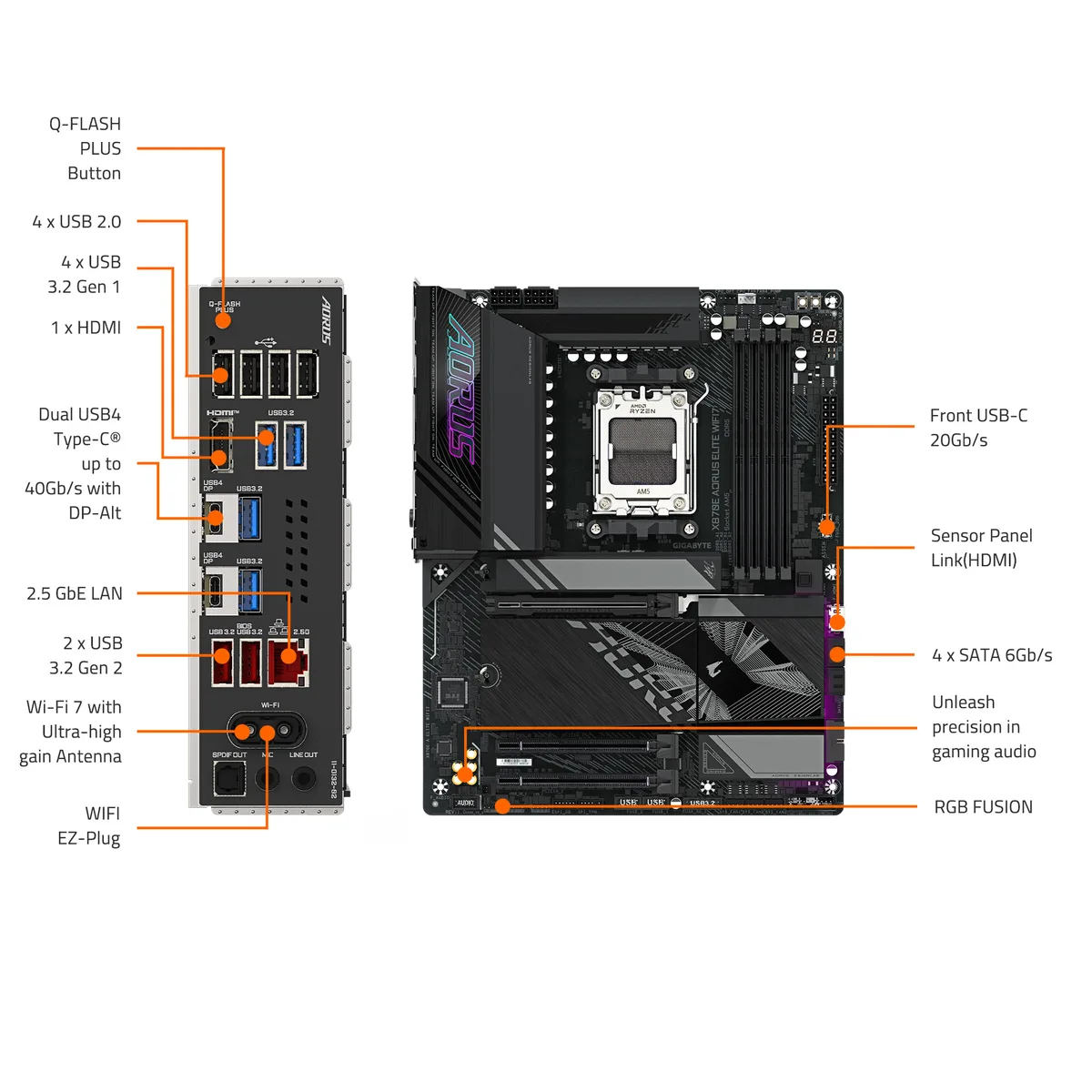

Back I/O Ports1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x SMA antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Shipping weight2.31 kg
Package size340 × 273 × 81 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 16+2+2 VRM design throttle under sustained all-core loads on a Ryzen 9000 processor?

The 16+2+2 digital VRM is paired with VRM Thermal Armor Advanced heatsinks to dissipate heat during extended heavy workloads.

How loud or hot does the board get when the 2.5GbE LAN and Wi-Fi 7 run continuously?

The VRM and M.2 Thermal Guard heatsinks are passive, so they add no fan noise while handling heat from sustained network throughput.

Which DDR5 memory kits are required to reach the listed 8000 MT/s speeds?

AMD EXPO-certified DDR5 modules rated for 8000(OC) MT/s are needed; the board supports speeds from 4800 up to 8000(OC) MT/s across four slots.
