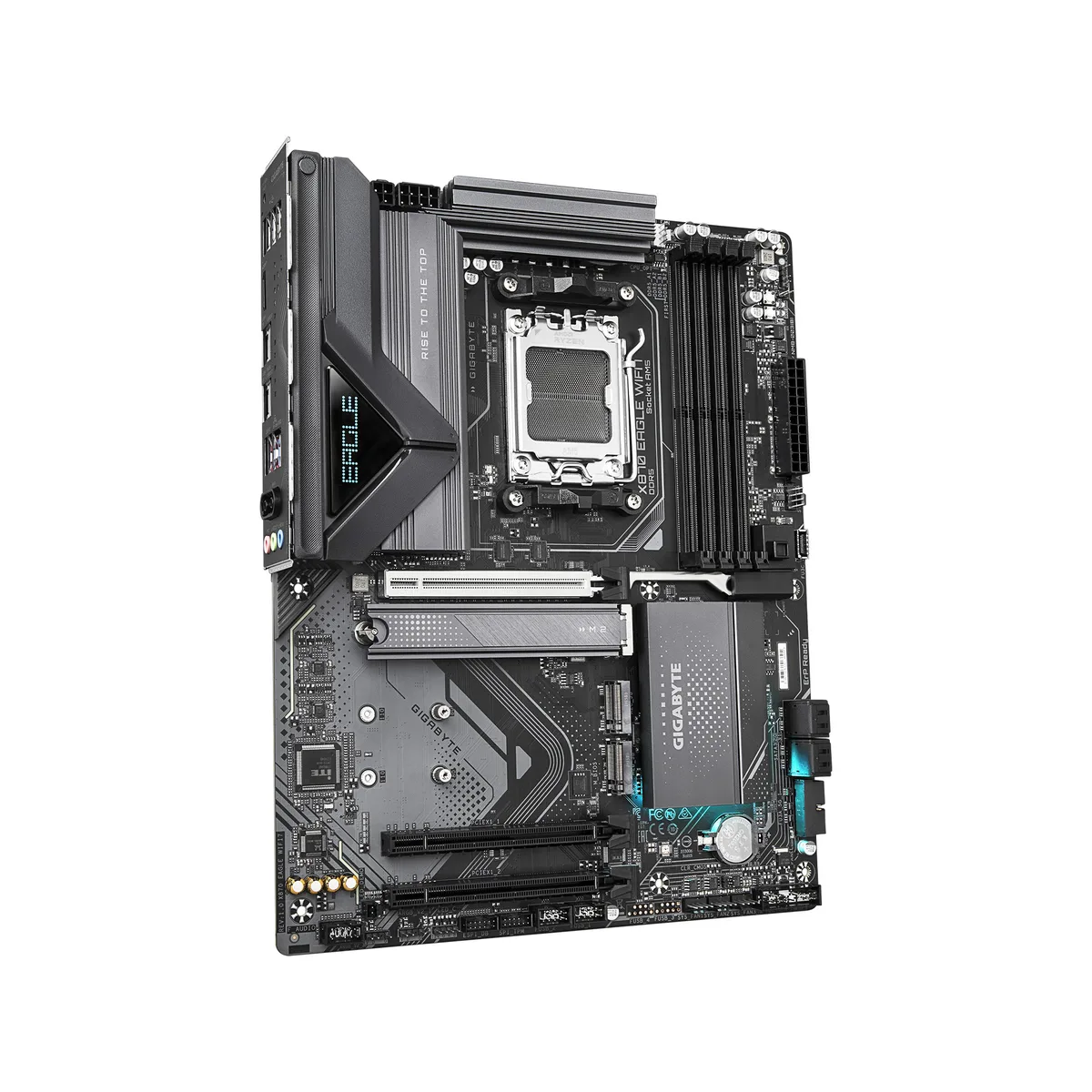

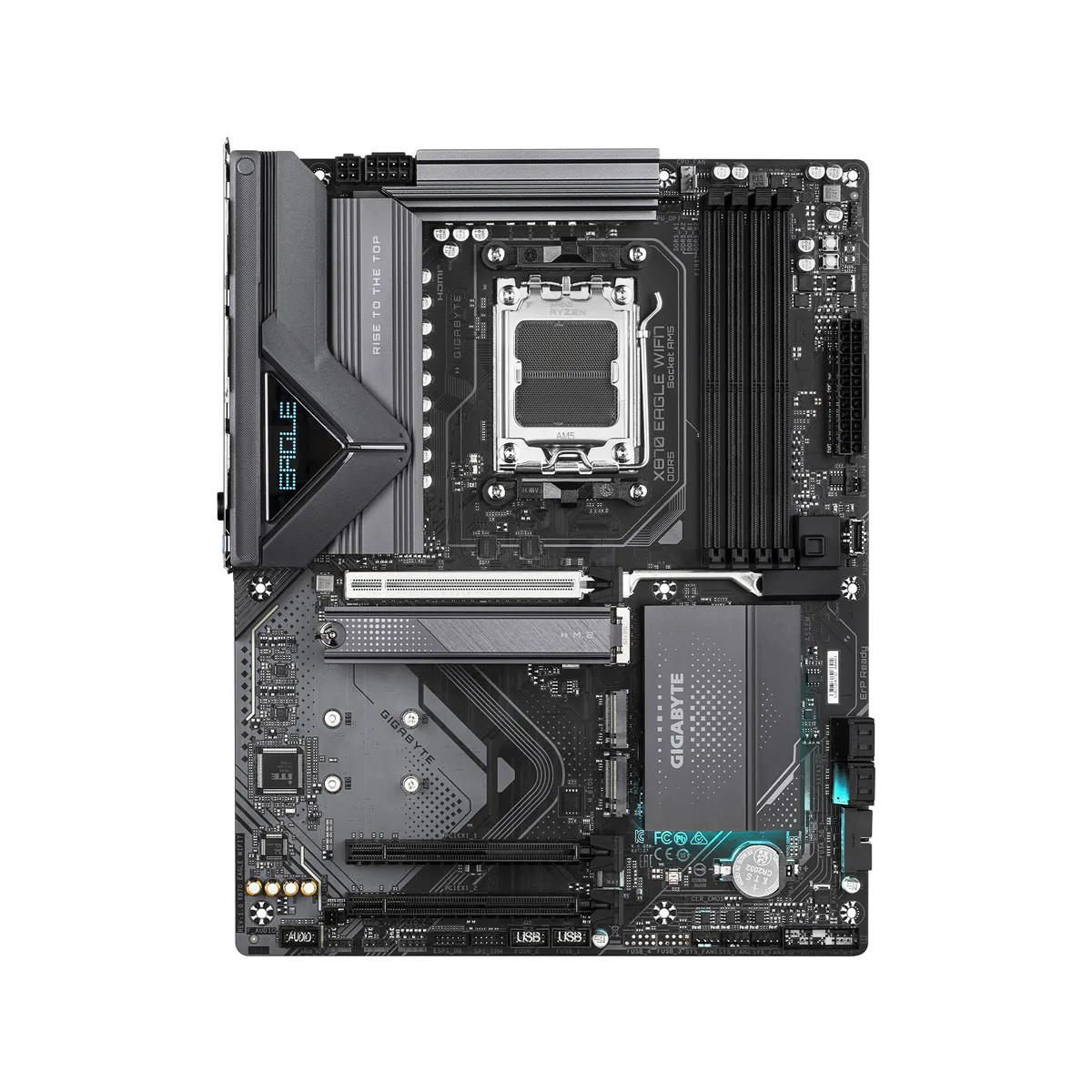

ATX motherboard in silver and black with large VRM heatsinks, three M.2 shields, and rear I/O cover

GIGABYTE

GIGABYTE X870 EAGLE WIFI7 AMD motherboard

SKU CH-PXAZ-2EZH1 MPN X870 EAGLE WIFI7

ATX board for AMD Ryzen 7000, 8000 and 9000 CPUs with DDR5 up to 8000 MT/s, PCIe 5.0 graphics and M.2, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870 EAGLE WIFI7

Struck-through versions exist but are not stocked here.

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Four DDR5 DIMM slots with EXPO profiles up to 8000 MT/s overclocked speeds
  • 14+2+2 phase digital VRM with advanced thermal armour for stable power delivery
  • Three M.2 slots including one PCIe 5.0 x4 plus EZ-Latch screwless installation
  • Wi-Fi 7, 2.5GbE LAN and dual USB4 Type-C ports with DisplayPort alt mode

AM5 socket with X870 chipset

The GIGABYTE X870 EAGLE WIFI7 is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It uses the X870 chipset and provides four DDR5 DIMM slots supporting up to 256 GB of memory. A 14+2+2 phase digital VRM delivers stable power for multi-core workloads.

Suits builders needing PCIe 5.0 storage and USB4

This board fits users who want one PCIe 5.0 x4 M.2 slot from the CPU plus two additional PCIe 4.0 M.2 slots, dual USB4 Type-C ports with DisplayPort alt-mode, Wi-Fi 7 and 2.5 GbE LAN. Builders requiring more than three M.2 drives or 10 GbE networking should consider other models.

VRM and M.2 heatsinks handle sustained throughput

Large VRM thermal armour and dedicated M.2 thermal guards keep temperatures in check during extended PCIe 5.0 SSD transfers and heavy CPU loads. The 14+2+2 power design maintains consistent voltage without throttling, so storage and compute performance remain steady over long sessions.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • Four DDR5 DIMM slots with EXPO profiles up to 8000 MT/s overclocked speeds
  • 14+2+2 phase digital VRM with advanced thermal armour for stable power delivery
  • Three M.2 slots including one PCIe 5.0 x4 plus EZ-Latch screwless installation
  • Wi-Fi 7, 2.5GbE LAN and dual USB4 Type-C ports with DisplayPort alt mode

Specifications

BrandGIGABYTE
ModelX870 EAGLE WIFI7
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_
SATA RAID0/1/5/10
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

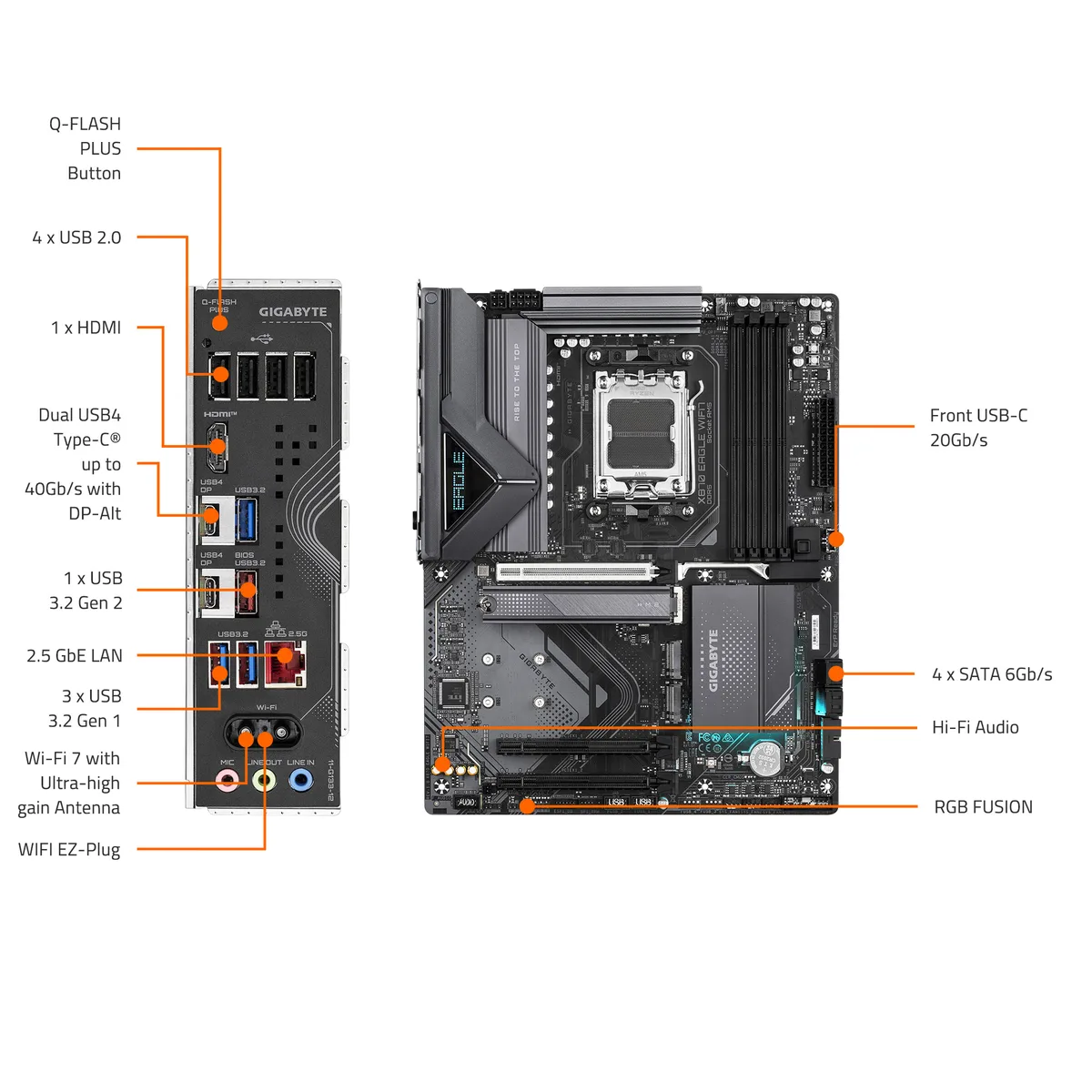

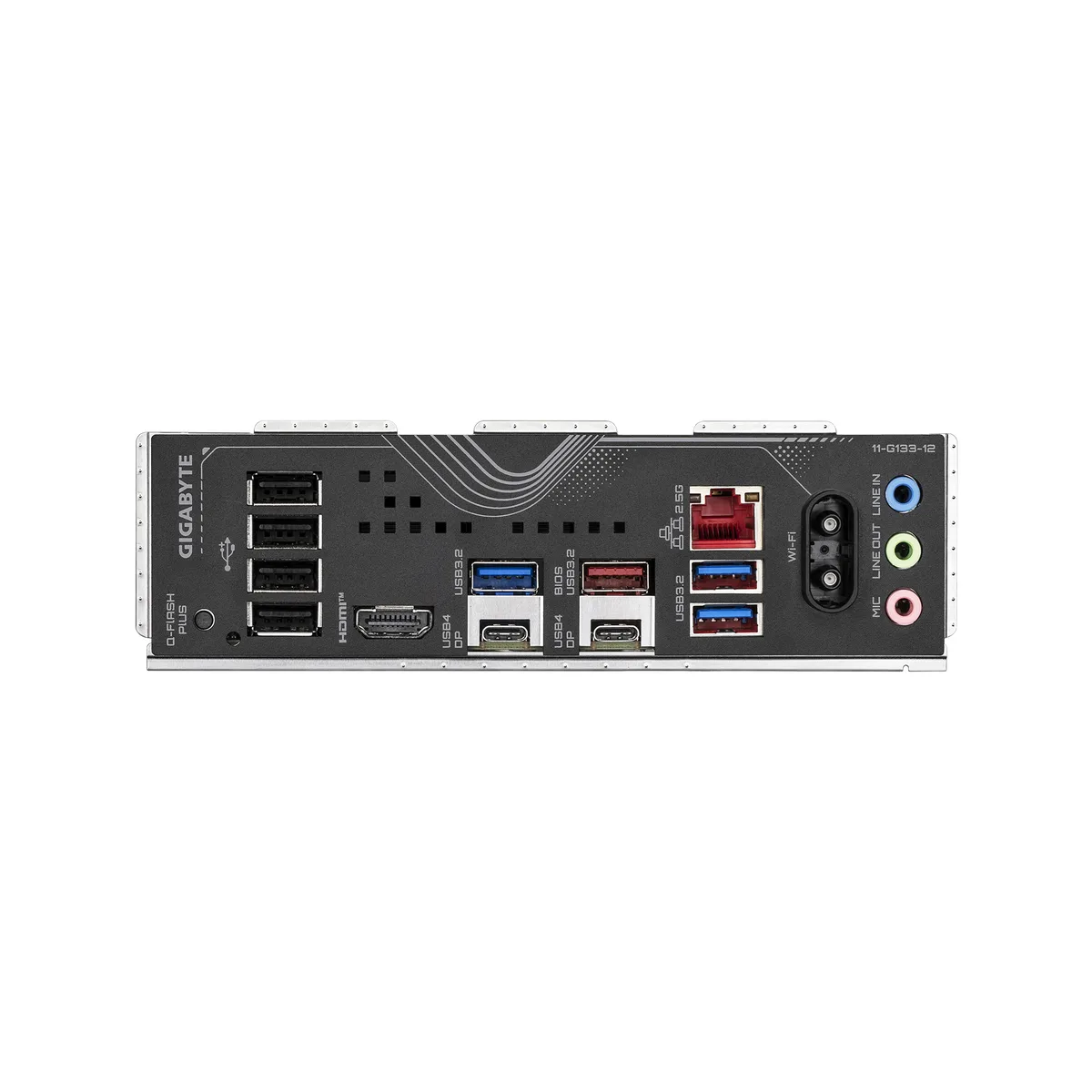

Back I/O Ports1 x Q-Flash Plus button
2 x antenna connectors (2T2R)
1 x HDMI port
2 x USB4 USB Type-C ports (DisplayPort)
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Shipping weight1.81 kg
Package size337 × 271 × 80 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What CPU socket must my processor use to fit the X870 EAGLE WIFI7?

The board uses the AM5 socket, so you need a Ryzen 7000, 8000 or 9000 series processor that fits AM5.

Will a PCIe 4.0 graphics card run at full speed in the primary x16 slot?

Yes, the primary PCIEX16 slot is wired for PCIe 5.0 x16 from the CPU and is backward compatible with PCIe 4.0 cards at their native speed.

How can I confirm the Wi-Fi 7 antenna is connected correctly after assembly?

Attach the supplied antenna to the rear Wi-Fi EZ-Plug connector; the BIOS EZ-Debug zone will show a Wi-Fi status indicator once the link is active.
