Small green circuit board twenty-two by forty-two millimetres with black chips and gold edge connector

KingSpec

KingSpec NT-1TB-2242 1TB M.2 SATA 2242 internal SSD

SKU CH-XYH5-KFTD1 MPN NT-1TB-2242

Compact M.2 2242 SATA SSD delivering 1 TB capacity with sequential reads up to 570 MB/s and writes up to 540 MB/s for faster boot and app loading

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity1TB
  • Memory Components3D NAND
  • InterfaceSATA NGFF

Model NT-1TB-2242

  • Faster boot and app loads with sequential read up to 570 MBps
  • Smoother multitasking from 4KB random read up to 24,300 IOPS
  • Lower power draw and heat at 0.58 W idle and 1.5 W active

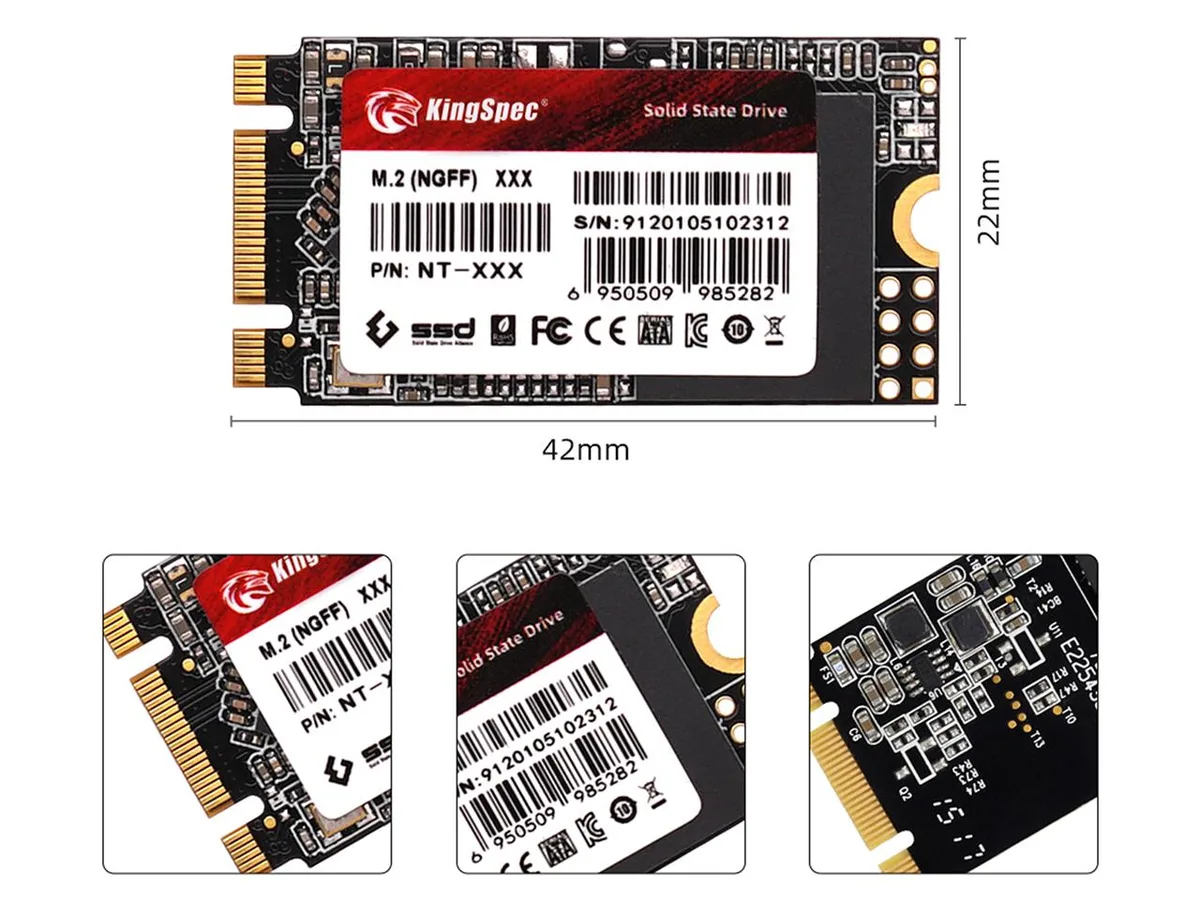

  • Compact 22 x 42 mm M.2 2242 fits slim laptops and desktops
  • Long-term reliability backed by 1,000,000-hour MTBF and error correction

KingSpec NT 2242 Series 1TB M.2 SATA SSD

The KingSpec NT-1TB-2242 is a 1TB internal solid-state drive built in the M.2 2242 form factor. It connects through a SATA interface and uses 3D NAND flash memory. The drive is designed for consumer desktops, laptops and ultrabooks that accept a 22 mm by 42 mm SATA module.

Suits SATA M.2 2242 slots; not for PCIe-only sockets

This drive fits systems with an M.2 slot wired for SATA signalling, such as certain Lenovo ThinkPad, HP ProBook and ASUS Vivobook models. It delivers sequential reads up to 570 MBps and writes up to 540 MBps with random performance of 24,300 read IOPS and 6,400 write IOPS. Devices limited to PCIe signalling cannot use this module.

SATA interface on M.2 2242 form factor

The decisive specification is the SATA interface combined with the 2242 dimensions. Buyers must verify their motherboard or laptop provides a SATA-wired M.2 slot of this length; a PCIe-only slot will not work. Power draw is 0.58 W idle and 1.5 W active, with an operating range of 0 °C to 70 °C.

Highlights

  • Faster boot and app loads with sequential read up to 570 MBps
  • Smoother multitasking from 4KB random read up to 24,300 IOPS
  • Lower power draw and heat at 0.58 W idle and 1.5 W active
  • Compact 22 x 42 mm M.2 2242 fits slim laptops and desktops
  • Long-term reliability backed by 1,000,000-hour MTBF and error correction

Specifications

BrandKingSpec
SeriesNT 2242 Series
ModelNT-1TB-2242
Part NumberNT-1TB-2242
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity1TB
Memory Components3D NAND
InterfaceSATA NGFF
Max Sequential ReadUp to 570 MBps
Max Sequential WriteUp to 540 MBps
4KB Random ReadUp to 24,300 IOPS
4KB Random WriteUp to 6,400 IOPS
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)0.58W
Power Consumption (Active)1.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5%-95% RH non-condensing
Height42.0mm
Width22.0mm
Depth3.50mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and do I need to buy a screw or adapter separately?

The drive is supplied as a bare M.2 2242 module. A mounting screw and any adapter bracket are not included and must be sourced separately.

How do I choose between the listed capacities for this NT 2242 series?

This model is offered in a single 1TB capacity, so no capacity selection is required.

What does the 570 MBps sequential read figure mean once the drive is installed in my laptop?

It represents the peak SATA 6 Gbps throughput for large file transfers; real-world speeds will be lower depending on the system and workload.
