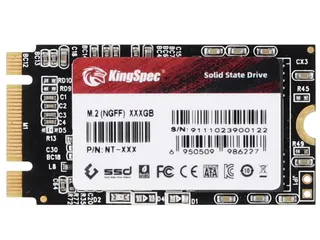

Small green circuit board 22 by 42 millimetres with black chips and gold edge connector

KingSpec

KingSpec NT-2TB-2242 internal SSD

SKU CH-JYBB-V6XEB MPN NT-2TB-2242

2TB M.2 2242 SATA SSD with 3D NAND delivering 550 MB/s read and 500 MB/s write for faster boot and application load times

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2242
  • Capacity2TB
  • Memory Components3D NAND
  • InterfaceSATA NGFF

Model NT-2TB-2242

  • 2TB capacity fits large libraries in a compact 2242 form factor
  • Sequential read up to 550 MBps for fast boot and load times
  • Sequential write up to 500 MBps for quick file saves
  • Low 0.58W idle and 1.5W active draw extends laptop battery life
  • 1,000,000-hour MTBF with error correction protects data integrity

Compact 2TB M.2 2242 SSD

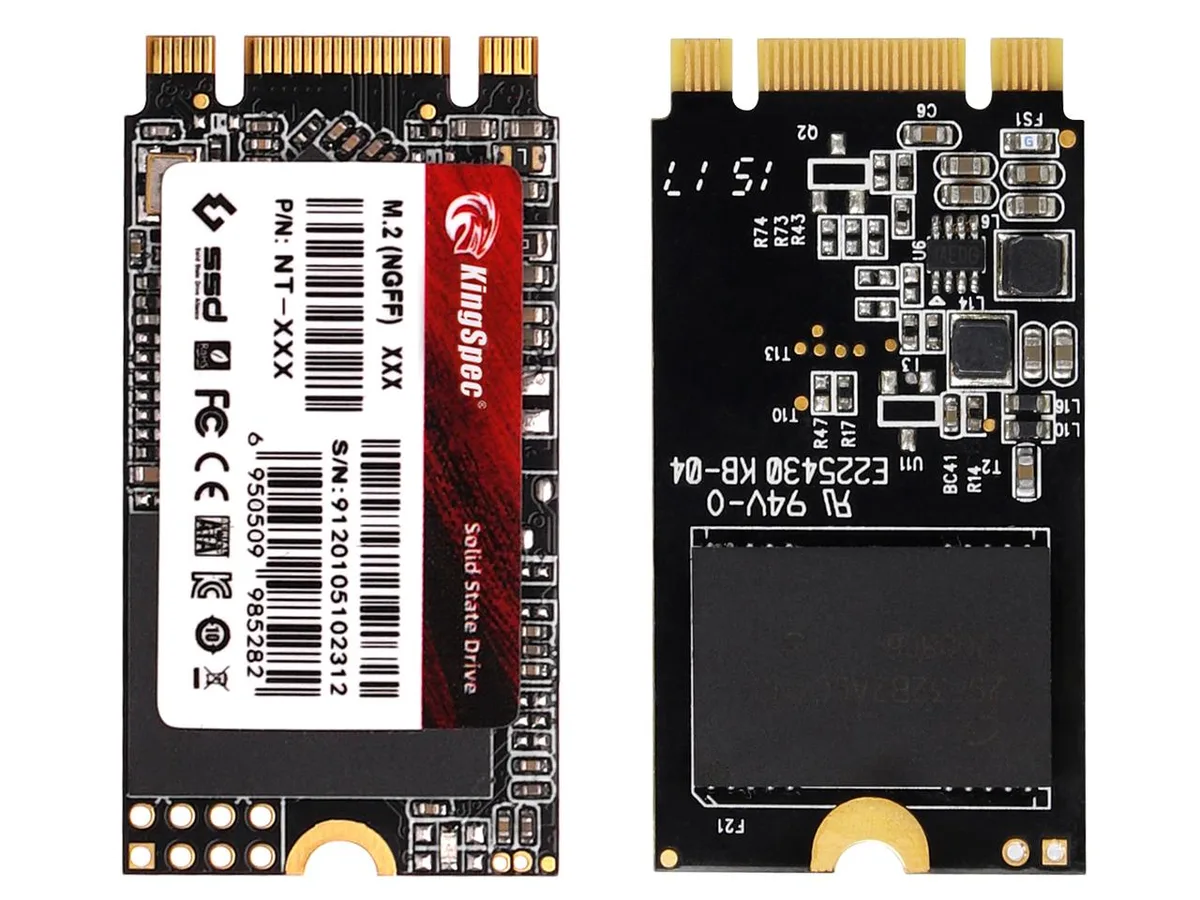

The KingSpec NT-2TB-2242 is a 2TB internal solid-state drive built in the M.2 2242 form factor. It connects via a SATA interface and uses 3D NAND flash memory. This drive suits desktops, laptops and ultrabooks that require the shorter 2242 module length for storage upgrades.

Thermals noise and power draw

The drive draws 0.58W at idle and 1.5W during active operation. It operates between 0°C and 70°C without a heatsink and produces no audible noise. Low heat generation and fast heat dissipation keep temperatures stable during typical workloads.

SATA sequential speed ceiling

Sequential reads reach up to 550 MBps and writes up to 500 MBps over the SATA 6Gbps link. These figures represent the practical throughput limit of the interface and determine whether the drive meets the performance needs of a SATA-based system.

Highlights

  • 2TB capacity fits large libraries in a compact 2242 form factor
  • Sequential read up to 550 MBps for fast boot and load times
  • Sequential write up to 500 MBps for quick file saves
  • Low 0.58W idle and 1.5W active draw extends laptop battery life
  • 1,000,000-hour MTBF with error correction protects data integrity

Specifications

BrandKingSpec
SeriesNT 2242 Series
ModelNT-2TB-2242
Part NumberNT-2TB-2242
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2242
Capacity2TB
Memory Components3D NAND
InterfaceSATA NGFF
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 500 MBps
4KB Random ReadUp to 24,300 IOPS
4KB Random WriteUp to 6,400 IOPS
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)0.58W
Power Consumption (Active)1.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5%-95% RH non-condensing
Height42mm
Width22mm
Depth3.5mm
Weight30g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

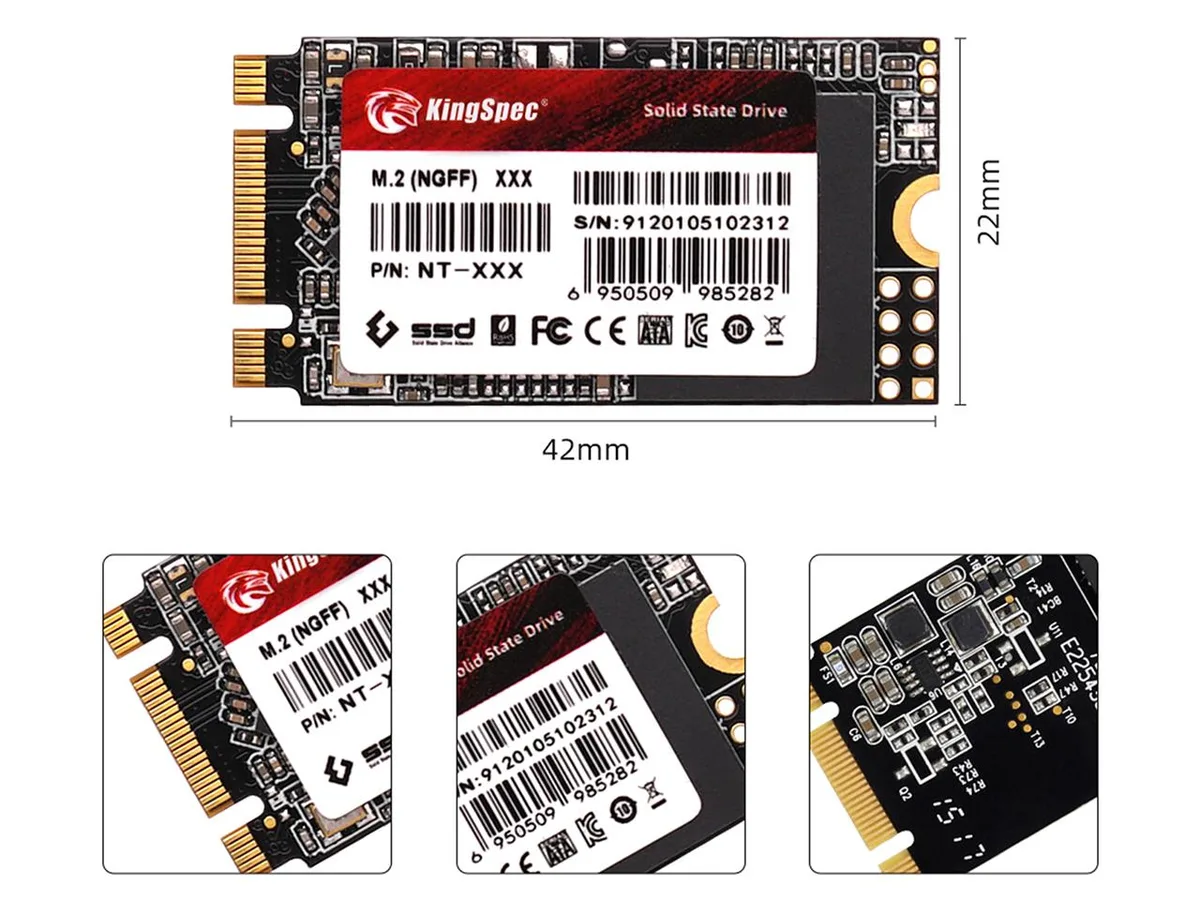

Will this 22 mm by 42 mm M.2 module fit my laptop slot?

The drive measures 22 mm wide by 42 mm long, so it fits any M.2 2242 slot that accepts SATA devices.

Does my motherboard need to support the SATA 6 Gbps protocol?

Yes, the drive uses the SATA III 6 Gbps interface, so the host must provide a SATA‑wired M.2 connector.

How much power will the SSD draw from my ultrabook battery?

Idle draw is 0.58 W and active draw is 1.5 W, keeping heat and battery impact low.
