Green circuit board M.2 2280 SATA SSD with black controller and NAND chips

KingSpec

KingSpec NT-4TB-2280 4TB M.2 2280 SATA internal SSD

SKU CH-T989-2J3SD MPN NT-4TB-2280

A 4 TB M.2 2280 SATA internal SSD with 3D NAND, up to 550 MBps read and 500 MBps write, and no heatsink

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity4TB
  • Memory Components3D NAND
  • InterfaceSATA III

Model NT-4TB-2280

  • Up to 550 MB/s sequential read for fast boot and app loads
  • Up to 500 MB/s sequential write for quick file saves and transfers
  • 4 TB capacity stores large media libraries and project files
  • 3D NAND technology delivers 1,000,000-hour MTBF for long-term reliability
  • M.2 2280 form factor fits laptops, ultrabooks and desktops with SATA B-key slots

Capacity and Form Factor

This KingSpec NT-4TB-2280 is a 4TB internal SSD built in the M.2 2280 form factor. It uses a SATA III interface with 3D NAND memory for consumer storage upgrades in desktops, laptops and ultrabooks.

Upgrade Path and Value

The drive replaces a smaller SATA M.2 module or a 2.5-inch SATA SSD when more capacity is needed without changing the interface. Sequential reads reach up to 550 MBps and writes up to 500 MBps, so the jump is worthwhile when the current SATA drive is full or too slow for daily workloads.

Compatibility Checklist

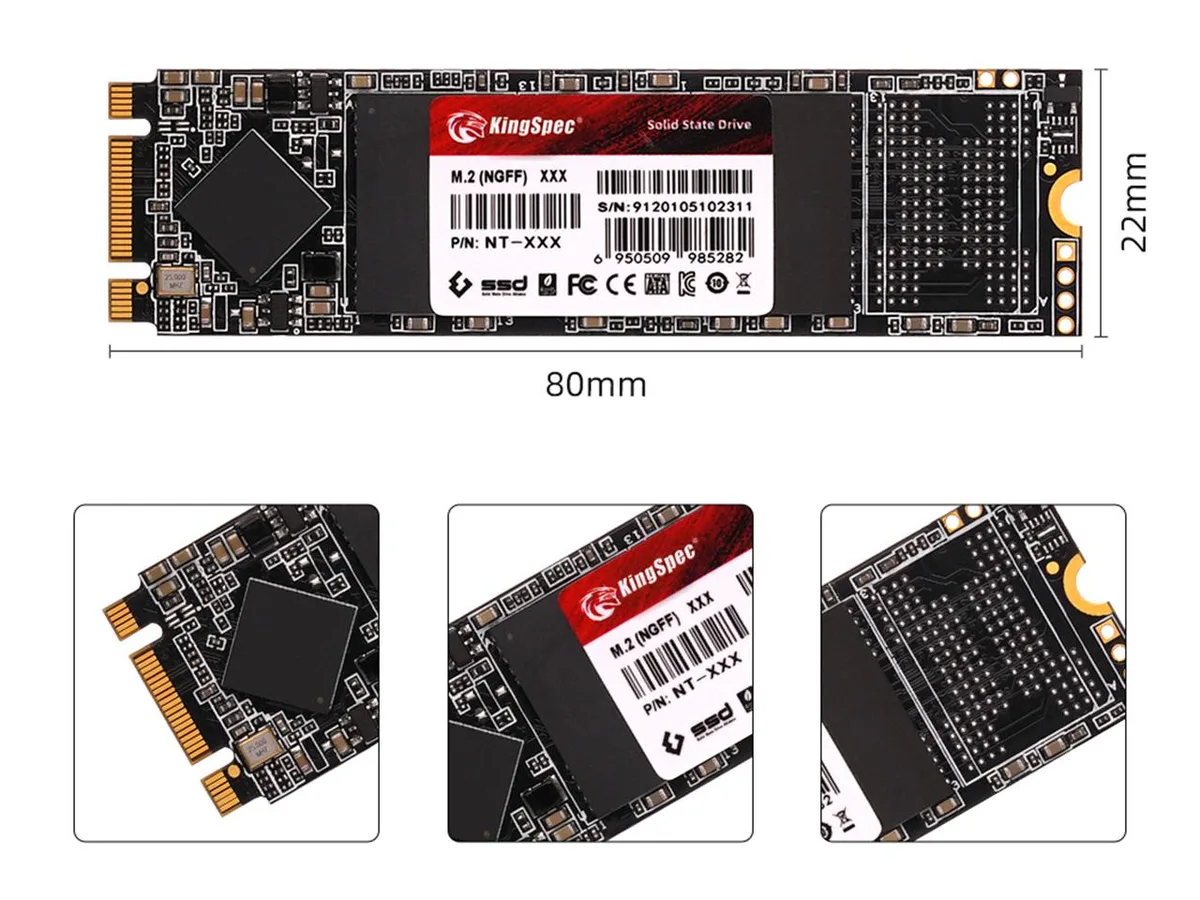

Verify that the motherboard or laptop provides an M.2 slot keyed for SATA (B key) and not for NVMe (M key). The module measures 22.00 mm wide, 80.00 mm long and 3.50 mm thick, and it operates from 0°C to 70°C.

Highlights

  • Up to 550 MB/s sequential read for fast boot and app loads
  • Up to 500 MB/s sequential write for quick file saves and transfers
  • 4 TB capacity stores large media libraries and project files
  • 3D NAND technology delivers 1,000,000-hour MTBF for long-term reliability
  • M.2 2280 form factor fits laptops, ultrabooks and desktops with SATA B-key slots

Specifications

BrandKingSpec
SeriesNT 2280 Series
ModelNT-4TB-2280
Part NumberNT-4TB-2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity4TB
Memory Components3D NAND
InterfaceSATA III
Max Sequential ReadUp to 550 MBps
Max Sequential WriteUp to 500 MBps
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Height80.00mm
Width22.00mm
Depth3.50mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 80.00 mm length and 22.00 mm width fit my motherboard M.2 slot?

The drive follows the M.2 2280 form factor, so any motherboard with an M.2 slot that accepts 80 mm long modules will accommodate it.

Which keying does the SATA III 6 Gbps interface require for correct installation?

The module uses a B-key edge connector; insert it into an M.2 slot wired for SATA, not an M-key NVMe slot, and secure it with the motherboard standoff screw.

Does the 3D NAND drive need any firmware updates or thermal pad replacement over its 1,000,000 hour MTBF life?

No user-serviceable parts are present; the included cooling sticker handles heat dissipation and the drive has no moving components that require periodic maintenance.
