Green rectangular M.2 2280 SSD with gold edge connector and black label

KingSpec

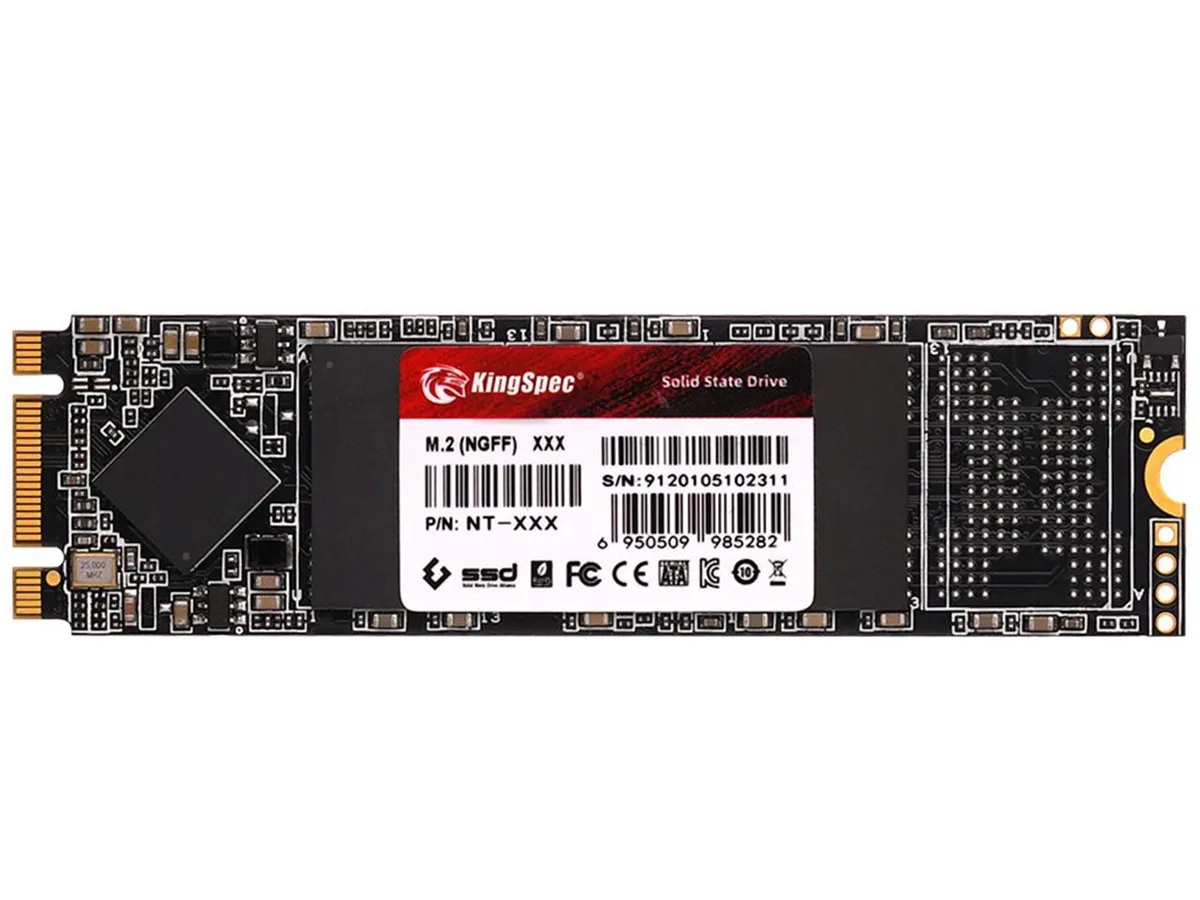

KingSpec NT-512-2280 512GB M.2 2280 SATA internal SSD

SKU CH-9DNR-EK90R MPN NT-512-2280

M.2 2280 SATA internal SSD with 512 GB capacity, 3D NAND, up to 560 MB/s read and 540 MB/s write, 58,800 random read IOPS, 62,500 random write IOPS, 1.5 W idle power and 1,000,000-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D NAND
  • InterfaceSATA III

Model NT-512-2280

  • Up to 560 MB/s sequential read speeds data loads fast
  • Up to 540 MB/s sequential write speeds large files save quickly
  • 58,800 random read IOPS system stays responsive under load
  • 62,500 random write IOPS multitasking runs smoothly
  • 1,000,000 hours MTBF long-term reliability for daily use

KingSpec NT 512GB M.2 SATA SSD

The KingSpec NT-512-2280 is a 512GB internal solid-state drive built in the M.2 2280 form factor with a SATA III 6Gb/s interface. It uses 3D NAND flash and a controller rated for up to 560 MB/s sequential read and 540 MB/s sequential write speeds. Random performance reaches 58,800 IOPS read and 62,500 IOPS write.

Suits SATA M.2 slots; not for PCIe-only boards

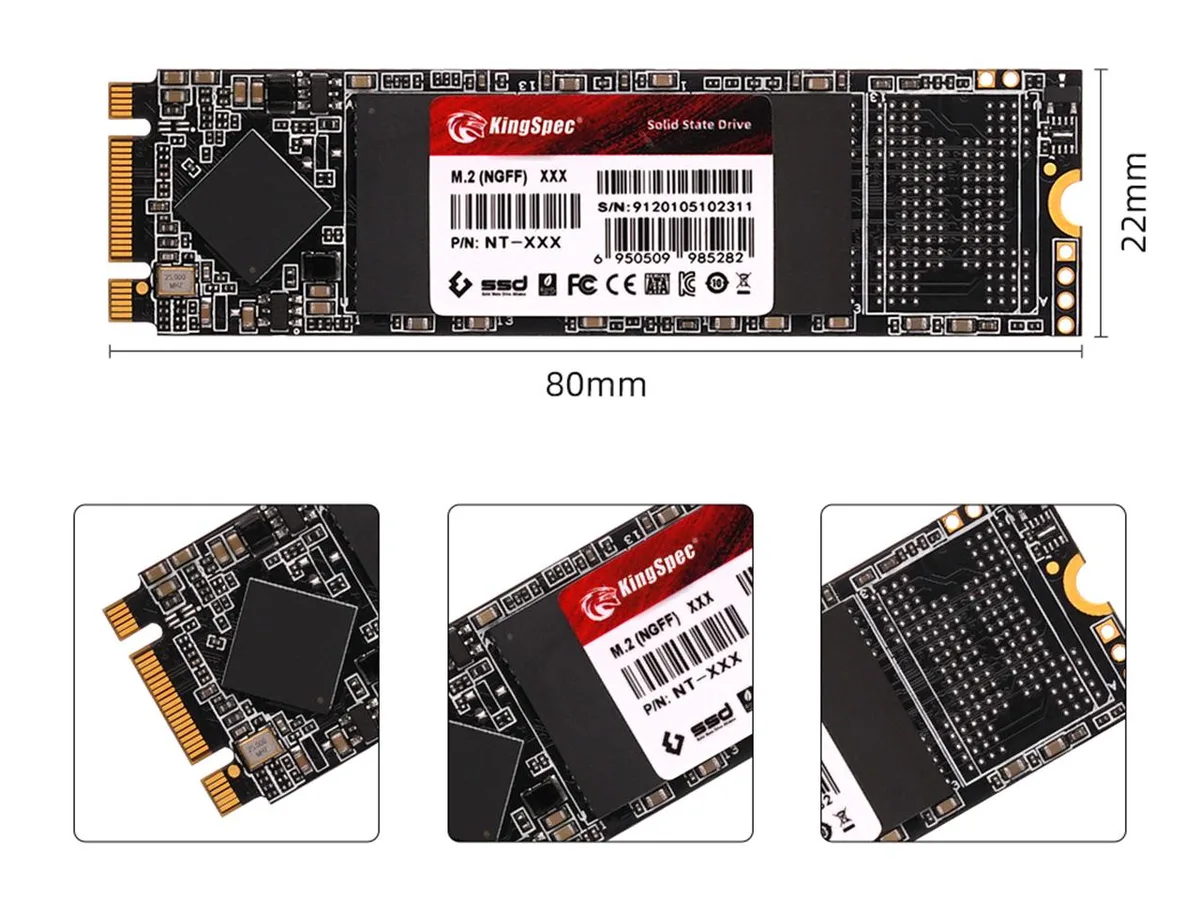

This drive fits desktops, laptops and ultrabooks that provide an M.2 slot wired for SATA signalling. The 3.50mm height and 22mm by 80mm dimensions match the standard 2280 footprint. Systems that require PCIe signalling on the M.2 connector cannot use this drive. Buyers should verify their motherboard or laptop manual lists SATA support for the M.2 socket before purchasing.

SATA III 6Gb/s interface decides compatibility

The single specification that determines whether this part works is the SATA III 6Gb/s interface protocol. The M.2 2280 connector shape is shared with faster PCIe drives, but this unit communicates only over SATA. If the host slot is keyed or configured exclusively for PCIe, the SSD will not be detected.

Highlights

  • Up to 560 MB/s sequential read speeds data loads fast
  • Up to 540 MB/s sequential write speeds large files save quickly
  • 58,800 random read IOPS system stays responsive under load
  • 62,500 random write IOPS multitasking runs smoothly
  • 1,000,000 hours MTBF long-term reliability for daily use

Specifications

BrandKingSpec
SeriesNT 2280 Series
ModelNT-512-2280
Part NumberNT-512-2280
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D NAND
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 540 MBps
4KB Random ReadUp to 58,800 IOPS
4KB Random WriteUp to 62,500 IOPS
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)1.5W
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Height3.50mm
Width22.00mm
Depth80.00mm
Weight50g

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 560 MBps sequential read mean once the drive is installed in a laptop?

The 560 MBps figure is the peak SATA III throughput; in a laptop the drive will deliver near that speed for large file transfers and boot sequences, limited by the SATA bus ceiling.

How does the SATA III 6Gb/s interface cap real-world performance?

The SATA III link tops out at 6 Gb/s, so sequential reads and writes cannot exceed roughly 560 MBps and 540 MBps respectively, regardless of the 3D NAND or controller.

What physical space and mounting does the 2280 form factor need?

The drive measures 22 mm wide by 80 mm long and 3.50 mm high, fitting any standard M.2 2280 slot secured with a single screw.
