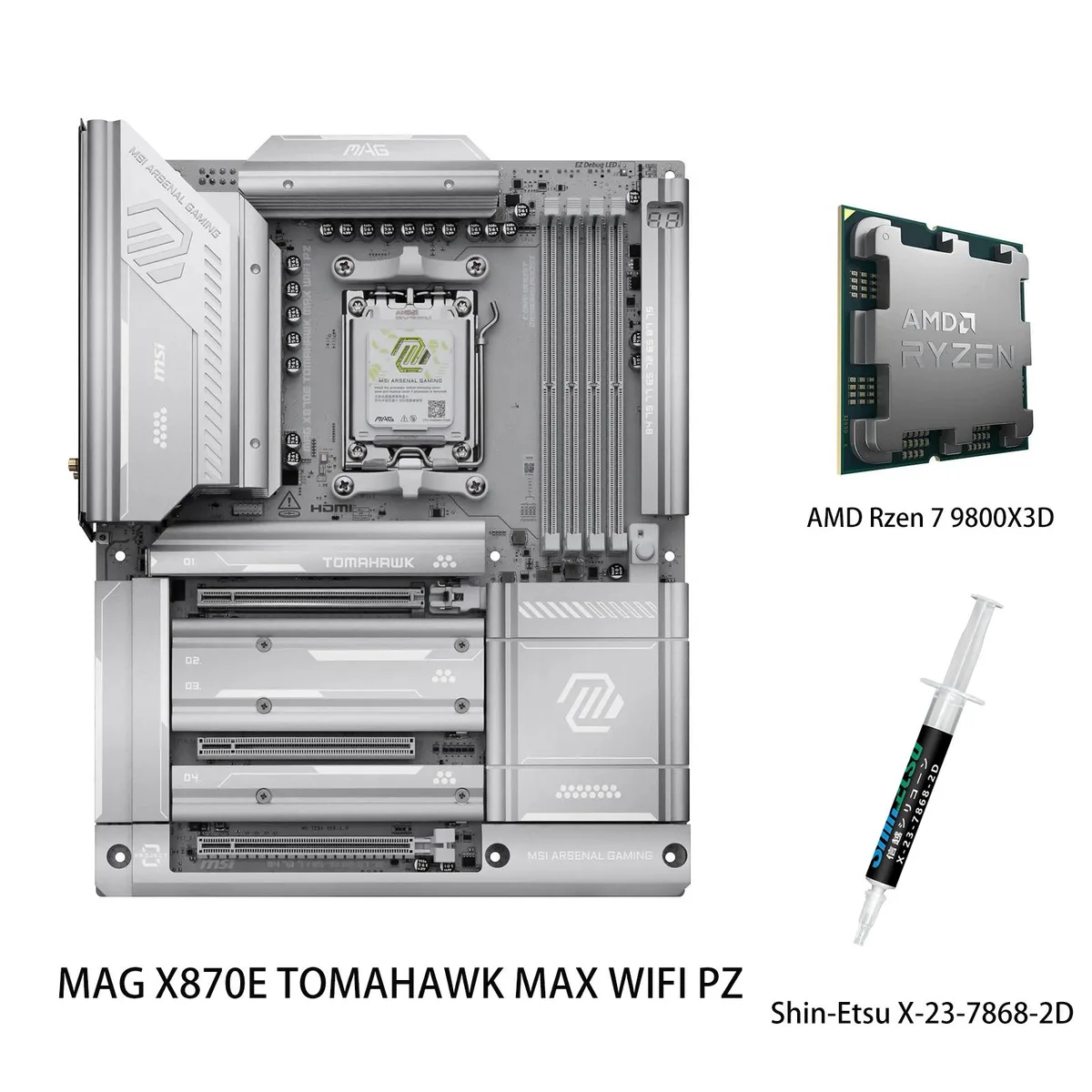

ATX motherboard and Ryzen CPU combo boxed together

MSI

MSI MAG X870E TOMAHAWK MAX WIFI PZ AMD Motherboard & Ryzen 7 9800X3D Combo

SKU CH-V055-HVYY1

AM5 motherboard and Ryzen 7 9800X3D combo with back-connect design, DDR5 memory up to 256 GB, PCIe 5.0 slots, four M.2 connectors, 5 Gbps LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedNon-ECC

CPU +Ryzen 7 9800X3D

  • Cleaner front view with back-connect design
  • 64MB BIOS enables future CPU upgrades
  • OC Engine unlocks maximum CPU power
  • 40Gbps USB 4 port for lightning data transfer
  • Wi-Fi 7 with 320MHz channel for faster wireless

AM5 Combo for Gaming Builds

The bundle pairs an MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard with an AMD Ryzen 7 9800X3D processor on the AM5 platform. It targets enthusiasts who want a high-performance foundation for gaming and productivity without selecting parts separately. The X870E chipset unlocks the full feature set of the Ryzen 9000 series CPU.

Back-Connect Layout and VRM Cooling

A back-connect design moves primary connectors to the rear for a cleaner front view and easier cable routing. The board includes a 64MB BIOS ROM for broader CPU compatibility and an OC Engine clock generator to support sustained processor boost behaviour. VRM and M.2 heatsinks manage thermal load during extended workloads.

Quad M.2 and USB 40G Ready

Four M.2 slots are provided: two from the CPU supporting PCIe 5.0 x4 for 22110 and 2280 drives, plus two from the chipset. A front-panel USB 4 port delivers 40Gbps bandwidth. Connectivity includes 5G LAN and Wi-Fi 7 with a 320MHz channel, while 7.1-channel audio uses the Realtek ALC4080 codec.

Highlights

  • Cleaner front view with back-connect design
  • 64MB BIOS enables future CPU upgrades
  • OC Engine unlocks maximum CPU power
  • 40Gbps USB 4 port for lightning data transfer
  • Wi-Fi 7 with 320MHz channel for faster wireless

Specifications

BrandMSI
SeriesMAG X870E TOMAHAWK MAX WIFI PZ+7 9800X3D
ModelMAG X870E TOMAHAWK MAX WIFI PZ+7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports CUDIMM, Clock Driver bypass mode only
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_1 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot (From CPU)
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up
SATA RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Onboard USB4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Other Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
2 x Direct OC Jumper (JBCLK)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this board fit a standard ATX case and does the back-connect layout change front-panel wiring?

The board uses the ATX form factor so it mounts in any standard ATX case. The back-connect design moves motherboard headers to the rear edge, leaving the front panel free of cables and making front-panel wiring simpler.

Which DDR5 speeds and capacities are officially supported with the Ryzen 7 9800X3D?

Four 288-pin slots accept up to 256 GB of DDR5 in dual-channel mode. CUDIMM modules are supported in clock-driver bypass mode only; non-ECC unbuffered DIMMs are required.

Can I run two graphics cards or add multiple M.2 drives without sharing bandwidth?

The CPU provides one PCIe 5.0 x16 slot and two PCIe 5.0 x4 M.2 sockets. The chipset adds one PCIe 4.0 x4 M.2 socket, one PCIe 4.0 x4 slot and one PCIe 3.0 x1 slot, so a second GPU would run at x4 from the chipset.
