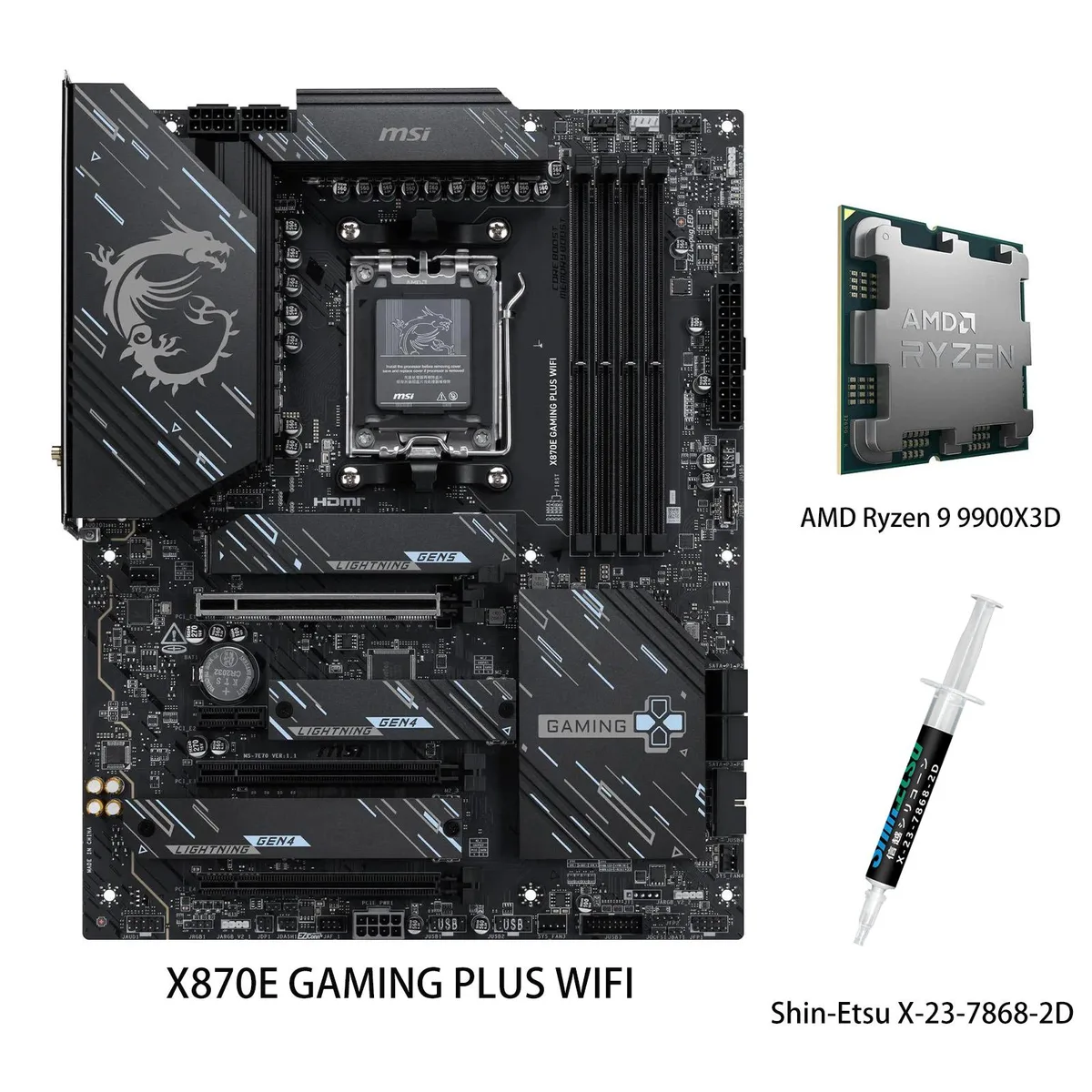

ATX motherboard in dark finish with silver heatsinks and installed Ryzen 9 9900X3D CPU

MSI

MSI X870E GAMING PLUS WIFI AMD motherboard & Ryzen 9 9900X3D CPU combo

SKU CH-WPHB-SN7EJ

AM5 motherboard and 12-core Ryzen 9 9900X3D CPU with 128MB L3 cache, DDR5 up to 8200 MT/s, PCIe 5.0, Wi-Fi 7 and USB 40G

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

CPU +Ryzen 9 9900X3D

  • Ready for next-gen CPUs with AM5 socket support for Ryzen 9000, 8000 and 7000 series
  • Extreme memory headroom with DDR5 up to 8200 MT/s overclocked on four slots
  • Maximum graphics throughput via PCIe 5.0 x16 slot delivering 128GB/s bandwidth
  • Triple M.2 storage with one PCIe 5.0 and two PCIe 4.0 connectors plus M.2 Shield Frozr
  • Fast wireless and wired networking through Wi-Fi 7 320MHz channel at 5.8Gbps and 5G LAN

Combo Contents

This bundle pairs an MSI X870E GAMING PLUS WIFI motherboard with an AMD Ryzen 9 9900X3D processor. The board uses the AMD X870E chipset and the AM5 socket. The CPU is a 120W Granite Ridge part with 128MB L3 cache and 12MB L2 cache. Integrated AMD Radeon graphics are included on the processor.

Best Fit and Alternatives

Builders who want a ready-to-run AM5 platform with PCIe 5.0 graphics support, triple M.2 slots and Wi-Fi 7 will find this combo convenient. Users needing ECC memory, a smaller form factor or a lower-power CPU should look at other options. The board supports Ryzen 9000, 8000 and 7000 series processors for future upgrades.

Pre-Order Checklist

Verify that your chassis accepts an ATX motherboard and that your power supply can deliver 120W for the CPU plus board and graphics demands. You will need DDR5 UDIMM modules; the board runs up to 256GB across four slots with dual-channel architecture. For M.2 storage, the top slot supports PCIe 5.0 x4 for 2280 or 2260 drives while the other two slots use PCIe 4.0 x4 from the chipset.

Highlights

  • Ready for next-gen CPUs with AM5 socket support for Ryzen 9000, 8000 and 7000 series
  • Extreme memory headroom with DDR5 up to 8200 MT/s overclocked on four slots
  • Maximum graphics throughput via PCIe 5.0 x16 slot delivering 128GB/s bandwidth
  • Triple M.2 storage with one PCIe 5.0 and two PCIe 4.0 connectors plus M.2 Shield Frozr
  • Fast wireless and wired networking through Wi-Fi 7 320MHz channel at 5.8Gbps and 5G LAN

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI+R9 9900X3D
Part NumberX870E GAMING PLUS WIFI+R9 9900X3D
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibili
PCI Express 5.0 x16PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
PCI SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
LAN ChipsetRealtek® 8126VB 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
HDMI1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
USB 3.12x USB 10Gbps Type A
USB 3.02x USB 5Gbps Type A
USB 1.1/2.04 x USB 2.0
USB Type-C1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* (1x USB 40Gbps Type C)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x USB 20Gbps Type C (Rear)
Audio Ports3 Ports
Onboard USB6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesLightning USB 40G
Lightning Gen 5
EZ M.2 Shield Frozr II
Triple M.2 Connectors
EZ PCIe Clip II
Extended Heatsink Design
Latest DDR5 Memory
5G Network Solution
Audio Boost
4x EZ Debug LED
1x EZ Memory Detection LED

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory speed and capacity do I need already to use the Ryzen 9 9900X3D with this board?

The board accepts four DDR5 UDIMM slots up to 256 GB total, running at 5600–4800 MT/s JEDEC or up to 8200 MT/s when overclocked with Ryzen 9000 series CPUs.

Will my PCIe 4.0 graphics card and PCIe 3.0 add-in cards work in the PCI_E2, PCI_E3 and PCI_E4 slots?

Yes, PCI_E3 runs at PCIe 4.0 x4 from the chipset, while PCI_E2 and PCI_E4 operate at PCIe 3.0 x1, so older cards will function at their native speeds.

How can I confirm the USB 40G port and Wi-Fi 7 are active after building the system?

In Device Manager the USB 40G port appears as a 40 Gbps USB4 controller, and the wireless adapter shows Wi-Fi 7 with a 320 MHz channel capable of 5.8 Gbps link speed.
