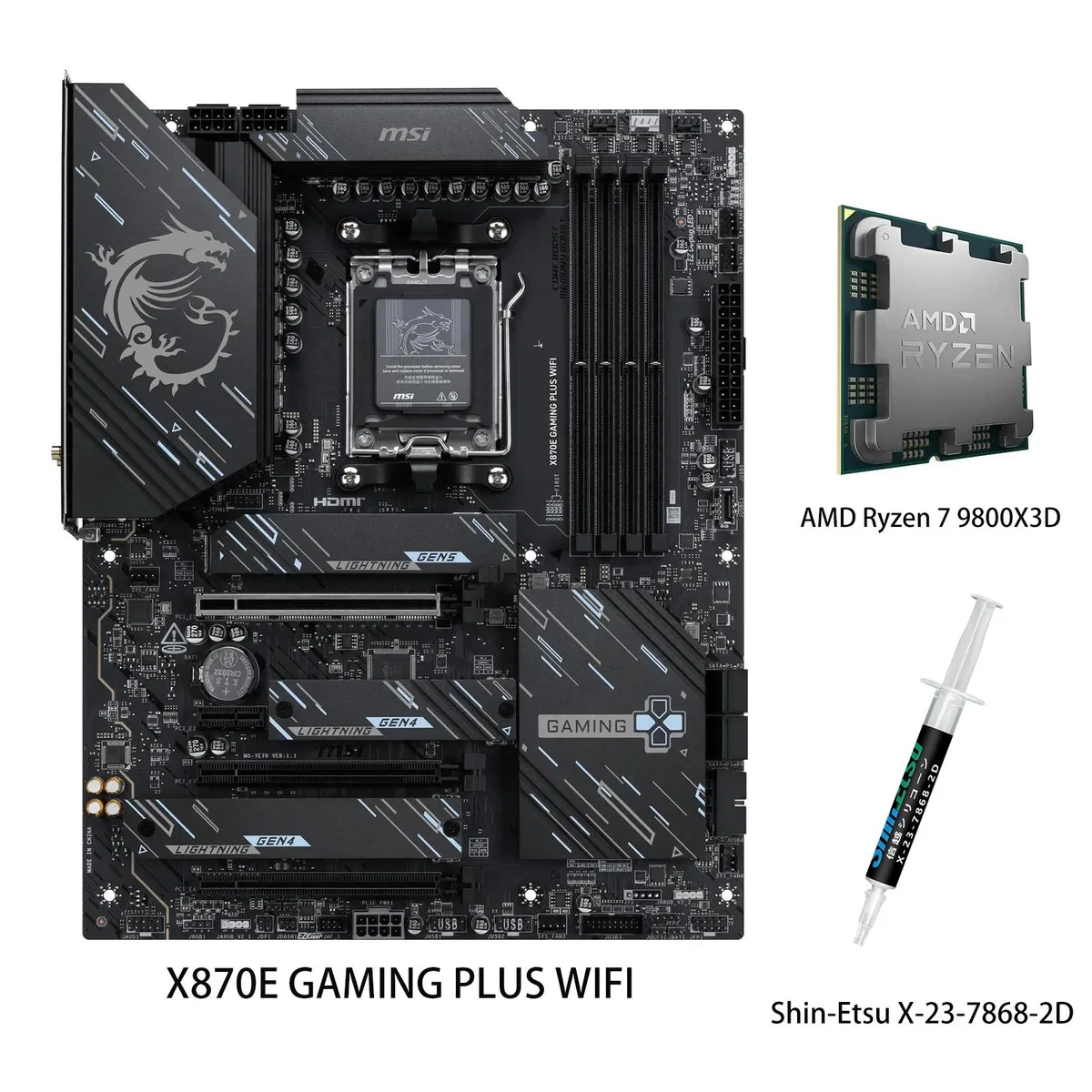

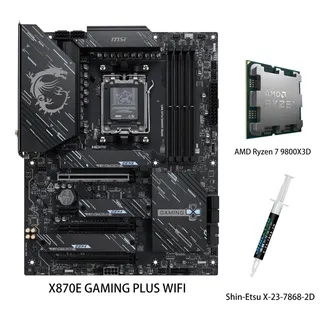

ATX motherboard in dark grey with silver heatsinks and a socketed Ryzen 7 9800X3D CPU

MSI

MSI X870E GAMING PLUS WIFI + Ryzen 7 9800X3D AMD motherboard CPU combo

SKU CH-Z6FG-QKYKC

AM5 motherboard and eight-core Ryzen 7 9800X3D CPU with 96 MB L3 cache, DDR5 up to 8200 MT/s, PCIe 5.0 x16, triple M.2, Wi-Fi 7 and USB 40G

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

CPU +Ryzen 7 9800X3D

  • Ready-to-build combo with Ryzen 7 9800X3D included
  • DDR5 memory up to 8200 MT/s overclocked for high bandwidth
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest graphics and storage
  • USB 4 port at 40 Gbps and Wi-Fi 7 with 320 MHz channel
  • 96 MB L3 cache and 8 cores 16 threads on Zen 5 architecture

Combo scope

This bundle pairs an MSI X870E GAMING PLUS WIFI motherboard with an AMD Ryzen 7 9800X3D processor. The board uses the AM5 socket and AMD X870E chipset, supporting Ryzen 9000, 8000 and 7000 series CPUs. The included 8-core, 16-thread chip runs at up to 5.2 GHz max boost and provides 96 MB of L3 cache for gaming workloads.

Installation notes

The CPU drops into the AM5 socket with a standard lever action; no separate bracket is needed. Four DDR5 UDIMM slots accept up to 256 GB total, running at JEDEC 4800-5600 MT/s or overclocked to 8200 MT/s with 1DPC 1R modules. Three M.2 slots (2280/2260) are keyed for PCIe 5.0 x4, PCIe 4.0 x4 and PCIe 4.0 x4 respectively; the primary slot includes an M.2 Shield Frozr heatsink that must be removed before drive insertion.

Pre-order checklist

Verify your power supply has an 8-pin EPS connector plus a 24-pin ATX connector for the board. Confirm the chassis fits an ATX motherboard and clears the rear I/O shield. Ensure your memory kit is on the board’s QVL for the desired DDR5 speed tier. Check that your GPU fits the PCIe 5.0 x16 primary slot and that the case provides airflow for the VRM heatsinks.

Highlights

  • Ready-to-build combo with Ryzen 7 9800X3D included
  • DDR5 memory up to 8200 MT/s overclocked for high bandwidth
  • PCIe 5.0 x16 slot plus PCIe 5.0 M.2 for fastest graphics and storage
  • USB 4 port at 40 Gbps and Wi-Fi 7 with 320 MHz channel
  • 96 MB L3 cache and 8 cores 16 threads on Zen 5 architecture

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI+R7 9800X3D
Part NumberX870E GAMING PLUS WIFI+R7 9800X3D
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibili
PCI Express 5.0 x16PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
PCI SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
LAN ChipsetRealtek® 8126VB 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
HDMI1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
USB 3.12x USB 10Gbps Type A
USB 3.02x USB 5Gbps Type A
USB 1.1/2.04 x USB 2.0
USB Type-C1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* (1x USB 40Gbps Type C)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x USB 20Gbps Type C (Rear)
Audio Ports3 Ports
Onboard USB6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesLightning USB 40G
Lightning Gen 5
EZ M.2 Shield Frozr II
Triple M.2 Connectors
EZ PCIe Clip II
Extended Heatsink Design
Latest DDR5 Memory
5G Network Solution
Audio Boost
4x EZ Debug LED
1x EZ Memory Detection LED

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the Ryzen 7 9800X3D is running at its 5.2 GHz max boost after assembly?

Enter the BIOS or use a monitoring tool in Windows to verify the CPU hits 5.2 GHz under single-thread load; the 8-core, 16-thread Zen 5 chip with 96 MB L3 cache should reach that frequency when thermal and power limits allow.

Which components are included in the combo and what must I purchase separately?

The box contains the X870E GAMING PLUS WIFI motherboard and the Ryzen 7 9800X3D processor; you still need DDR5 memory (up to 256 GB across four slots), a CPU cooler, graphics card, storage drives, power supply and case.

Which memory speed tier should I choose for the X870E board with this CPU?

For the Ryzen 9000 series the board supports DDR5 up to 8200 MT/s (OC) with one DIMM per channel, 6400 MT/s with two ranks per channel, and 5600 MT/s JEDEC; pick a kit that matches your desired overclocking headroom and slot population.
