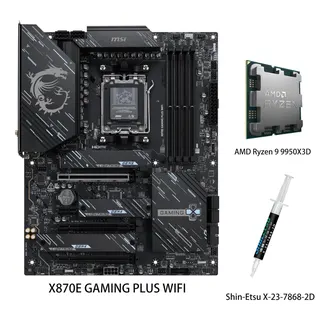

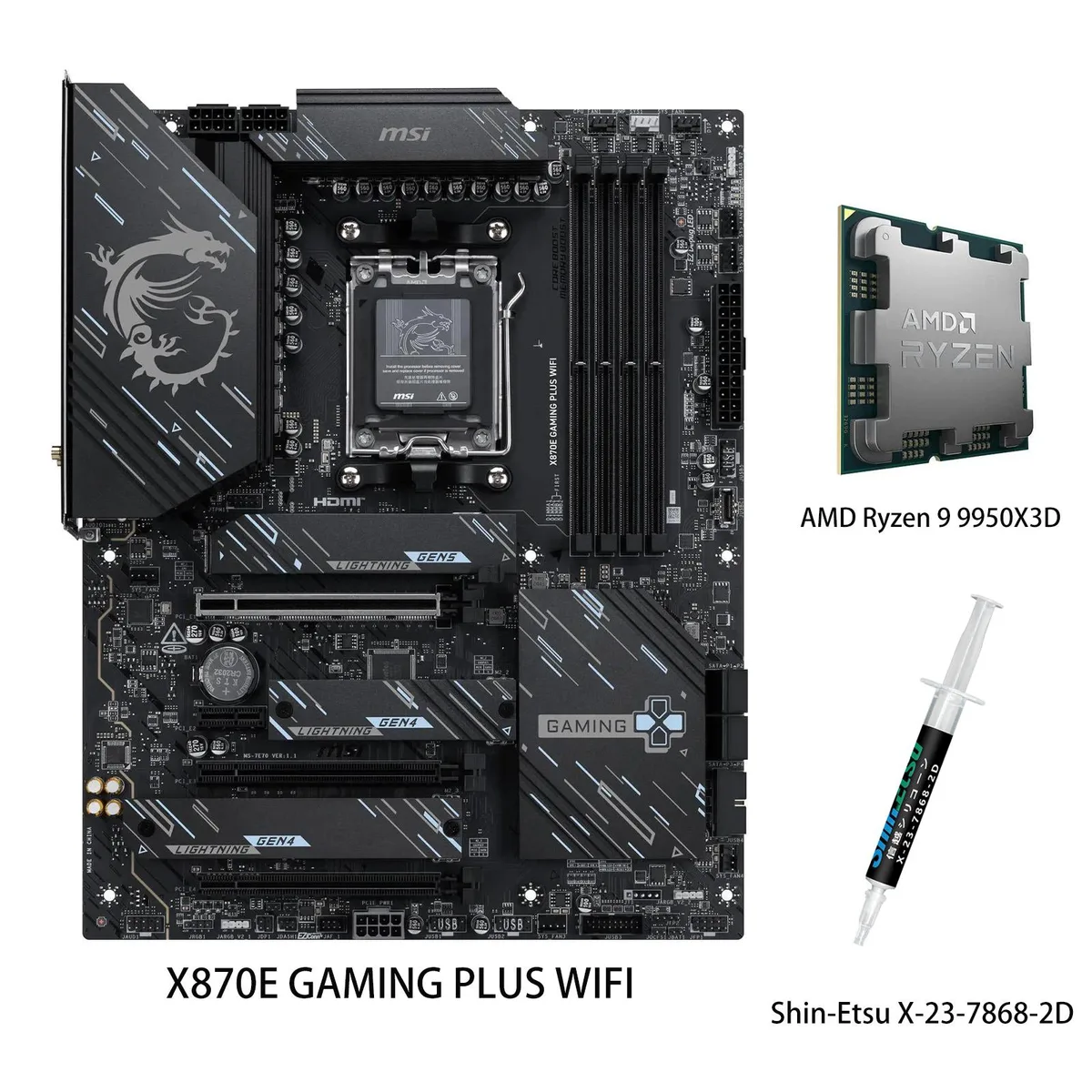

ATX motherboard in black with silver heatsinks and a boxed Ryzen 9 9950X3D CPU

MSI

MSI X870E GAMING PLUS WIFI + Ryzen 9 9950X3D AMD motherboard CPU combo

SKU CH-CR3B-HXNAE

Pairs an AMD X870E ATX board with a 16-core Ryzen 9 9950X3D, four DDR5 slots to 256 GB, triple M.2, USB 40G, 5 Gbps LAN and Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

CPU +Ryzen 9 9950X3D

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series CPUs
  • DDR5 memory up to 8200 MT/s overclocked with 256 GB capacity
  • PCIe 5.0 x16 slot plus three M.2 connectors including one PCIe 5.0
  • Built-in USB 4 port delivers 40 Gbps data transfer speed
  • Wi-Fi 7 with 320 MHz channel reaches 5.8 Gbps maximum throughput

AM5 Socket Combo for Ryzen 9000 Series

This motherboard and CPU bundle pairs an AMD X870E chipset board with the Ryzen 9 9950X3D processor. The AM5 socket supports Ryzen 9000, 8000 and 7000 series desktop chips. The included CPU uses TSMC 4nm FinFET Granite Ridge architecture with 128MB L3 cache, 16MB L2 cache and integrated Radeon graphics. It is rated at 170W TDP.

Four DDR5 Slots and Triple M.2 with PCIe 5.0

The board provides four DDR5 UDIMM slots for up to 256GB in dual-channel mode. Supported speeds range from 4800 MT/s JEDEC to 8200 MT/s overclocked depending on processor and population. Three M.2 connectors are onboard: one CPU-linked PCIe 5.0 x4 slot for 2280 or 2260 drives and two chipset-linked PCIe 4.0 x4 slots. Four SATA 6Gb/s ports and RAID 0, 1, 10 for SATA plus RAID 0, 1, 5 for NVMe complete the storage options.

Wi-Fi 7 and 5G LAN with USB 40G

Networking uses Wi-Fi 7 with a 320MHz channel for up to 5.8Gbps throughput, 2.4 times faster than Wi-Fi 6, plus a 5G LAN port. A built-in USB 4 port delivers 40Gbps transmission speed. The PCIe layout includes one PCIe 5.0 x16 slot from the CPU, one PCIe 4.0 x16 and two PCIe 3.0 x16 slots from the chipset, plus a PCIe 3.0 x1 slot. Audio Boost provides studio-grade sound quality.

Highlights

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series CPUs
  • DDR5 memory up to 8200 MT/s overclocked with 256 GB capacity
  • PCIe 5.0 x16 slot plus three M.2 connectors including one PCIe 5.0
  • Built-in USB 4 port delivers 40 Gbps data transfer speed
  • Wi-Fi 7 with 320 MHz channel reaches 5.8 Gbps maximum throughput

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI+R9 9950X3D
Part NumberX870E GAMING PLUS WIFI+R9 9950X3D
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibili
PCI Express 5.0 x16PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
PCI SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
LAN ChipsetRealtek® 8126VB 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
HDMI1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
USB 3.12x USB 10Gbps Type A
USB 3.02x USB 5Gbps Type A
USB 1.1/2.04 x USB 2.0
USB Type-C1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* (1x USB 40Gbps Type C)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x USB 20Gbps Type C (Rear)
Audio Ports3 Ports
Onboard USB6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesLightning USB 40G
Lightning Gen 5
EZ M.2 Shield Frozr II
Triple M.2 Connectors
EZ PCIe Clip II
Extended Heatsink Design
Latest DDR5 Memory
5G Network Solution
Audio Boost
4x EZ Debug LED
1x EZ Memory Detection LED

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the board's single CPU-powered PCIe 5.0 x16 slot run a new graphics card at full speed with the included Ryzen 9 9950X3D?

Yes. The Ryzen 9 9950X3D enables PCIe 5.0 x16 on the primary PCI_E1 slot so a modern GPU can use the full 128GB/s bandwidth.

What is the fastest DDR5 speed the combo can reach with a two-stick kit?

With Ryzen 9000 series processors the board supports up to 8200 MT/s overclocked on a 1DPC 1R configuration.

Does the board provide enough M.2 slots for a PCIe 5.0 boot drive plus two additional NVMe drives?

Yes. M.2_1 runs at PCIe 5.0 x4 from the CPU while M.2_2 and M.2_3 run at PCIe 4.0 x4 from the chipset, all accepting 2280 or 2260 devices.
