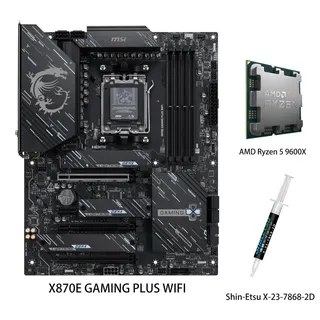

ATX motherboard with AM5 socket, black PCB, silver heatsinks, included Ryzen 5 9600X CPU in clear clamshell

MSI

MSI X870E GAMING PLUS WIFI + Ryzen 5 9600X AMD motherboard CPU combo

SKU CH-KFS8-W4A60

AM5 motherboard and six-core Ryzen 5 9600X combo supports DDR5 up to 8200 MT/s, PCIe 5.0 x16, triple M.2 slots, Wi-Fi 7, and USB 40G

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB

CPU +Ryzen 5 9600X

  • Ready-to-build combo with matched Ryzen 5 9600X CPU
  • DDR5 memory support up to 8200 MT/s overclocked speed
  • PCIe 5.0 x16 slot and M.2_1 for fastest GPU and storage
  • Wi-Fi 7 with 320 MHz channel reaching 5.8 Gbps wireless
  • USB 40G port delivers 40 Gbps data throughput

Ready-to-run AM5 combo

This bundle pairs an MSI X870E GAMING PLUS WIFI motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870E chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. The included 6-core, 12-thread CPU reaches a 5.4 GHz max boost clock and provides 38 MB of cache. It targets builders who want a single validated package for gaming or productivity.

Memory and storage limits

Four DDR5 UDIMM slots accept up to 256 GB in dual-channel mode. JEDEC speeds run at 5600–4800 MT/s; overclocked modules can reach 8200 MT/s depending on DIMM population. The primary M.2 slot connects via PCIe 5.0 x4 from the CPU for 2280/2260 drives, while two chipset-linked slots provide PCIe 4.0 x4. Four SATA 6 Gb/s ports support RAID 0, 1 and 10; M.2 NVMe RAID 0, 1 and 5 require a Ryzen 9000 series processor.

Expansion and connectivity check

The top PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000 or 7000 CPUs, dropping to 4.0 x8 for 8700/8600/8400 and 4.0 x4 for 8500/8300 models. A second x16-size slot operates at PCIe 3.0 x1, a third at PCIe 4.0 x4, and a fourth at PCIe 3.0 x1. Rear I/O includes a 40 Gbps USB4 port, 5 Gbps LAN and Wi-Fi 7 with 320 MHz channels. Verify that your case fits an ATX board and that your power supply has the required 8-pin CPU connectors.

Highlights

  • Ready-to-build combo with matched Ryzen 5 9600X CPU
  • DDR5 memory support up to 8200 MT/s overclocked speed
  • PCIe 5.0 x16 slot and M.2_1 for fastest GPU and storage
  • Wi-Fi 7 with 320 MHz channel reaching 5.8 Gbps wireless
  • USB 40G port delivers 40 Gbps data throughput

Specifications

BrandMSI
ModelX870E GAMING PLUS WIFI+R5 9600X
Part NumberX870E GAMING PLUS WIFI+R5 9600X
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/s
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibili
PCI Express 5.0 x16PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express x1
PCI SlotsPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAID• Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Audio ChipsetRealtek ALC897
Audio Channels7.1-Channel High Definition Audio
LAN ChipsetRealtek® 8126VB 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
BluetoothSupports Bluetooth® 5.4**, MLO, 4KQAM
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
HDMI1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
USB 3.12x USB 10Gbps Type A
USB 3.02x USB 5Gbps Type A
USB 1.1/2.04 x USB 2.0
USB Type-C1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* (1x USB 40Gbps Type C)
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x USB 20Gbps Type C (Rear)
Audio Ports3 Ports
Onboard USB6x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesLightning USB 40G
Lightning Gen 5
EZ M.2 Shield Frozr II
Triple M.2 Connectors
EZ PCIe Clip II
Extended Heatsink Design
Latest DDR5 Memory
5G Network Solution
Audio Boost
4x EZ Debug LED
1x EZ Memory Detection LED

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the combo with the Ryzen 5 9600X or a different CPU for this X870E board?

The bundle includes the Ryzen 5 9600X with 6 cores, 12 threads, 5.4 GHz max boost and 38 MB cache; the board also supports Ryzen 9000, 8000 and 7000 series if you prefer another model.

What does the 5.4 GHz boost clock mean once the CPU is installed?

The 5.4 GHz max boost is the highest single-core frequency the Ryzen 5 9600X can reach under load, giving smooth 100+ FPS in popular games when paired with adequate cooling.

What does the USB 4 40G port cap at in real use?

The built-in USB 4 port delivers up to 40 Gbps bandwidth, limited by the connected device and cable quality.
