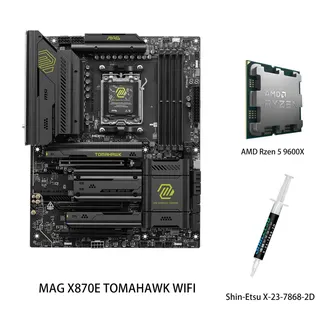

Black ATX motherboard with silver heatsinks and installed Ryzen 5 9600X CPU in AM5 socket

MSI

MSI MAG X870E TOMAHAWK WIFI + Ryzen 5 9600X AMD motherboard combo

SKU CH-W6PX-XXJZT

Pairs an AMD X870E ATX board with a Ryzen 5 9600X CPU, delivering DDR5 8400 MT/s support, PCIe 5.0 graphics and M.2 slots, USB 40G, 5G LAN and Wi‑Fi 7

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

CPU +Ryzen 5 9600X

  • Ready-to-build combo with matched Ryzen 5 9600X CPU
  • Up to 256 GB DDR5 8400 MT/s overclocked memory capacity
  • PCIe 5.0 x16 and dual CPU-linked M.2 slots for 128 GB/s bandwidth
  • 5 GbE LAN plus Wi-Fi 7 320 MHz channels up to 5.8 Gbps
  • Tool-free EZ PCIe Release and EZ M.2 Shield Frozr II simplify upgrades

Combo AM5 X870E pour Ryzen 9000/8000/7000

Cette carte mère ATX MSI MAG X870E TOMAHAWK WIFI est livrée avec un processeur AMD Ryzen 5 9600X déjà installé dans le socket AM5. Le chipset X870E débloque les lignes PCIe 5.0 depuis le CPU pour la carte graphique et le stockage M.2 principal. Quatre emplacements DDR5 288 broches acceptent jusqu'à 256 Go en double canal. Le ensemble cible les assembleurs qui veulent une plateforme prête à l'emploi pour jeu et création.

Alimentation et connectivité sous charge continue

Le VRM 16 phases alimente le Ryzen 5 9600X sans throttling lors de rendus ou compilations prolongés. Quatre connecteurs M.2 — deux PCIe 5.0 x4 depuis le CPU (format 22110/2280 et 2280/2260) et deux PCIe 4.0 depuis le chipset — conservent leur débit maximal grâce aux dissipateurs EZ M.2 Shield Frozr II sans outil. Le port USB4 40 Gbit/s, le 5G LAN Realtek 8126 et le Wi-Fi 7 320 MHz (5,8 Gbit/s) maintiennent une bande passante stable en multitâche réseau intense.

Socket AM5 et DDR5 8400 MT/s OC : la limite du kit

Le socket AM5 engage la compatibilité avec les Ryzen 7000, 8000 et 9000 series, mais la fréquence mémoire maximale de 8400 MT/s en overclocking (1DPC 1R) décide si votre kit DDR5 exploitera pleinement le contrôleur mémoire du 9600X. Au-delà, le JEDEC 5600 MT/s reste la base garantie. Choisissez ce combo si votre charge de travail dépend de la latence mémoire et de la bande passante PCIe 5.0 directe du CPU.

Highlights

  • Ready-to-build combo with matched Ryzen 5 9600X CPU
  • Up to 256 GB DDR5 8400 MT/s overclocked memory capacity
  • PCIe 5.0 x16 and dual CPU-linked M.2 slots for 128 GB/s bandwidth
  • 5 GbE LAN plus Wi-Fi 7 320 MHz channels up to 5.8 Gbps
  • Tool-free EZ PCIe Release and EZ M.2 Shield Frozr II simplify upgrades

Specifications

BrandMSI
SeriesMAG X870E TOMAHAWK WIFI+R5 9600X
ModelMAG X870E TOMAHAWK WIFI+R5 9600X
Part NumberMAG X870E TOMAHAWK WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series proc
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the Ryzen 5 9600X generate when running all day?

The Ryzen 5 9600X is a 6-core desktop processor; sustained workloads will raise temperatures, so a capable AM5 cooler and good case airflow are required to keep it stable.

What memory must I already own for this board to post?

The board only accepts DDR5 UDIMM modules in its four 288-pin slots, supporting up to 256 GB at speeds from 4800 to 8400 MT/s depending on the CPU generation.

Will my PCIe 3.0 graphics card work in the primary x16 slot?

Yes, the top PCIe 5.0 x16 slot is backward compatible, so a PCIe 3.0 card will function at its native speed.
