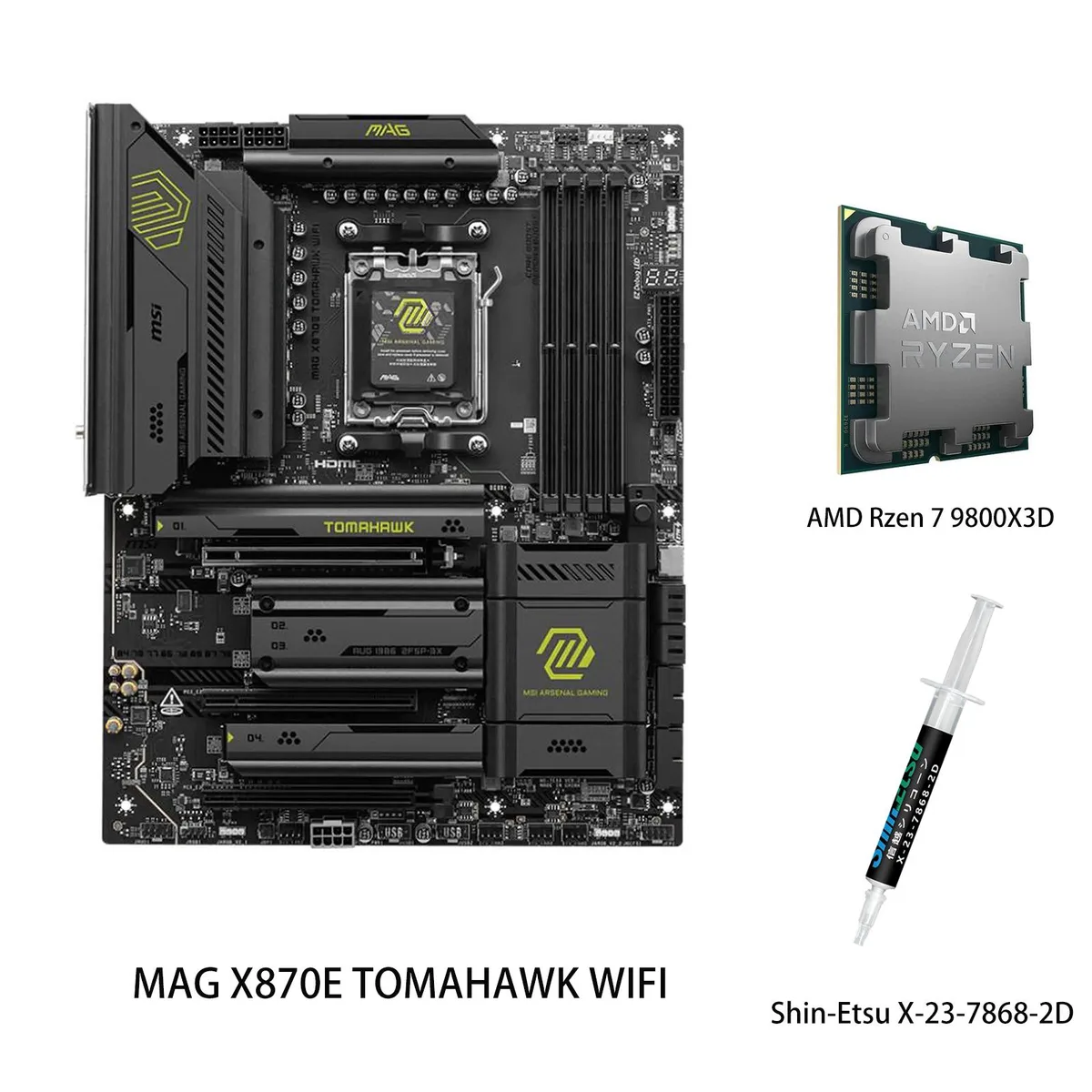

Black ATX motherboard with silver heatsinks and a Ryzen 7 9800X3D CPU installed

MSI

MSI MAG X870E TOMAHAWK WIFI + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-E4NR-036S2

An AM5 motherboard and Ryzen 7 9800X3D processor bundle with DDR5 support up to 8400 MT/s, PCIe 5.0 slots, four M.2 sockets, 5G LAN, Wi-Fi 7 and USB 40G

  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

CPU +Ryzen 7 9800X3D

  • Ready-to-build combo pairs Ryzen 7 9800X3D with X870E chipset
  • DDR5 memory scales to 8400 MT/s on four slots for 256 GB capacity
  • PCIe 5.0 x16 slot and four M.2 sockets deliver 128 GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channels reaches 5.8 Gbps alongside 5G LAN
  • USB 40G port provides 40 Gbps throughput for fast peripherals

Ready-built AM5 platform for gaming

This bundle pairs an MSI MAG X870E TOMAHAWK WIFI motherboard with a Ryzen 7 9800X3D processor. The board uses the AMD X870E chipset and AM5 socket to support Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256 GB of memory running at JEDEC 5600 MT/s or overclocked speeds up to 8400 MT/s.

Tool-less hardware installation aids

EZ PCIe Release unlocks the graphics-card slot with a single button press. EZ M.2 Shield Frozr II secures M.2 SSDs in 2280, 2260 or 22110 sizes without screws. A built-in USB 40G port provides 40 Gbps throughput for external storage or docks.

CPU 3D V-Cache defines gaming throughput

The included Ryzen 7 9800X3D carries 3D V-Cache technology that directly raises frame rates in cache-sensitive titles. If your workload benefits from that extra L3 capacity, this combo matches the motherboard's PCIe 5.0 and DDR5 headroom to the processor's strength.

Highlights

  • Ready-to-build combo pairs Ryzen 7 9800X3D with X870E chipset
  • DDR5 memory scales to 8400 MT/s on four slots for 256 GB capacity
  • PCIe 5.0 x16 slot and four M.2 sockets deliver 128 GB/s bandwidth
  • Wi-Fi 7 with 320 MHz channels reaches 5.8 Gbps alongside 5G LAN
  • USB 40G port provides 40 Gbps throughput for fast peripherals

Specifications

BrandMSI
SeriesMAG X870E TOMAHAWK WIFI+R7 9800X3D
ModelMAG X870E TOMAHAWK WIFI+R7 9800X3D
Part NumberMAG X870E TOMAHAWK WIFI
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.24x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2 slot (From CPU)
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series proc
Audio ChannelsRealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output
Max LAN Speed1x Realtek® 8126 5G LAN
Wireless LANWi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Back I/O PortsClear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Other Connectors1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
Windows 11Support for Windows® 11 64-bit
FeaturesSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
Lightning Fast Game

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the EZ M.2 Shield Frozr II need any tools or thermal pads replaced when I swap an M.2 SSD later?

The EZ M.2 Shield Frozr II uses a tool-less latch so you can remove or install an M.2 drive without screws. The heatsink stays attached to the board; you only lift the shield, swap the SSD, and snap it back down. No extra thermal pads are required unless you peel the original ones off.

Which M.2 slot hits its throughput ceiling first when I run sustained PCIe 5.0 x4 writes?

M.2_1 and M.2_2 are wired to the CPU at PCIe 5.0 x4, so their limit is the drive’s own sustained write speed. M.2_3 and M.2_4 run through the chipset at PCIe 4.0 x4, so they saturate earlier at roughly half the bandwidth of the CPU-attached slots.

How loud does the VRM fan get and what is the 5G LAN controller’s power draw when the system runs all day?

The board uses a fanless VRM heatsink, so there is no VRM fan noise. The Realtek 8126 5G LAN controller is a low-power PHY that draws only a few watts under load, adding negligible heat to the chassis during continuous operation.
