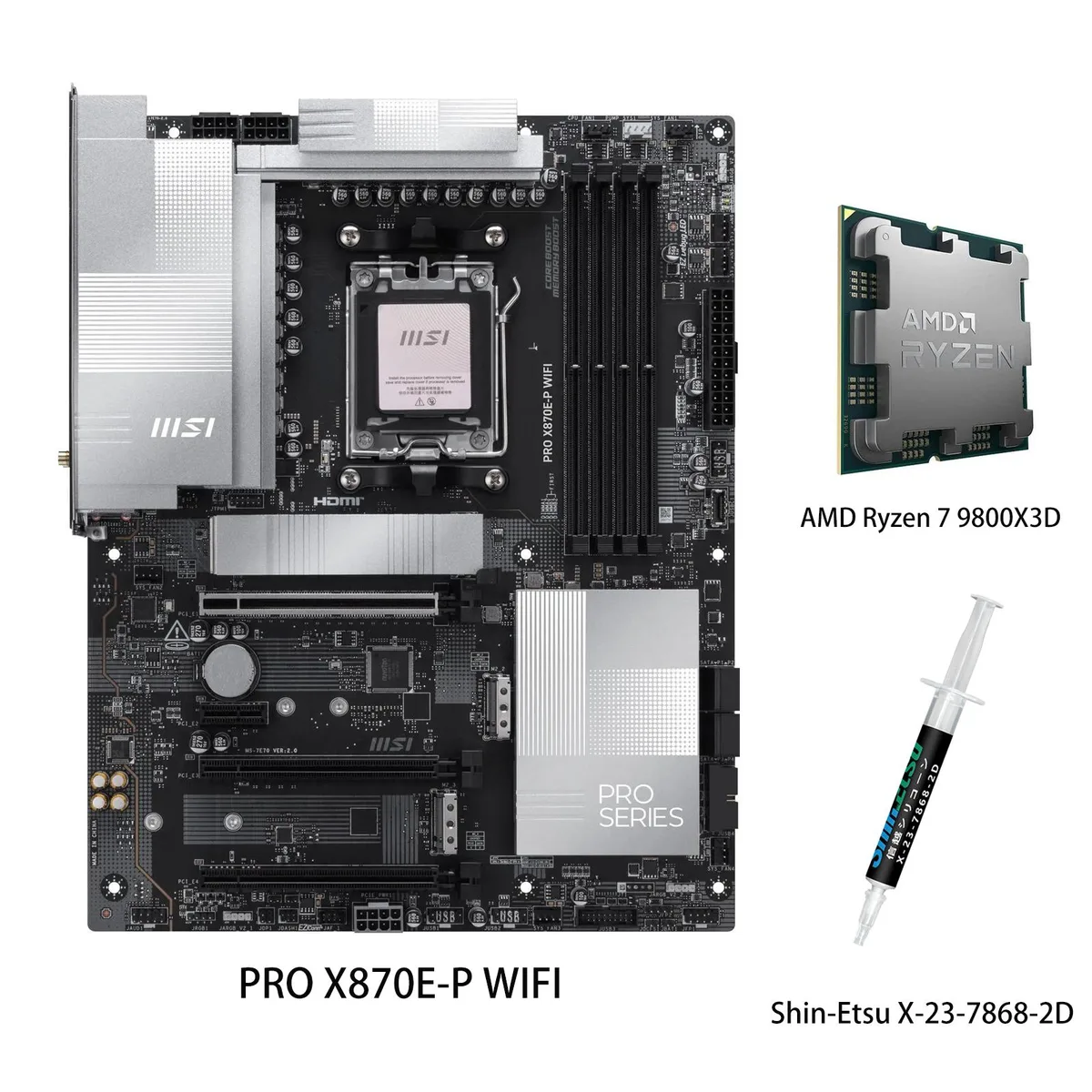

ATX motherboard in matte black with silver heatsinks, CPU socket exposed, four DDR5 slots, three M.2 shields

MSI

MSI PRO X870E-P WIFI + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-B2TY-VE1Q6

AM5 combo pairs an X870E board with a Ryzen 7 9800X3D, supporting DDR5 up to 8200 MT/s, PCIe 5.0, Wi-Fi 7, 5G LAN and USB 40G

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JED
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

CPU +Ryzen 7 9800X3D

  • Ready for high-speed DDR5 up to 8200 MT/s overclocked
  • Stable power delivery with 60A SPS VRM design
  • Next-generation wireless via Wi-Fi 7 320MHz channel
  • Wired throughput up to 5G LAN with Realtek 8126
  • Fast external connectivity through USB 40G port

AM5 Motherboard and Ryzen 7 9800X3D Combo

This bundle pairs an AMD X870E chipset board with a Ryzen 7 9800X3D processor for socket AM5. It targets enthusiasts building a high-performance desktop for gaming and content creation. The board delivers a 60A SPS VRM design, DDR5 memory support up to 8200+ MT/s when overclocked, and integrated Wi-Fi 7 plus 5G LAN. A single package simplifies compatibility and installation.

Upgrade from Older AM5 or AM4 Platforms

The combination replaces an earlier AM5 motherboard with a lesser VRM or an AM4 system that cannot run Ryzen 9000 series CPUs. The jump is worthwhile when you need PCIe 5.0 x16 graphics bandwidth, M.2 Gen5 storage speeds up to 128 Gbps, or the 5.8 Gbps peak throughput of Wi-Fi 7. Builders staying with a current Ryzen 7000 chip and DDR5 5600 JEDEC memory will see limited gains unless faster memory or Gen5 devices are planned.

Verify Cooler Clearance Memory and Power Phases

Confirm your CPU cooler fits the AM5 mounting pattern and does not obstruct the four 288-pin DDR5 slots. Check that the power supply provides an 8-pin plus 4-pin or dual 8-pin EPS connector for the 60A VRM. Ensure the case has room for the rear I/O shield and that you have a Wi-Fi 7 capable router to use the 320 MHz channel. The board also requires a UEFI update if a Ryzen 7000 or 8000 series processor is installed before the 9800X3D.

Highlights

  • Ready for high-speed DDR5 up to 8200 MT/s overclocked
  • Stable power delivery with 60A SPS VRM design
  • Next-generation wireless via Wi-Fi 7 320MHz channel
  • Wired throughput up to 5G LAN with Realtek 8126
  • Fast external connectivity through USB 40G port

Specifications

BrandMSI
ModelPRO X870E-P WIFI+R7 9800X3D
Part NumberPRO X870E-P WIFI+R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16PCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors)
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 Gen5 x4 128Gbps slots,
2 x M.2 Gen4 x 4 64 Gbps slots,
LAN ChipsetRealtek@ 8126 5G LAN
Wireless LANWi-Fi 7 Solution,
BluetoothBluetooth 5.4
HDMISupport 4K@60Hz as specified in HDMITM 2.1
RJ451 x RJ45
USB 3.12x USB 10Gbps Type-A
1 x USB 5Gbps Type- A
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB4 port supports USB Type-C display output,
- Requires Processor Graphics
1 x USB 20Gbps Type-C
Audio Ports8-Channel(7.1) HD Audio with Audio Boost.
Form FactorATX

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What CPU socket and cooler mounting pattern does the board use?

The motherboard uses the AM5 socket, which shares the same mounting hole spacing as AM4 coolers.

How do I install the CPU, and what step is often missed?

Lift the socket lever, align the gold triangle on the Ryzen 7 9800X3D with the socket corner, place the chip gently, lower the lever, then apply thermal paste before mounting the cooler — skipping the paste causes overheating.

Which component will need a BIOS update first when a new Ryzen 9000 series processor launches?

The motherboard firmware must be updated to support newer Ryzen 9000 series CPUs; the board includes USB BIOS Flashback so you can update without an older processor installed.
