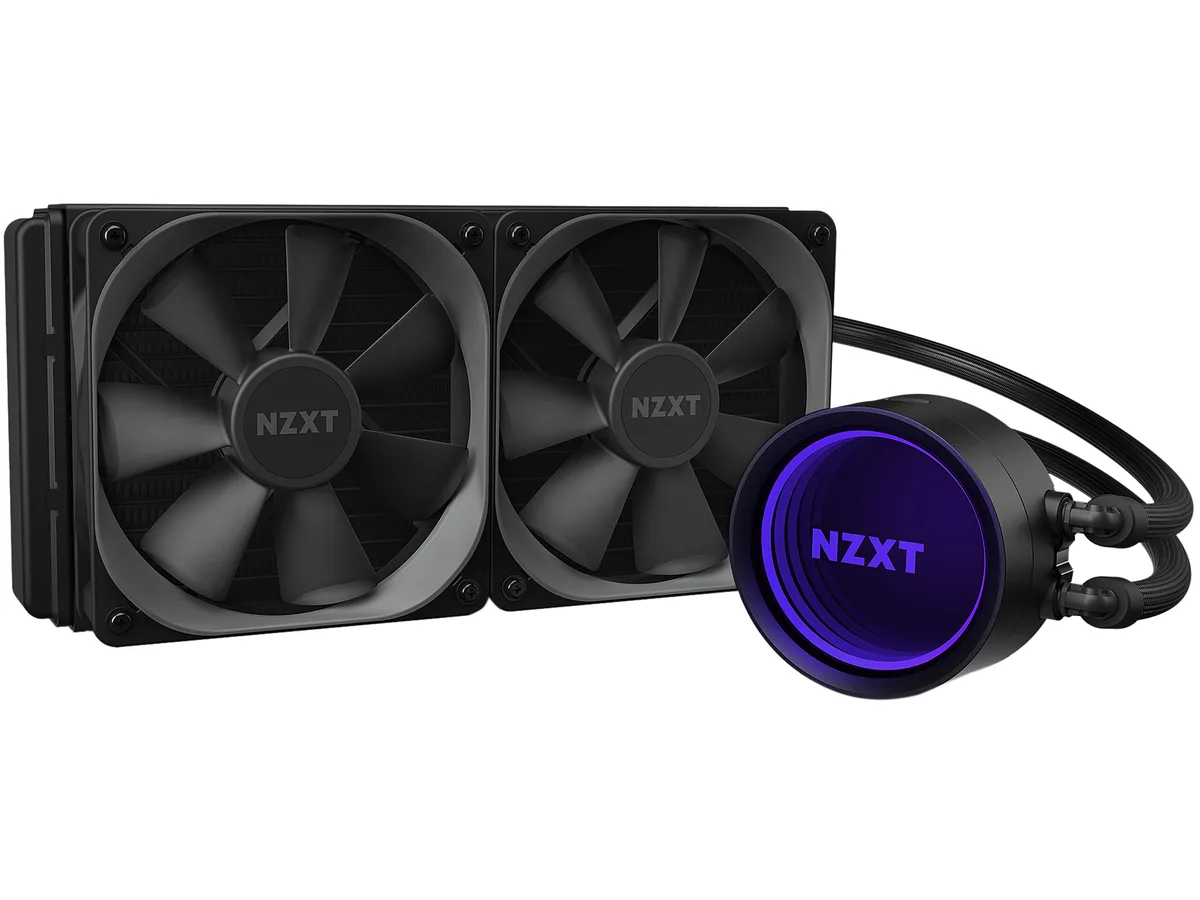

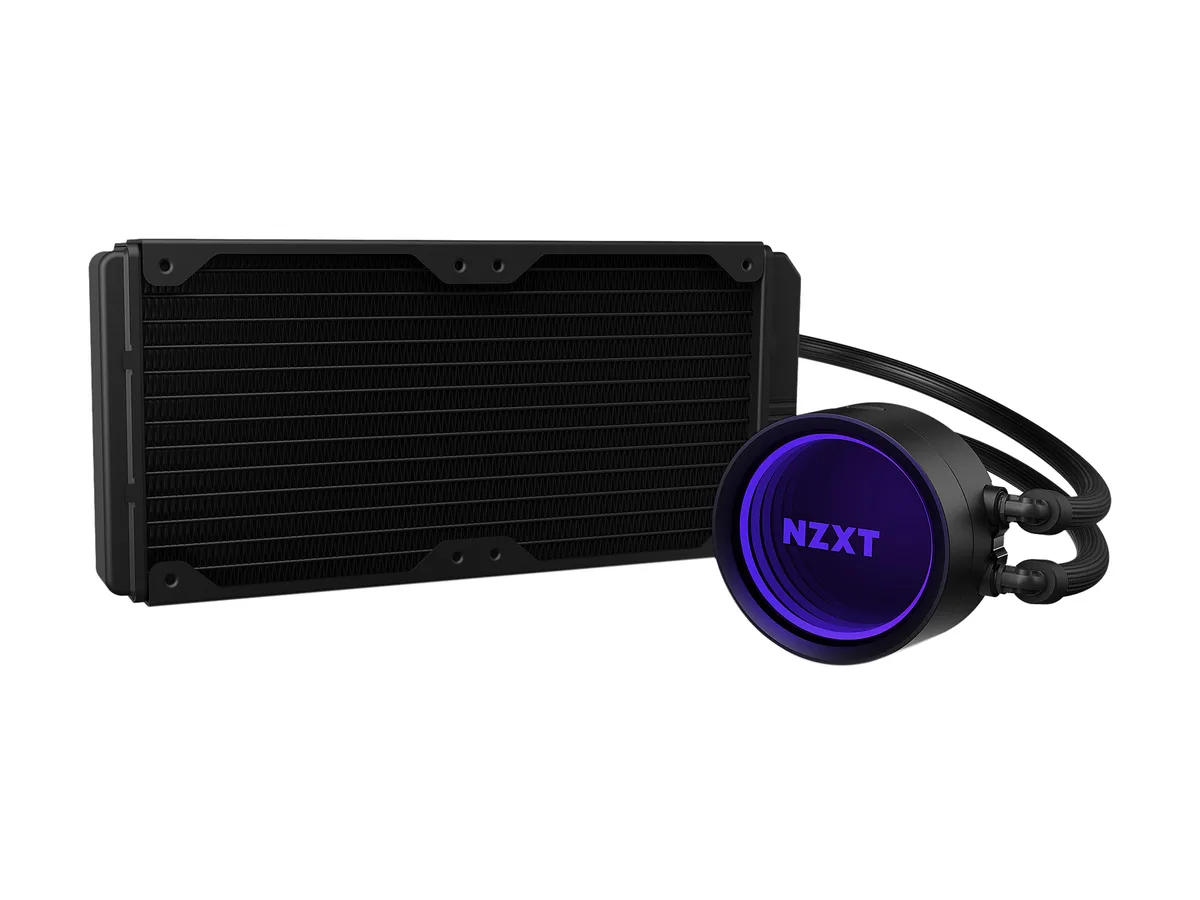

Black square pump with RGB infinity mirror ring, two 120 mm fans on 240 mm radiator, braided tubes

NZXT

NZXT Kraken X53 RL-KRX53-01 240mm liquid cooler

SKU CH-S5R6-NXRN9 MPN RL-KRX53-01

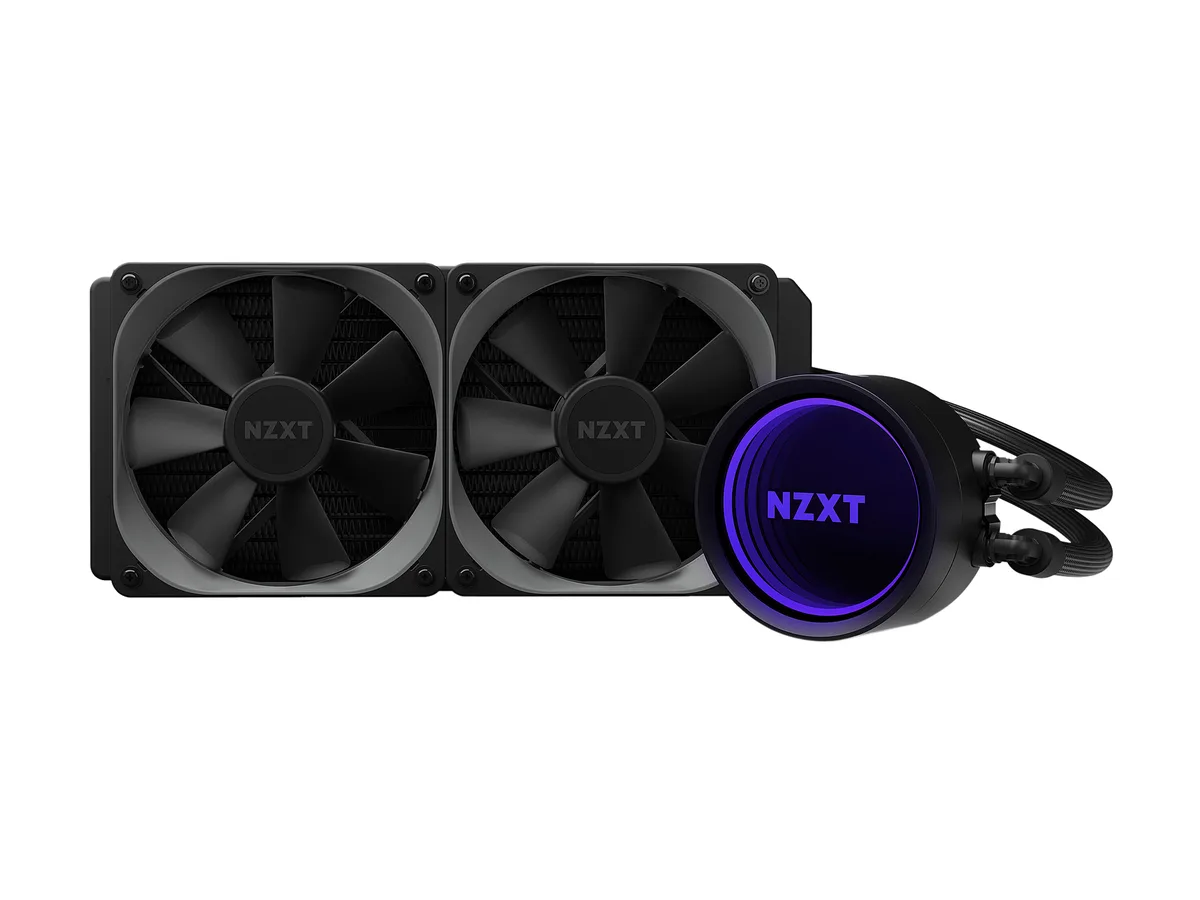

A 240 mm all-in-one liquid cooler with a rotating infinity-mirror pump head, two 120 mm fluid-dynamic-bearing fans running 500 to 2000 RPM.

  • TypeLiquid Cooling System
  • Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 /
  • Block Dim.80.00 x 80.00 x 55.00 mm
  • Block MaterialCopper & Plastic
  • Radiator Size275.00 x 123.00 x 30.00 mm
  • Radiator MaterialAluminum

Fan Size 2 Fan Slots (120mm)

Color Black

Model Kraken X53

Struck-through versions exist but are not stocked here.

  • Adjustable pump head orientation keeps the logo upright
  • 10% larger infinity mirror ring delivers brighter RGB lighting
  • CAM software integration enables precise fan and pump control
  • Aer P fans with fluid dynamic bearings run at 21 to 36 dBA
  • Nylon braided sleeves protect the 400mm tubing from wear

240 mm AIO RGB CPU liquid cooler

The NZXT Kraken X53 RL-KRX53-01 is a 240 mm all-in-one liquid cooler built for mainstream Intel and AMD desktop processors. It targets builders who want quiet thermal performance and addressable RGB lighting in a single package. The pump block fits a wide range of sockets including LGA 1700, 1200, 1151 and AMD AM4. Threadripper mounting requires a separate bracket not supplied in the box.

Rotating infinity mirror cap and CAM V4 software

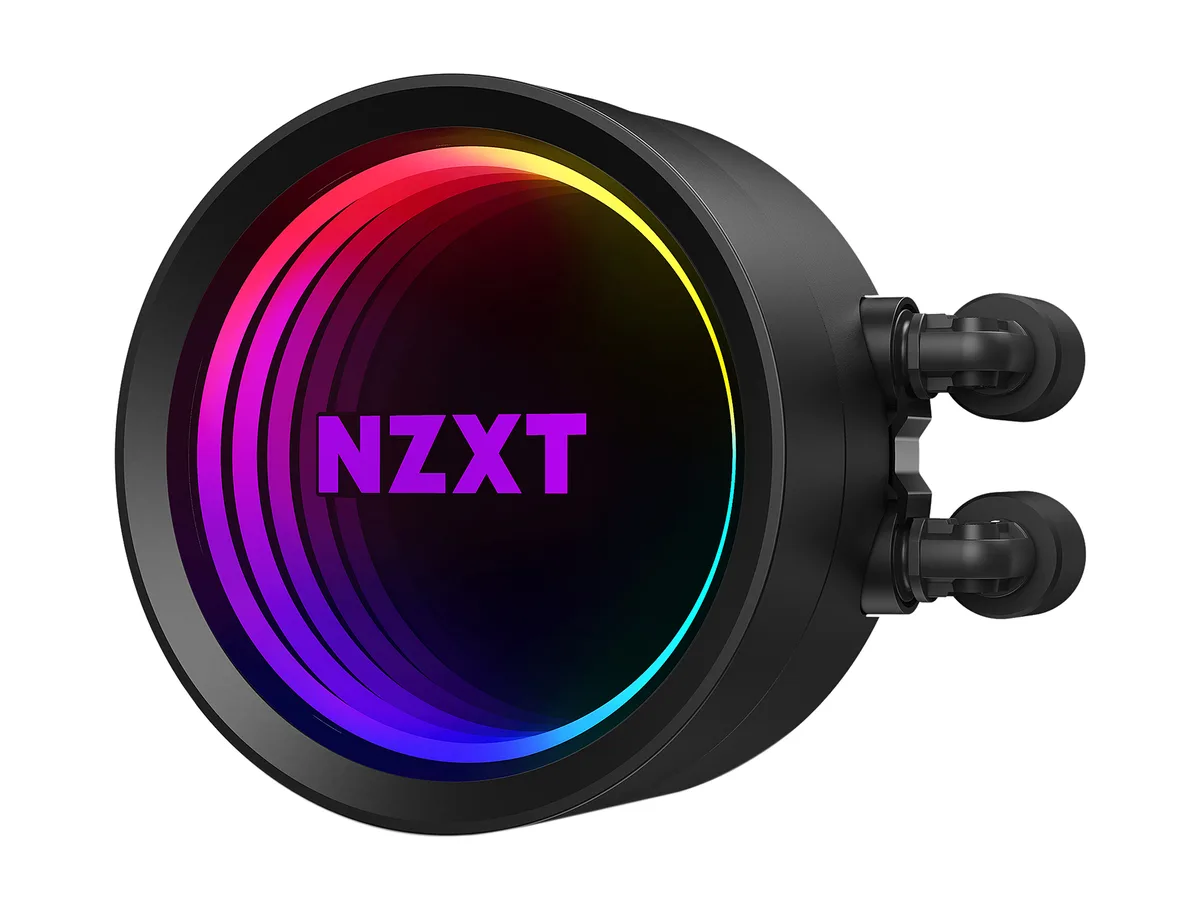

The redesigned pump head uses a 10 % larger infinity mirror ring that can be rotated independently so the logo stays upright whatever the mounting angle. Two Aer P120 120 mm fans with fluid dynamic bearings run from 500 to 2000 RPM and deliver 18.28 to 73.11 CFM at 21 to 36 dBA. CAM V4 software controls fan curves, pump speed and RGB effects through a single USB-linked interface.

400 mm tubing length and socket bracket checklist

The nylon-braided rubber tubes measure 400 mm end to end, so verify the distance from your CPU socket to the planned radiator location before ordering. Intel LGA 1700 systems need an extra mounting bracket that must be requested from the manufacturer. Threadripper sTRX4 and TR4 platforms also require a dedicated bracket that is not included. Ensure your case can accept a 275 mm long radiator with dual 120 mm fan slots.

Highlights

  • Adjustable pump head orientation keeps the logo upright
  • 10% larger infinity mirror ring delivers brighter RGB lighting
  • CAM software integration enables precise fan and pump control
  • Aer P fans with fluid dynamic bearings run at 21 to 36 dBA
  • Nylon braided sleeves protect the 400mm tubing from wear

Specifications

BrandNZXT
SeriesKraken X53
ModelRL-KRX53-01
TypeLiquid Cooling System
Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4 / sTRX4*, TR4*(*Threadripper bracket not included)
AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper
Block Dim.80.00 x 80.00 x 55.00 mm

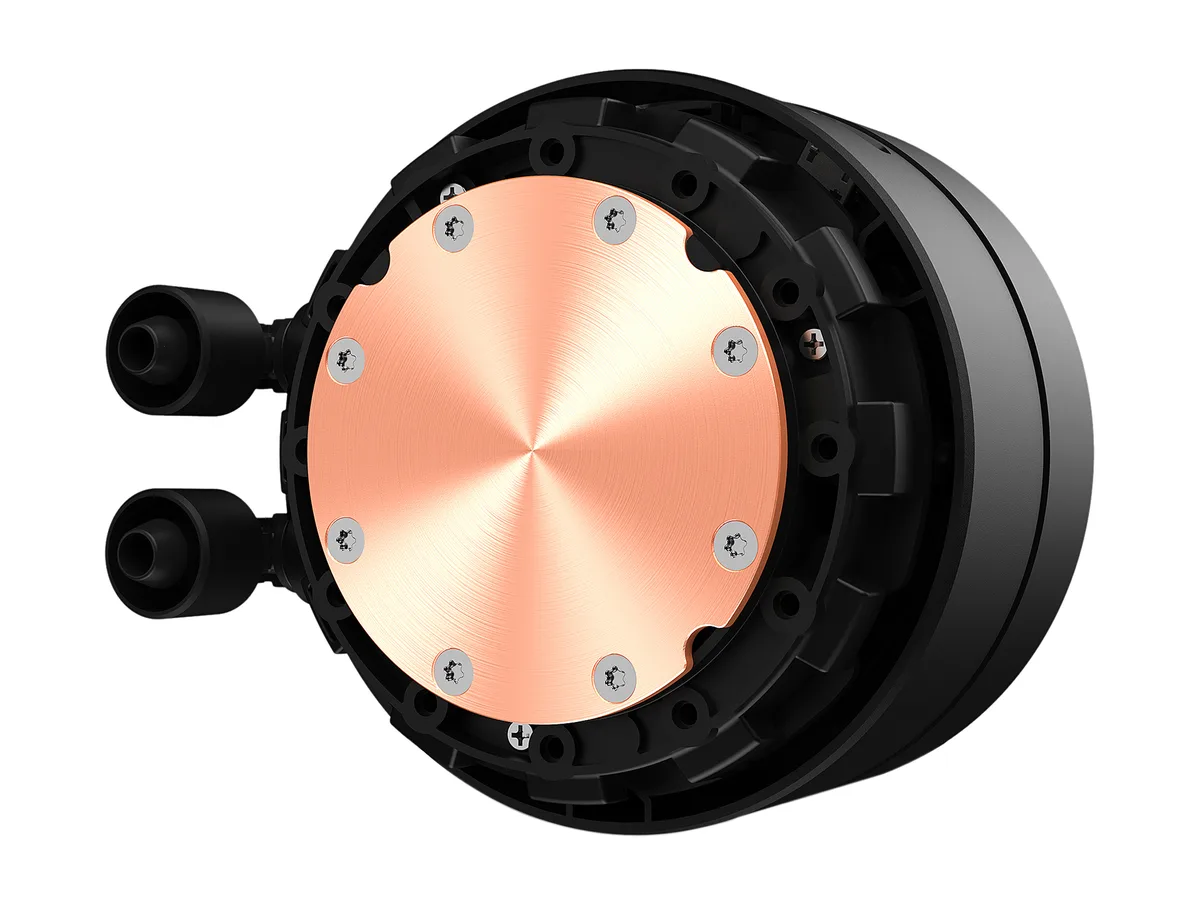

Block MaterialCopper & Plastic
Radiator Size275.00 x 123.00 x 30.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120.00 x 120.00 x 26.00 mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500 - 2,000 +/- 300 RPM
Fan Air Flow18.28 - 73.11 CFM
Fan Noise21 - 36 dBA
Fan Connector4-pin PWM
ColorBlack
LED ColorRGB
Tube Dim.Length: 400mm
Tube MaterialUltra-low Evaporation Rubber with Nylon Braided Sleeve
FeaturesDESIGN: With a re-designed cap and larger infinity mirror ring LED, the new Kraken X allows for adjusting the orientation of the pump head to fit without affecting the direction of the logo
BIGGER AND BRIGHTER: 10% bigger infinity mirror cap allows for more vivid RGB and a rotating cap accommodates re-orienting the logo no matter the direction the cooler is installed
BETTER CONTROL: Full CAM integration allows you to manage your Kraken's performance with precision
INCREDIBLE PERFORMANCE: The Aer P radiator fans feature a chamfered intake and fluid dynamic bearing that provides silent
Shipping weight1.83 kg
Package size310 × 213 × 135 mm

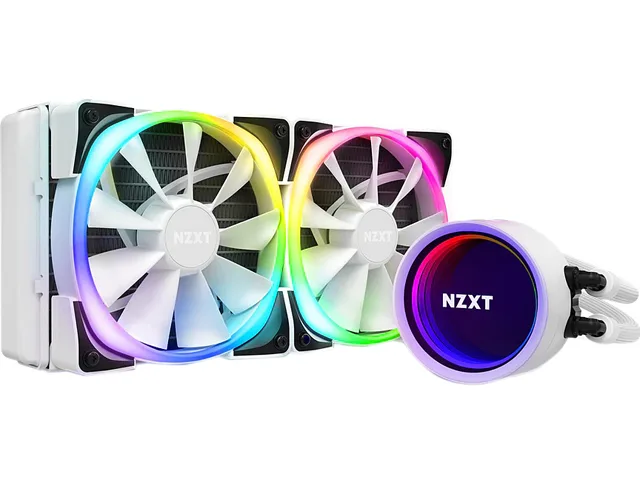

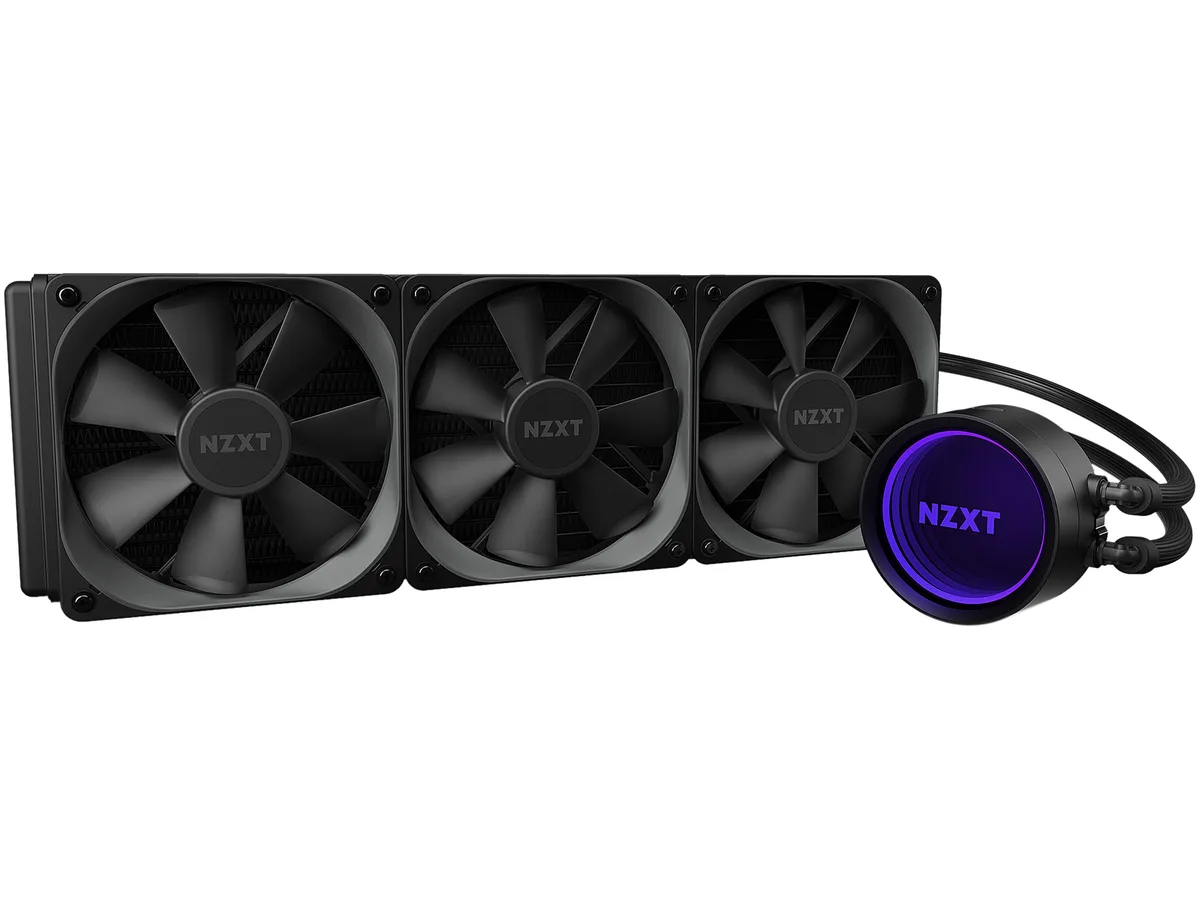

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often should the 400mm tubes be checked or the coolant replaced?

The ultra-low evaporation rubber and nylon-braided sleeves are designed to minimise fluid loss, so no routine coolant replacement is required under normal use.

Which component reaches its limit first during a long heavy load — the 2000 RPM fans or the 275mm radiator?

The fans top out at 2000 RPM and 73.11 CFM; beyond that the radiator surface area becomes the bottleneck for additional heat dissipation.

What noise and heat output should I expect when the pump and both 120mm fans run at full speed all day?

At maximum speed the fans produce 36 dBA and move up to 73.11 CFM, while the pump runs continuously at its fixed speed inside the 80mm copper block.
