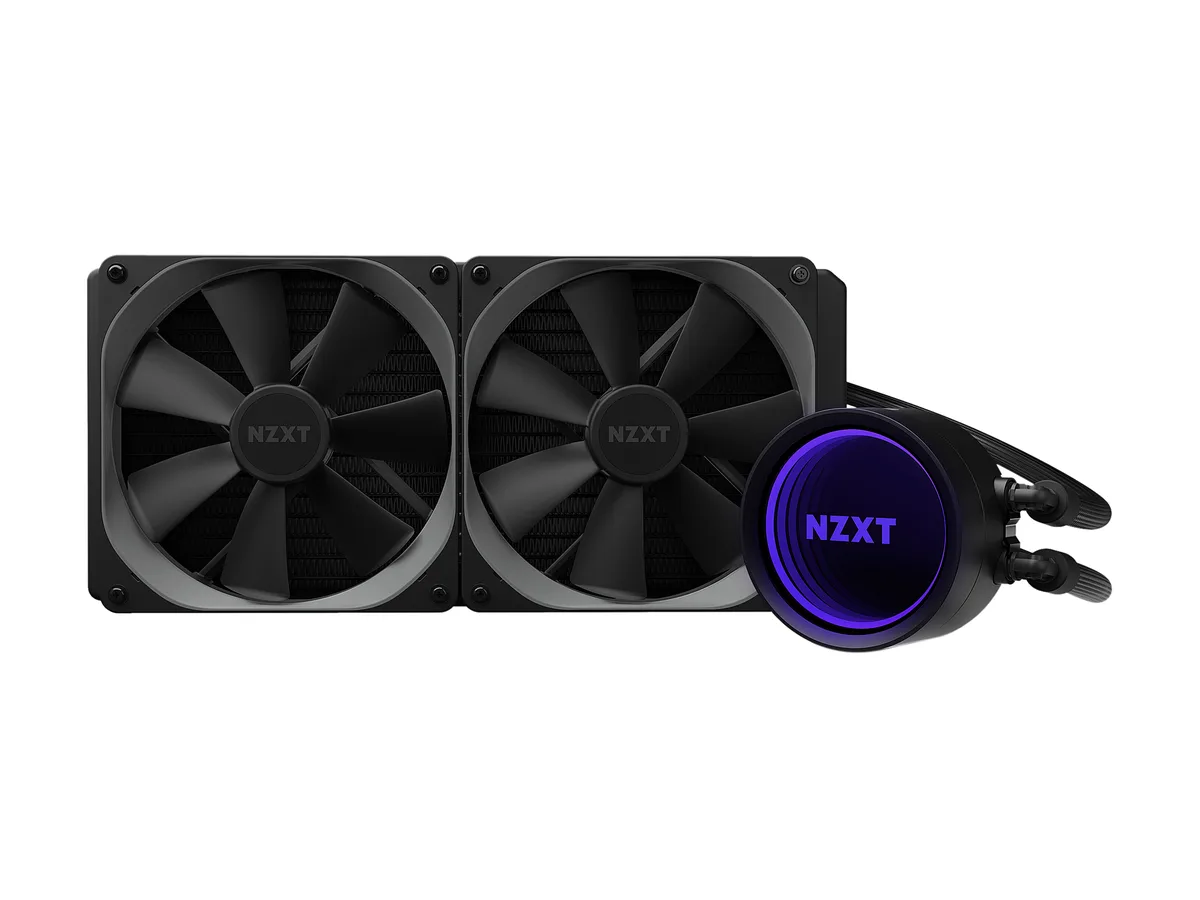

Black 280mm AIO liquid cooler with rotating infinity mirror pump head and two 140mm fans

NZXT

NZXT Kraken X63 RL-KRX63-01 280mm liquid cooler

SKU CH-H9JY-VAQCE MPN RL-KRX63-01

A 280 mm liquid CPU cooler with two 140 mm fans, a rotating infinity-mirror pump head and CAM software control

  • TypeLiquid Cooling System
  • Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 /
  • Block Dim.80.00 x 80.00 x 55.00 mm
  • Block MaterialCopper & Plastic
  • Radiator Size315.00 x 143.00 x 30.00 mm
  • Radiator MaterialAluminum

Fan Size 2 Fan Slots (140mm)

Color Black

Model Kraken X63

Struck-through versions exist but are not stocked here.

  • Adjustable pump head keeps the logo upright in any orientation
  • 10% larger infinity mirror ring delivers more vivid RGB lighting
  • CAM software integration provides precise fan and pump control
  • Aer P 140mm fans with fluid dynamic bearings run at 21 to 38 dBA
  • Nylon-braided 400mm tubing resists evaporation and protects against mishandling

280 mm AIO for Intel and AMD sockets

The NZXT Kraken X63 RL-KRX63-01 is a 280 mm all-in-one liquid cooler designed for mainstream and high-performance desktop CPUs. It supports Intel LGA 1700, 1200, 1151, 1150, 1155, 1156, 1366, 2011, 2011-3 and 2066 sockets as well as AMD AM4 and Threadripper platforms. The pump head features a rotating infinity mirror ring LED that can be reoriented without changing the logo direction. Two 140 mm Aer P fans with fluid dynamic bearings deliver 27.27 to 98.17 CFM at 21 to 38 dBA.

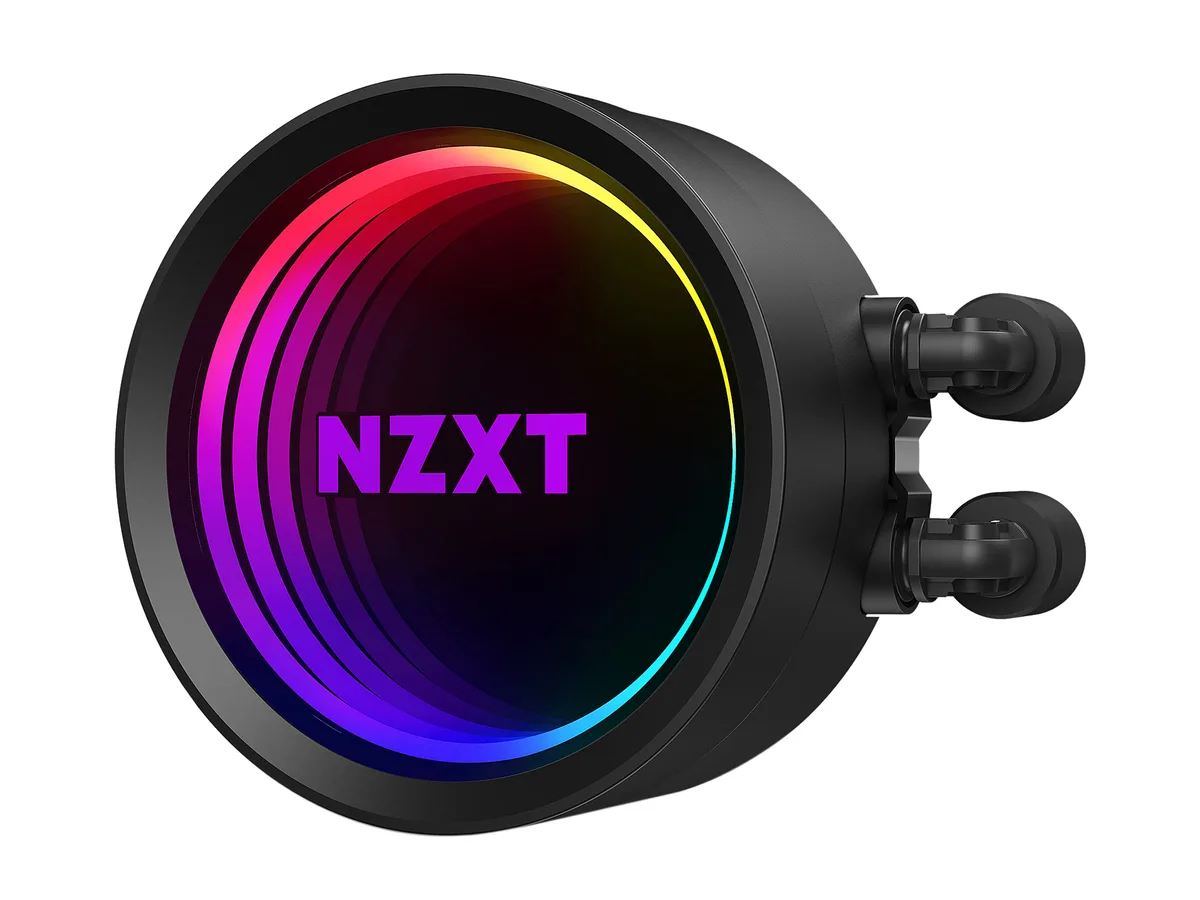

Rotating pump head eases mounting

Installation is simplified by the adjustable pump cap which rotates independently of the housing so the logo stays upright regardless of tube routing. The 400 mm tubing uses ultra-low evaporation rubber with a nylon braided sleeve that resists kinking during handling. A separate LGA 1700 bracket kit is required and must be obtained from the manufacturer. The Threadripper mounting bracket is not included in the box. CAM V4 software provides fan and pump control through a 4-pin PWM connector.

Check radiator space and bracket needs

Verify that your case can accommodate a 315 mm by 143 mm by 30 mm radiator with two 140 mm fan slots before ordering. Confirm the correct Intel or AMD retention hardware is present; the LGA 1700 bracket is not supplied and the Threadripper bracket is sold separately. Ensure the motherboard CPU socket keep-out zone clears the 80 mm by 80 mm by 55 mm pump block. A 4-pin PWM header and a USB 2.0 header are required for full CAM integration.

Highlights

  • Adjustable pump head keeps the logo upright in any orientation
  • 10% larger infinity mirror ring delivers more vivid RGB lighting
  • CAM software integration provides precise fan and pump control
  • Aer P 140mm fans with fluid dynamic bearings run at 21 to 38 dBA
  • Nylon-braided 400mm tubing resists evaporation and protects against mishandling

Specifications

BrandNZXT
SeriesKraken X63
ModelRL-KRX63-01
TypeLiquid Cooling System
Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4 / sTRX4*, TR4*(*Threadripper bracket not included)
AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper
Block Dim.80.00 x 80.00 x 55.00 mm
Block MaterialCopper & Plastic
Radiator Size315.00 x 143.00 x 30.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan Dim.140.00 x 140.00 x 26.00 mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500 - 1,800 + 300 RPM
Fan Air Flow27.27 - 98.17 CFM
Fan Noise21 - 38 dBA
Fan Connector4-pin PWM
ColorBlack
Tube Dim.Length: 400mm
Tube MaterialUltra-low Evaporation Rubber with Nylon Braided Sleeve
FeaturesDESIGN: With a re-designed cap and larger infinity mirror ring LED, the new Kraken X allows for adjusting the orientation of the pump head to fit without affecting the direction of the logo
BIGGER AND BRIGHTER: 10% bigger infinity mirror cap allows for more vivid RGB and a rotating cap accommodates re-orienting the logo no matter the direction the cooler is installed
BETTER CONTROL: Full CAM integration allows you to manage your Kraken’s performance with precision
INCREDIBLE PERFORMANCE: The Aer P radiator fans feature a chamfered intake and fluid dynamic bearing that provides silent
Shipping weight2.16 kg
Package size348 × 213 × 155 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the pump is running correctly after installation?

Open NZXT CAM software and verify the pump speed is reported; the pump header connects via USB to the motherboard so CAM reads real-time RPM and coolant temperature.

What mounting hardware is included for Intel LGA 1700 and AMD AM4 sockets?

The box contains brackets and backplates for Intel LGA 1700, 1200, 115x, 2011, 2066 and AMD AM4; a separate Threadripper bracket is required for sTRX4 or TR4 and is not included.

Which radiator size matches a case with 280 mm top clearance?

This model uses a 280 mm radiator measuring 315 x 143 x 30 mm with two 140 mm fans, so it fits cases rated for 280 mm dual-fan mounts.
