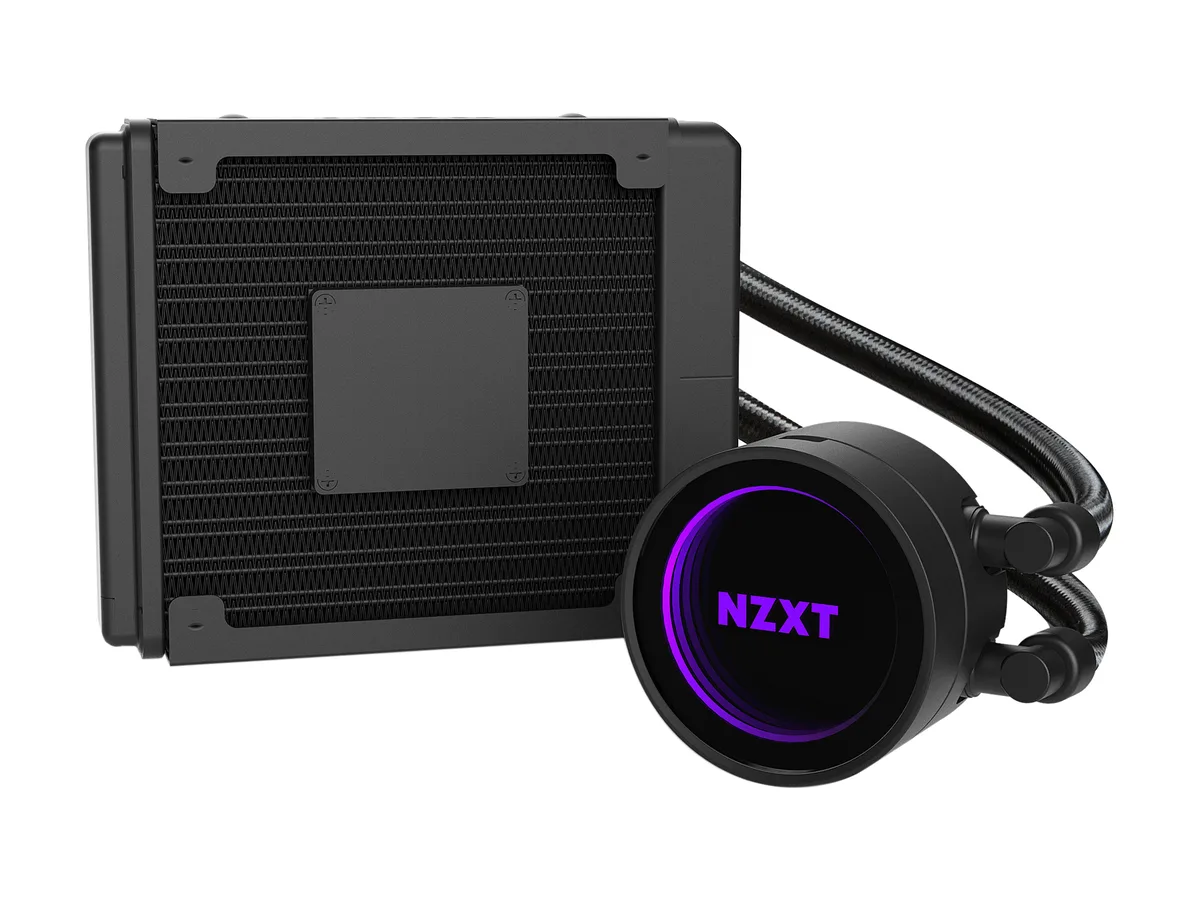

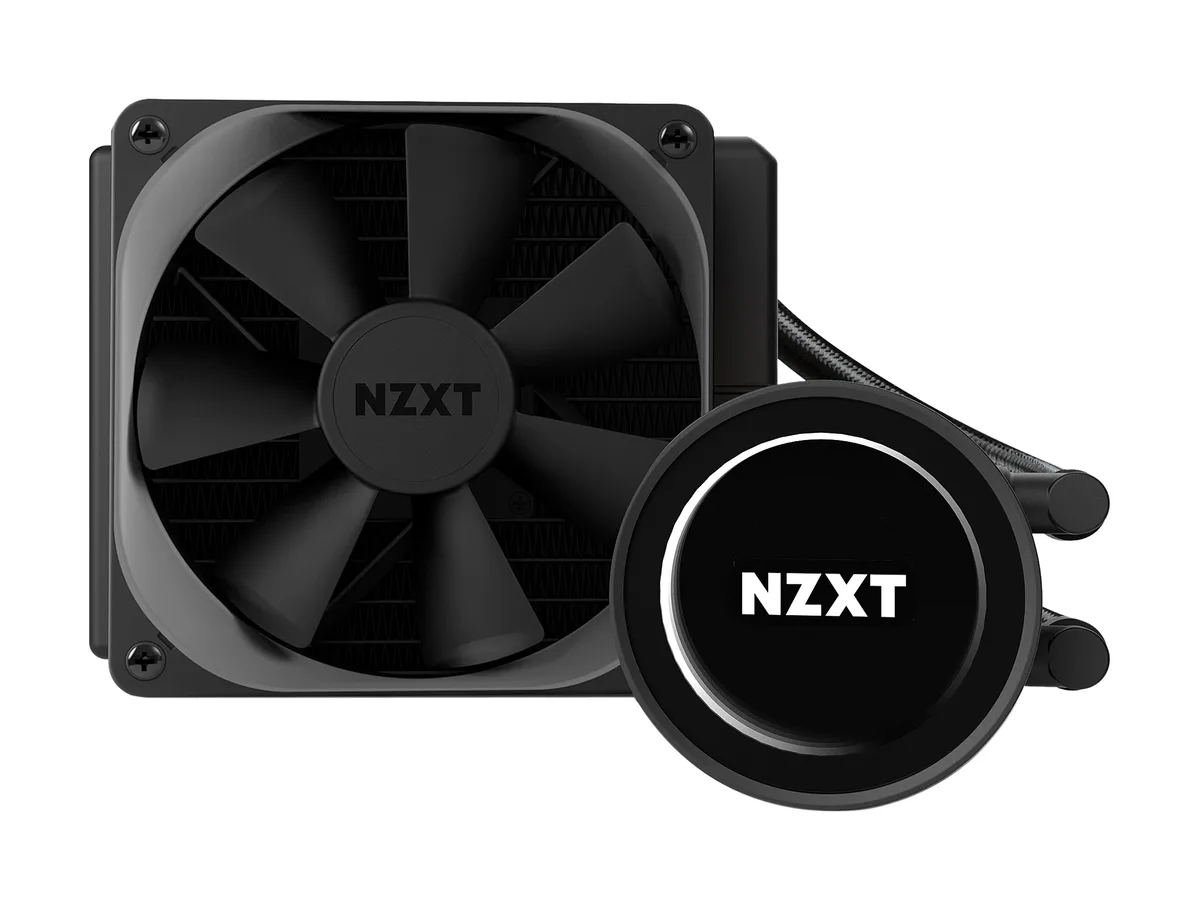

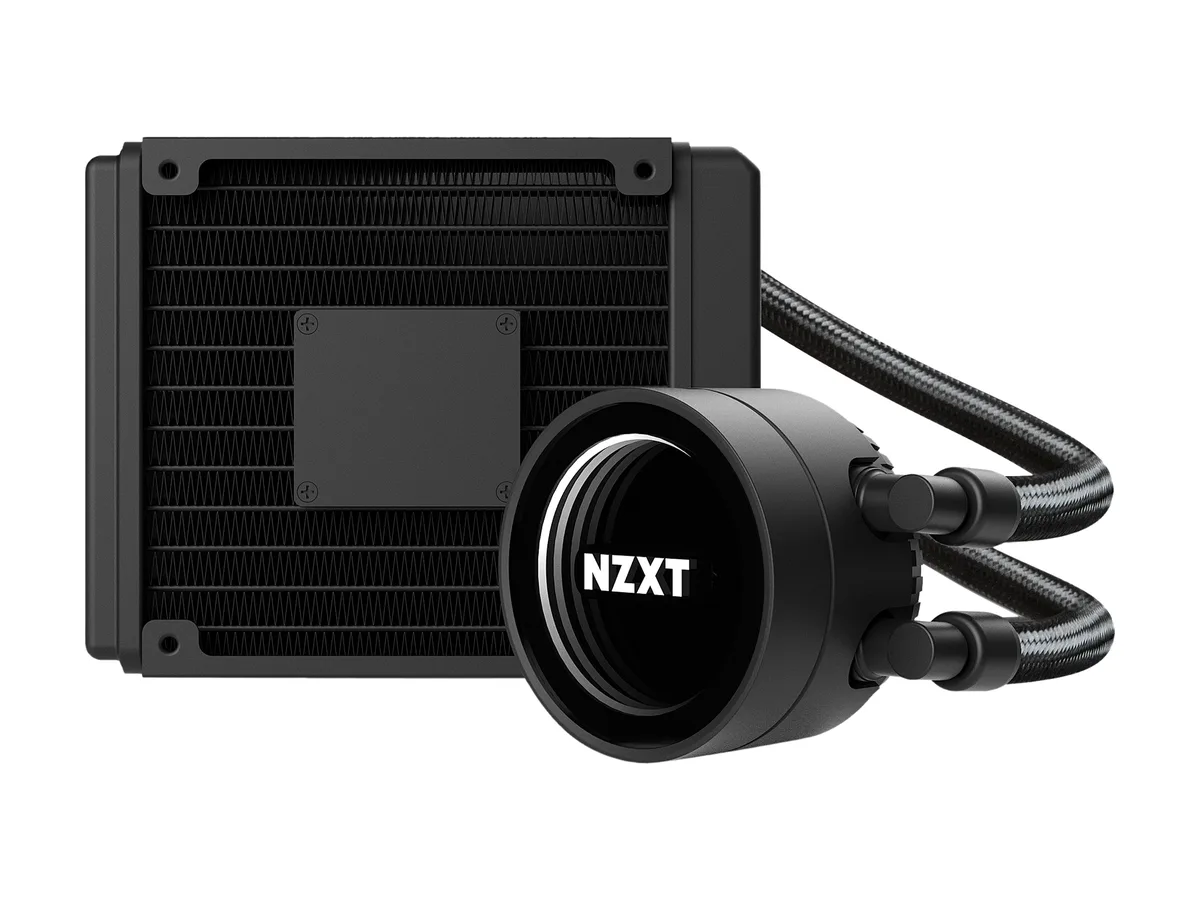

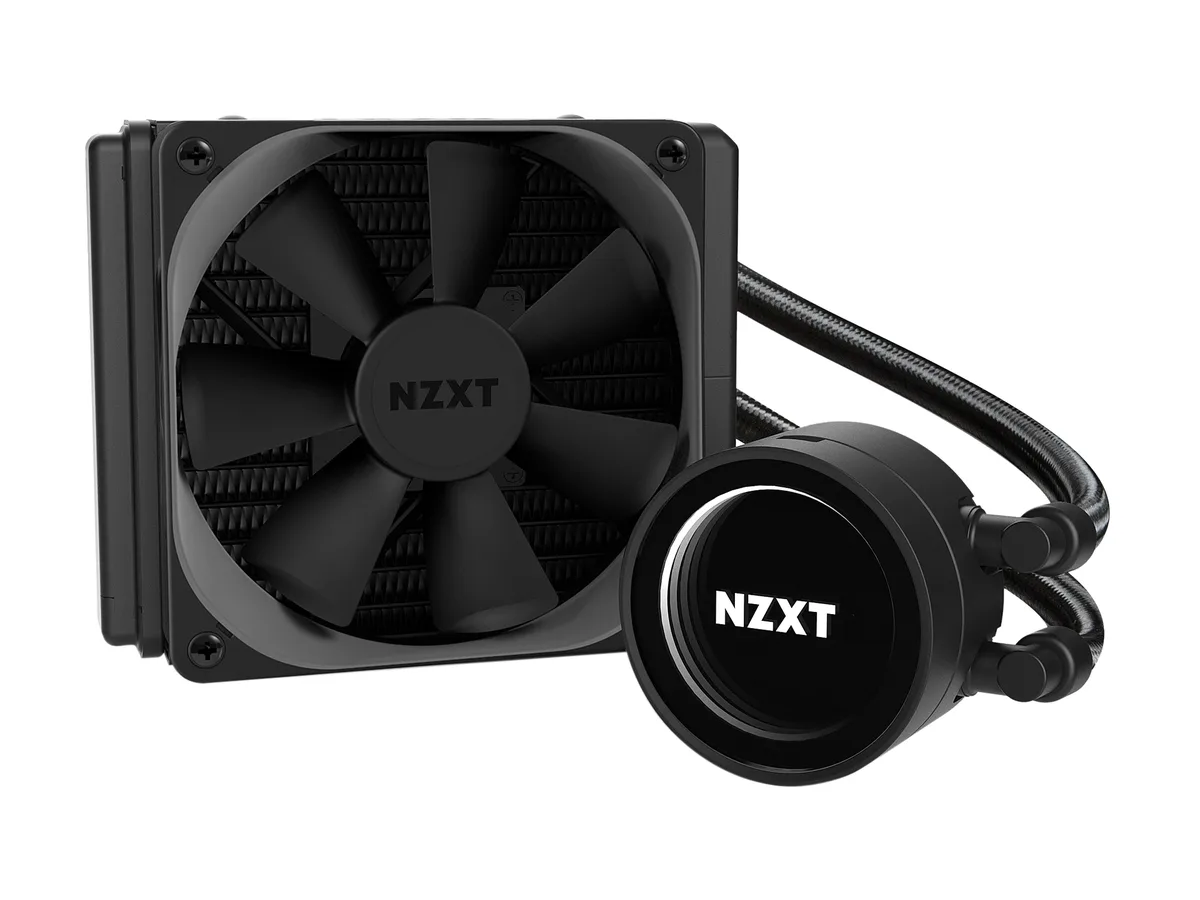

NZXT Kraken M22 120mm AIO liquid cooler with infinity mirror pump head and sleeved tubing

NZXT

NZXT RL-KRM22-01 Kraken M22 120mm liquid cooler

SKU CH-NVX2-QC8VZ MPN RL-KRM22-01

A 120 mm all-in-one liquid cooler with infinity-mirror RGB lighting, CAM software control and reinforced 400 mm tubing for Intel and AMD sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel Socket 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 115
  • Block Dim.65.00 x 65.00 x 48.00 mm
  • Block MaterialAluminum, copper, plastic, ultra-low evaporation rubber, nyl
  • Radiator Size152.00 x 120.00 x 32.00 mm
  • Fan Size1 Fan Slot (120 mm)

Fan Size 1 Fan Slot (120mm)

Color Black

Model Kraken M22

Struck-through versions exist but are not stocked here.

  • Individually addressable RGB with infinity mirror lighting
  • CAM desktop and mobile app controls pump speed and liquid temperature

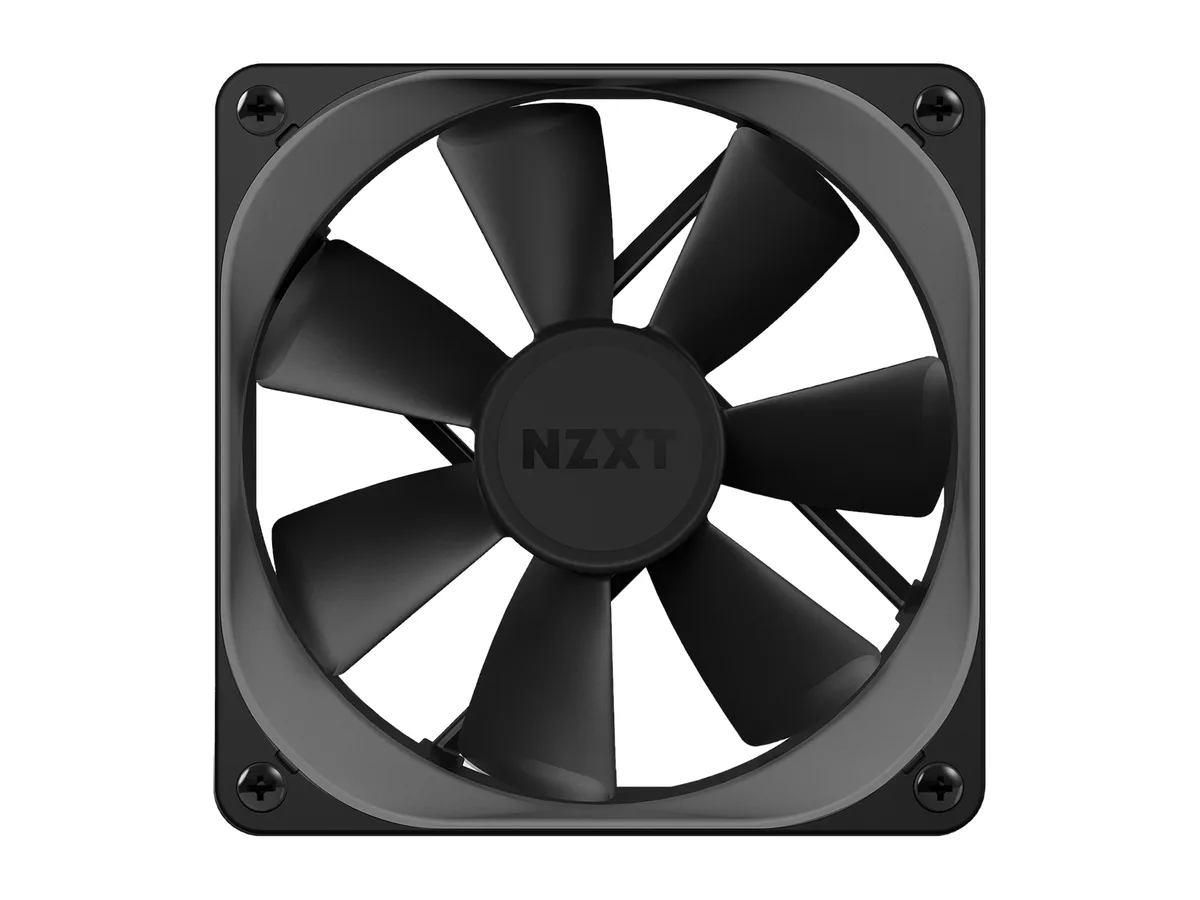

  • Aer P120 fan runs 500 to 2000 RPM at 21 to 36 dBA
  • Reinforced nylon sleeving protects 400 mm tubing from handling damage
  • Supports Intel LGA 1700, 1200, 115x, 2011, 2066 and AMD AM4, AM3+, AM2+

NZXT Kraken M22 120mm liquid cooler

This all-in-one CPU cooler uses a 120mm radiator and a single Aer P120 fan to move heat away from the processor. It fits a wide range of Intel sockets from 1150 through 1700 plus AMD AM4 and older AMD platforms. The pump block measures 65mm square and 48mm tall, while the radiator is 152mm by 120mm by 32mm.

Sustained-load behaviour

The pump and fan are managed through CAM software on desktop or mobile, letting you tune curves for long sessions rather than short bursts. Fan speed ranges from 500 to 2000 RPM with a noise output of 21 to 36 dBA. Reinforced 400mm tubing reduces evaporation risk and resists kinking during extended operation.

Compatibility check

Verify that your case can mount a 120mm radiator with 32mm thickness and that clearance around the CPU socket accommodates the 65mm square block. Extra LGA 1700 mounting brackets are not included and must be requested from the manufacturer. The cooler is not compatible with the Kraken G12 GPU bracket.

Highlights

  • Individually addressable RGB with infinity mirror lighting
  • CAM desktop and mobile app controls pump speed and liquid temperature
  • Aer P120 fan runs 500 to 2000 RPM at 21 to 36 dBA
  • Reinforced nylon sleeving protects 400 mm tubing from handling damage
  • Supports Intel LGA 1700, 1200, 115x, 2011, 2066 and AMD AM4, AM3+, AM2+

Specifications

BrandNZXT
SeriesKraken M22
ModelRL-KRM22-01
TypeLiquid Cooling System
Block CompatibilityIntel Socket 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Ryzen / FX / Athlon X4 / Athlon X2 / A-Series APU / Phenom / Phenom II / Athlon / Athlon II / Sempron
Block Dim.65.00 x 65.00 x 48.00 mm
Block MaterialAluminum, copper, plastic, ultra-low evaporation rubber, nylon sleeving
Radiator Size152.00 x 120.00 x 32.00 mm
Fan Size1 Fan Slot (120 mm)
Fan Dim.120.00 x 120.00 x 25.00 mm
Fan RPM500 - 2,000 +/- 300 RPM
Fan Noise21 - 36 dBA
LED ColorLED Modes:
Preset Modes: Fixed, Breathing, Fading, Marquee, Covering Marquee, Pulse, Spectrum Wave, Alternating, Tai Chi, Water Cooler, Loading
Reactive Modes: Smart and Audio
Tube Dim.Tube Length: 400mm
FeaturesThe Kraken M22 features two individually addressable RGB channels and our signature infinite-mirror effect for stunning lighting, using CAM’s intuitive controls. It includes precision engineered fans and premium build quality.
Individually addressable RGB lighting and infinite mirror design
CAM-powered for complete software control, via desktop or mobile app
Advanced lighting modes for a fully dynamic lighting experience
Includes Aer P120 radiator-optimized fan
Reinforced, extended tubing for increased durability
The product is not compatible with Kraken G12
Shipping weight1.40 kg
Package size340 × 224 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the Aer P120 fan when the Kraken M22 runs continuously at full speed?

The fan operates between 21 and 36 dBA across its 500 to 2000 RPM range, so sustained maximum speed will sit at the upper end of that band.

Which separate bracket kit must I already own to mount the Kraken M22 on an Intel LGA 1700 socket?

Extra LGA 1700 brackets are required and must be obtained from the manufacturer before installation.

Will the 120 mm radiator and 400 mm tubing reach the mounting points on an older AM3+ board without stretching?

The radiator measures 152 x 120 x 32 mm with 400 mm tubes, a layout designed for the wide socket range that includes AM3+.
