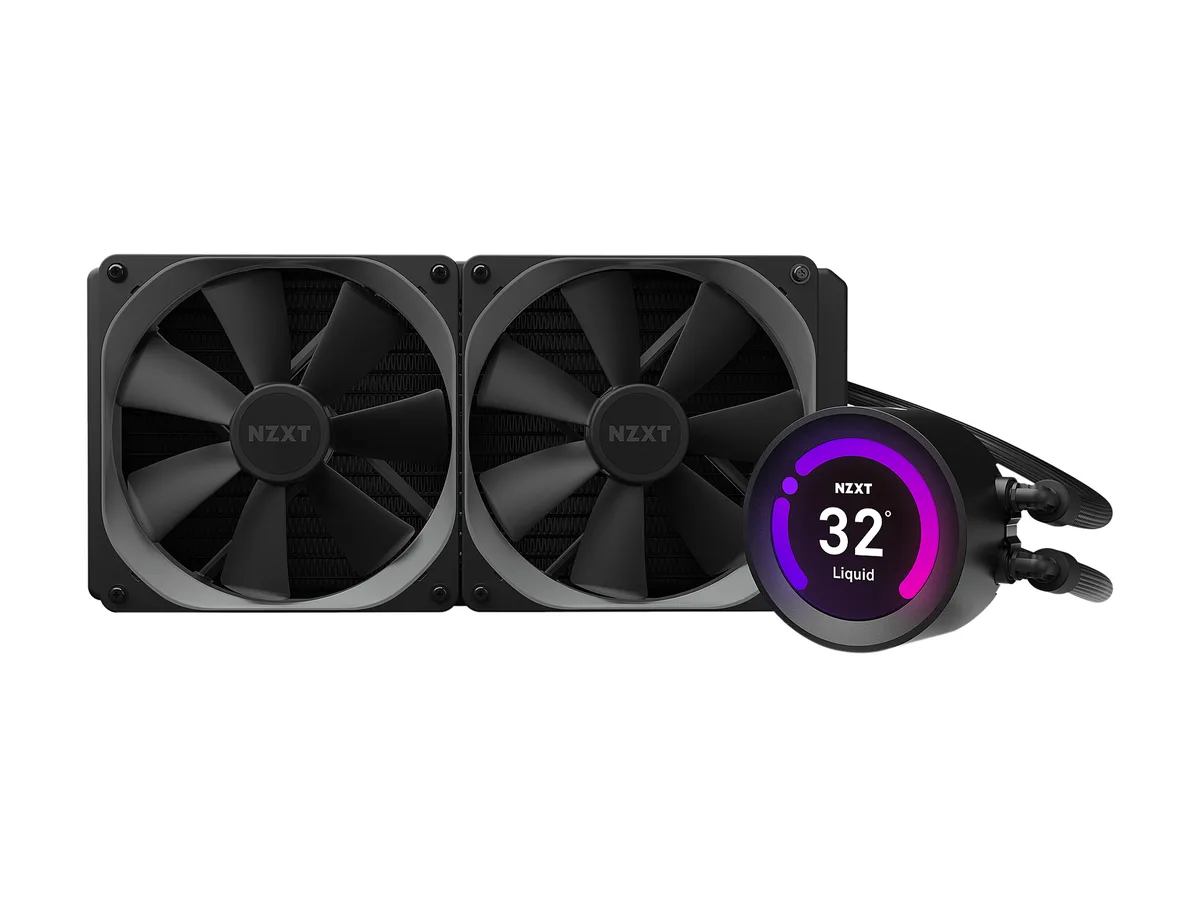

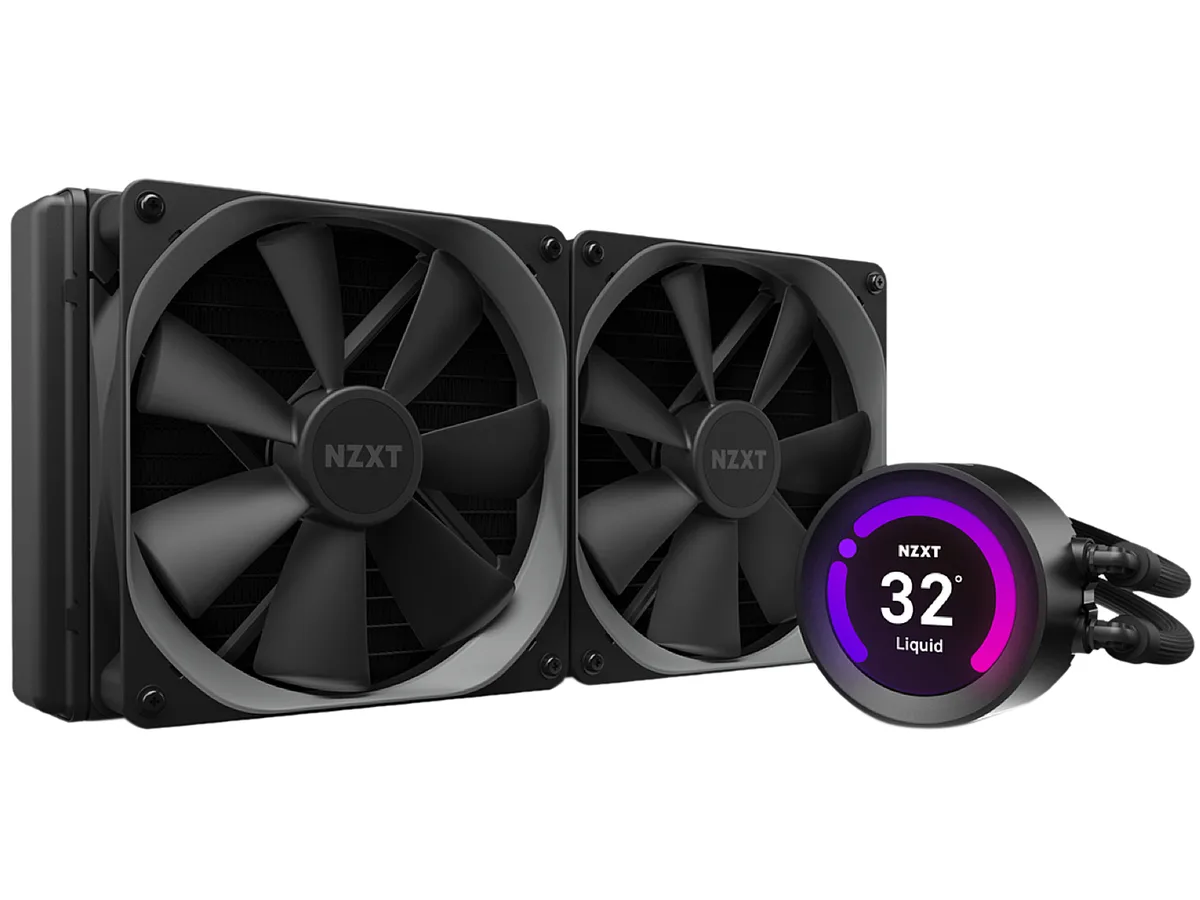

Black AIO liquid cooler with 280mm radiator, two 140mm fans and a square pump block featuring a 2.36 inch LCD screen

NZXT

NZXT Kraken Z63 280mm liquid cooler RL-KRZ63-01

SKU CH-MGYQ-MCM3D MPN RL-KRZ63-01

A 280 mm all-in-one liquid cooler with a 2.36" customizable LCD display, dual 140 mm fluid-dynamic-bearing fans running 500 to 1,800 RPM, and broad Intel and AMD socket support

  • TypeLiquid Cooling System
  • Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 /
  • Block Dim.79.00 x 79.00 x 52.00 mm
  • Block MaterialCopper & Plastic
  • Radiator Size315.00 x 143.00 x 30.00 mm
  • Radiator MaterialAluminum

Fan Size 2 Fan Slots (140mm)

Color Black

Model Kraken Z63

Struck-through versions exist but are not stocked here.

  • Customisable 2.36" LCD shows animated GIFs or system data
  • CAM V4 software controls pump speed, fan curves and display content
  • Fluid dynamic bearing fans run 500 to 1,800 RPM at 21 to 38 dBA
  • Rotatable pump head simplifies installation across socket orientations
  • Supports Intel LGA 1700, 1200, 115x, 2066 and AMD AM4, sTRX4

Customisable LCD display

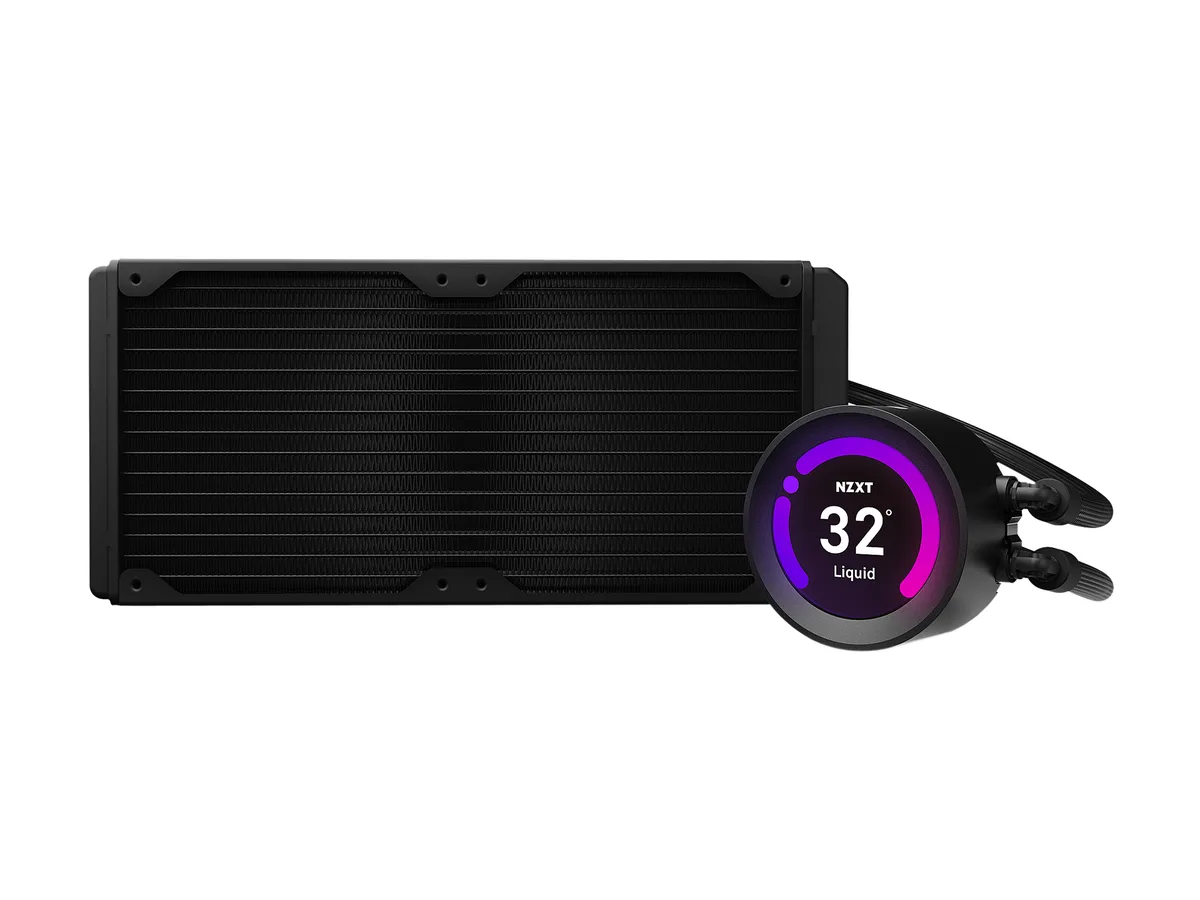

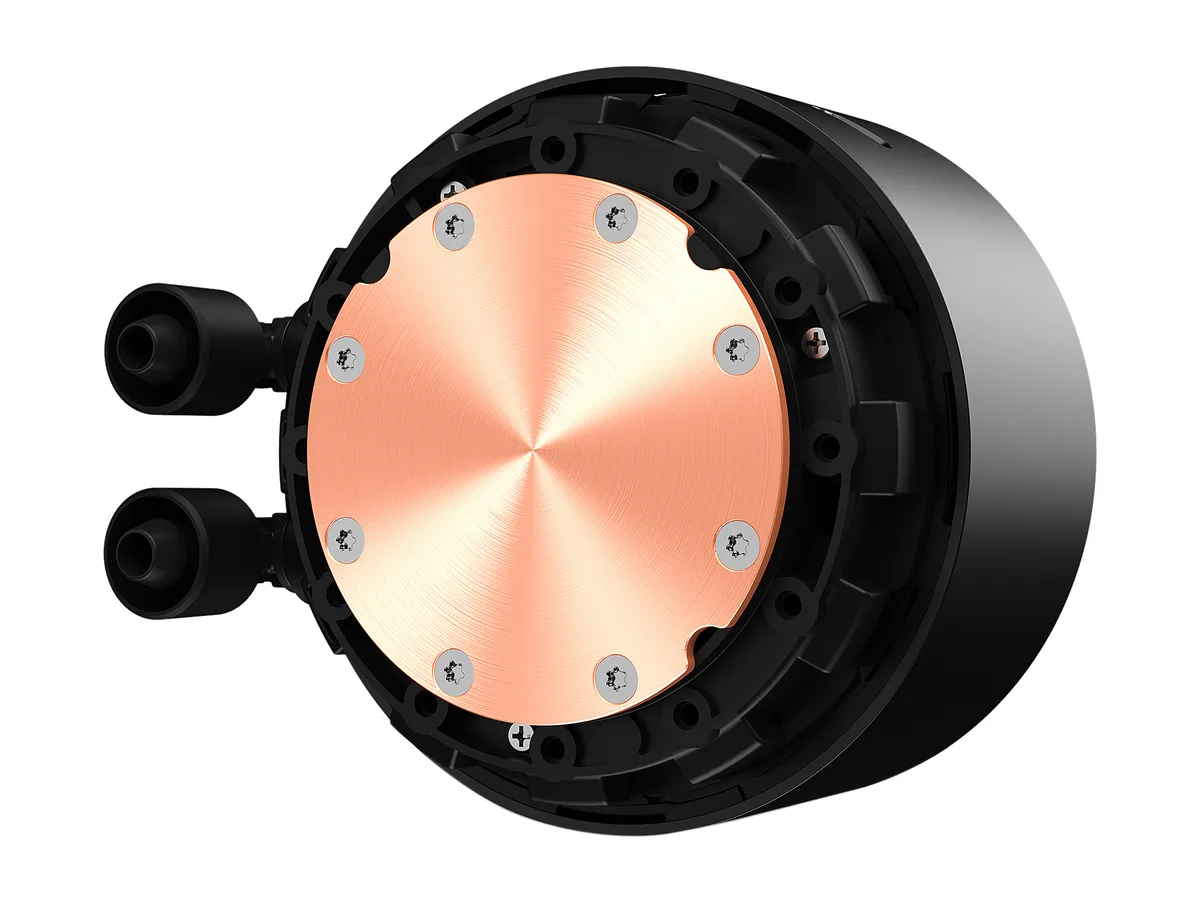

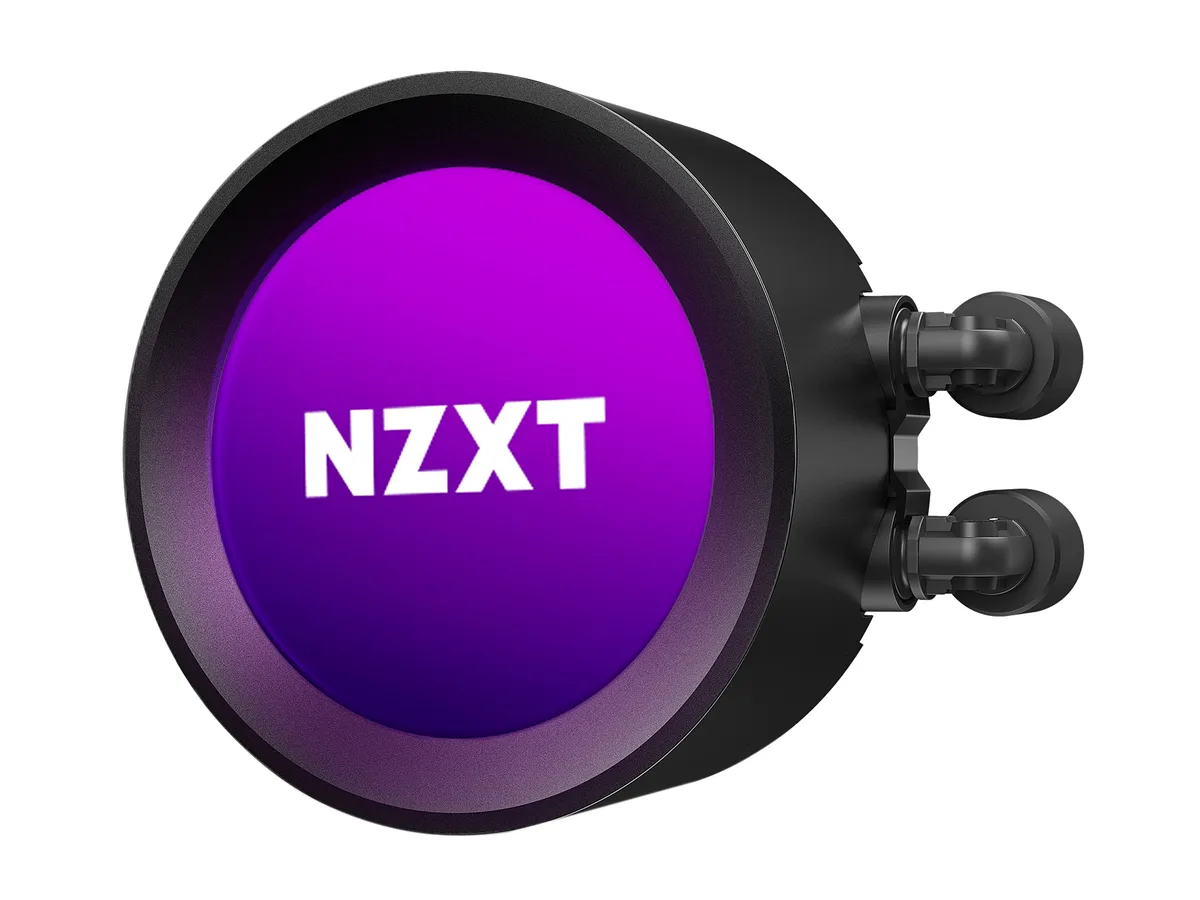

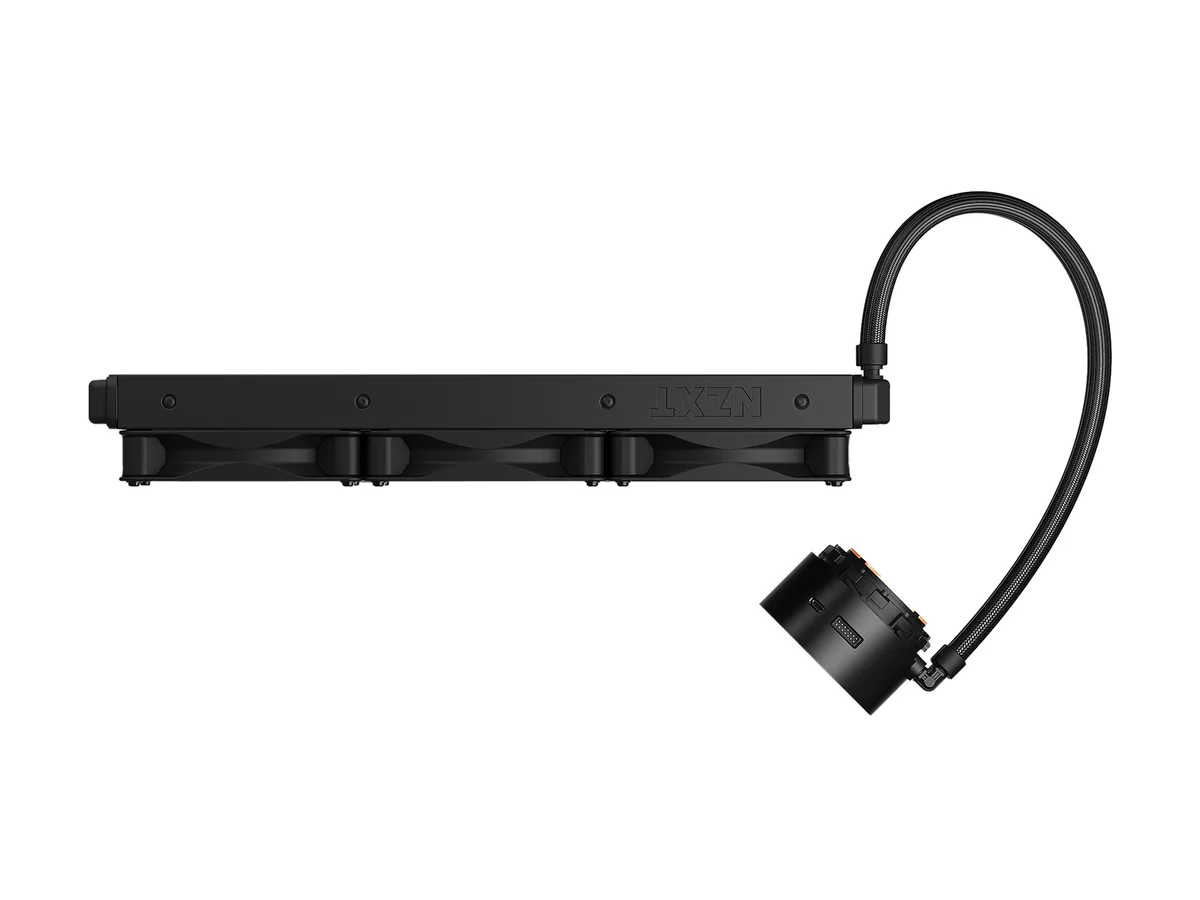

The NZXT Kraken Z63 RL-KRZ63-01 is a 280mm all-in-one liquid cooler built around a 2.36-inch LCD screen that shows 24-bit colour images, animated GIFs or CAM system data. A copper cold plate transfers heat to an aluminium radiator measuring 315.00 x 143.00 x 30.00 mm, while two 140 mm fluid-dynamic-bearing fans push between 27.27 and 98.17 CFM at 500 to 1,800 RPM. The pump block measures 79.00 x 79.00 x 52.00 mm and can be rotated to keep the logo upright regardless of mounting orientation. Tubes are 400 mm long and wrapped in a nylon-braided sleeve.

Enthusiasts who want visual customisation

This cooler suits builders who value a programmable display and quiet operation between 21 and 38 dBA across Intel LGA 1150, 1151, 1155, 1156, 1200, 1366, 1700, 2011, 2011-3 and 2066 plus AMD AM4 and Threadripper TR4 platforms. It is not for buyers who need a Threadripper sTRX4 bracket in the box, anyone who prefers air cooling to avoid liquid maintenance, or systems that cannot accommodate a 315 mm long radiator with dual 140 mm fan slots.

Verify radiator clearance

Check that your case can fit a 315.00 mm radiator with 30.00 mm thickness and two 140 mm fans measuring 140.00 x 140.00 x 26.00 mm. Confirm the motherboard has a 4-pin PWM header for the pump and enough fan headers for both 140 mm units. Ensure the chosen Intel or AMD socket from the supported list matches your CPU, and note that a separate Threadripper bracket is required for sTRX4 or TR4 installations.

Highlights

  • Customisable 2.36" LCD shows animated GIFs or system data
  • CAM V4 software controls pump speed, fan curves and display content
  • Fluid dynamic bearing fans run 500 to 1,800 RPM at 21 to 38 dBA
  • Rotatable pump head simplifies installation across socket orientations
  • Supports Intel LGA 1700, 1200, 115x, 2066 and AMD AM4, sTRX4

Specifications

BrandNZXT
SeriesKraken Z63
ModelRL-KRZ63-01
Part NumberRL-KRZ63-01
TypeLiquid Cooling System
Block CompatibilityIntel Socket LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD Socket AM4 / sTRX4*, TR4*(*Threadripper bracket not included)
AMD Ryzen 7 / Ryzen 5 / Ryzen 3 / Ryzen 9 / Threadripper
Block Dim.79.00 x 79.00 x 52.00 mm
Block MaterialCopper & Plastic
Radiator Size315.00 x 143.00 x 30.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan Dim.140.00 x 140.00 x 26.00 mm
Bearing TypeFluid Dynamic Bearing
Fan RPM500 - 1,800 + 300 RPM
Fan Air Flow27.27 - 98.17 CFM
Fan Noise21 - 38 dBA
Fan Connector4-pin PWM
ColorBlack
Tube Dim.Length: 400mm
Tube MaterialUltra-low Evaporation Rubber with Nylon Braided Sleeve
FeaturesCUSTOMIZE YOUR BATTLESTATION: With a bright, 2.36" LCD screen capable of displaying 24-bit color, you can now completely customize the look of your CPU cooler
STAY IN CONTROL: CAM's elegant, user-friendly software makes you the master of your PC with simple-to-use, intuitive controls, you can manage your Kraken's performance and appearance with ease
INCREDIBLE PERFORMANCE: Featuring a chamfered intake and fluid dynamic bearings, they deliver silent operation, long-term reliability, and powerful cooling performance
SIMPLE INSTALLATION: With the fully programmable display, the pump can
Shipping weight2.15 kg
Package size348 × 211 × 155 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the pump block fit an LGA 1700 socket or do I need a separate bracket?

The cooler supports LGA 1700 but the supplier notes that extra LGA 1700 brackets are required and to contact the manufacturer for the bracket.

Will the two 140 mm fans and 280 mm radiator clear my existing RAM and case front panel?

Radiator dimensions are 315.00 x 143.00 x 30.00 mm and each fan is 140.00 x 140.00 x 26.00 mm; compare these to your case clearance and RAM height before fitting.

How do I confirm the LCD and pump are running correctly after install?

Open CAM V4 software — the 2.36" LCD should show your chosen image or system data and the pump speed will be reported alongside fan RPM between 500 and 1,800 RPM.
