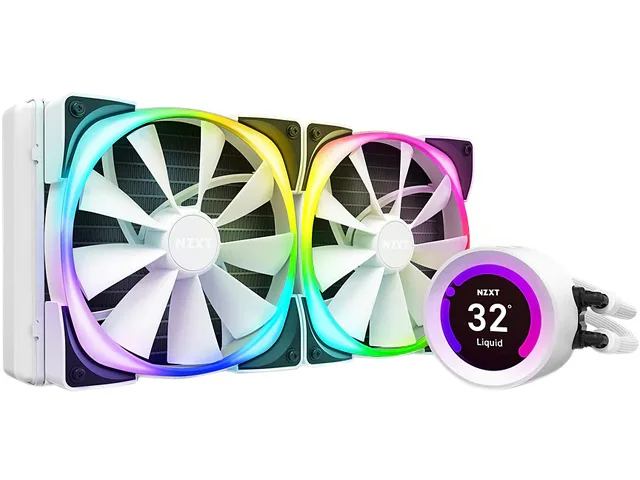

White 280mm AIO liquid cooler with 2.36 inch LCD pump head, two 140mm fans and sleeved tubing

NZXT

NZXT RL-KRZ63-RW Kraken Z63 280mm liquid cooler

SKU CH-N18S-PWBQD MPN RL-KRZ63-RW

A 280 mm liquid cooler with a 2.36" LCD screen, two 140 mm fans running 500–1800 RPM, and compatibility for Intel LGA 1700 and AMD AM4 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 115x A
  • Block MaterialCopper & Plastic
  • Radiator Size315.00 x 143.00 x 30.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (140 mm)

Fan Size 2 Fan Slots (140mm)

Color White

Model Kraken Z63 RGB

Struck-through versions exist but are not stocked here.

  • 36" LCD shows custom images and system data via CAM software
  • Two 140 mm Aer P fans deliver 27.27 to 98.17 CFM at 21 to 38 dBA
  • Nylon-sleeved rubber tubing resists leaks during long-term use
  • Supports Intel LGA 1700, 1200, 115x and AMD AM4 sockets
  • Pump orientation adjustable by 90 degrees for flexible installation

LCD liquid cooler for CPU personalization

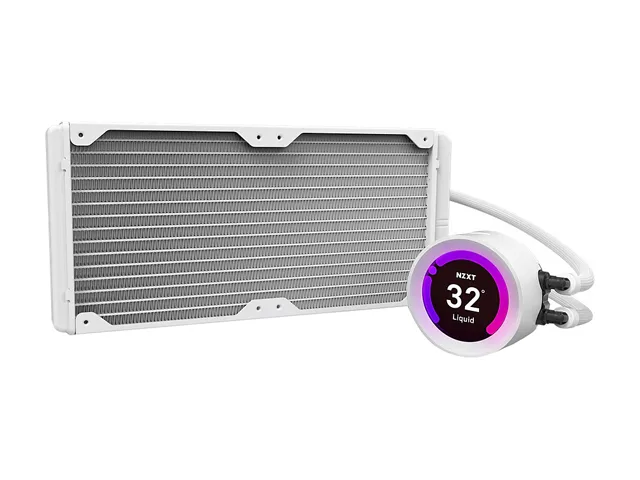

The NZXT Kraken Z63 RL-KRZ63-RW is an all-in-one liquid cooler built around a 2.36 inch LCD screen that shows 24-bit colour images, animated GIFs or CAM system data through NZXT CAM software. A white finish and RGB lighting on the pump and two included 140 mm Aer P fans let the unit match light-themed builds. The 280 mm aluminium radiator measures 315.00 x 143.00 x 30.00 mm and uses nylon-sleeved rubber tubes 400 mm long for leak-resistant routing.

Suits builders who want a programmable display

This cooler fits Intel sockets LGA 2066, 2011-3, 2011, 1700, 1366, 1200 and 115x plus AMD AM4 and Threadripper sTRX4 or TR4 when a separate bracket is sourced. Fan speeds run 500 to 1,800 RPM with airflow of 27.27 to 98.17 CFM and noise of 21 to 38 dBA, so the system stays quiet at idle and ramps up under load. Builders who need a smaller radiator for a compact case or who cannot accommodate a 315 mm length should look at other options.

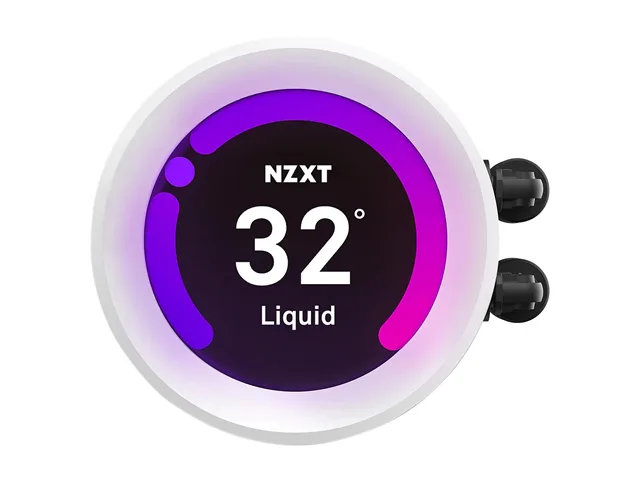

2.36 inch LCD screen with 24-bit colour and CAM

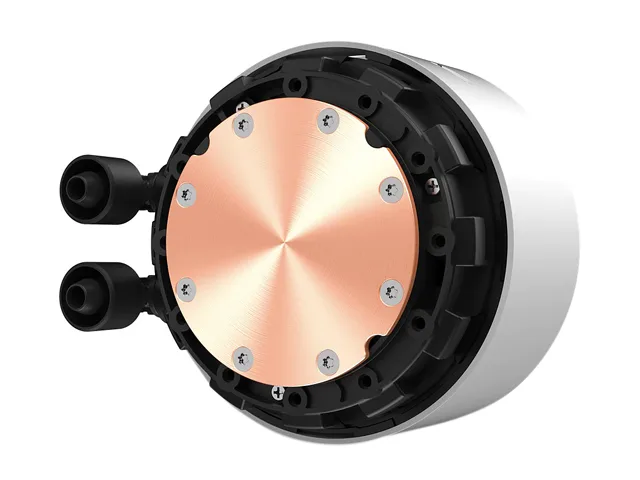

The pump-mounted display is the deciding specification: it can be rotated in 90 degree steps within CAM to suit tube routing and shows whatever visual or monitoring content the user loads. If a buyer does not need an on-block screen, a cooler without this feature will cost less and simplify cable management. The copper cold plate and four-pin fan connectors complete the package for standard motherboard control.

Highlights

  • 36" LCD shows custom images and system data via CAM software
  • Two 140 mm Aer P fans deliver 27.27 to 98.17 CFM at 21 to 38 dBA
  • Nylon-sleeved rubber tubing resists leaks during long-term use
  • Supports Intel LGA 1700, 1200, 115x and AMD AM4 sockets
  • Pump orientation adjustable by 90 degrees for flexible installation

Specifications

BrandNZXT
ModelRL-KRZ63-RW
Part NumberRL-KRZ63-RW
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 115x
AMD AM4 / sTRX4* / TR4* (*Threadripper bracket not included)
Block MaterialCopper & Plastic
Radiator Size315.00 x 143.00 x 30.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan RPM500 - 1,800 (+/- 300) RPM
Fan Air Flow27.27 - 98.17 CFM
Fan Noise21 - 38 dBA
Fan Connector4 Pin
ColorWhite
LED ColorRGB
Tube Dim.400mm
Tube MaterialRubber with Nylon Sleeve
Shipping weight2.09 kg
Package size349 × 210 × 156 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 2.36" LCD on the pump handle continuous 24-bit color output under load?

The display is driven by NZXT CAM software and can show static images, animated GIFs or live system data; orientation is digitally rotatable in 90° steps for easier installation.

What noise level do the two 140 mm Aer P fans reach when running at 1,800 RPM all day?

Fan noise ranges from 21 dBA at 500 RPM up to 38 dBA at the 1,800 RPM maximum, with chamfered intake and fluid dynamic bearings for quiet operation.

Which CPU socket brackets are already in the box for the copper cold plate to mount?

Included brackets cover Intel LGA 1700, 1200, 115x, 2066, 2011-3, 2011, 1366 and AMD AM4; Threadripper sTRX4 and TR4 brackets are not included.
