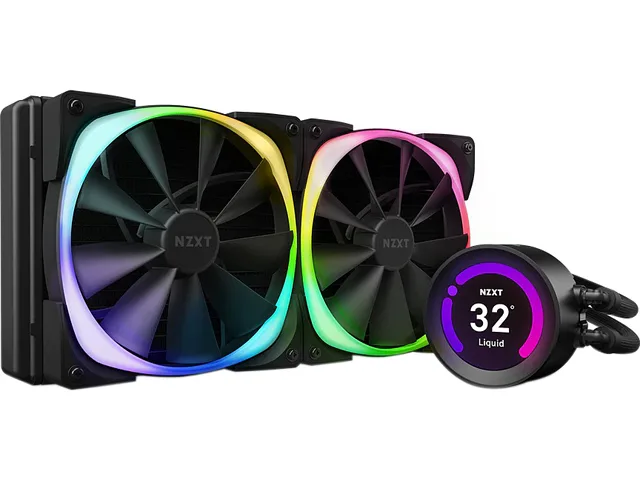

Black 280mm AIO liquid cooler with 2.36 inch LCD pump head and two 140mm fans

NZXT

NZXT RL-KRZ63-R1 Kraken Z63 280mm liquid cooler

SKU CH-6GFY-JDVM2 MPN RL-KRZ63-R1

280 mm radiator with two 140 mm fans and a 2.36" LCD pump display that shows custom images or system data via CAM software

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 115x A

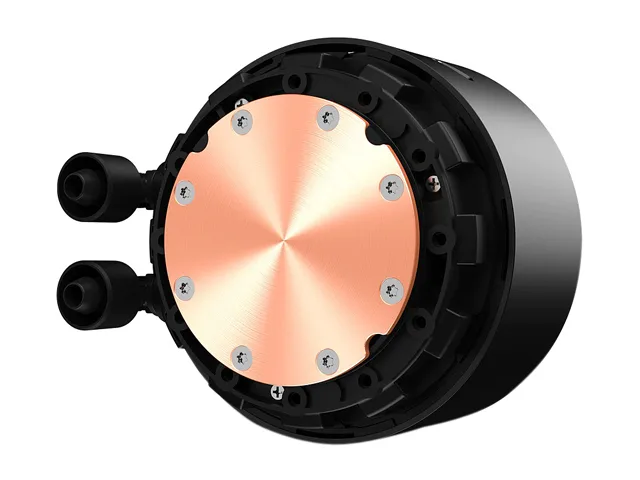

  • Block MaterialCopper & Plastic
  • Radiator Size315.00 x 143.00 x 30.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (140 mm)

Fan Size 2 Fan Slots (140mm)

Color Black

Model Kraken Z63 RGB

Struck-through versions exist but are not stocked here.

  • Customisable 2.36" LCD shows images, GIFs or system data
  • Aer P 140 mm fans run 500–1800 RPM for 27.27–98.17 CFM airflow
  • Quiet operation at 21–38 dBA thanks to fluid dynamic bearings
  • Nylon-sleeved 400 mm tubing resists leaks and kinks
  • Broad socket support including LGA 1700, 1200, AM4 and Threadripper

Kraken Z63 280mm liquid cooler for customizable

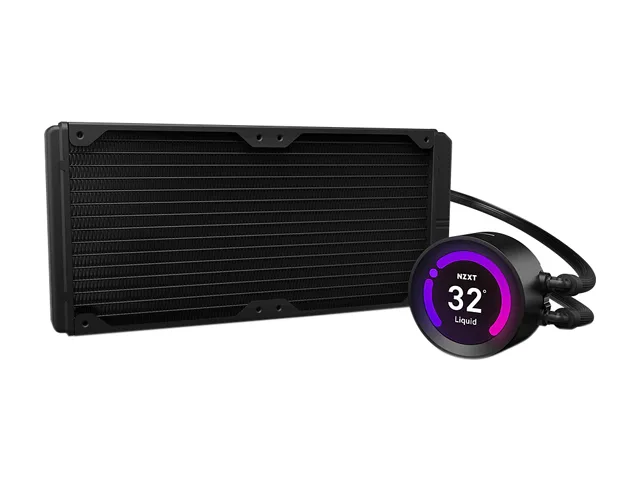

The NZXT Kraken Z63 is a 280mm all-in-one liquid cooler designed for builders who want a prominent 2.36" LCD screen on the pump head. It fits Intel sockets from LGA 115x through LGA 1700 and AMD AM4, while Threadripper mounting requires a separate bracket. The package includes two 140mm Aer P fans and 400mm nylon-sleeved tubing.

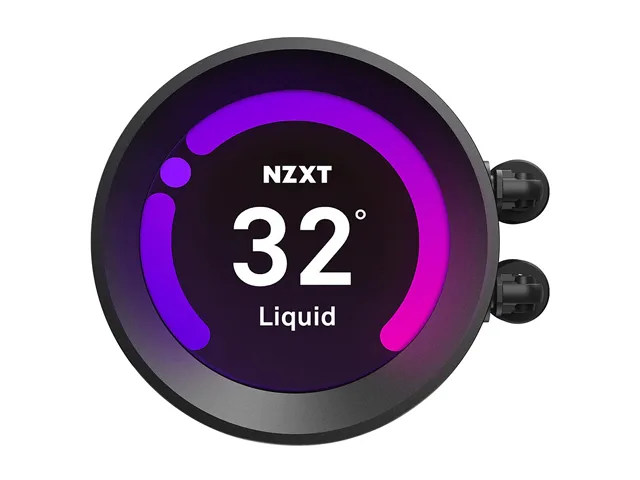

2.36" LCD screen with 24-bit color and CAM

The defining feature is the pump-mounted display that shows custom images, animated GIFs or real-time system data through NZXT CAM. Orientation can be rotated digitally by 90° for easier viewing after installation. An integrated NZXT RGB connector allows synchronized lighting with other NZXT accessories.

Two 140mm fans rated 21 to 38 dBA at 500 to 1800 RPM

The Aer P fans use chamfered intake and fluid dynamic bearings to move 27.27 to 98.17 CFM across the 315 x 143 x 30 mm aluminum radiator. Noise stays at the lower end during typical desktop loads and rises under sustained CPU stress. The 4-pin connectors enable precise PWM control through the motherboard or CAM software.

Highlights

  • Customisable 2.36" LCD shows images, GIFs or system data
  • Aer P 140 mm fans run 500–1800 RPM for 27.27–98.17 CFM airflow
  • Quiet operation at 21–38 dBA thanks to fluid dynamic bearings
  • Nylon-sleeved 400 mm tubing resists leaks and kinks
  • Broad socket support including LGA 1700, 1200, AM4 and Threadripper

Specifications

BrandNZXT
ModelRL-KRZ63-R1
Part NumberRL-KRZ63-R1
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 115x
AMD AM4 / sTRX4* / TR4* (*Threadripper bracket not included)
Block MaterialCopper & Plastic
Radiator Size315.00 x 143.00 x 30.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (140 mm)
Fan RPM500 - 1,800 (+/- 300) RPM
Fan Air Flow27.27 - 98.17 CFM
Fan Noise21 - 38 dBA
Fan Connector4 Pin
ColorBlack
LED ColorRGB
Tube Dim.400mm
Tube MaterialRubber with Nylon Sleeve
Shipping weight2.09 kg
Package size349 × 210 × 156 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 2.36 inch LCD actually show once the cooler is installed?

The pump head displays custom images, animated GIFs or live CAM system data in 24-bit colour, and the orientation can be rotated digitally by 90 degrees in the software.

How does the 4 pin fan connector limit speed control in practice?

PWM control lets the two 140 mm Aer P fans run between 500 and 1800 RPM, delivering 27.27 to 98.17 CFM at 21 to 38 dBA.

Will the 315 by 143 by 30 mm radiator and 400 mm tubes fit my case and CPU socket?

The radiator needs two 140 mm fan slots, the tubes reach 400 mm, and the block mounts on Intel LGA 1700, 1200, 115x, 2011, 2066, 1366 plus AMD AM4; Threadripper sTRX4 and TR4 require a separate bracket.
