Mid-tower PC case with three-sided tempered glass panels and brushed black aluminium interior

Phanteks

Phanteks Evolv X2 PH-ES524XTG_DBK01 PC case

SKU CH-BWGZ-WE5VD MPN PH-ES524XTG_DBK01

Mid-tower chassis with vertical airflow, tempered glass panels and integrated D-RGB lighting supports ATX and E-ATX motherboards

  • TypeATX, micro-ATX, mini-ITX, E-ATX
  • ColorBrushed Black
  • Case MaterialABS/Steel/Aluminum/Tempered glass
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Side PanelSide Tempered Glass
  • Internal 3.5" Drive Bays2

Options X2 Series (Black)

  • See-through tempered glass showcases every component
  • Vertical floating chassis draws cool air from below
  • Integrated D-RGB lighting on brushed aluminum interior
  • Triple 120 mm fan mounts top and bottom for 360 mm radiators
  • Fits 380 mm GPU, 170 mm CPU cooler, 250 mm PSU

Evolv X2 see-through glass chassis

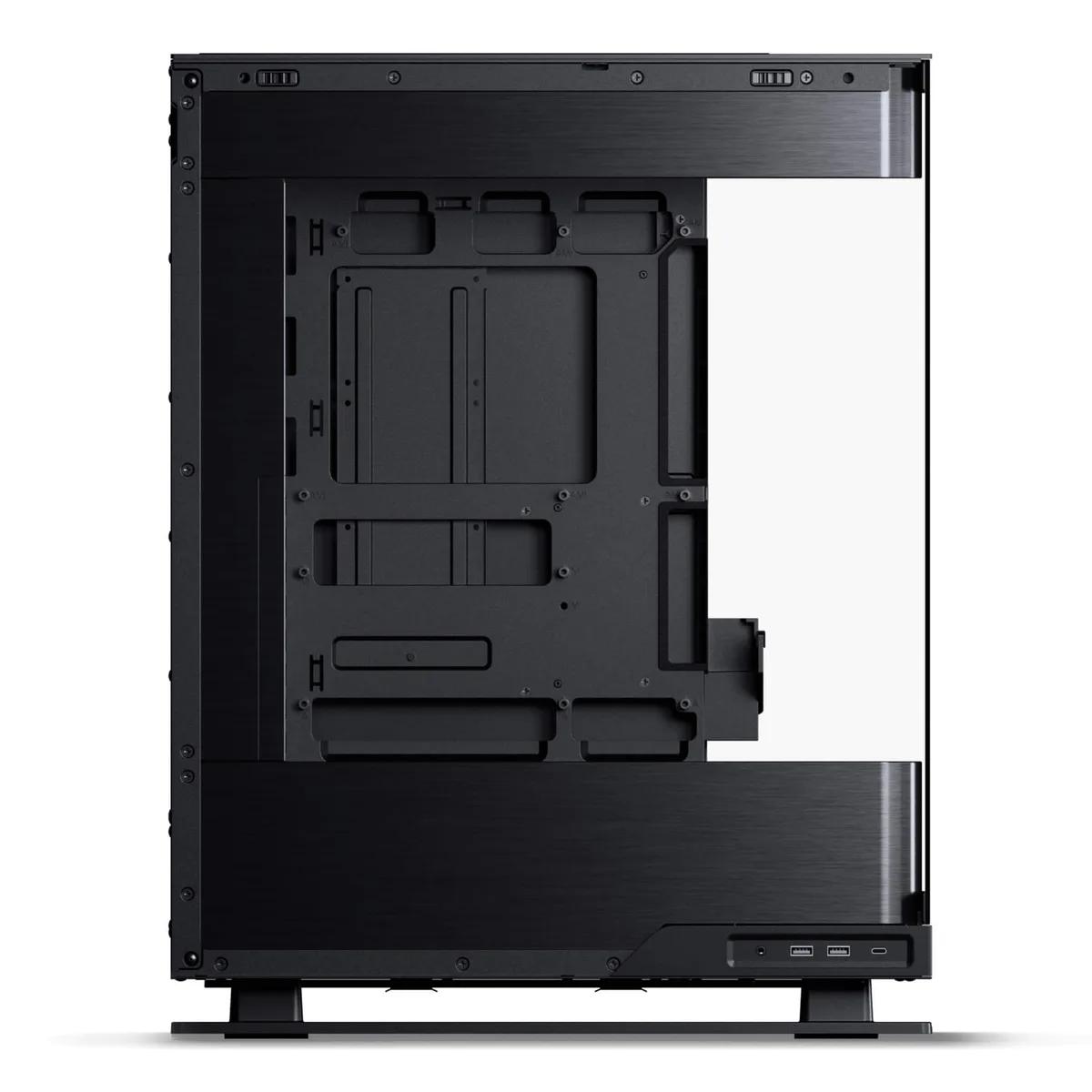

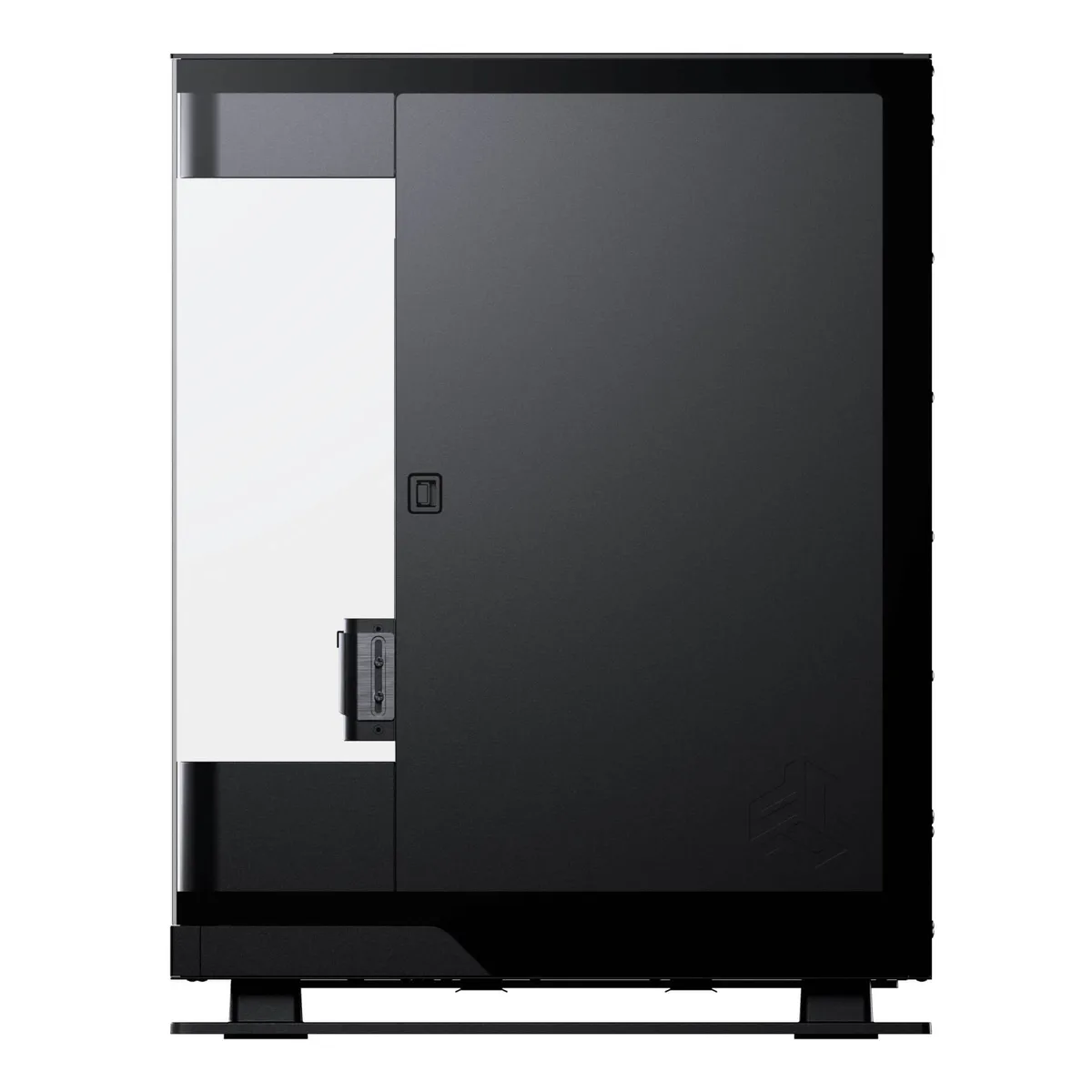

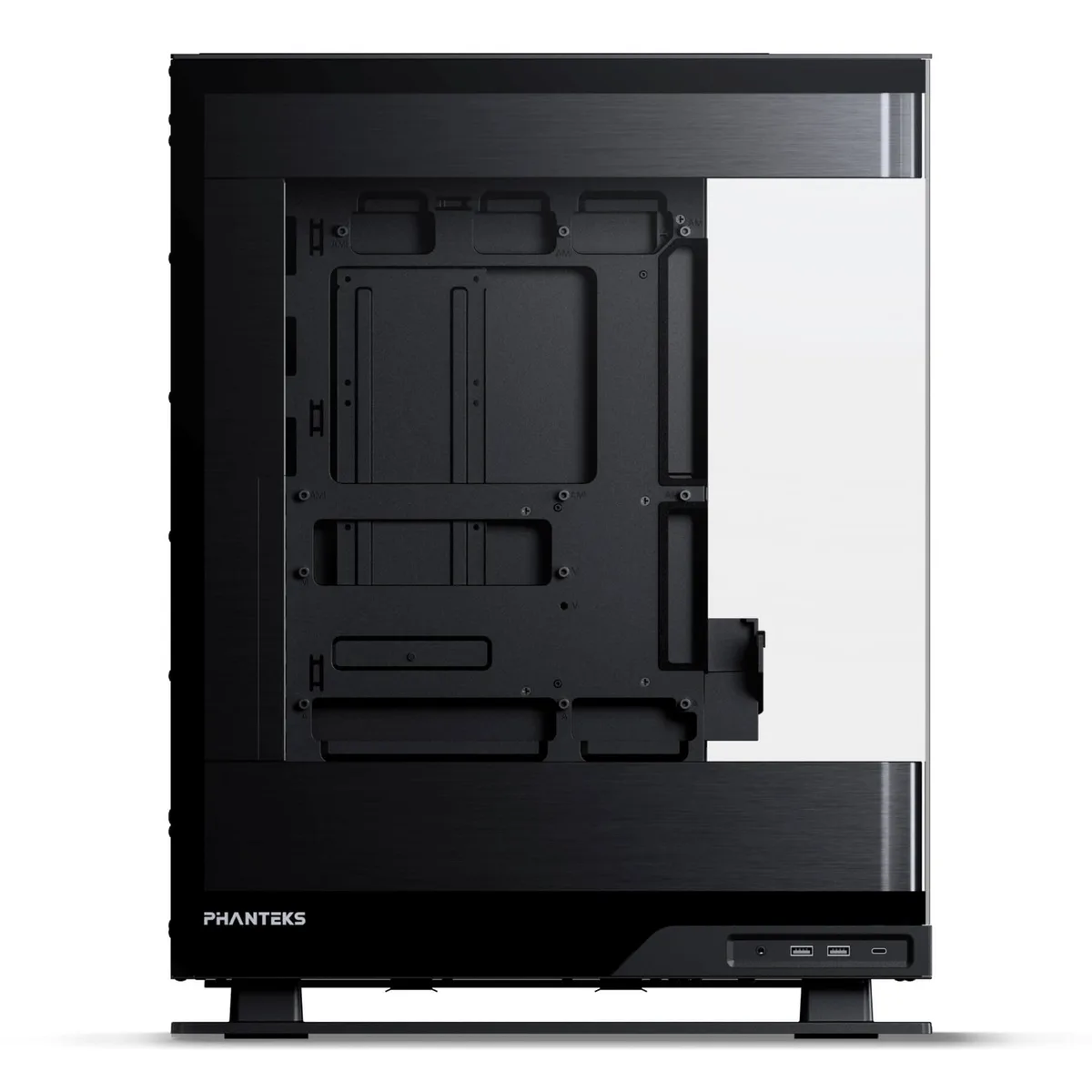

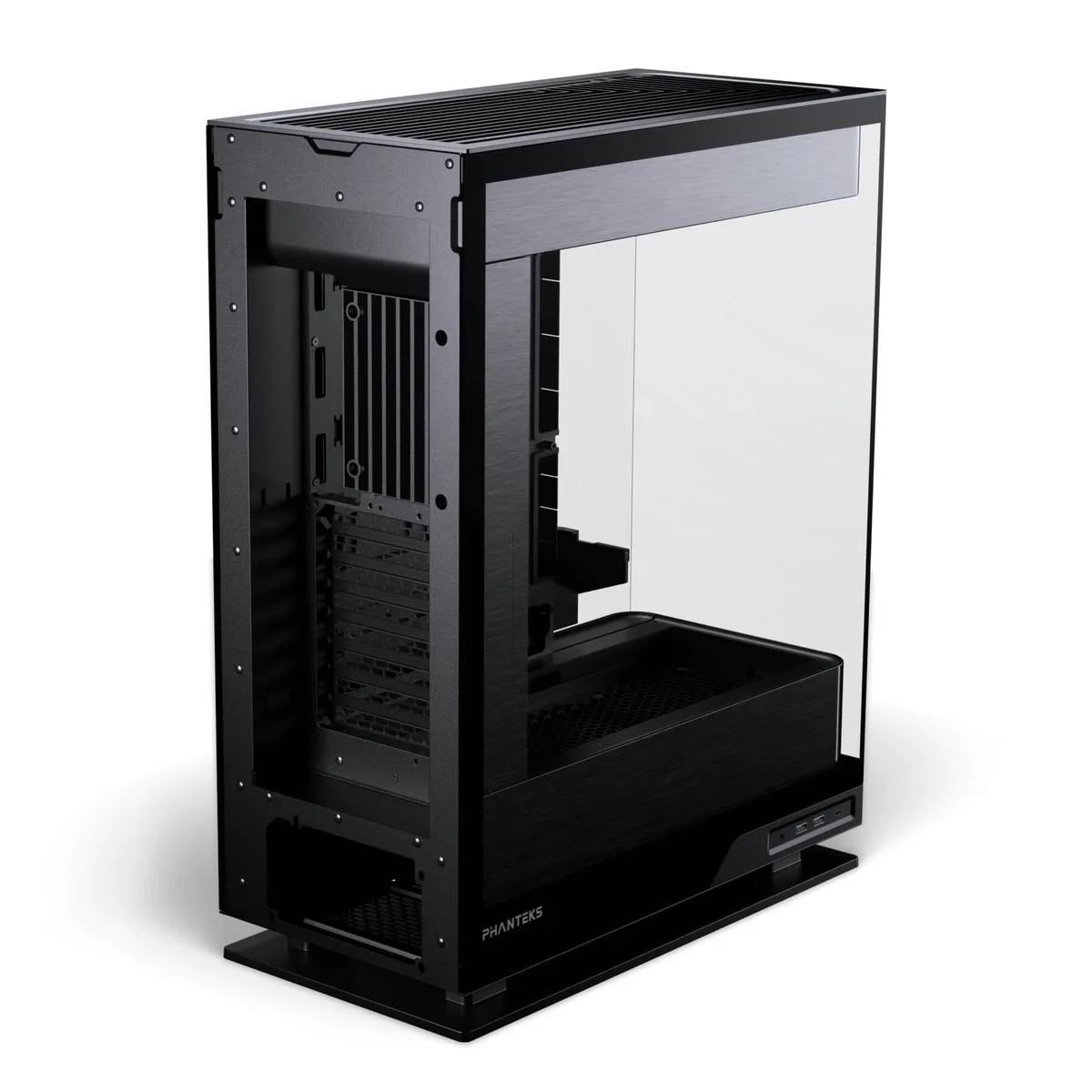

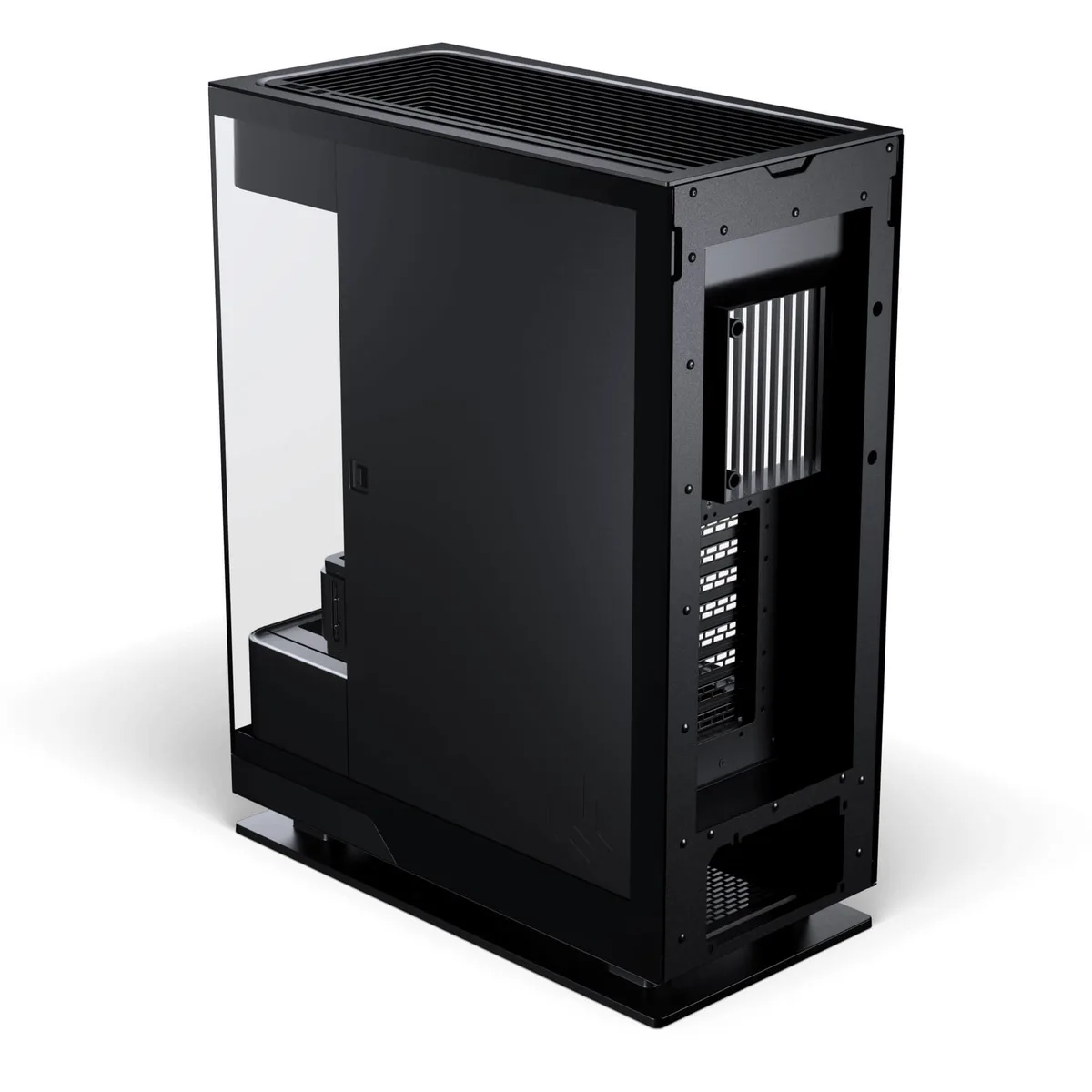

The Phanteks Evolv X2 is a mid-tower chassis built around a three-sided tempered-glass enclosure that floats above a brushed-black base. It accepts ATX, E-ATX, micro-ATX and mini-ITX motherboards, including rear-connect ATX designs, and presents the interior through clear panels on every visible side.

Builders who want a showcase vertical-airflow layout

The vertical cooling path draws air from the bottom, passes it along the graphics card and CPU, then exhausts through the top, suiting high-heat-load systems that benefit from a chimney effect. Builders who prefer conventional front-to-rear airflow or need a smaller footprint should consider a different form factor.

Seven 120 mm fan mounts

Two 3.5-inch and five 2.5-inch drive bays provide storage headroom, while the 380 mm GPU length limit and 170 mm CPU-cooler height limit accommodate most flagship components. The 250 mm power-supply length allowance covers standard ATX units, and the 8 expansion slots leave room for multi-slot cards.

Highlights

  • See-through tempered glass showcases every component
  • Vertical floating chassis draws cool air from below
  • Integrated D-RGB lighting on brushed aluminum interior
  • Triple 120 mm fan mounts top and bottom for 360 mm radiators
  • Fits 380 mm GPU, 170 mm CPU cooler, 250 mm PSU

Specifications

BrandPhanteks
SeriesEvolv X2 Brushed Black
ModelPH-ES524XTG_DBK01
TypeATX, micro-ATX, mini-ITX, E-ATX
ColorBrushed Black
Case MaterialABS/Steel/Aluminum/Tempered glass
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side PanelSide Tempered Glass
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays5
Expansion Slots8
Fan OptionsBottom - 3 x 120mm / Rear - 1 x 120mm / Top - 3 x 120mm
Pre-installed FansNo Fan Installed
Radiator OptionsTop - Up to 360mm
Max GPU Length380 mm
Max CPU Cooler Height170 mm
Max PSU Length250 mm
Dimensions454 x 228 x 588 mm / 17.87 x 8.98 x 23.15 in
Weight14.2 kg / 31.3 lbs
Shipping weight16.47 kg
Package size660 × 559 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What motherboard form factors does this chassis support?

The case accepts ATX, E-ATX, micro-ATX and Mini-ITX boards, including rear-connect ATX designs.

How many 120 mm fans can be installed and where?

Seven positions are available: three at the bottom for intake, three at the top for exhaust and one at the rear.

What are the maximum component clearances for GPU, CPU cooler and power supply?

Graphics cards up to 380 mm long, CPU coolers up to 170 mm tall and power supplies up to 250 mm long will fit.
