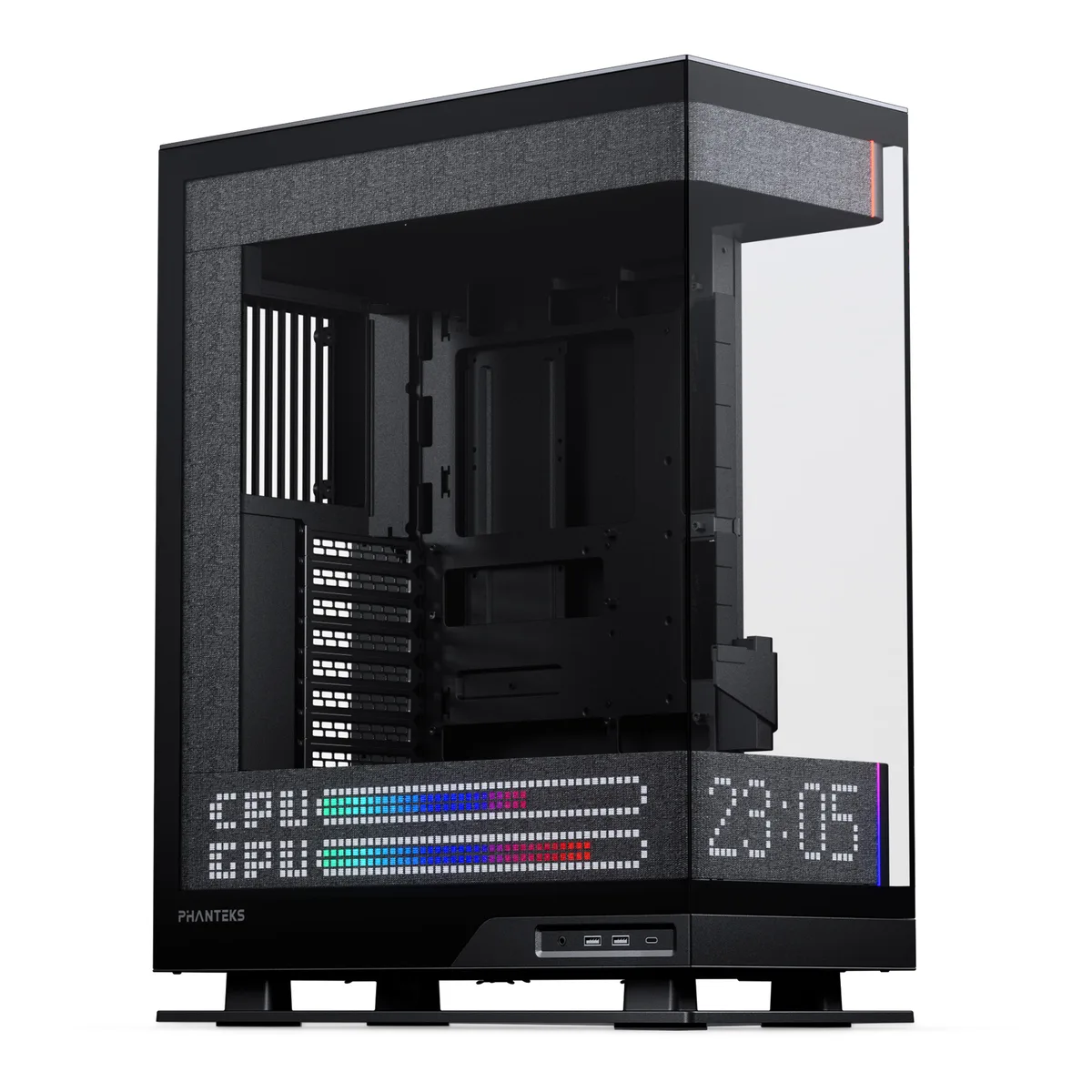

Charcoal black mid tower with tempered glass side panel and fabric interior hiding 900 LED matrix display

Phanteks

Phanteks PH-ES524XM_DBK01 PC case

SKU CH-T8TE-CHFJ9 MPN PH-ES524XM_DBK01

Mid-tower ATX chassis with a 900 LED matrix display behind fabric panels and a vertical cooling layout for bottom-to-top airflow

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Pla
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
  • Side PanelYes, Side Tempered Glass
  • Internal 3.5" Drive Bays2x (1x if 2x SSD installed)

Options PH-ES524XM (Black)

  • 900 LED matrix screen behind fabric panels displays custom stats and animations
  • Vertical floating chassis pulls cool air from bottom to top for efficient thermal flow

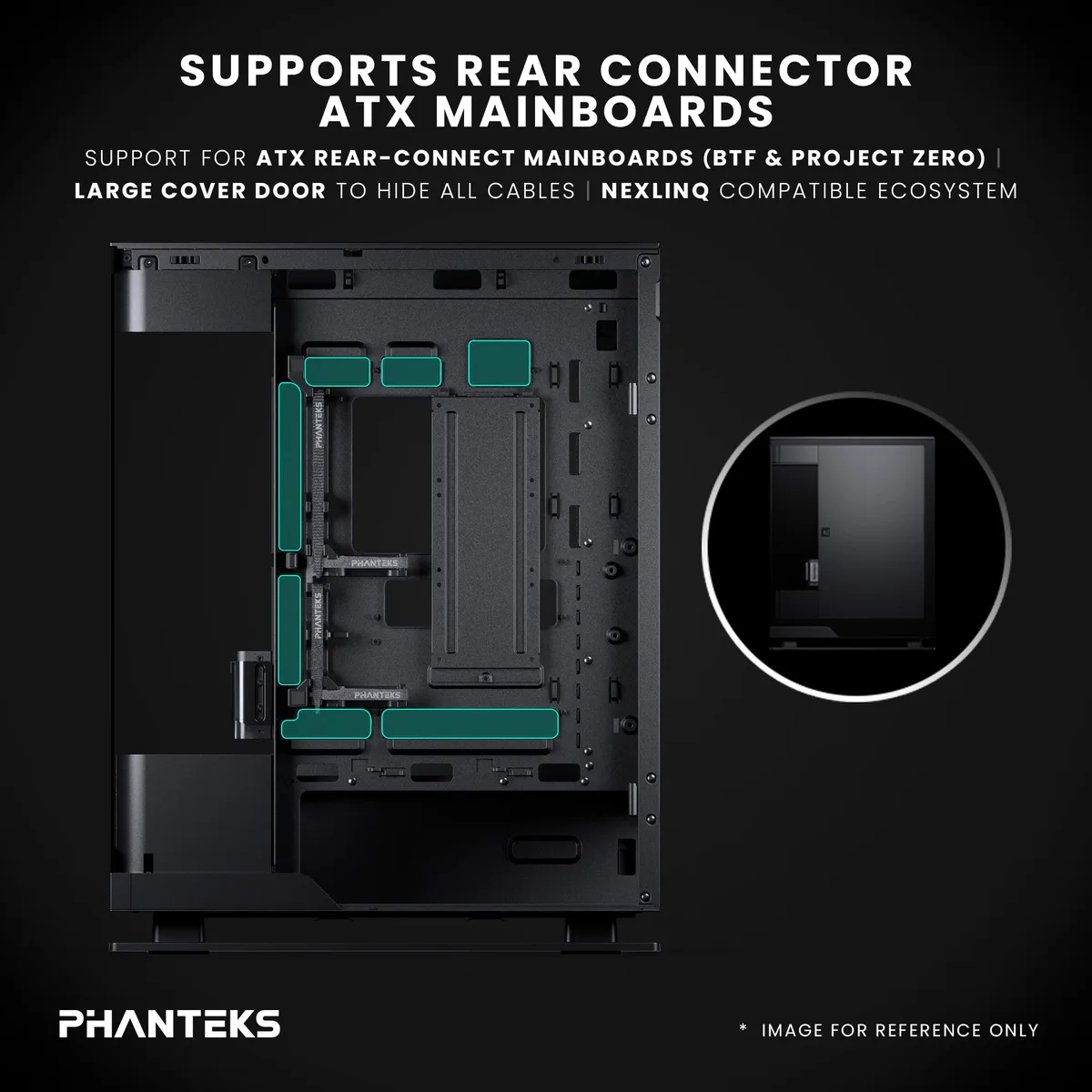

  • Rear-connect ATX motherboard support keeps cables hidden for a clean interior
  • Seven 120 mm fan positions with top 360 mm radiator clearance enable high-capacity cooling
  • Steel, tempered glass and fabric construction fits E-ATX boards up to 280 mm wide

Mid Tower ATX Chassis with 900 LED Matrix

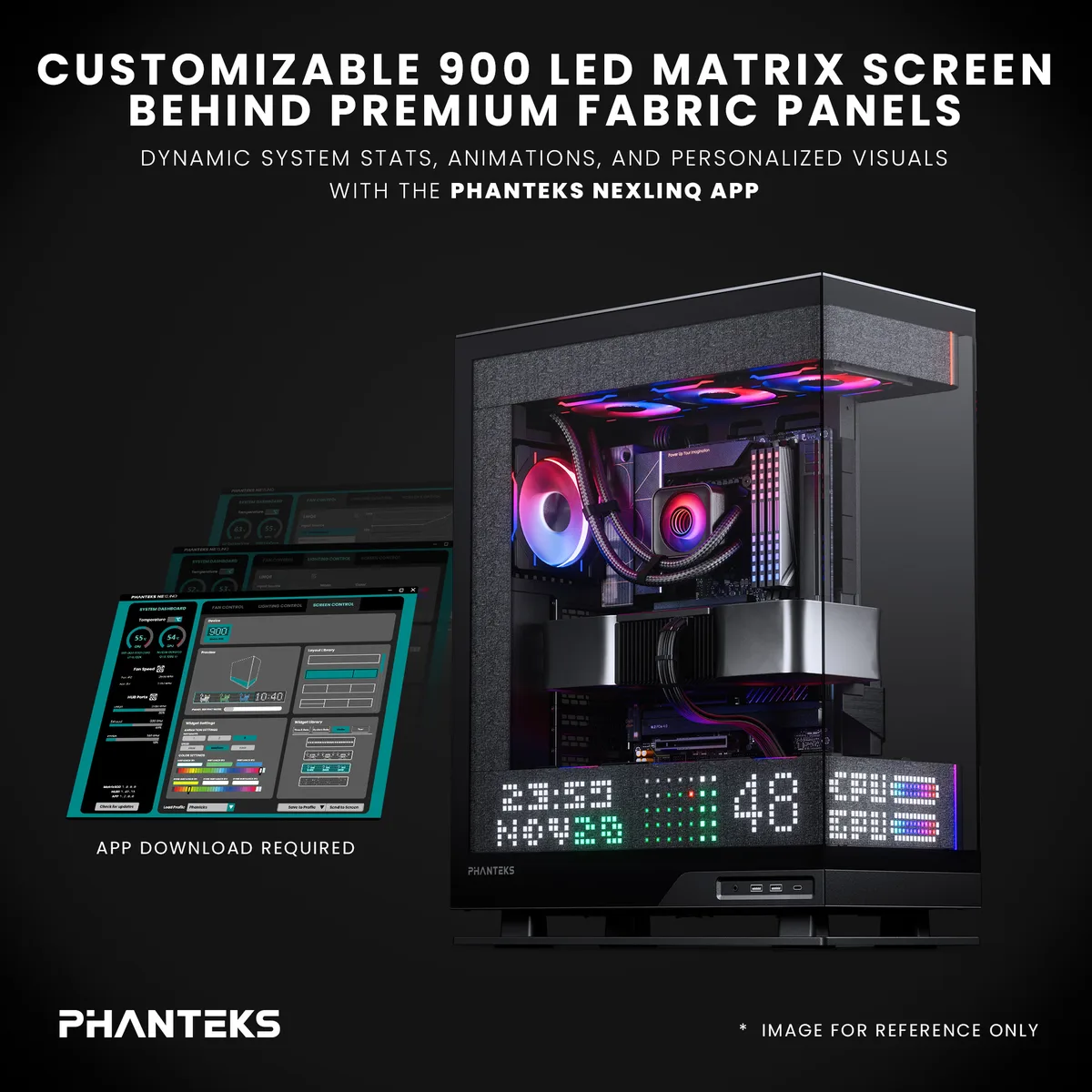

The Phanteks Evolv X2 Matrix is a mid tower ATX chassis designed for builders who want a showcase build with integrated lighting. A 900 LED matrix screen sits behind fabric interior panels to display system stats or custom animations. The case supports ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide. Tempered glass side panels and a charcoal black finish complete the premium look.

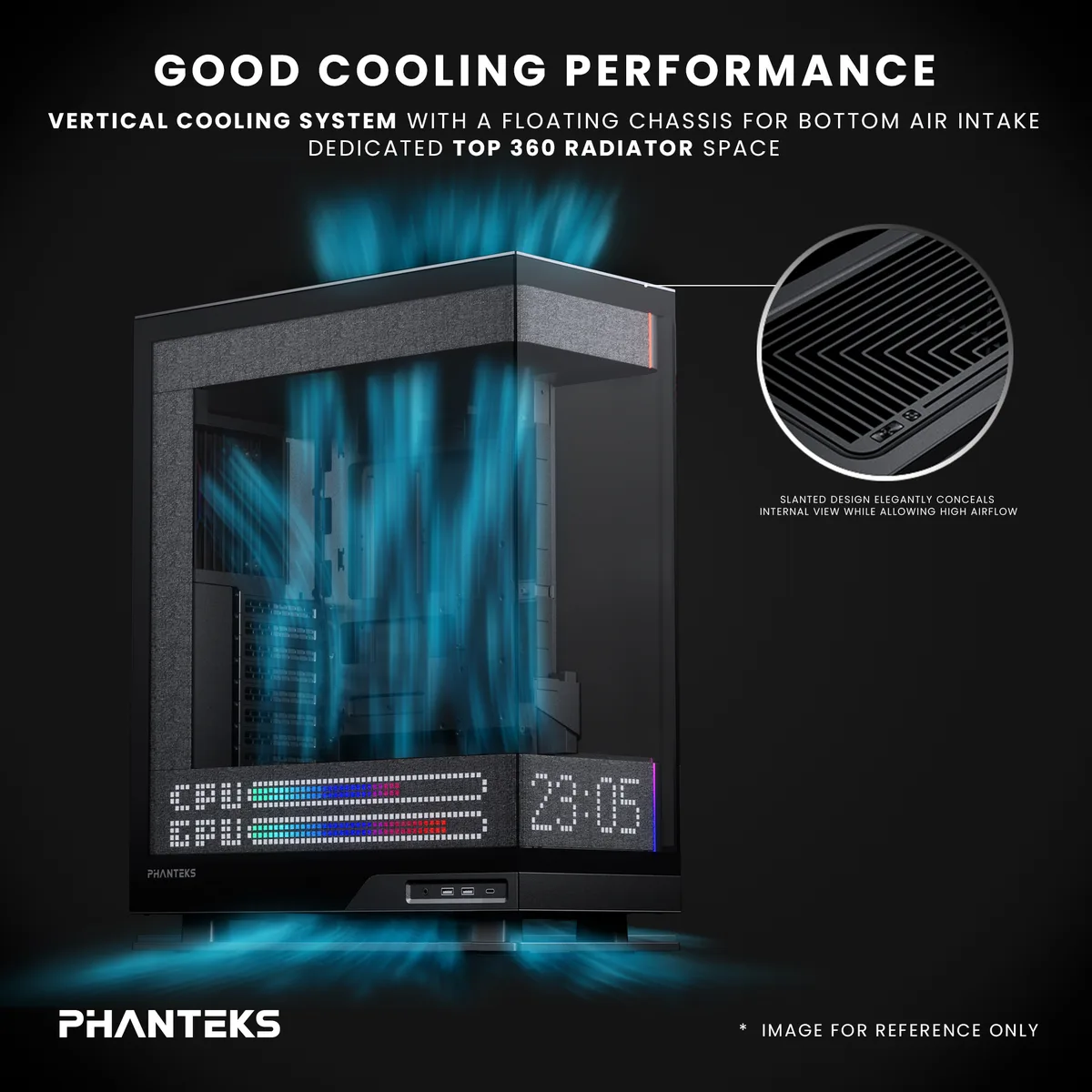

Vertical Cooling System with Seven Fan Mounts

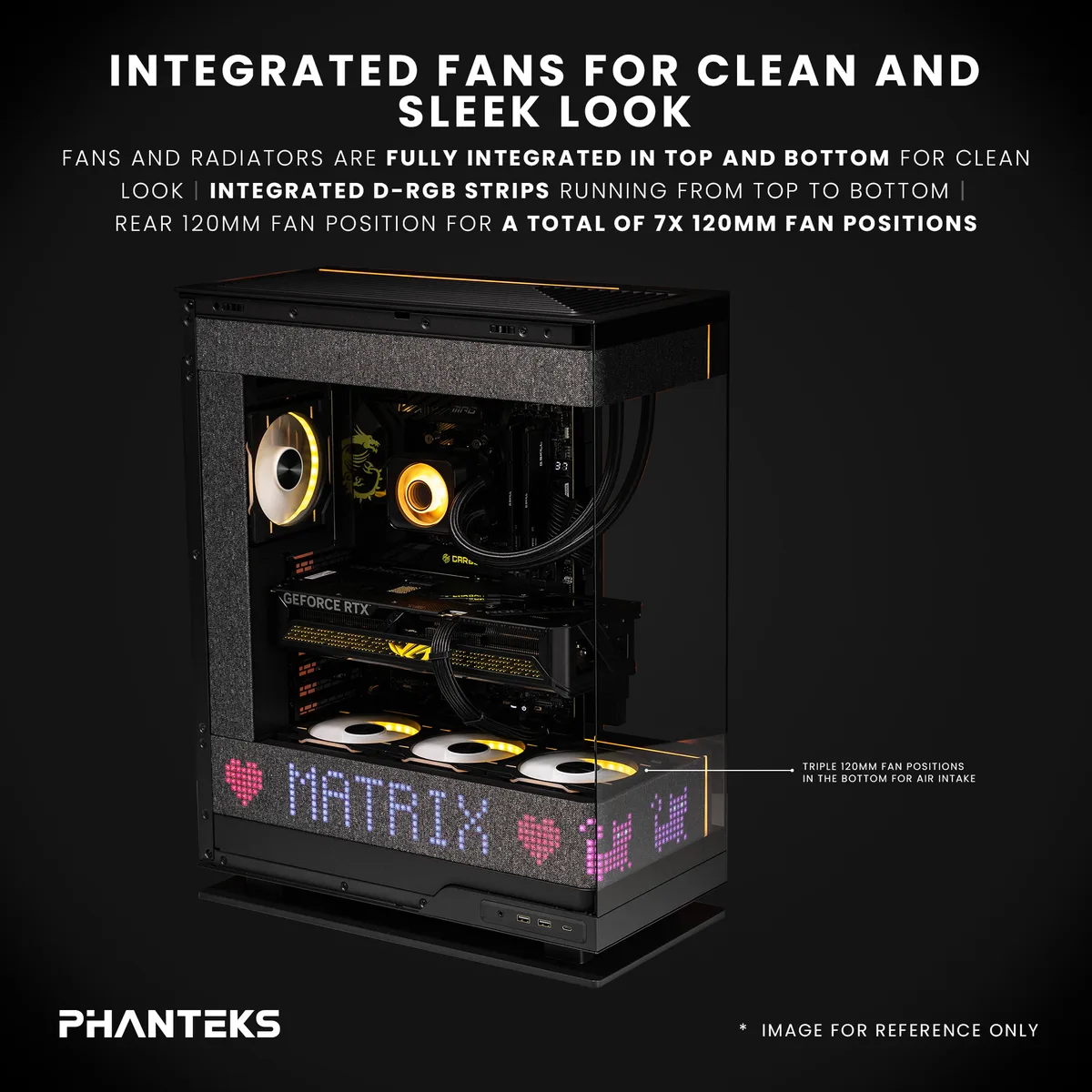

A floating chassis design creates a vertical airflow path from bottom intake to top exhaust. Seven 120 mm fan positions are provided: three on the midplate, three at the top and one at the rear. The top supports radiators up to 360 mm for liquid cooling. This layout moves heat upward through the case without relying on side vents.

380 mm GPU Clearance and 170 mm CPU Cooler Height

The interior fits graphics cards up to 380 mm long and CPU coolers up to 170 mm tall. Power supplies up to 250 mm deep are supported. Storage includes two 3.5 inch bays and five 2.5 inch bays, with shared mounting reducing counts when both types are used. Eight expansion slots accommodate vertical GPU brackets or additional cards.

Highlights

  • 900 LED matrix screen behind fabric panels displays custom stats and animations
  • Vertical floating chassis pulls cool air from bottom to top for efficient thermal flow
  • Rear-connect ATX motherboard support keeps cables hidden for a clean interior
  • Seven 120 mm fan positions with top 360 mm radiator clearance enable high-capacity cooling
  • Steel, tempered glass and fabric construction fits E-ATX boards up to 280 mm wide

Specifications

BrandPhanteks
ModelPH-ES524XM_DBK01
TypeATX Mid Tower
ColorBlack
Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Plastic
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
Side PanelYes, Side Tempered Glass
Internal 3.5" Drive Bays2x (1x if 2x SSD installed)
Internal 2.5" Drive Bays5x (3x if 2x HDD installed)
Expansion Slots8
Fan OptionsMidplate - 3 x 120mm / Rear - 1 x 120mm / Top - 3 x 120mm
Radiator OptionsTop - Up to 360mm
Max GPU Length380 mm
Max CPU Cooler Height170 mm
Max PSU Length250 mm
Dimensions454 x 228 x 588mm / 17.87 x 8.97 x 23.15in (DxWxH)
Weight14.6kg / 32.19lbs
Shipping weight16.67 kg
Package size660 × 559 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the 900 LED matrix screen and fabric panels during the build, and what step do builders often miss?

The matrix screen sits behind the fabric interior panel on the mid-plate; the step often missed is routing the display cable through the designated grommet before securing the motherboard, otherwise the connector cannot be reached.

Which filters or moving parts will need cleaning or replacement after extended use?

Magnetic dust filters on the bottom intake and top exhaust panels should be removed and washed periodically; the three pre-installed 120 mm bottom fans and three top fans may require bearing replacement after several years of continuous operation.

What thermal limit appears first when the system runs a sustained heavy load?

With a 360 mm radiator mounted in the top exhaust position, coolant temperature typically plateaus first, limiting further CPU and GPU frequency headroom before the 170 mm CPU cooler or 380 mm GPU clearance becomes a factor.
