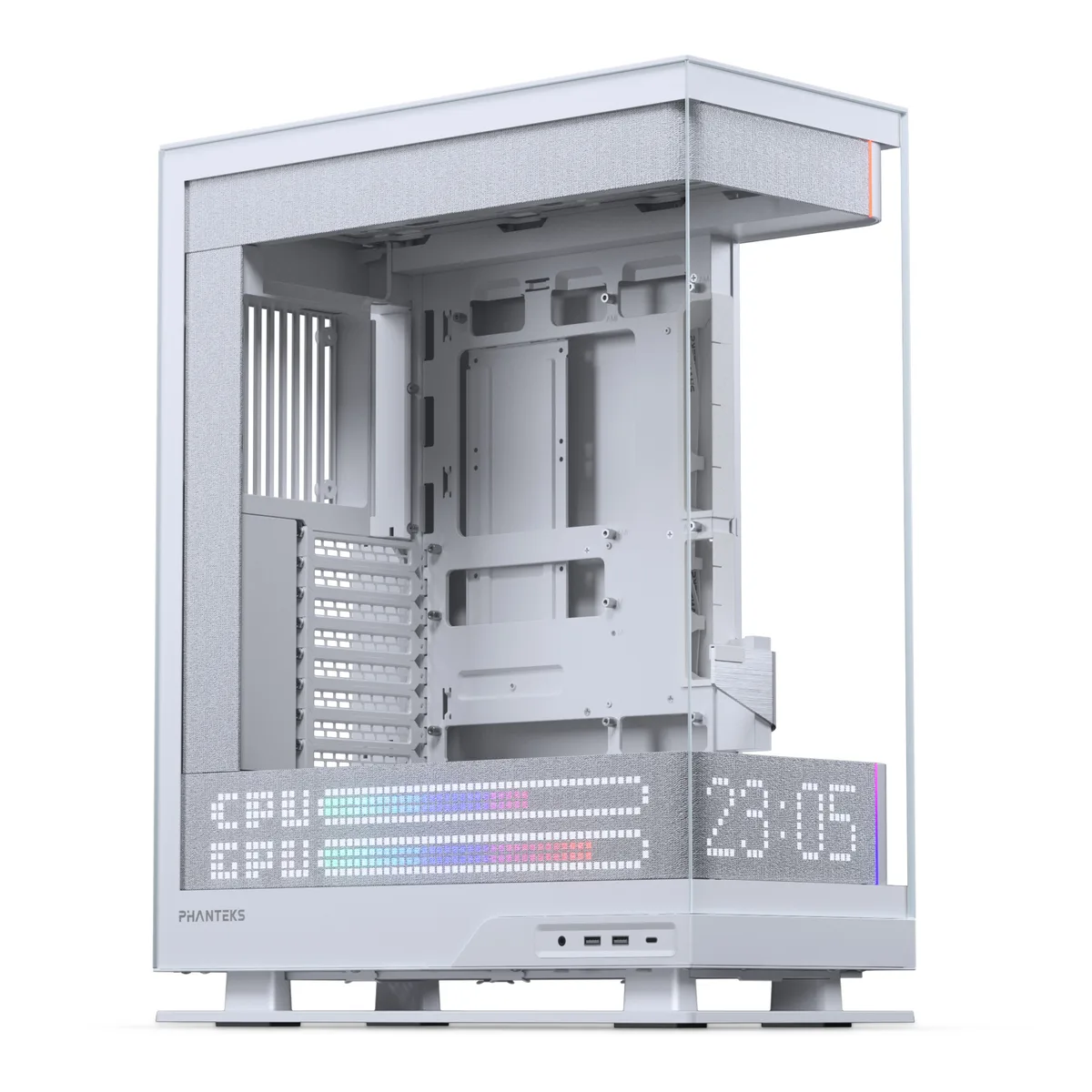

White mid-tower case with tempered glass side panel and fabric interior panel hiding 900 LED matrix display

Phanteks

Phanteks PH-ES524XM_DMW01 PC case

SKU CH-YCPQ-BPXJZ MPN PH-ES524XM_DMW01

Mid-tower ATX case with a 900-LED matrix display behind fabric panels, vertical airflow design, and support for 380 mm GPUs

  • TypeATX Mid Tower
  • ColorWhite
  • Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Pla
  • Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
  • Side PanelYes, Side Tempered Glass
  • Internal 3.5" Drive Bays2x (1x if 2x SSD installed)

Options PH-ES524XM (White)

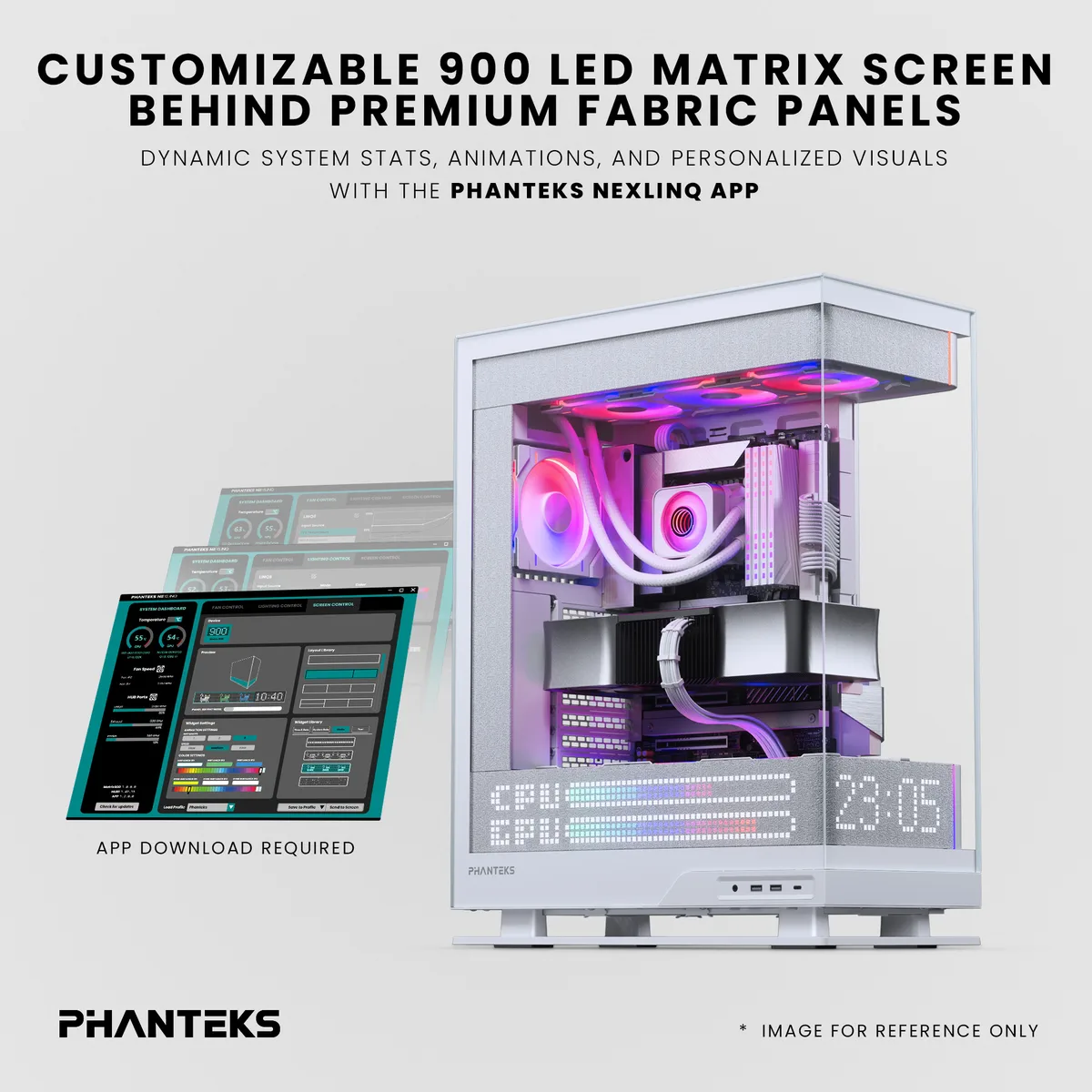

  • 900 LED matrix display shows live stats and custom animations behind fabric panels

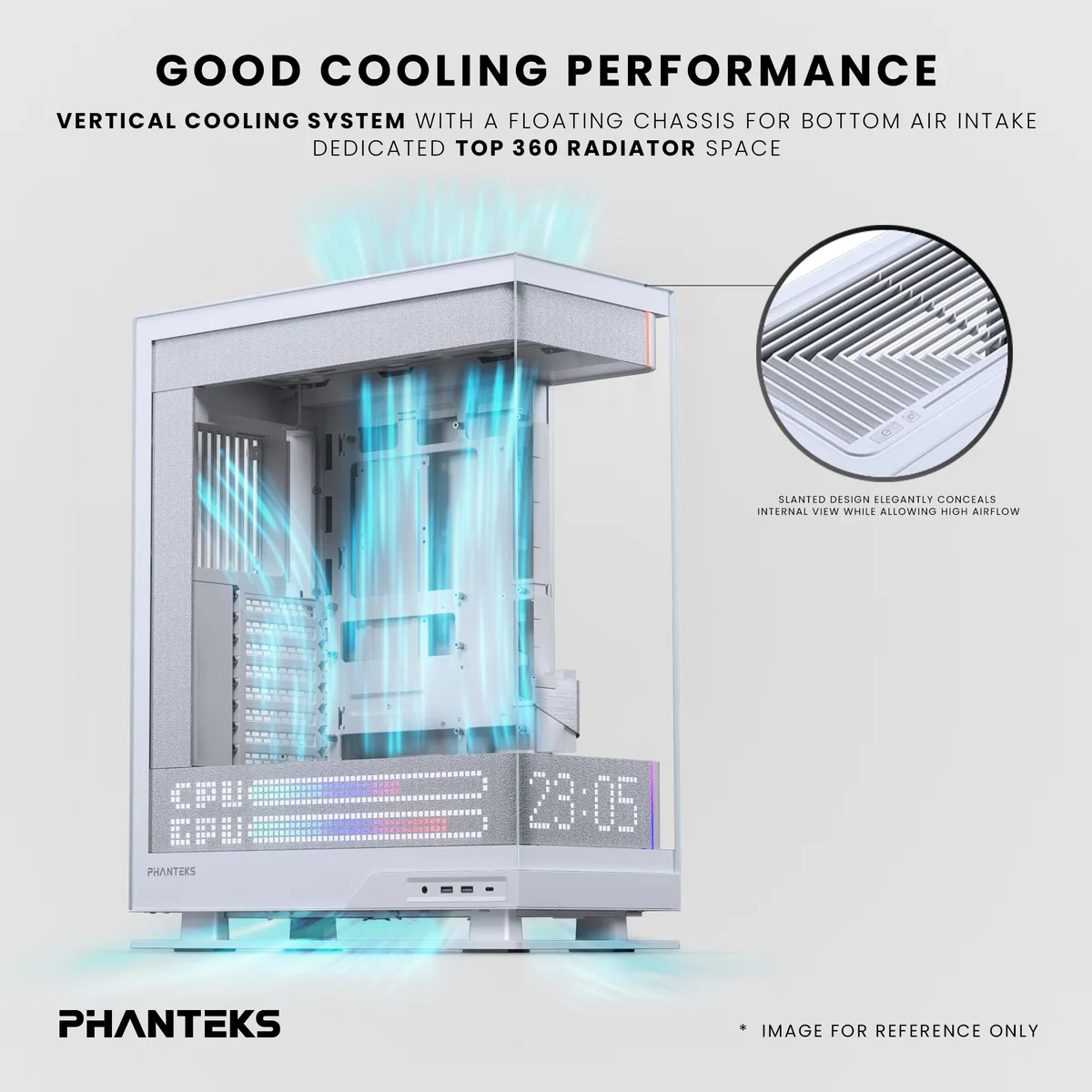

  • Vertical floating chassis pulls cool air from bottom to top for lower thermals

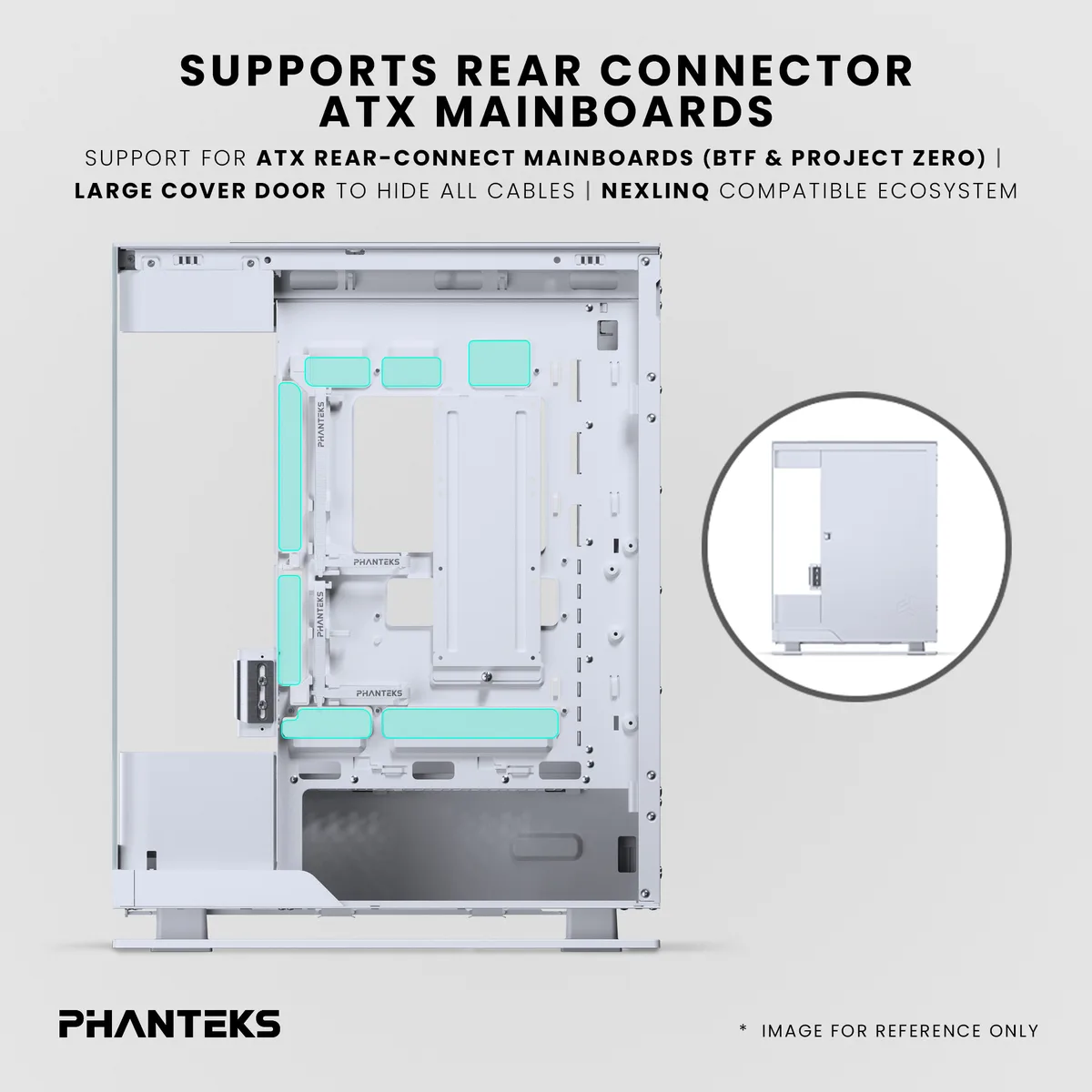

  • ATX rear-connect motherboard support keeps cables hidden for a clean interior
  • Seven 120 mm fan positions plus 360 mm top radiator clearance deliver high airflow capacity
  • Tempered glass side panel and steel frame showcase the full build with premium clarity

Product Identity

The Phanteks Evolv X2 Matrix is a mid-tower ATX chassis finished in grey-white with a steel frame, fabric side panels and a tempered glass window. It targets builders who want a visible interior and a built-in 900 LED matrix display behind the fabric for system stats or custom animations. The case accepts ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide and supports rear-connect motherboards for a cleaner cable layout.

Capacity and Headroom

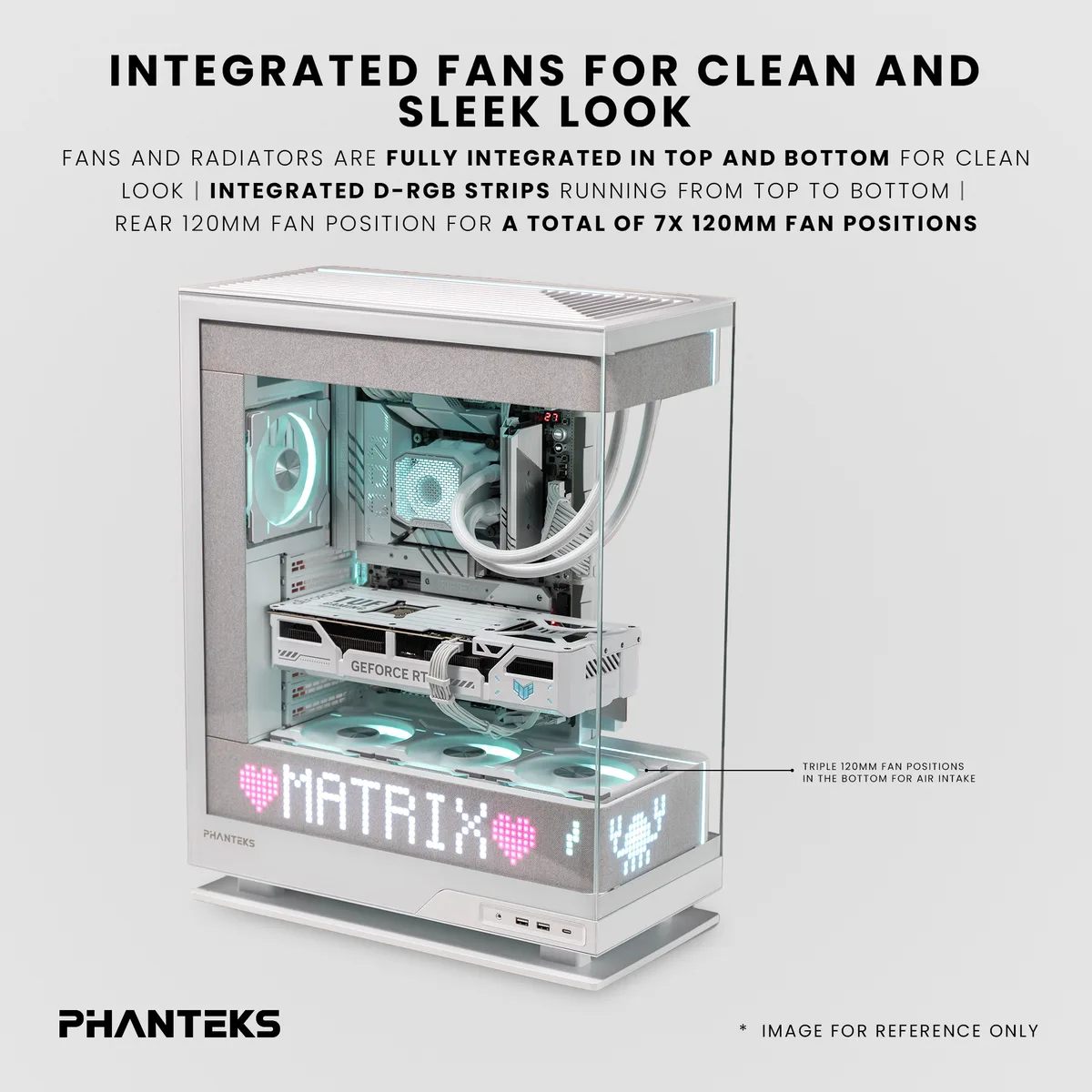

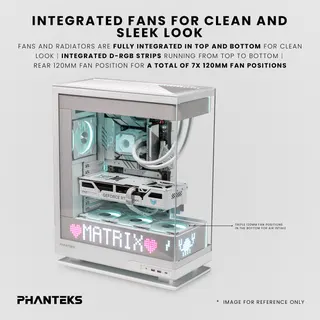

Two 3.5-inch drive bays are available, dropping to one if both 2.5-inch SSD mounts are used; five 2.5-inch bays are provided, reducing to three when two hard drives are fitted. Graphics cards up to 380 mm long and CPU coolers up to 170 mm tall fit comfortably, while the power supply cavity accepts units up to 250 mm deep. A 360 mm radiator can be mounted in the top position, and the vertical cooling layout uses three 120 mm bottom intake fans, three 120 mm top exhaust fans and one rear 120 mm exhaust fan.

Deciding Specification

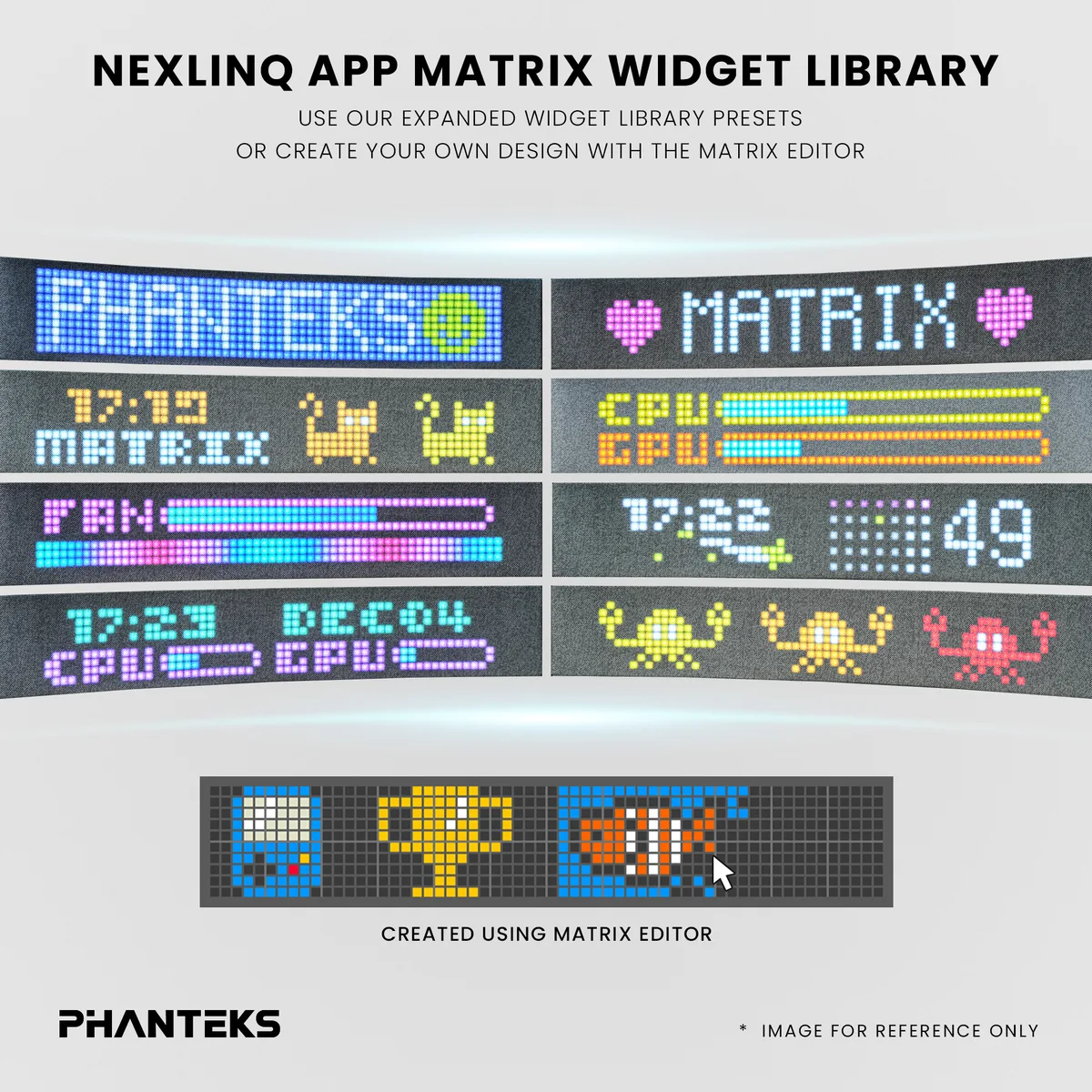

The integrated 900 LED matrix screen hidden behind the fabric panel is the feature that distinguishes this chassis from standard Evolv X2 models; it enables on-case visualisation of temperatures, utilisation or custom graphics without additional controllers or external displays. If that real-time display is not required, the same airflow structure and motherboard support exist in less expensive variants.

Highlights

  • 900 LED matrix display shows live stats and custom animations behind fabric panels
  • Vertical floating chassis pulls cool air from bottom to top for lower thermals
  • ATX rear-connect motherboard support keeps cables hidden for a clean interior
  • Seven 120 mm fan positions plus 360 mm top radiator clearance deliver high airflow capacity
  • Tempered glass side panel and steel frame showcase the full build with premium clarity

Specifications

BrandPhanteks
ModelPH-ES524XM_DMW01
TypeATX Mid Tower
ColorWhite
Case MaterialSteel Chassis, Fabric Panels, Tempered Glass Window, ABS Plastic
Motherboard CompatibilityATX, micro-ATX, mini-ITX, E-ATX (up to 280mm wide)
Side PanelYes, Side Tempered Glass
Internal 3.5" Drive Bays2x (1x if 2x SSD installed)
Internal 2.5" Drive Bays5x (3x if 2x HDD installed)
Expansion Slots8
Fan OptionsMidplate - 3 x 120mm / Rear - 1 x 120mm / Top - 3 x 120mm
Radiator OptionsTop - Up to 360mm
Max GPU Length380 mm
Max CPU Cooler Height170 mm
Max PSU Length250 mm
Dimensions454 x 228 x 588mm / 17.87 x 8.97 x 23.15in (DxWxH)
Weight14.6kg / 32.19lbs
Shipping weight18.30 kg
Package size660 × 559 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will my E-ATX board that is 280mm wide fit in the Phanteks PH-ES524XM_DMW01?

Yes, the case supports E-ATX motherboards up to 280mm wide alongside standard ATX, micro-ATX and mini-ITX sizes.

How can I verify the 900 LED Matrix Screen is functioning after I build in the case?

The display shows dynamic system stats and animations; if it lights up and responds to the integrated D-RGB lighting control, the matrix is working.

What comes in the box and do I need to buy any fans separately for the vertical cooling layout?

The chassis includes the steel frame, fabric interior panels, tempered glass side panel and integrated D-RGB lighting; the 7 x 120mm fan positions are optional mounts, so fans must be purchased separately.
