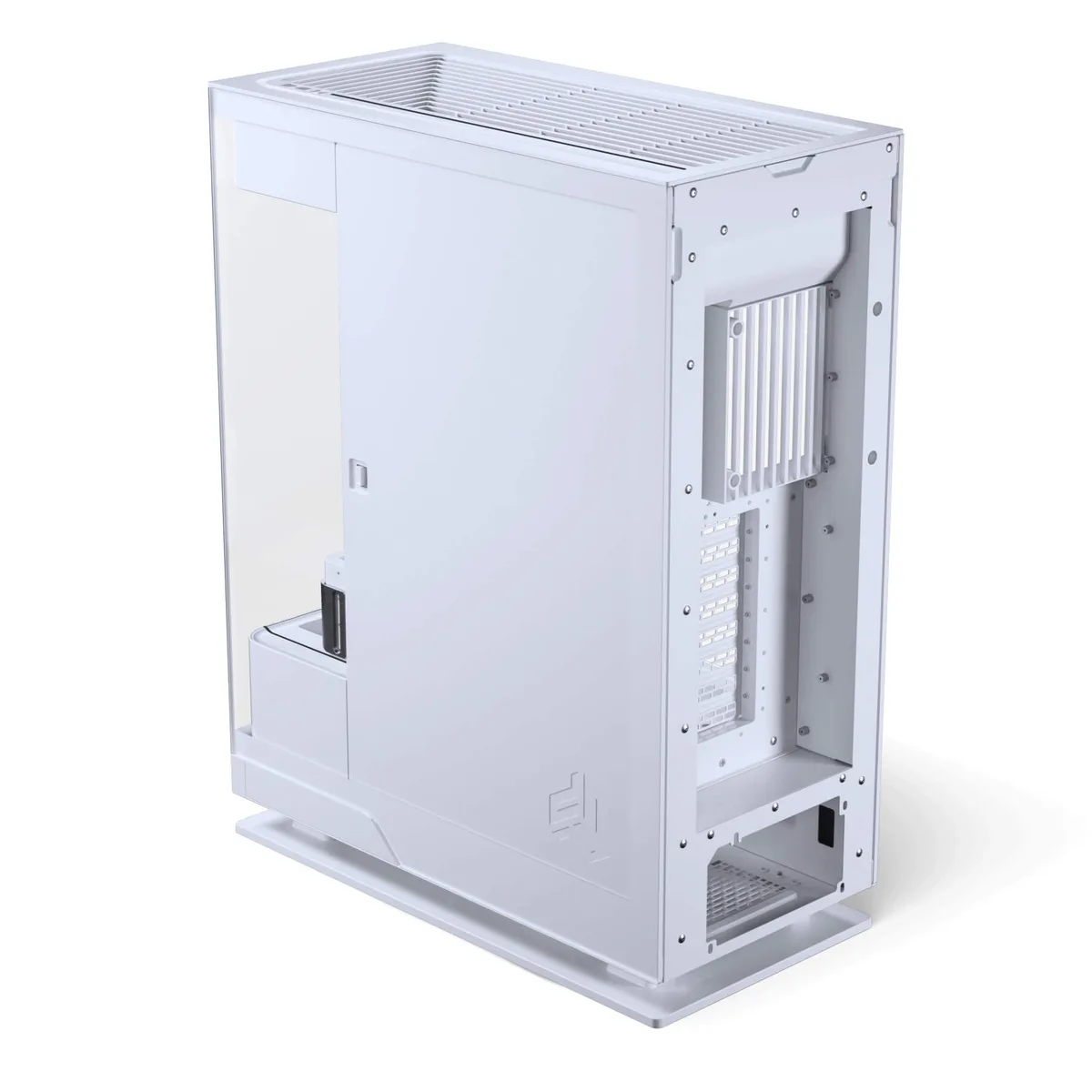

White mid-tower case with three-sided tempered glass panels and brushed aluminum interior, floating chassis design

Phanteks

Phanteks Evolv X2 PH-ES524XTG_DMW01 White PC case

SKU CH-HPF3-XEGW3 MPN PH-ES524XTG_DMW01

A see-through tempered-glass mid-tower with a floating vertical-cooling chassis, brushed-aluminium interior and integrated D-RGB lighting, supporting ATX rear-connect boards.

  • TypeATX Mid Tower
  • ColorWhite
  • Case MaterialSteel Chassis,Aluminum panels, Tempered Glass Window, ABS pl
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays5

Options X2 Series (White)

  • See-through tempered glass chassis showcases components from three sides
  • Vertical cooling system with floating base draws fresh air from bottom
  • Premium brushed aluminium interior includes integrated D-RGB lighting
  • Supports ATX rear-connect motherboards for cleaner cable routing
  • Seven 120 mm fan positions plus top 360 mm radiator clearance

White Mid-Tower with See-Through Glass

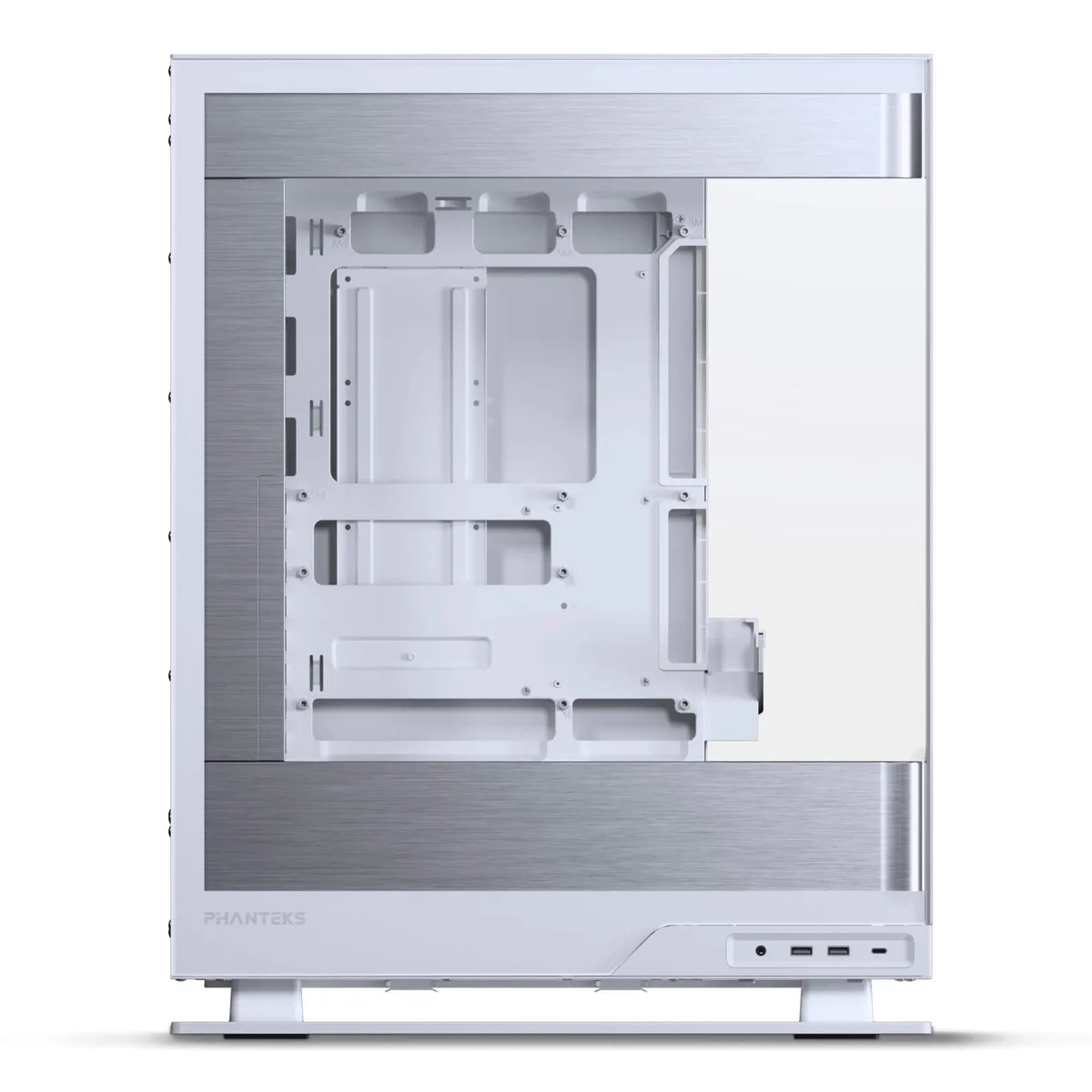

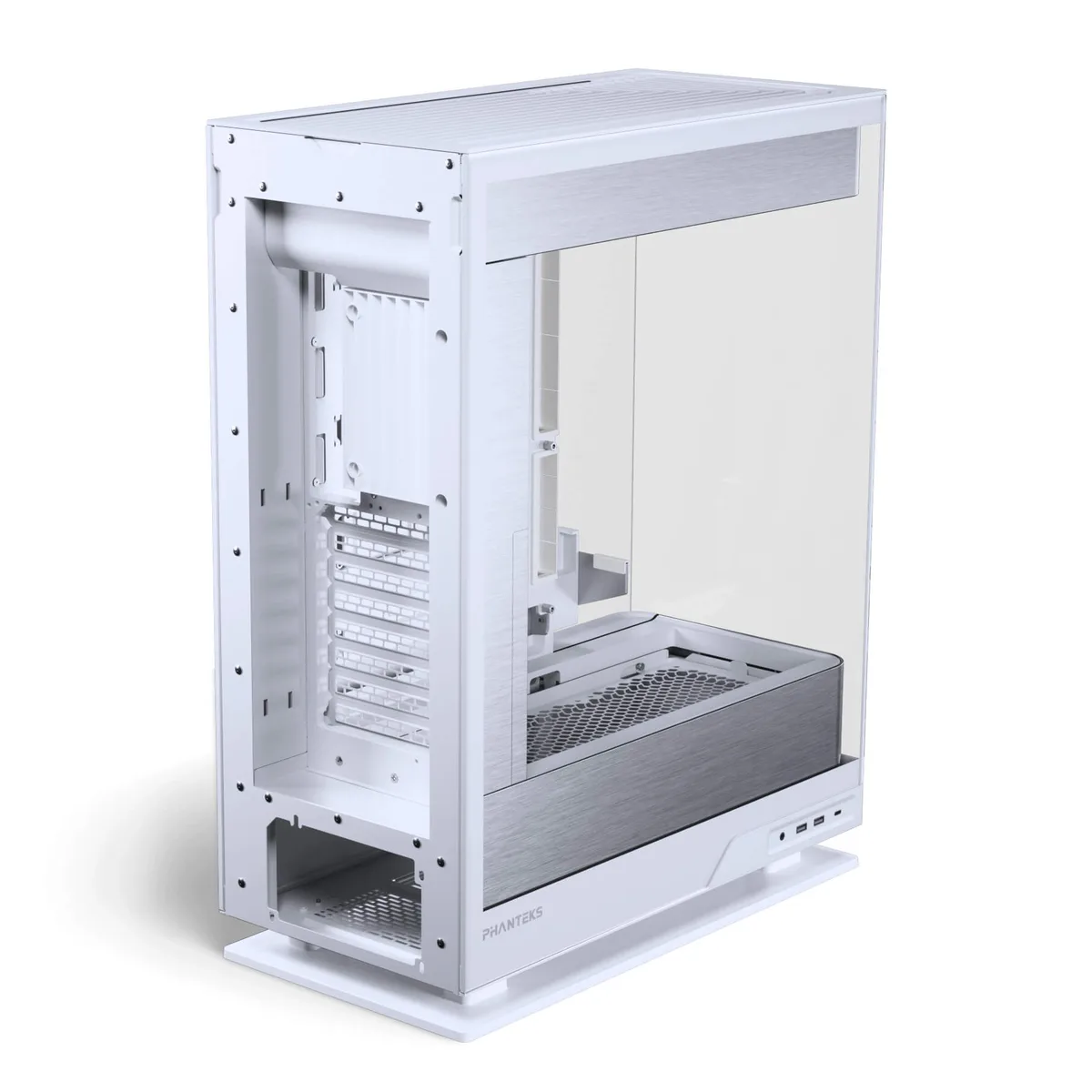

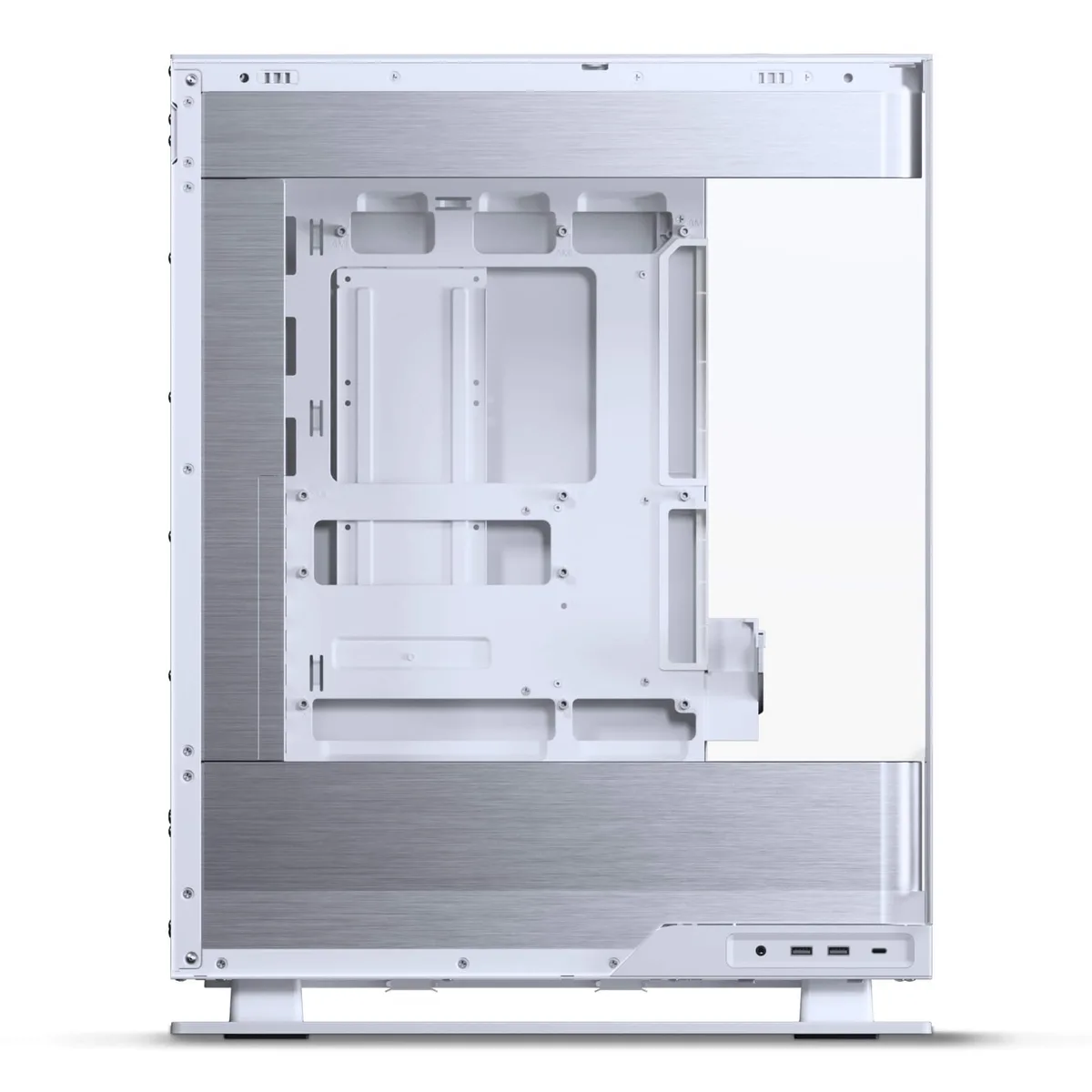

The Phanteks Evolv X2 PH-ES524XTG_DMW01 is a white ATX mid-tower built around a three-sided tempered glass chassis. A floating design lifts the main body above the base to draw cool air from all sides. Brushed aluminum interior panels include integrated D-RGB lighting for a clean, illuminated look. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX motherboards.

Vertical Cooling with Top 360 mm Radiator Support

The vertical airflow system uses three 120 mm intake positions at the bottom and three 120 mm exhaust positions at the top with dedicated clearance for a 360 mm radiator. A single rear 120 mm mount brings the total to seven fan locations. No fans are pre-installed, so builders choose their own cooling configuration. Maximum CPU cooler height is 170 mm.

For Builders Prioritising Showcase Aesthetics

This case suits enthusiasts who want hardware visible through panoramic glass and a flush, integrated cooling layout. Rear-connect motherboard support keeps cables hidden for a tidy interior. The 380 mm GPU limit and 250 mm PSU limit may restrict some high-end components. Two 3.5-inch and five 2.5-inch drive bays cover typical storage needs.

Highlights

  • See-through tempered glass chassis showcases components from three sides
  • Vertical cooling system with floating base draws fresh air from bottom
  • Premium brushed aluminium interior includes integrated D-RGB lighting
  • Supports ATX rear-connect motherboards for cleaner cable routing
  • Seven 120 mm fan positions plus top 360 mm radiator clearance

Specifications

BrandPhanteks
SeriesEvolv X2
ModelPH-ES524XTG_DMW01
TypeATX Mid Tower
ColorWhite
Case MaterialSteel Chassis,Aluminum panels, Tempered Glass Window, ABS plastic
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays5
Expansion Slots8
Fan OptionsRear - 1 x 120mm / Top - 3 x 120mm
Pre-installed FansNo Fan Installed
Radiator OptionsTop - Up to 360mm
Max GPU Length380 mm
Max CPU Cooler Height170 mm
Max PSU Length250 mm
Dimensions454 x 228 x 588 mm / 17.87 x 8.98 x 23.15 in
Shipping weight16.47 kg
Package size660 × 559 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 380 mm maximum GPU length translate once the card is installed in the case?

The case accepts graphics cards up to 380 mm long, so most full-size triple-fan models will fit without touching the front glass or drive cage.

What does the top 360 mm radiator limit mean for a liquid-cooling build?

You can mount a 360 mm radiator in the top with three 120 mm fans, but anything thicker or longer will not clear the roof panel.

What clearance do I need on my desk for the 454 mm wide by 588 mm tall footprint?

The chassis measures 454 mm wide, 228 mm deep and 588 mm high, so allow at least that much clear desk space plus room for cable routing at the rear.
