Black ATX mid-tower case with seamless tempered glass front and side panels, steel frame, RGB lighting on PSU cover

Phanteks

Phanteks NV5 MK2 PH-NV523TG_DBK02 ATX Mid Tower PC case

SKU CH-1EPD-9T9QB MPN PH-NV523TG_DBK02

Mid-tower ATX case with seamless tempered glass panels, rear-connect motherboard support, eight 120 mm fan positions and dual 360 mm radiator mounts

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • With Power SupplyNo
  • Motherboard CompatibilityATX, Rear-Connect ATX, micro-ATX, mini-ITX, E-ATX (up to 280
  • Side PanelFront and Side Tempered Glass

Options NV5 MKII (Black)

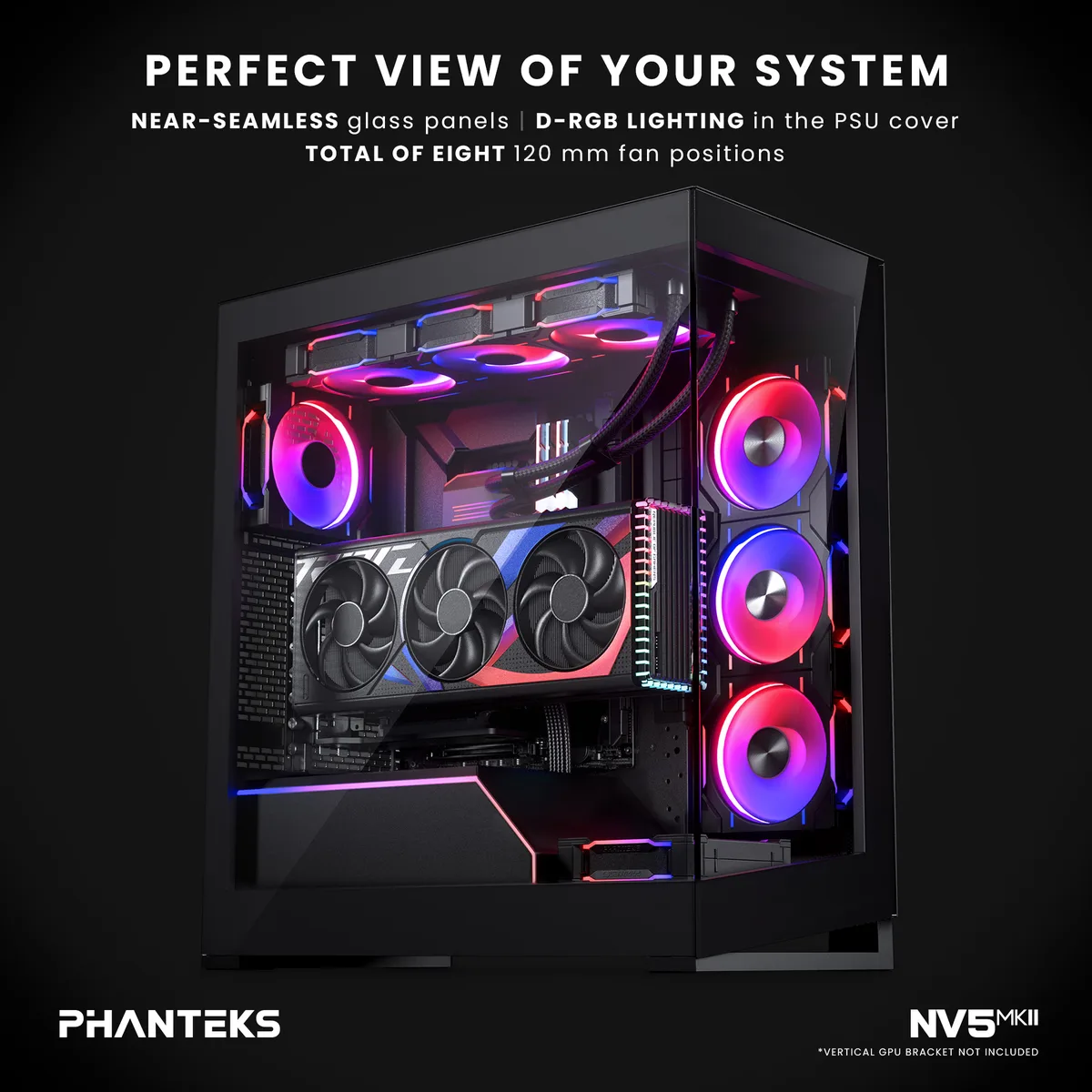

  • Showcase your build with near-seamless front and side tempered glass panels
  • Build a zero-cable system using rear-connect ATX motherboard support
  • Fit wide graphics cards up to 440 mm length and 170 mm width
  • Install dual 360 mm radiators in top and side positions for water cooling
  • Sync integrated D-RGB lighting on the PSU cover with your motherboard

NV5 MK2 ATX Mid Tower

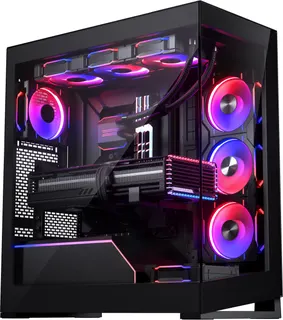

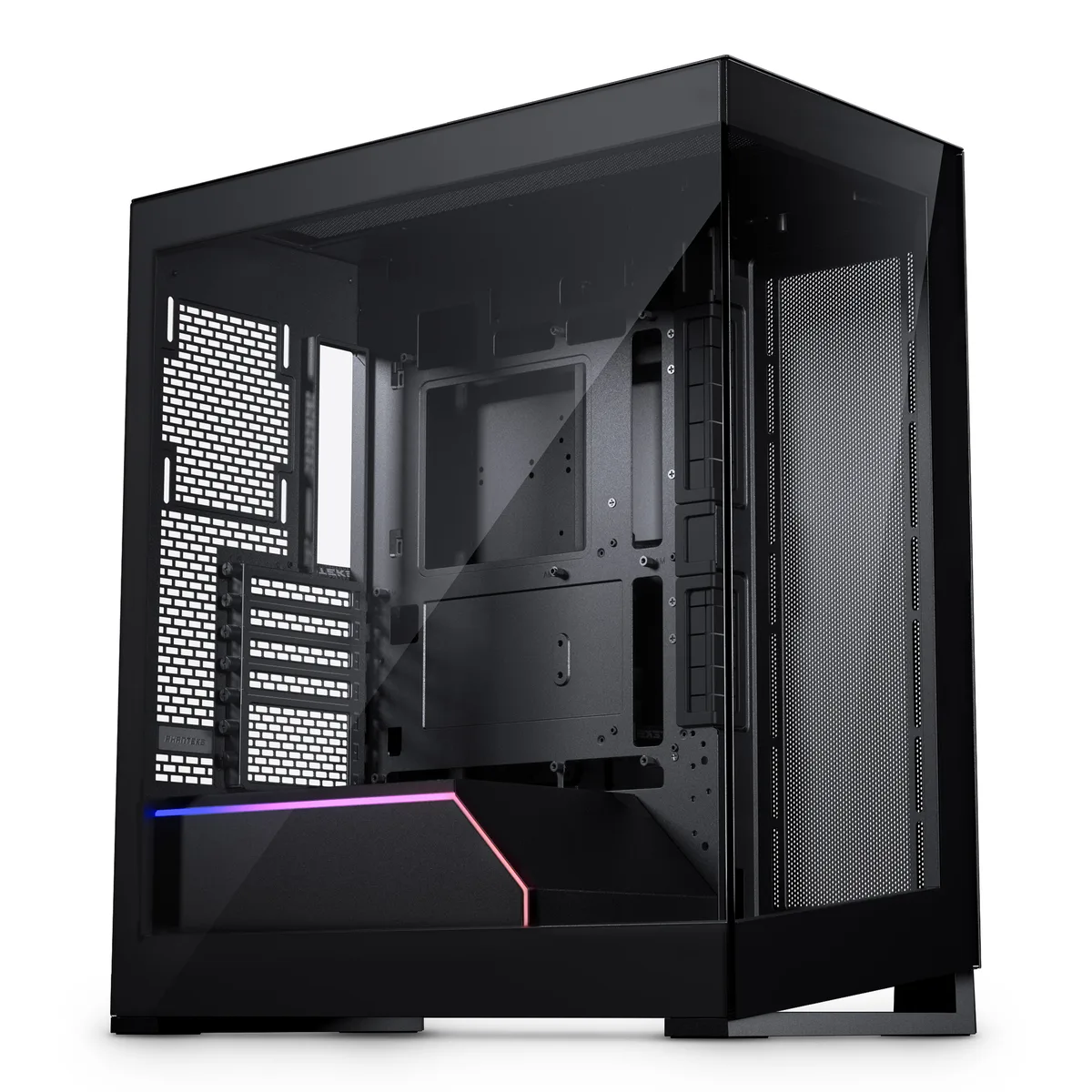

The Phanteks NV5 MK2 is a black steel and tempered glass mid-tower case designed for showcase builds. It supports ATX, micro-ATX, mini-ITX and E-ATX motherboards up to 280 mm wide. Two front USB 3.0 ports, one USB-C Gen 2 port and an audio jack provide connectivity. Integrated D-RGB lighting in the PSU cover includes a built-in controller.

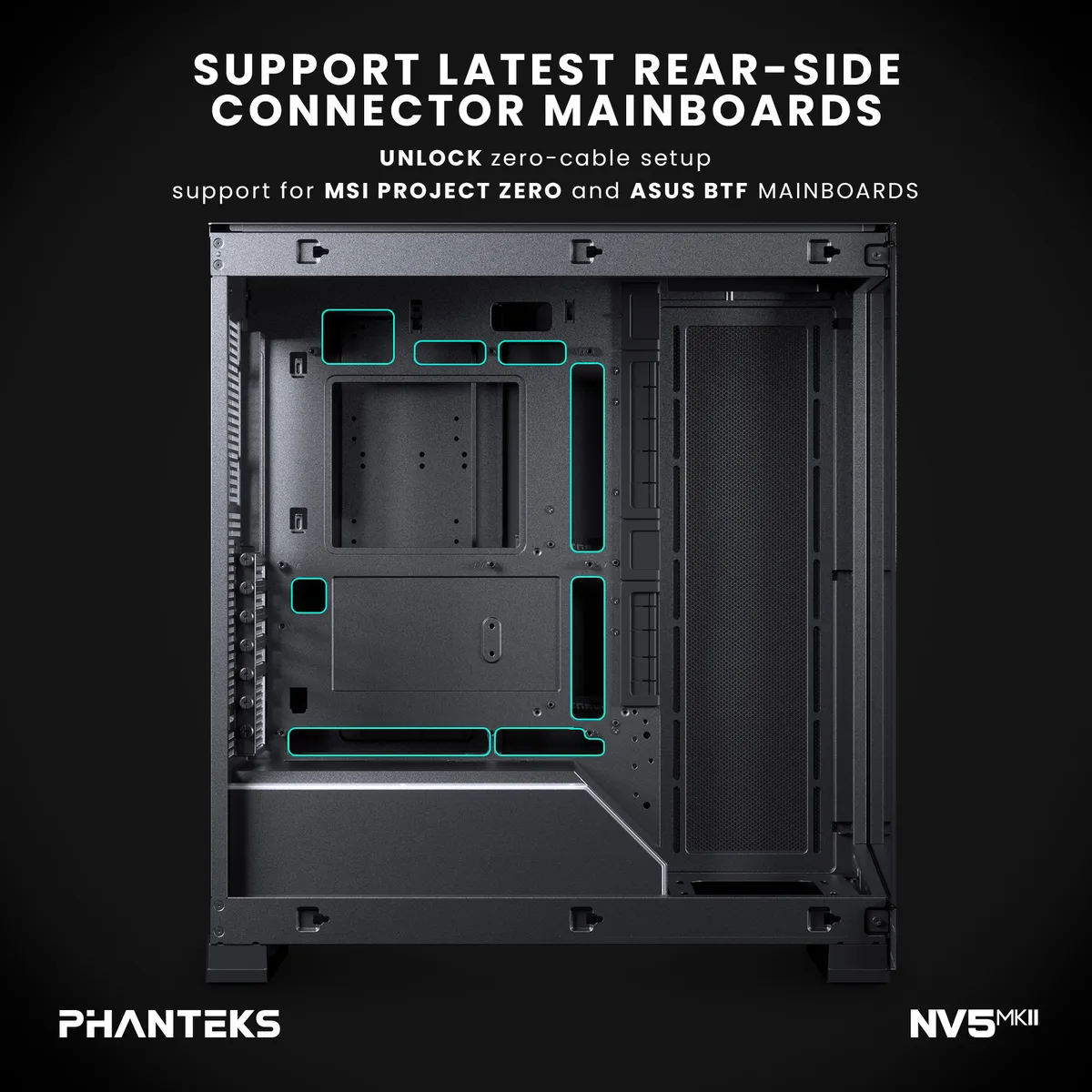

Rear-Connect support for zero-cable builds

Builders wanting a clean interior will appreciate native support for rear-connect motherboards. The chassis fits GPUs up to 440 mm long and 170 mm wide alongside CPU coolers up to 180 mm tall. Eight 120 mm fan positions and dual 360 mm radiator mounts suit air or liquid cooling. Users needing pre-installed fans or a smaller footprint should consider other models.

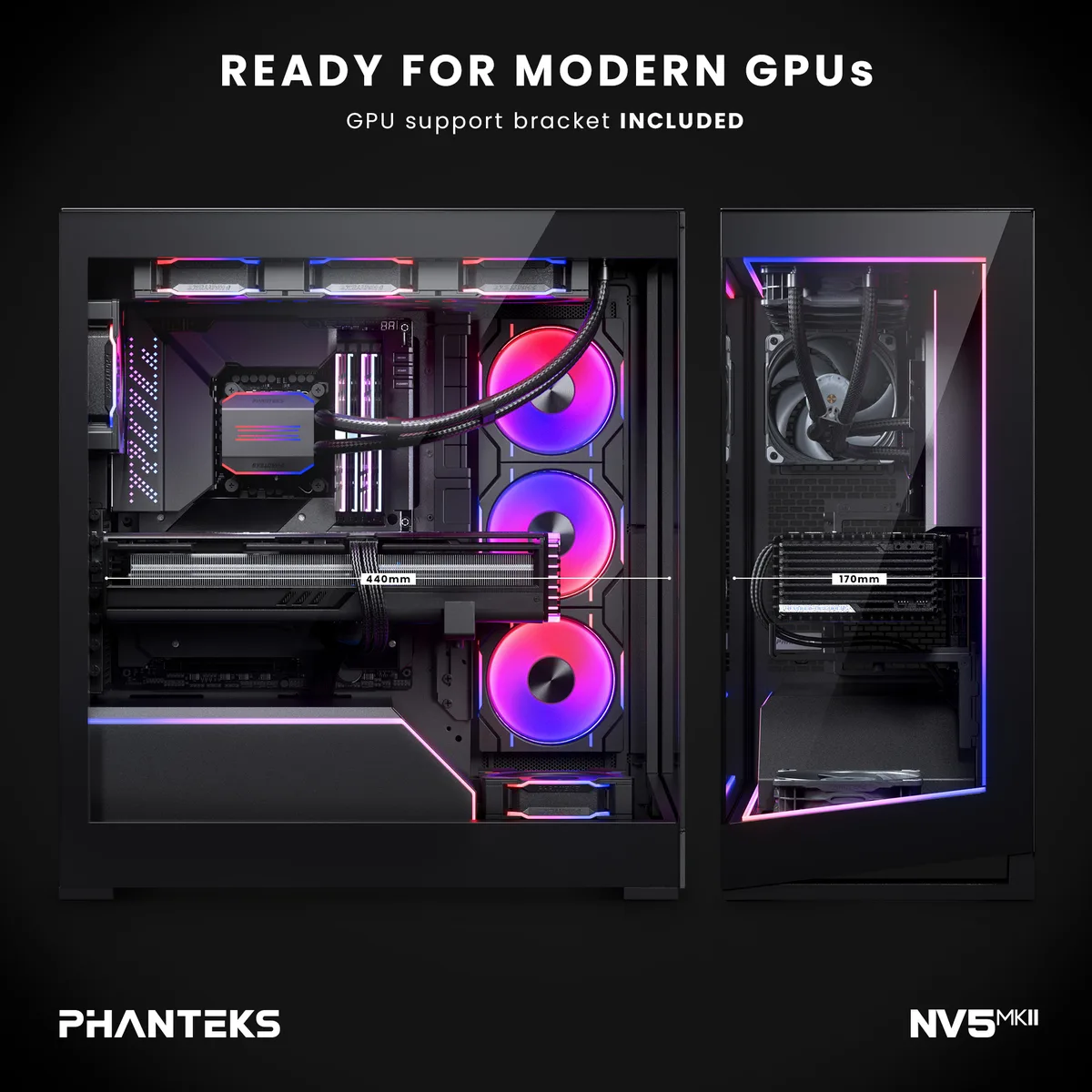

440 mm maximum GPU length

The 440 mm GPU clearance is the critical dimension for component selection. It determines whether a specific graphics card fits without interfering with side-mounted radiators or cables. Verify your card length against this limit before purchase.

Highlights

  • Showcase your build with near-seamless front and side tempered glass panels
  • Build a zero-cable system using rear-connect ATX motherboard support
  • Fit wide graphics cards up to 440 mm length and 170 mm width
  • Install dual 360 mm radiators in top and side positions for water cooling
  • Sync integrated D-RGB lighting on the PSU cover with your motherboard

Specifications

BrandPhanteks
ModelNV5 MK2
Part NumberPH-NV523TG_DBK02
TypeATX Mid Tower
ColorBlack
Case MaterialSteel / Tempered Glass
With Power SupplyNo
Motherboard CompatibilityATX, Rear-Connect ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket)
Side PanelFront and Side Tempered Glass
LEDRGB
Internal 3.5" Drive Bays3
Internal 2.5" Drive Bays4
Expansion Slots7
Front Ports2 x USB 3.0, USB-C Gen 2, 1 x Audio
Fan OptionsBottom - 1 x 120mm / Rear - 1 x 120mm / Side - 3 x 120mm / Top - 3 x 120mm
Pre-installed FansNo Fan Installed
Radiator OptionsRear - Up to 120mm / Side - Up to 360mm / Top - Up to 360mm
Max GPU Length440 mm Length, 170 mm Width
Max CPU Cooler Height180 mm
Max PSU Length230 mm
Dimensions239 x 477 x 528 mm / 9.4 x 18.8 x 20.8 in
Weight11.28 kg / 24.9 lbs.
Package ContentNV5 Chassis
1 x D-RGB Controller
1 x Storage Door
1 x GPU Support Bracket
Accessory Box
6 x Zip ties
22 x MB/SSD Screw
4 x Thumb Screw
12 x HDD+Case Screw
1 x Standoff Removal Tool
1 x MB stand-off
4 x PSU Screw
Shipping weight13.18 kg
Package size635 × 575 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How wide a graphics card fits before the 170 mm limit blocks installation?

The case accepts GPUs up to 440 mm long and 170 mm wide, so any card narrower than 170 mm clears the interior without modification.

Does the integrated D-RGB controller add audible noise or extra heat during continuous operation?

The built-in D-RGB controller is passive and produces no fan noise or measurable heat; only the fans you install generate airflow sound.

Which motherboard form factors work with the rear-connect layout without extra brackets?

ATX, micro-ATX, mini-ITX and E-ATX boards up to 280 mm wide are supported natively for rear-connect builds.
