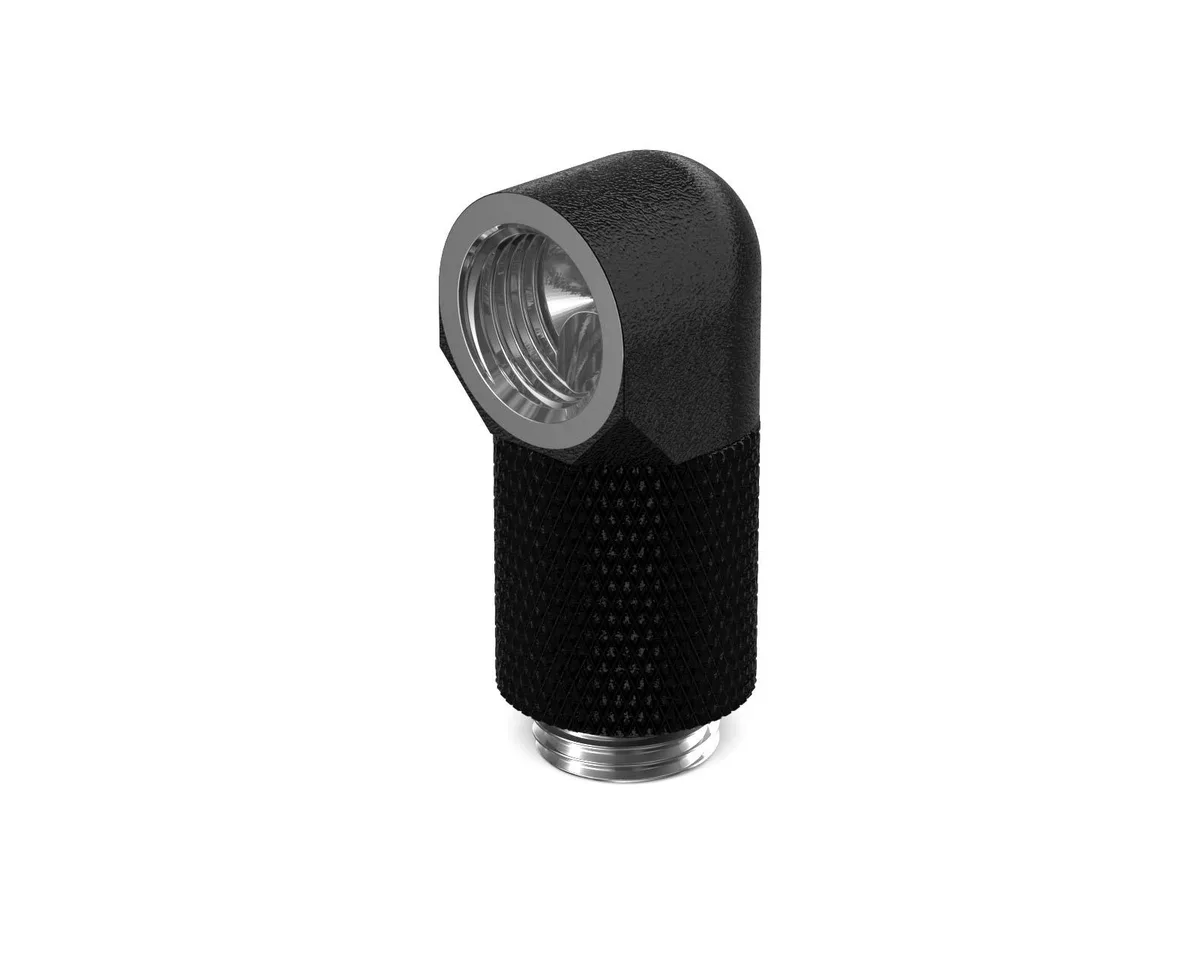

Matte black brass 90-degree rotary elbow fitting with 20mm extension

PrimoChill

PrimoChill G1/4 90° Rotary 20mm Extension Elbow Fitting TX Matte Black

SKU CH-CGEZ-8AR10

A G1/4 90-degree rotary elbow with 20mm extension and 360-degree adjustment for tight-loop routing

  • TypeFittings

Option TX Matte Black

Show 9 more configurations

Struck-through versions exist but are not stocked here.

  • 360° rotary lets you aim the fitting in any direction
  • 90° elbow redirects tubing runs around tight component layouts
  • 20 mm extension adds clearance for a cleaner loop fit
  • G1/4 male-to-female threads connect standard water-cooling parts
  • Brass body with matte black TX powder coat resists corrosion

G1/4 90° Rotary Extension Fitting

The PrimoChill G1/4 90° rotary extension elbow fitting provides a 20mm offset for custom water-cooling loops. Its male-to-female G1/4 thread design redirects tubing runs away from components at unconventional angles. The 360-degree rotary function allows precise alignment of the outlet in any direction. It suits builders needing flexible routing in tight spaces.

360° Rotary Clearance Solution

This fitting replaces rigid 90-degree elbows that lock orientation during installation. The rotary joint lets you set the final angle after the base is seated, avoiding stress on tubing or blocks. The 20mm installed base height adds clearance when components sit close to the port. The jump is worth it when a fixed elbow would force a sharp bend or collision.

Check Thread Depth And Loop Layout

Verify that the 5mm thread depth matches the female port on your block, radiator or reservoir. Ensure the 43mm total height clears surrounding hardware once installed. Confirm the G1/4 thread standard matches every component in the loop. The fitting is not for builds requiring straight couplers or angled adapters without rotary adjustment.

Highlights

  • 360° rotary lets you aim the fitting in any direction
  • 90° elbow redirects tubing runs around tight component layouts
  • 20 mm extension adds clearance for a cleaner loop fit
  • G1/4 male-to-female threads connect standard water-cooling parts
  • Brass body with matte black TX powder coat resists corrosion

Specifications

TypeFittings

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the G1/4 90° rotary elbow with its 20 mm extension clear my GPU back-plate?

The installed base height is 20 mm and total height is 43 mm, so measure from the port face to the obstruction; if the gap exceeds 43 mm the fitting will fit.

How do I orient the 360° rotary joint correctly during install?

Thread the male G1/4 end into the component, then rotate the female elbow to the desired 90° angle before tightening the locking collar; skipping the collar tightening lets the joint shift under pressure.

When should I replace the O-rings on this brass fitting?

Inspect the O-rings whenever the loop is drained; replace them if they show flattening, cracking or loss of elasticity to maintain a leak-free seal.
