Orange brass 90 degree rotary elbow fitting with 20mm extension

PrimoChill

PrimoChill G1/4 90° Rotary 20mm Extension Elbow Fitting UV Orange

SKU CH-K6NH-M17BG

A G1/4 90-degree rotary elbow with 20mm extension and 360-degree swivel for tight tubing routes

  • TypeFittings

Option UV Orange

Show 9 more configurations

Struck-through versions exist but are not stocked here.

  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 20 mm extension adds clearance when nearby parts block a straight fit

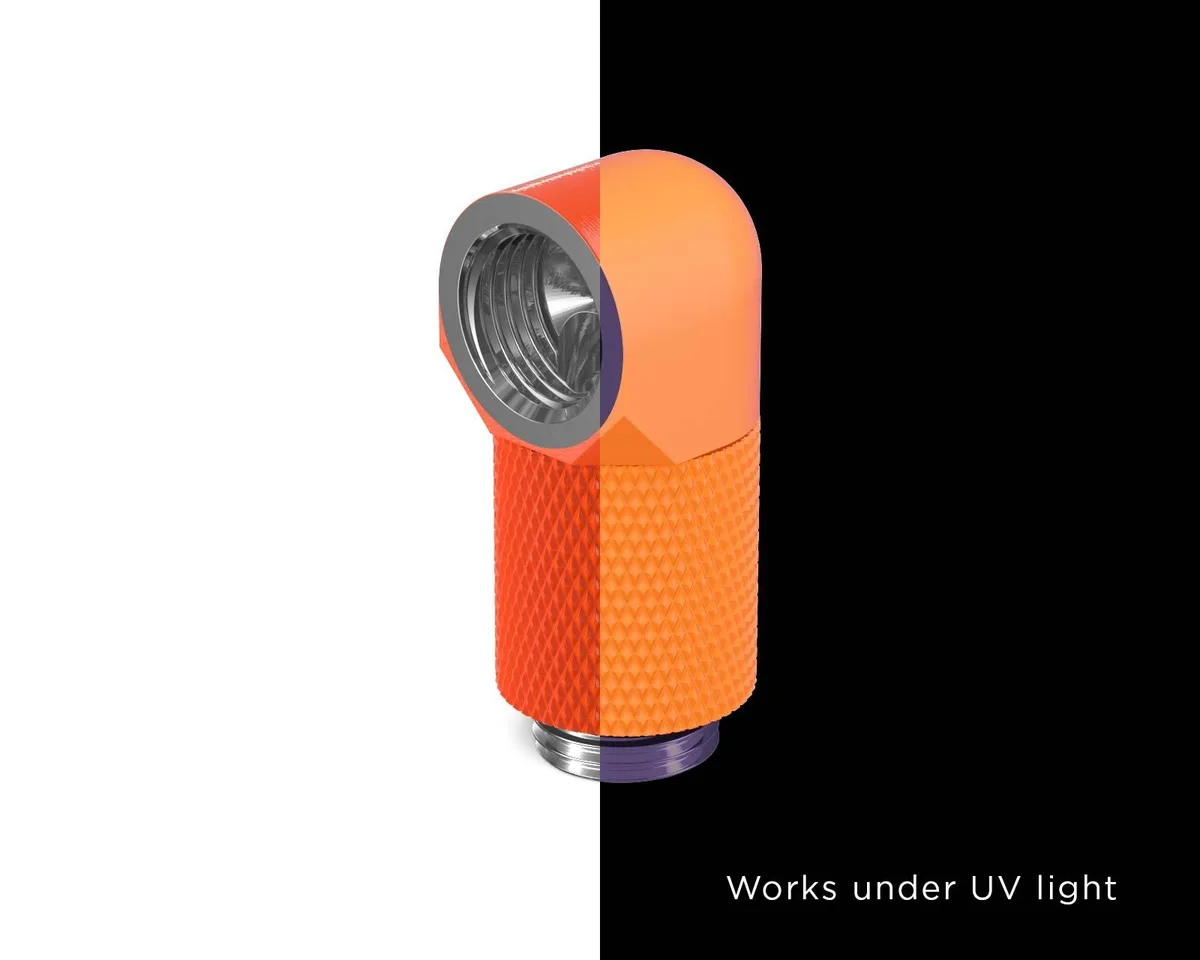

  • UV orange SX powder-coated finish resists wear and glows under UV light

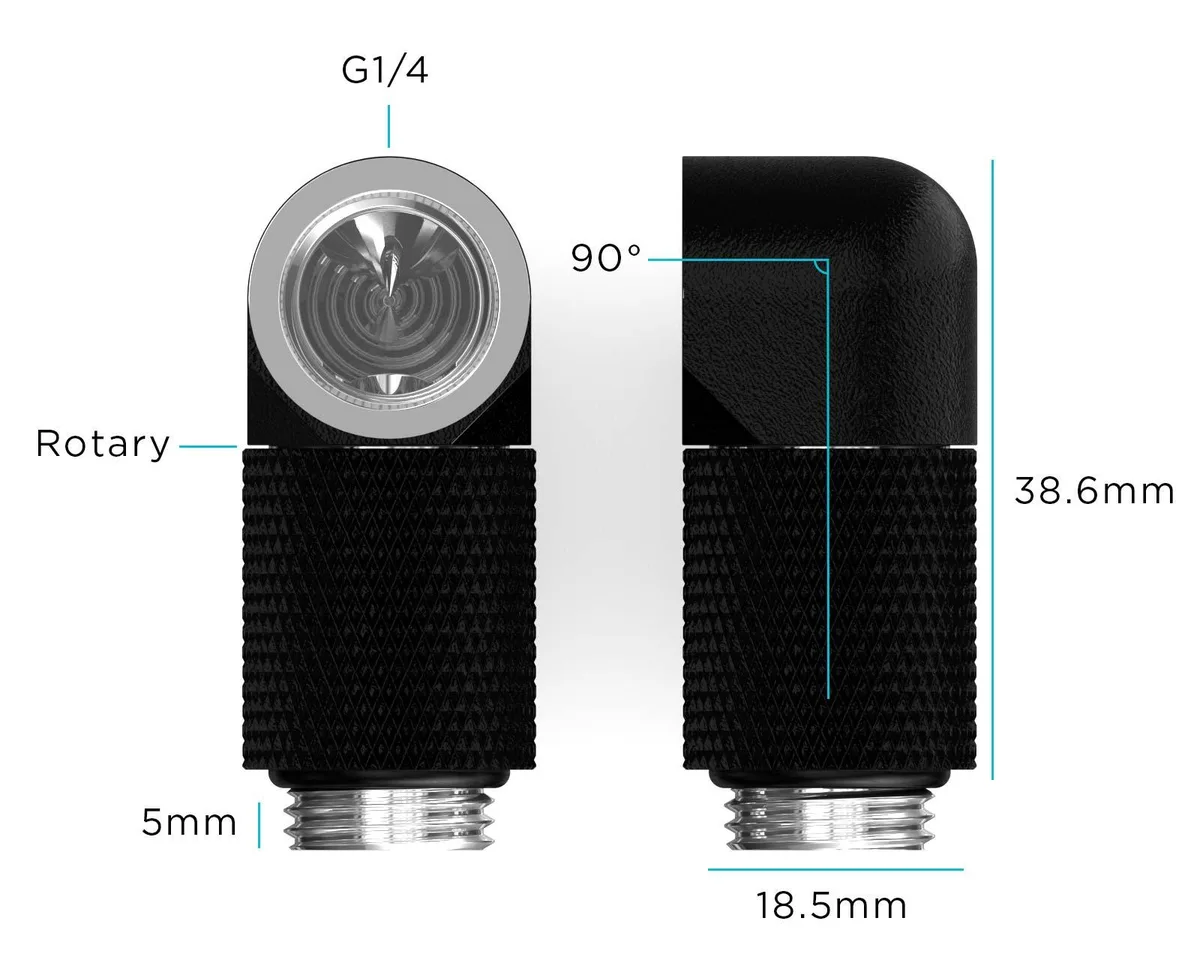

  • Solid brass construction with G1/4 threads installs at 43 mm total height

Loop Redirect Fitting

The PrimoChill G1/4 90° rotary elbow fitting lets you change tubing direction quickly inside a custom liquid-cooling loop. Its 20 mm extension adds clearance when components sit close to the port. The 360 degree rotary joint allows the outlet to be aimed in any orientation perpendicular to the mount. UV orange powder coating provides a visible accent under UV light.

Thread Compatibility Check

Verify that the component you are connecting to uses a standard G1/4 thread before ordering. The male end threads 5 mm deep into the port, leaving a 20 mm installed base height. Ensure surrounding parts allow the total 43 mm height once the fitting is seated. No additional seals or adapters are included in the package.

Thermal And Power Notes

This passive brass fitting adds no active heat, noise or electrical draw to the system. It simply routes coolant through a 90 degree bend without restricting flow. The powder-coated finish resists corrosion during normal loop operation. Handle with care to avoid cross-threading the G1/4 threads during installation.

Highlights

  • 360° rotary lets you aim the connection in any direction
  • 90° elbow redirects tubing runs away from components at unconventional angles
  • 20 mm extension adds clearance when nearby parts block a straight fit
  • UV orange SX powder-coated finish resists wear and glows under UV light
  • Solid brass construction with G1/4 threads installs at 43 mm total height

Specifications

TypeFittings

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the package and do I need any extra fittings or tubing?

The box contains one male-to-female G1/4 90° rotary 20 mm extension elbow fitting. You will still need G1/4 tubing or compression fittings to complete the loop.

How do I choose between the different lengths or colours?

This model is offered in UV orange with a 20 mm installed base height and 43 mm total height; other lengths or colours would be separate SKUs.

What does the 360° rotary spec mean once the fitting is installed in my loop?

After tightening, the elbow can still swivel freely through 360°, letting you point the outlet in any direction without re-torquing the threads.
