Rectangular rack tower UPS, dark metal finish, front display panel, 27 by 17 by 32 inches

Vertiv

Vertiv AL5C0NHWGNNXLKB UPS 15kVA 13.5kW 208/120V 8min Lithium Ion

SKU CH-ATM4-SBM6X MPN AL5C0NHWGNNXLKB

A 15kVA double-conversion UPS with lithium-ion battery delivering 8 minutes runtime at full load and hot-swappable modules for uninterrupted maintenance

  • International Version208V
  • Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection4-Wire (L-L-N-G)
  • VA Rating15kVA
  • Watts13.5kW

Option AL5C0NHWGNNXLKB

Show 16 more configurations
  • 15 kVA / 13.5 kW double-conversion online power protection
  • 8 minutes runtime at full load with lithium-ion battery
  • Hot-swappable power, battery and control modules for zero-downtime maintenance
  • 208/120 VAC output configurable for 50 Hz or 60 Hz environments
  • Operates 0 °C to 40 °C with up to 95 % non-condensing humidity

15 kVA Lithium-Ion UPS for Critical Loads

The Vertiv Liebert AL5C0NHWGNNXLKB is a 15 kVA, 13.5 kW online double-conversion UPS designed for three-phase 208/120 V environments. It targets data-centre racks and industrial equipment that require continuous, clean power with zero transfer time during utility disturbances.

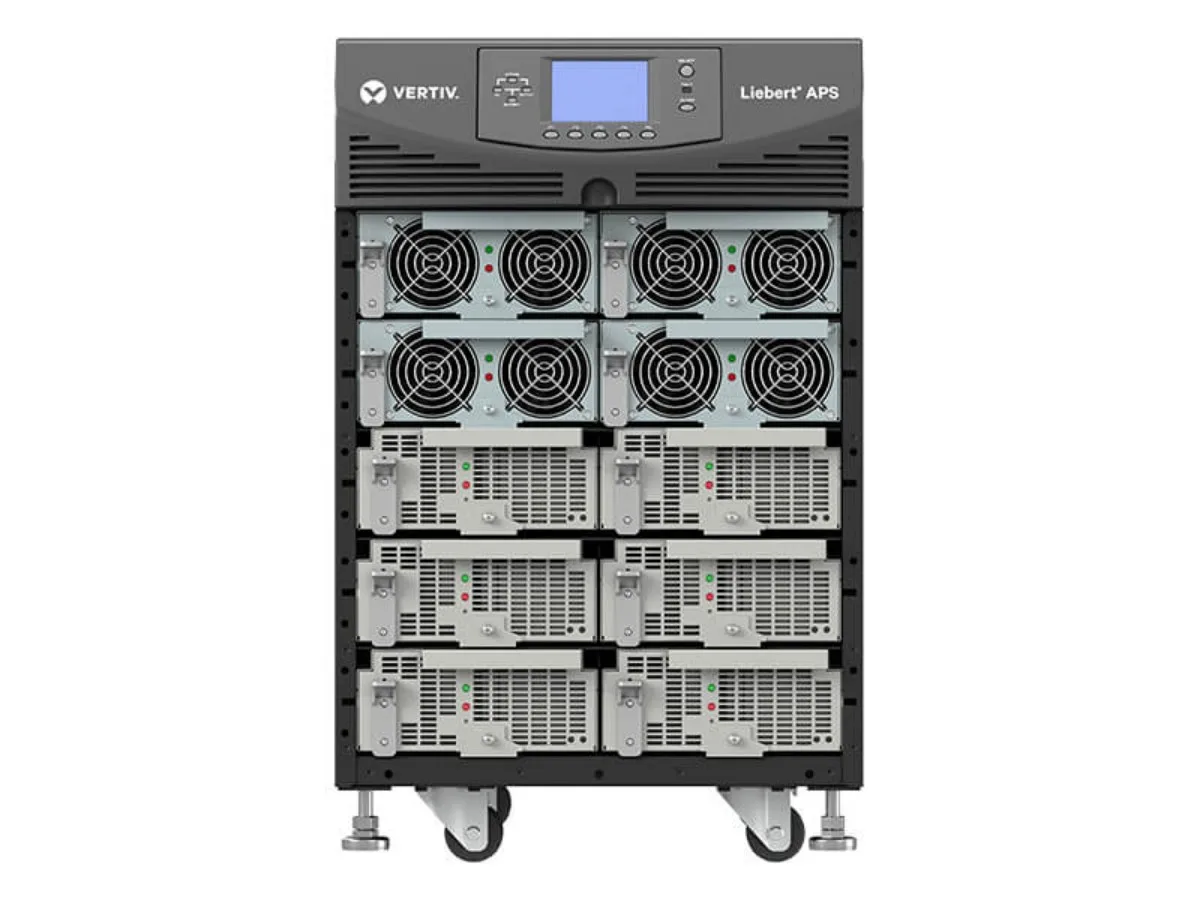

Hot-Swappable Modules and Flexible Input

Power, battery and control modules can be replaced without interrupting connected loads, simplifying scheduled maintenance. The 4-wire L-L-N-G input accepts 200/100, 208/120, 220/110, 230/115 or 240/120 VAC at 40 Hz to 70 Hz auto-sensing, matching diverse global supplies.

Lithium-Ion Runtime and Thermal Range

Lithium-ion cells deliver 8 minutes at full load and 18 minutes at half load while operating from 0 °C to 40 °C in 0–95 % non-condensing humidity. Output frequency defaults to 60 Hz and is user-configurable to 50 Hz for regional compatibility.

Highlights

  • 15 kVA / 13.5 kW double-conversion online power protection
  • 8 minutes runtime at full load with lithium-ion battery
  • Hot-swappable power, battery and control modules for zero-downtime maintenance
  • 208/120 VAC output configurable for 50 Hz or 60 Hz environments
  • Operates 0 °C to 40 °C with up to 95 % non-condensing humidity

Specifications

BrandVertiv
SeriesLiebert
ModelAL5C0NHWGNNXLKB
International Version208V
Input Voltage Range200/100, 208/120, 220/110, 230/115, 240/120 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection4-Wire (L-L-N-G)
VA Rating15kVA
Watts13.5kW
Output Voltage200/100, 208/120, 220/110, 230/115, 240/120 VAC
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeLithium Ion
Battery Run TimeFull Load: 8 mins.
Half Load: 18 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions27" x 17" x 32"
Weight403 lbs.
Shipping weight182.80 kg
Package size813 × 686 × 432 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What 4-wire input connection does the AL5C0NHWGNNXLKB require and what voltage range does it support?

The unit uses a 4-wire L-L-N-G input connection and accepts 200/100, 208/120, 220/110, 230/115 or 240/120 VAC at 40 to 70 Hz auto-sensing.

What are the exact dimensions and weight for rack or tower mounting of the AL5C0NHWGNNXLKB?

The chassis measures 27 inches wide, 17 inches deep and 32 inches high and weighs 403 lbs in either rack or tower orientation.

How are the hot-swappable power, battery and control modules installed in the AL5C0NHWGNNXLKB and what step is commonly missed?

Slide each module into the front bays until the latch clicks; the step often missed is verifying the latch is fully engaged so the module makes firm contact with the backplane.
