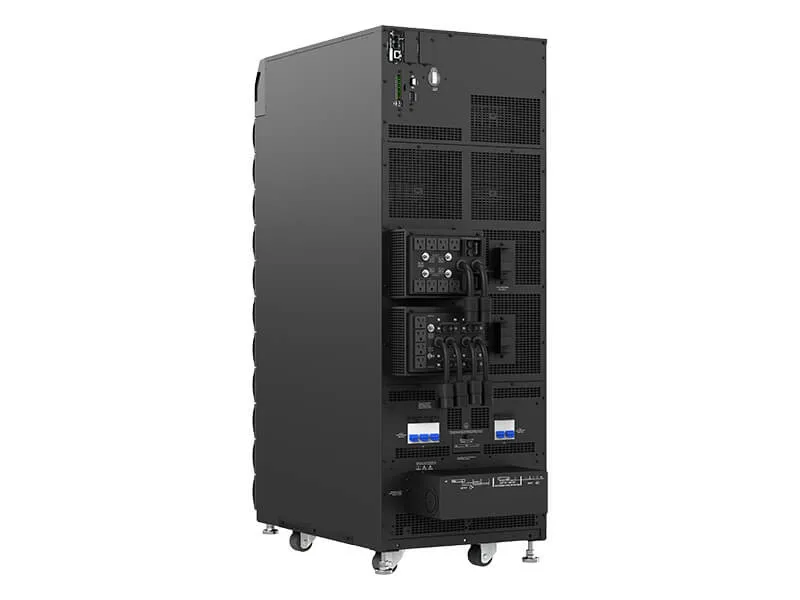

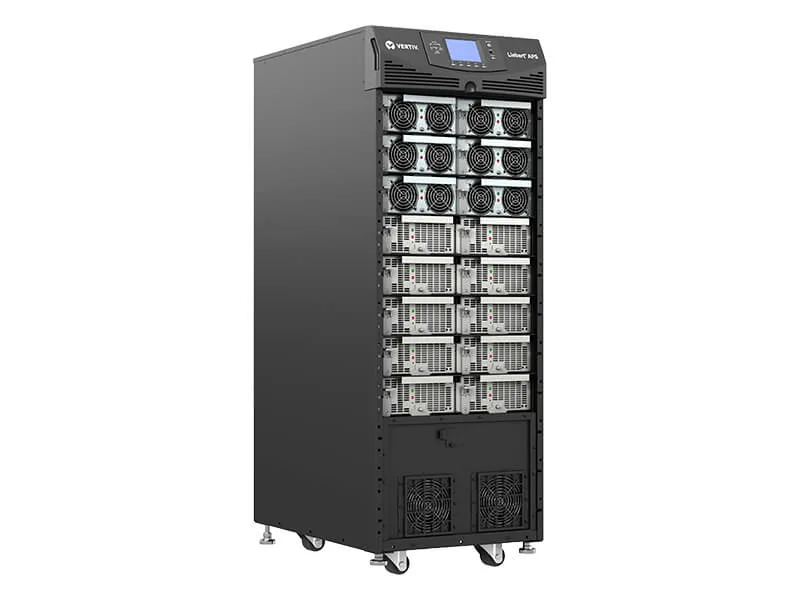

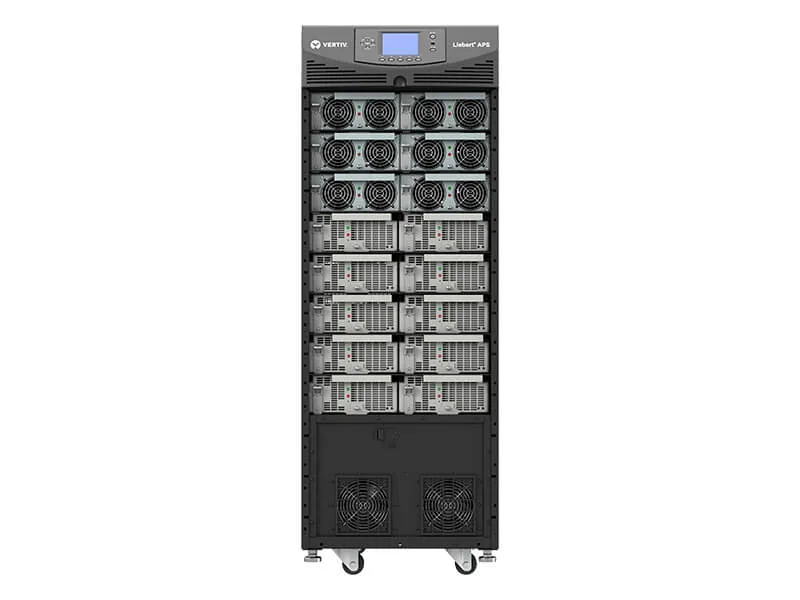

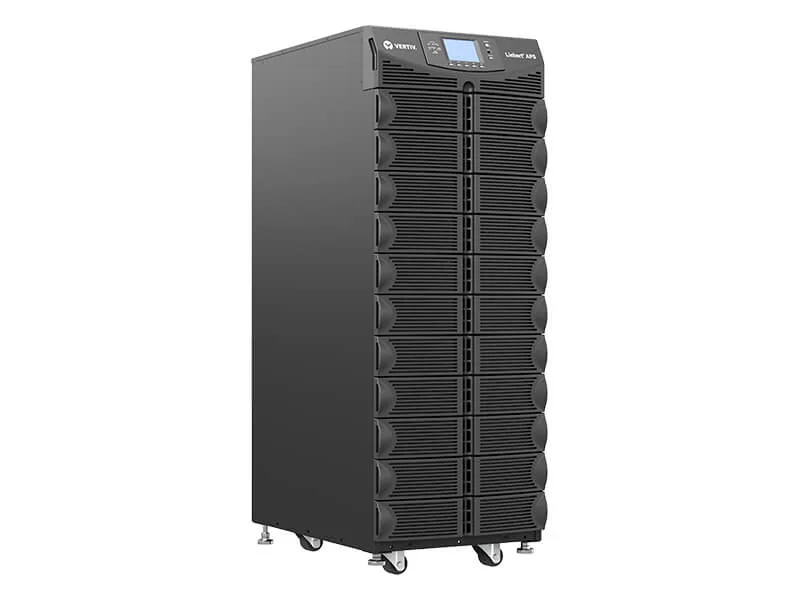

Tall black rack tower UPS with LCD display, 49 by 17 by 34 inches

Vertiv

Vertiv AS4B0NCVGNNXLKB UPS 10kVA 9kW 208V 5min runtime

SKU CH-T1WZ-N1Y4D MPN AS4B0NCVGNNXLKB

Scalable 10 kVA online double-conversion UPS delivers 9 kW with 5 minutes full-load runtime and 14 minutes at half load

  • International Version208V
  • Input Voltage Range200/208/220/230/240 VAC
  • Input Frequency40 Hz to 70 Hz auto-sensing
  • Input Connection3-Wire (L-L-G)
  • VA Rating10 kVA
  • Watts9 kW

Option AS4B0NCVGNNXLKB

Show 16 more configurations

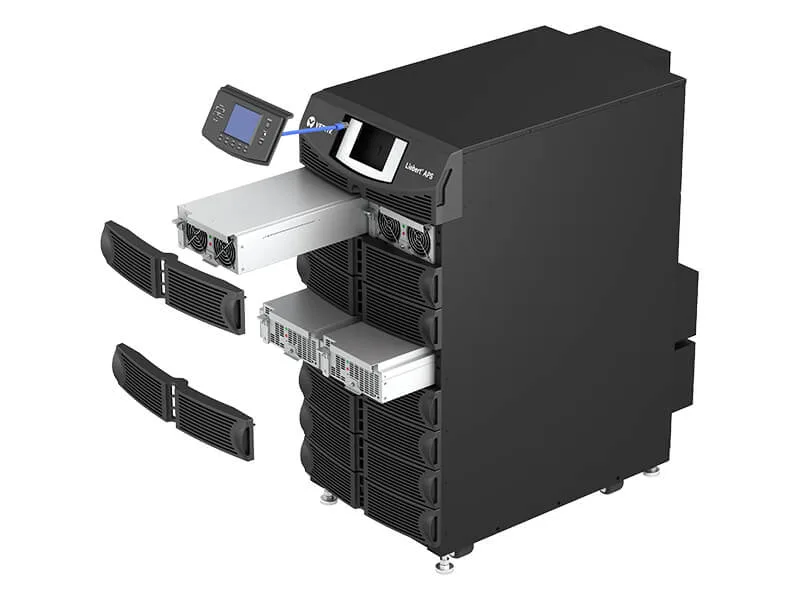

  • Scalable to 20 kVA N+1 for growing power needs
  • Online double conversion protects critical equipment from all power disturbances
  • 5 minutes full-load runtime keeps systems running during short outages
  • Factory-installed SNMP/Webcard enables immediate remote monitoring
  • Rack/tower form factor fits 17" racks or stands alone

10 kVA Online Double-Conversion UPS

The Vertiv Liebert AS4B0NCVGNNXLKB delivers 10 kVA and 9 kW of continuous power through online double-conversion topology. It accepts 200 to 240 VAC input across a 40 Hz to 70 Hz range and provides user-configurable 50 or 60 Hz output. The unit is designed for rack or tower deployment in critical infrastructure environments.

Factory-Installed SNMP Webcard

A factory-fitted SNMP webcard enables remote monitoring and management over the network without additional modules. An internal step-down transformer supports 208 V international operation from the listed input voltages. The LCD status display presents real-time operational data at the unit.

Five-Minute Full-Load Runtime

Valve-regulated lead-acid batteries provide 5 minutes of runtime at full 9 kW load and 14 minutes at half load. The system scales to 20 kVA in an N+1 redundant configuration for future capacity growth. Operating limits are 32 °F to 104 °F and 0 to 95 % non-condensing humidity. Buyers needing extended runtime beyond 15 minutes at half load or higher power density without adding cabinets cannot meet those requirements with this unit alone.

Highlights

  • Scalable to 20 kVA N+1 for growing power needs
  • Online double conversion protects critical equipment from all power disturbances
  • 5 minutes full-load runtime keeps systems running during short outages
  • Factory-installed SNMP/Webcard enables immediate remote monitoring
  • Rack/tower form factor fits 17" racks or stands alone

Specifications

BrandVertiv
SeriesLiebert
ModelAS4B0NCVGNNXLKB
International Version208V
Input Voltage Range200/208/220/230/240 VAC
Input Frequency40 Hz to 70 Hz auto-sensing
Input Connection3-Wire (L-L-G)
VA Rating10 kVA
Watts9 kW
Output Frequency60Hz default; 50/60Hz user-configurable
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5 mins.
Half Load: 14 mins.
TemperatureOperating temperature: 32°F - 104°F (0°C - 40°C)
Humidity0 - 95%, non-condensing
Dimensions49" x 17" x 34"
Weight730 lbs.
Shipping weight331.12 kg
Package size1245 × 1245 × 432 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the valve regulated lead acid batteries need replacement?

Valve regulated lead acid batteries typically require replacement every three to five years depending on temperature and discharge cycles

What limits continuous operation at full 9 kW load?

The internal battery provides only five minutes at full load before shutdown

How much heat does the 730 lb unit reject when running all day?

Operating temperature range is 32°F to 104°F so the unit rejects significant heat within that envelope
